| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB4 |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Operators description | white unmarked - black unmarked |
| Type of operator | spring return |
| Range of product | Harmony XB4 |
| Bezel material | chromium plated metal |
| Operator profile | 2 flush push-buttons |
| Shape of signaling unit head | rectangular |

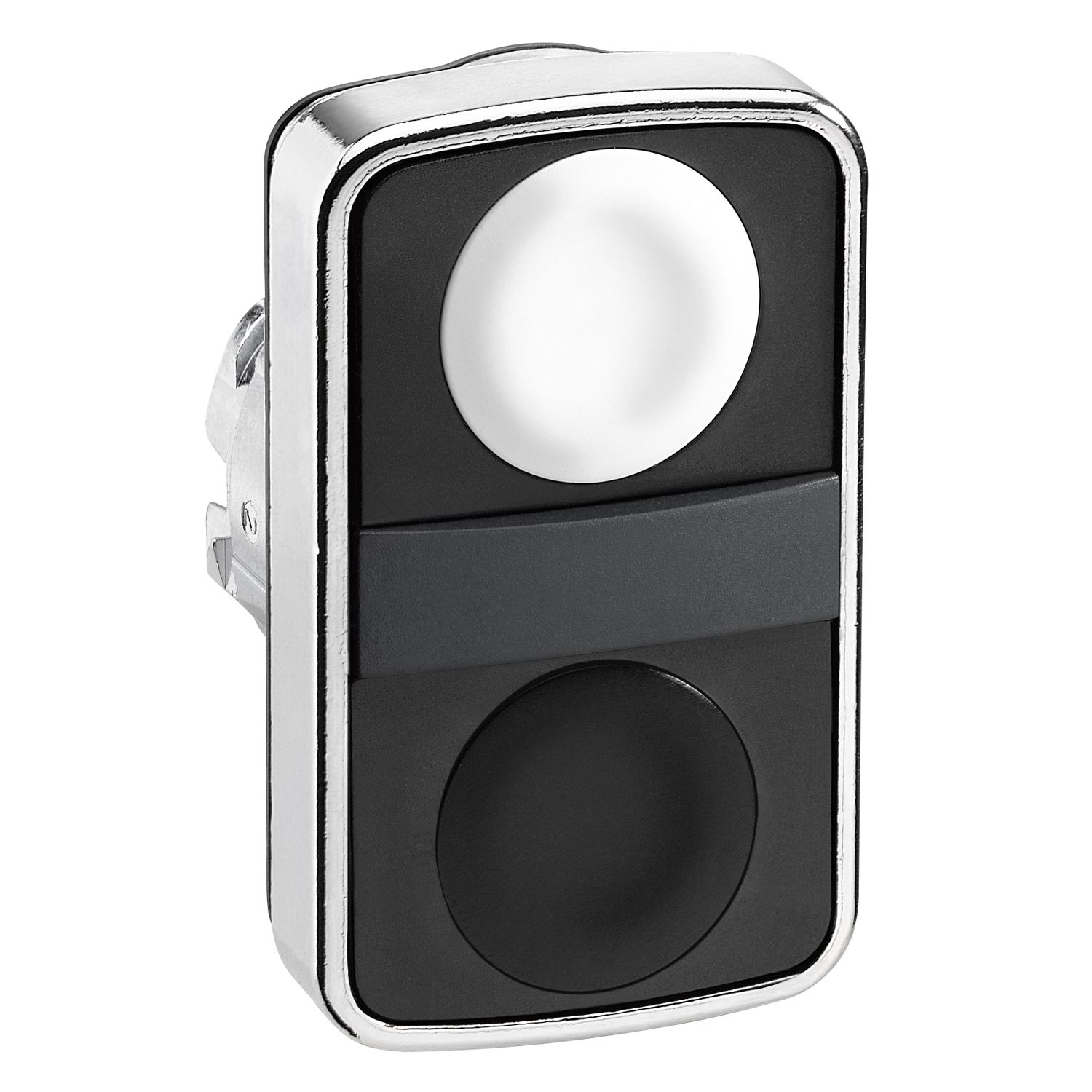

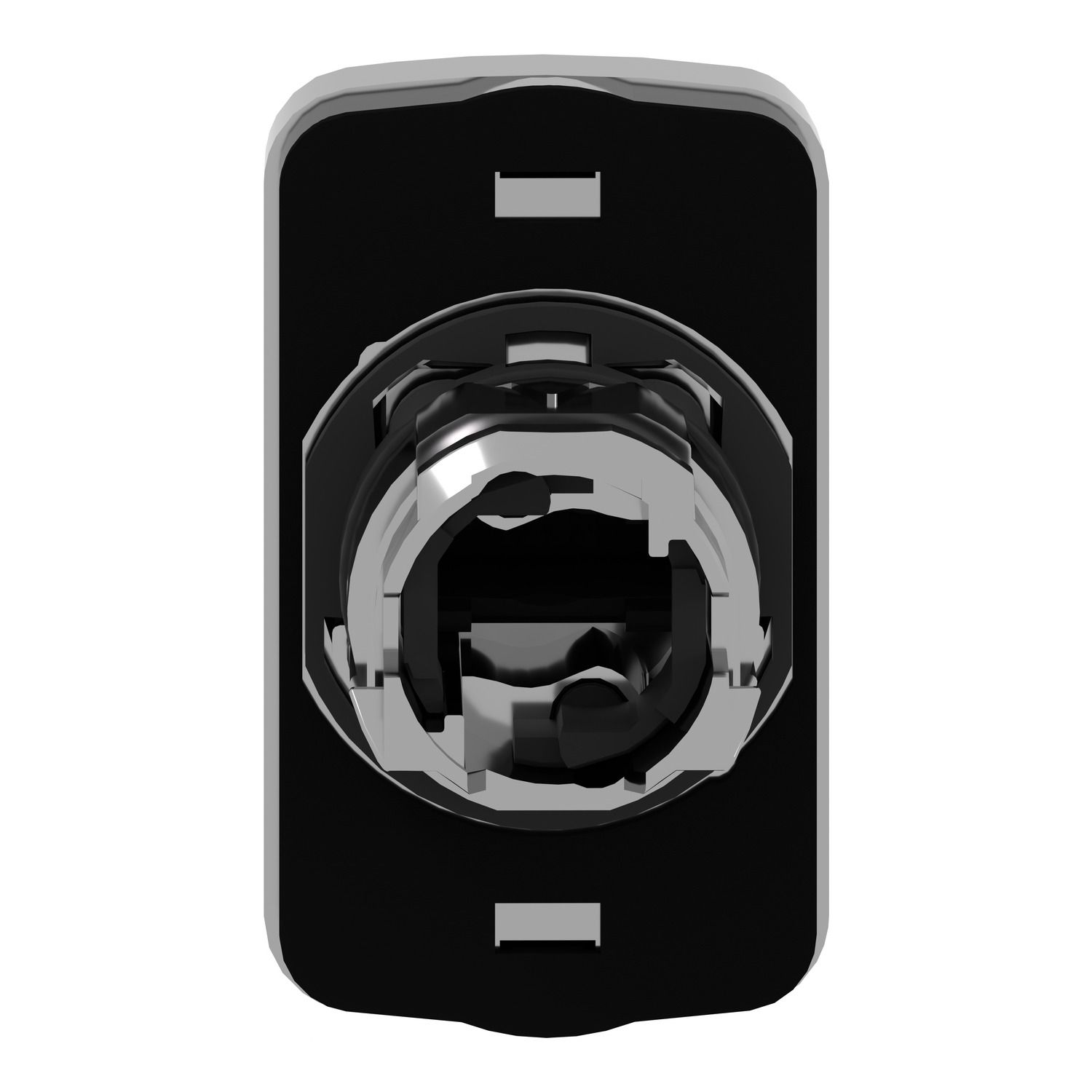

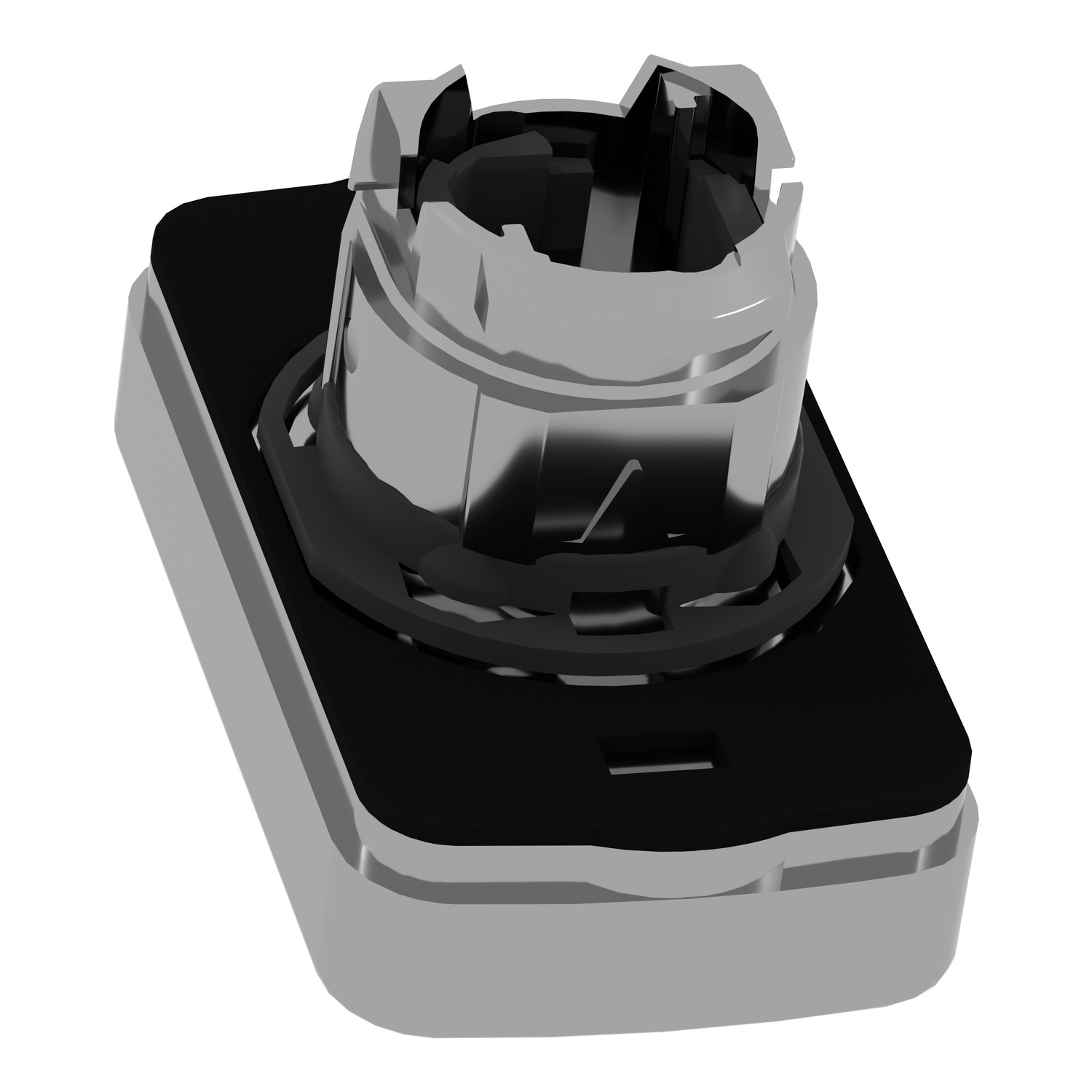

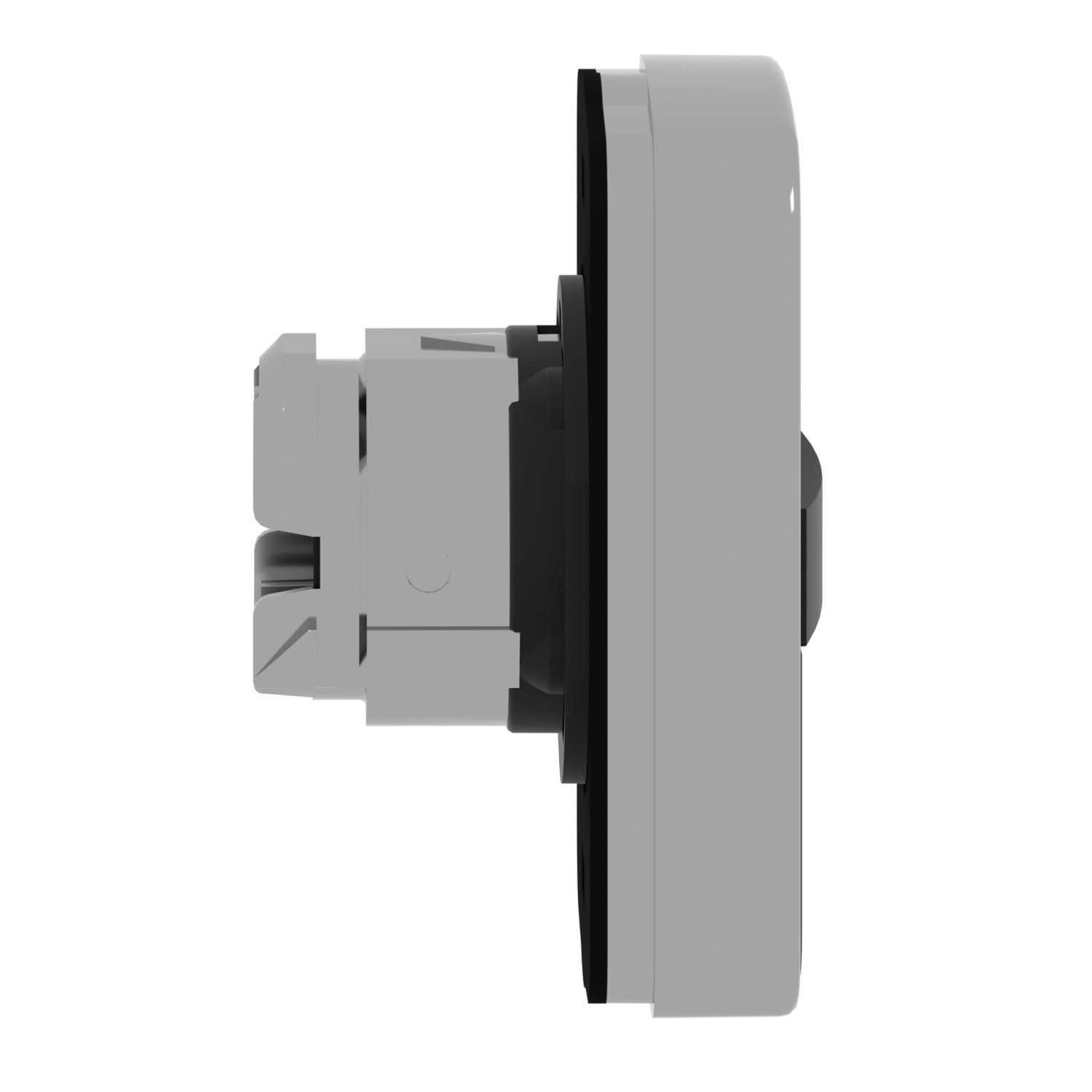

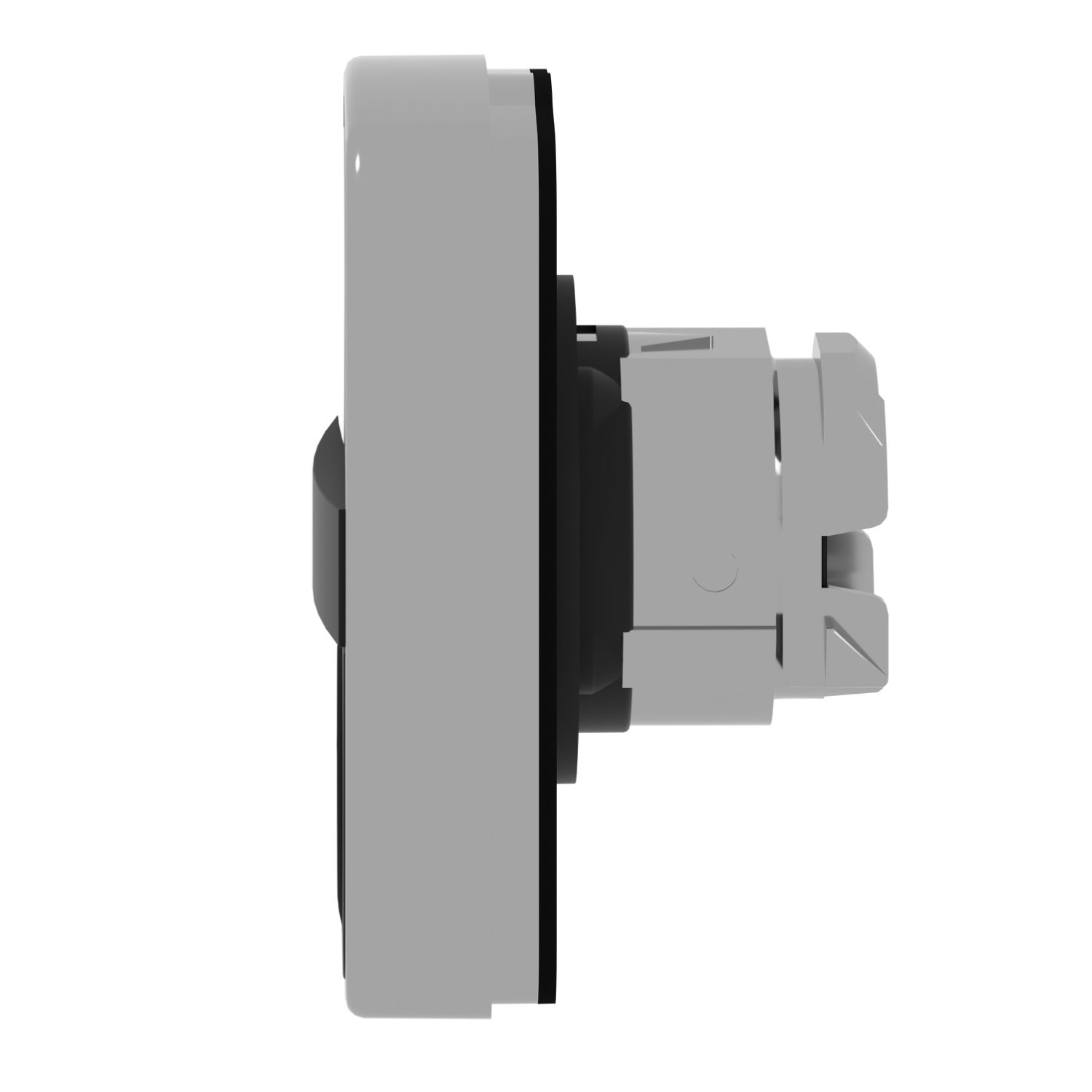

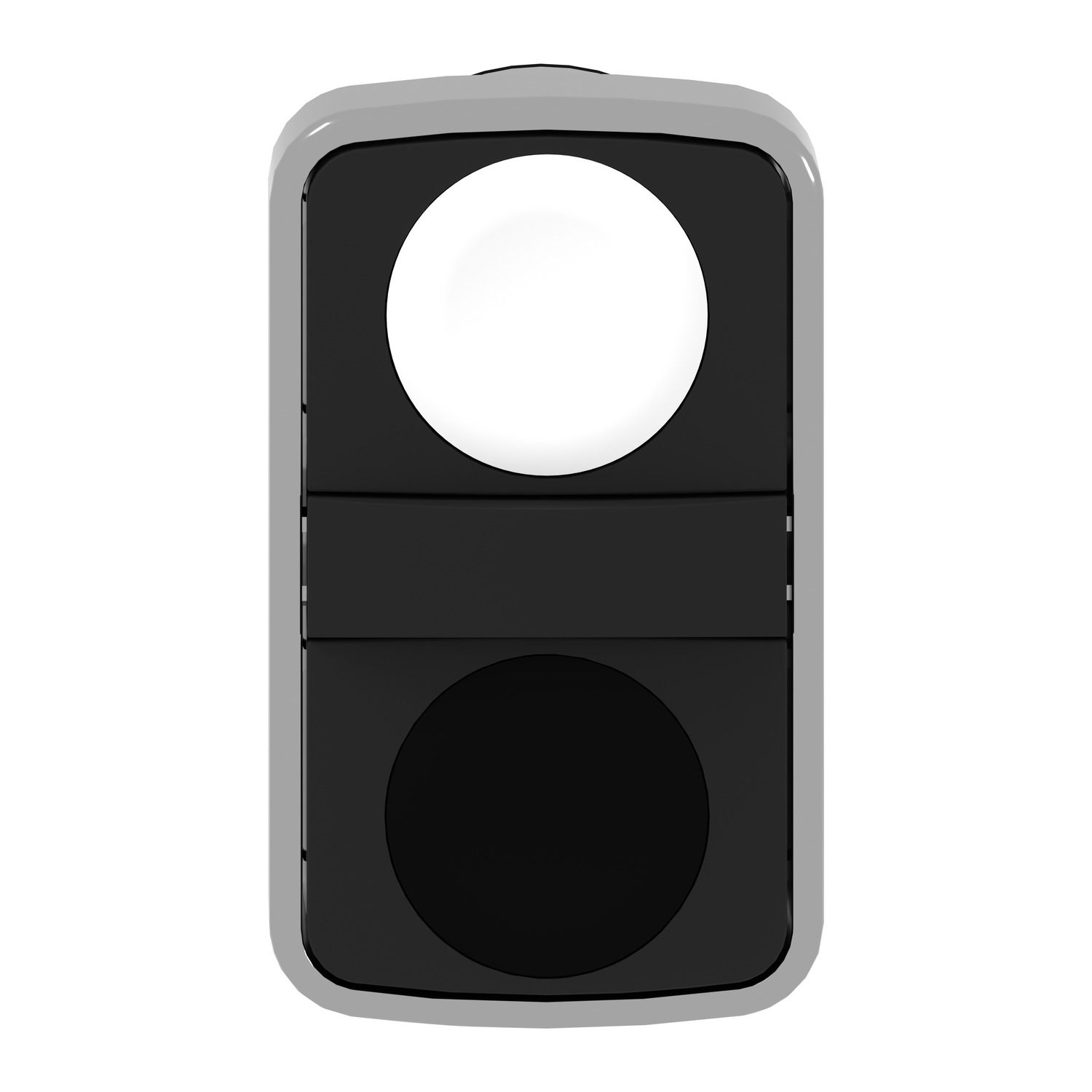

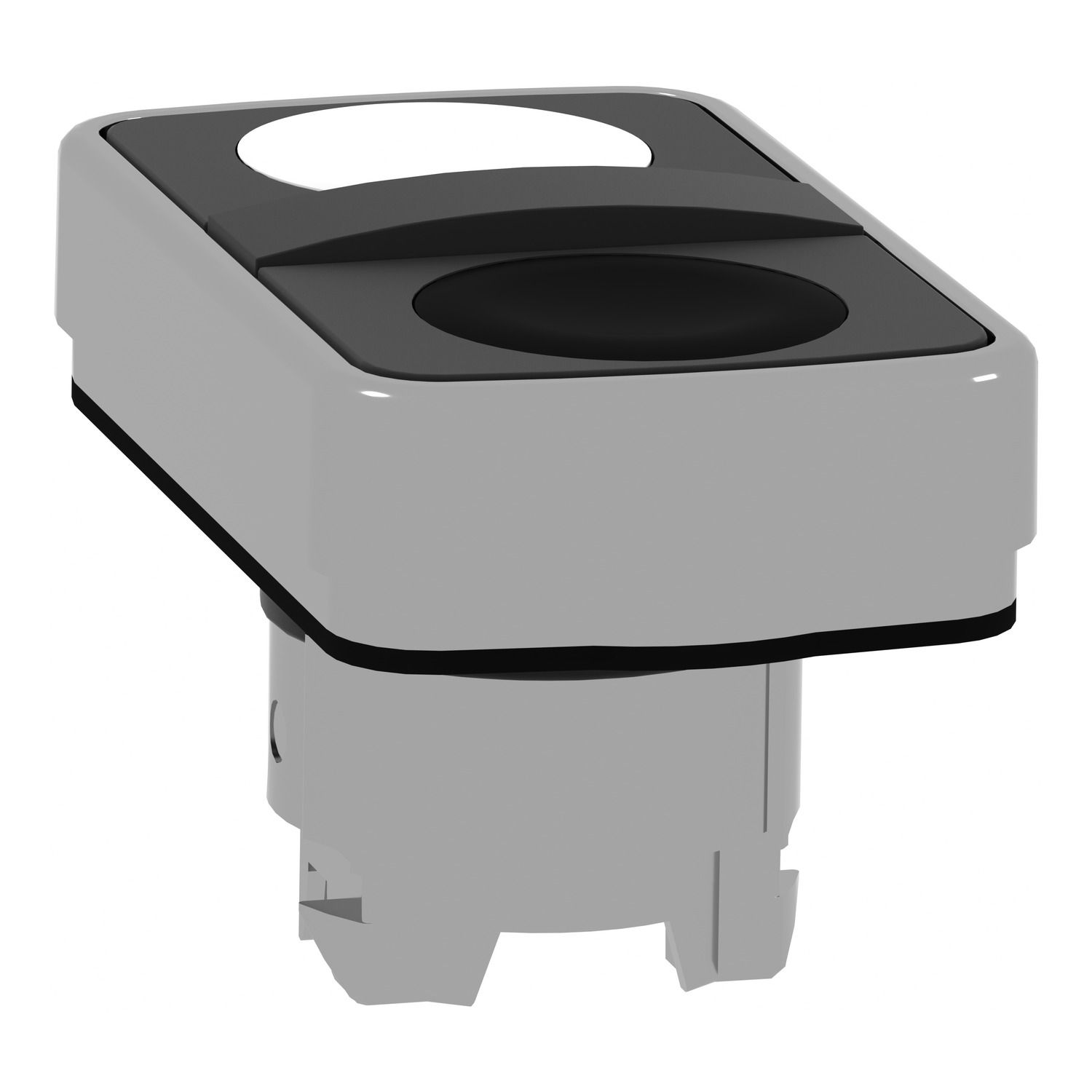

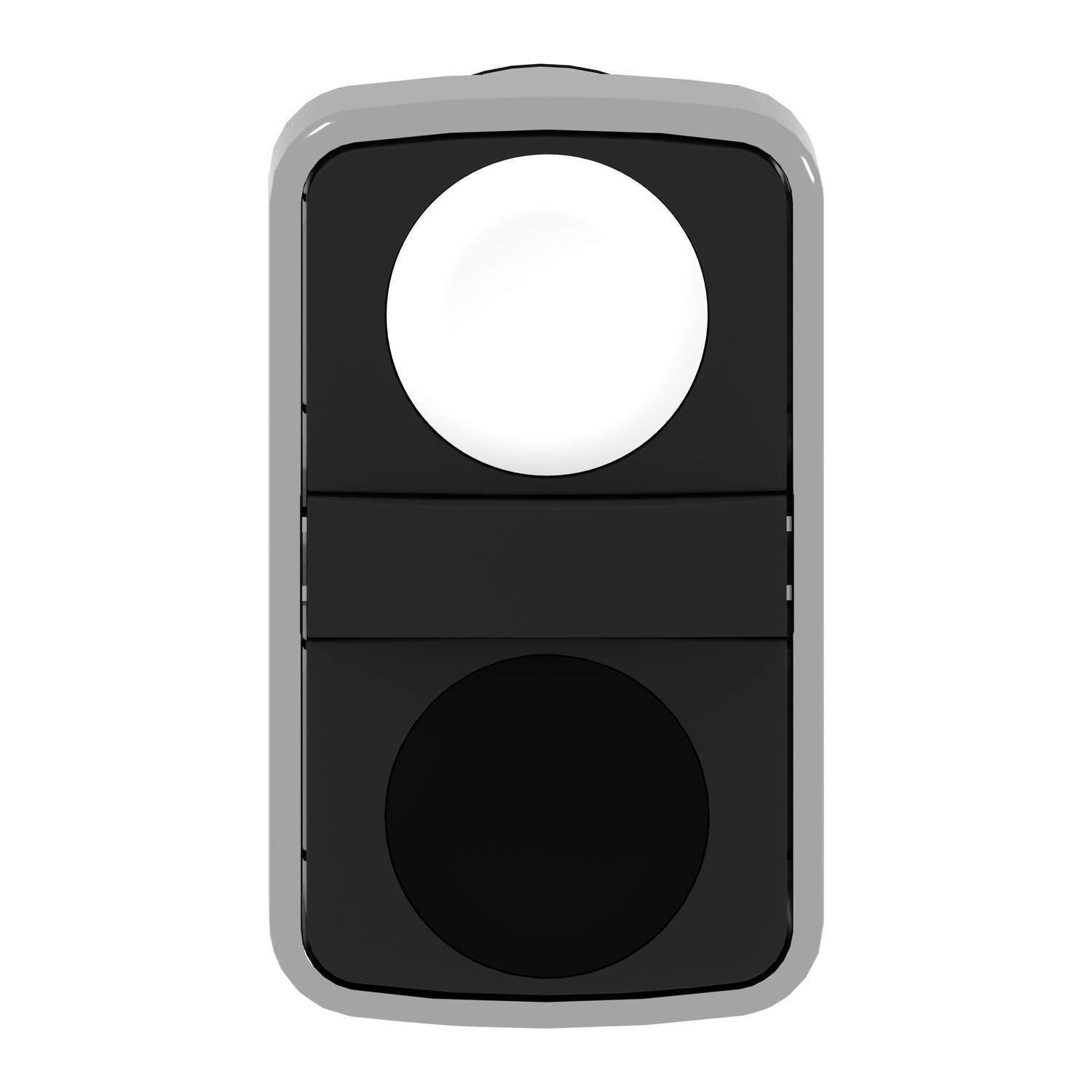

| Product or component type | head for double-headed push-button |
| Mounting diameter | 22 mm |
| Complementary | |
| Group of product | flush/flush unmarked |
| Compatibility code | ZB4 |
| Mechanical durability | 1000000 cycles |
| Device presentation | basic element |
| Customizable | 0, no |
| Electrical composition code | C14 for <2 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting |
| Main group | double head |
| Marking | unmarked |
| Operator profile | white flush, unmarked, black flush, unmarked |
| Cap/operator or lens colour | white/black |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Net weight | 0.056 kg |
| Colour of marking | black marking when white caps, white marking when green, red or black caps |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69 conforming to IEC 60529, IP67 conforming to IEC 60529 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Electrical shock protection class | class I conforming to IEC 60536 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, CSA C22.2 No 14, IEC 60947-5-4, UL 508, IEC 60947-5-5, JIS C8201-5-1, IEC 60947-5-1, IEC 60947-1 |
| Product certifications | BV, GL, CSA, UL listed, DNV, LROS (Lloyds register of shipping) |
