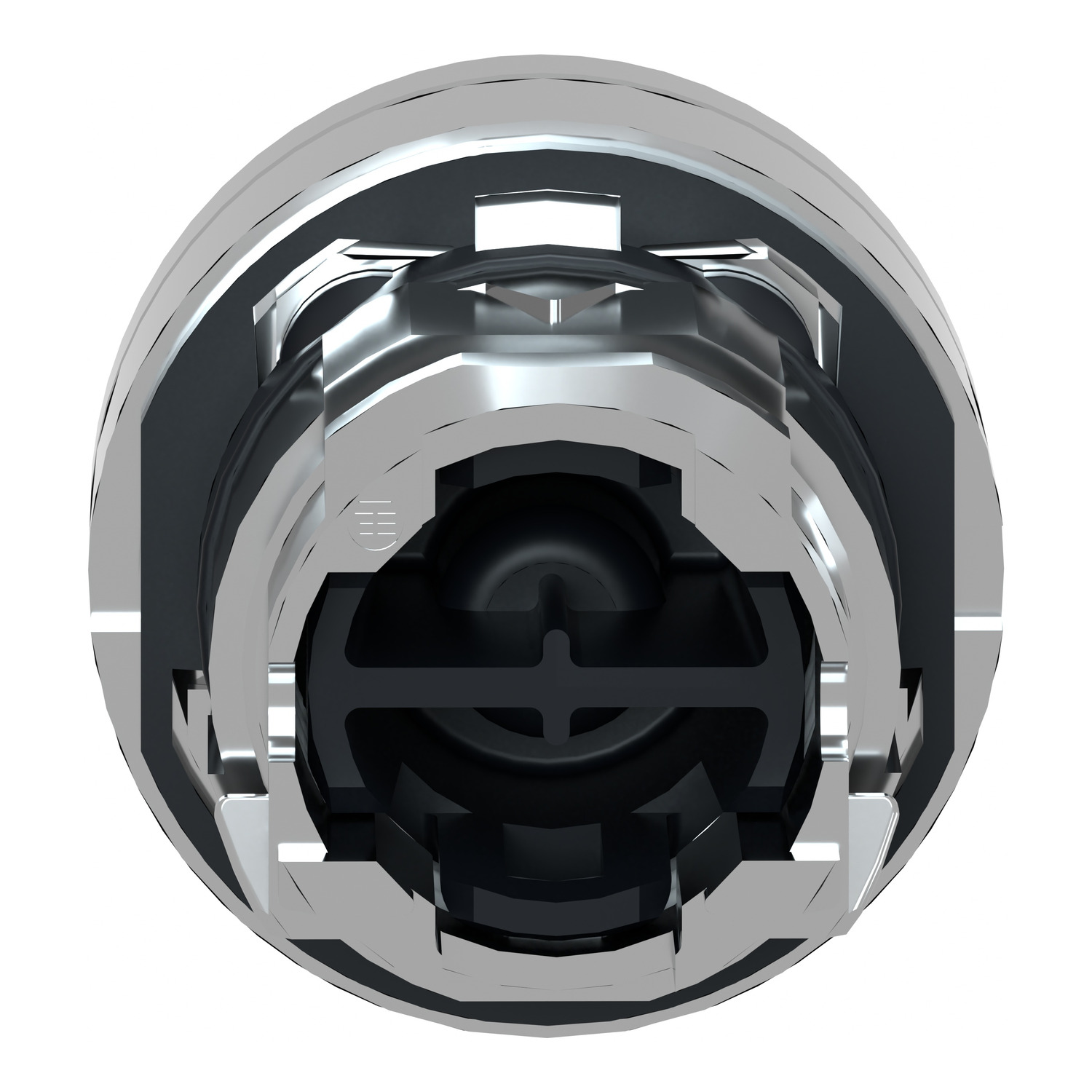

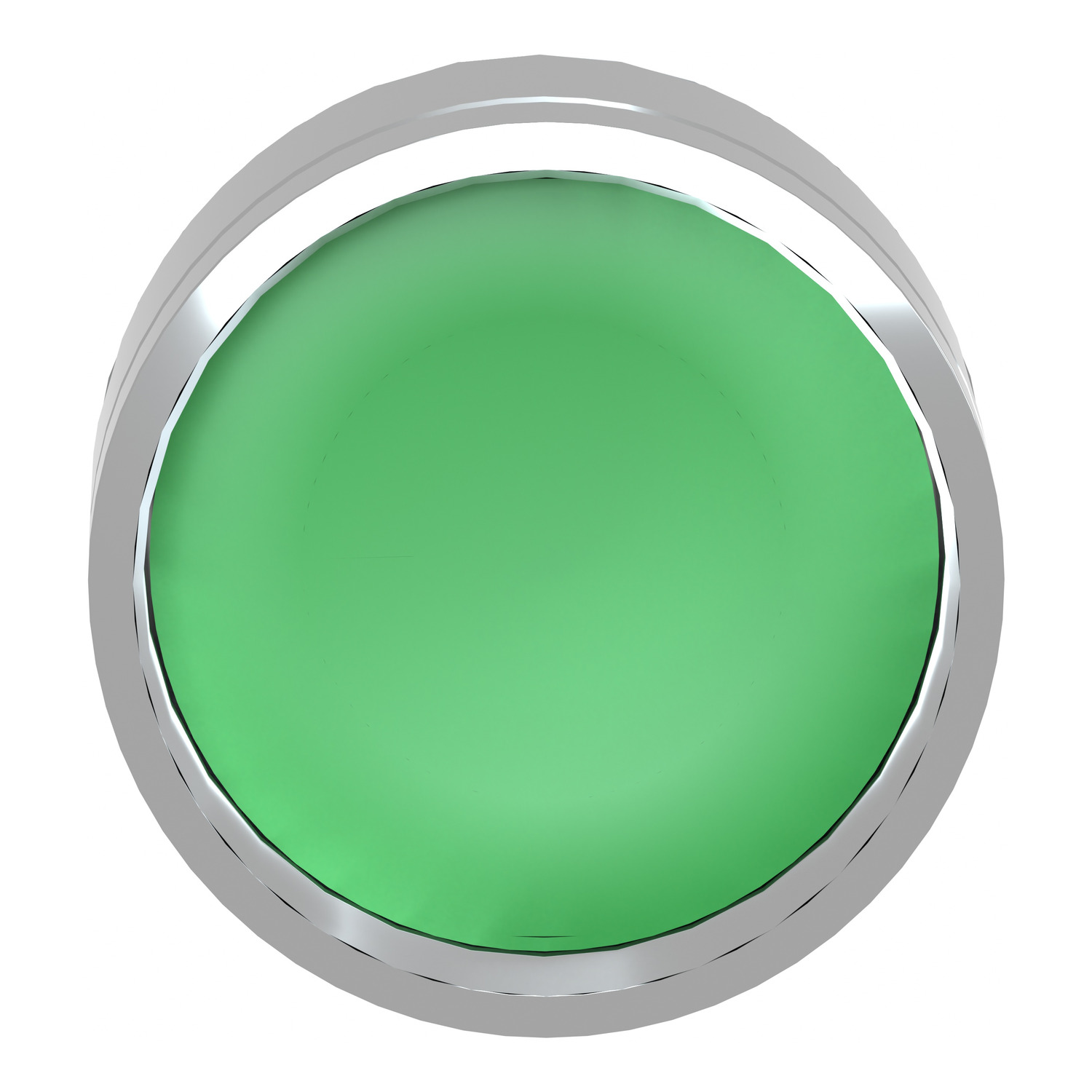

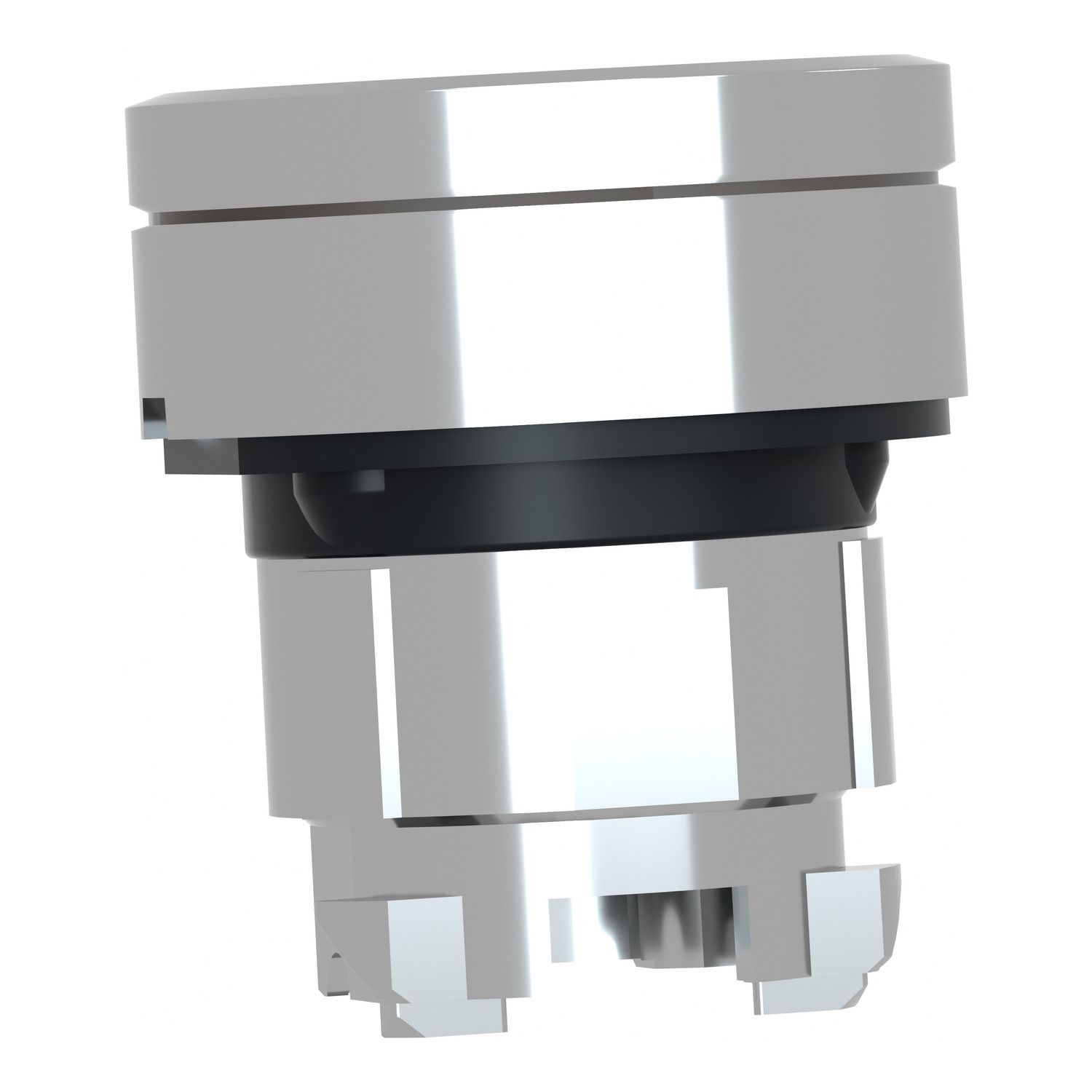

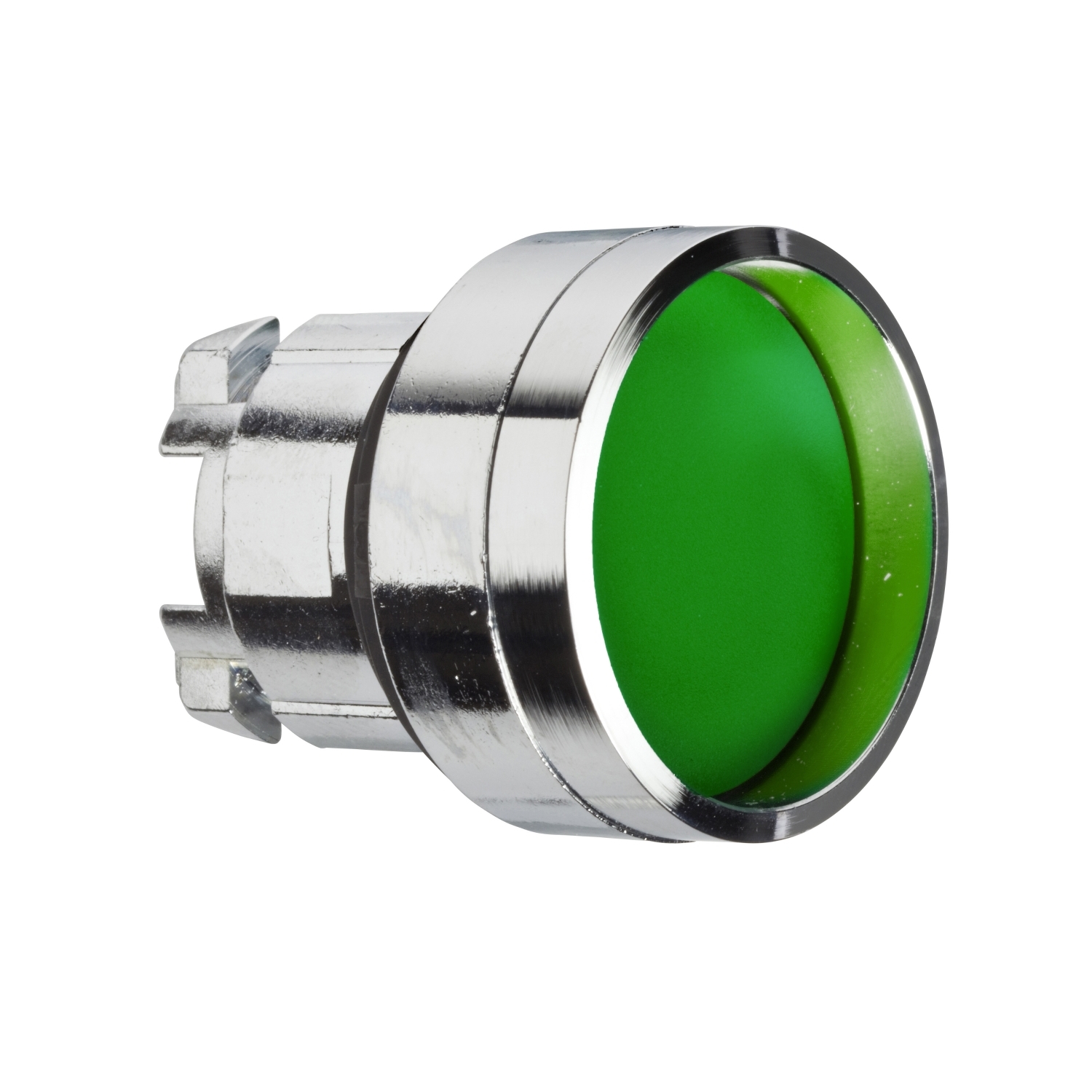

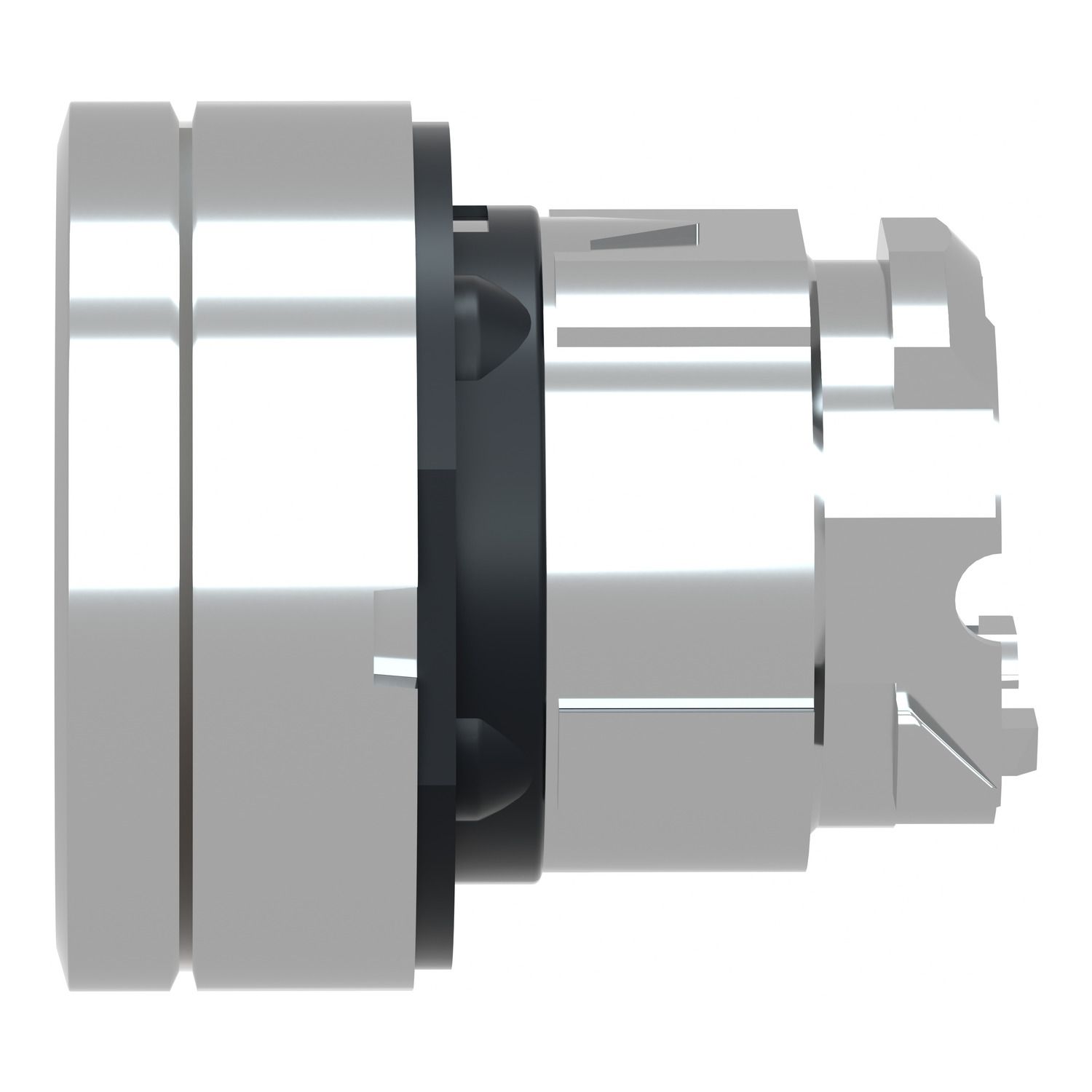

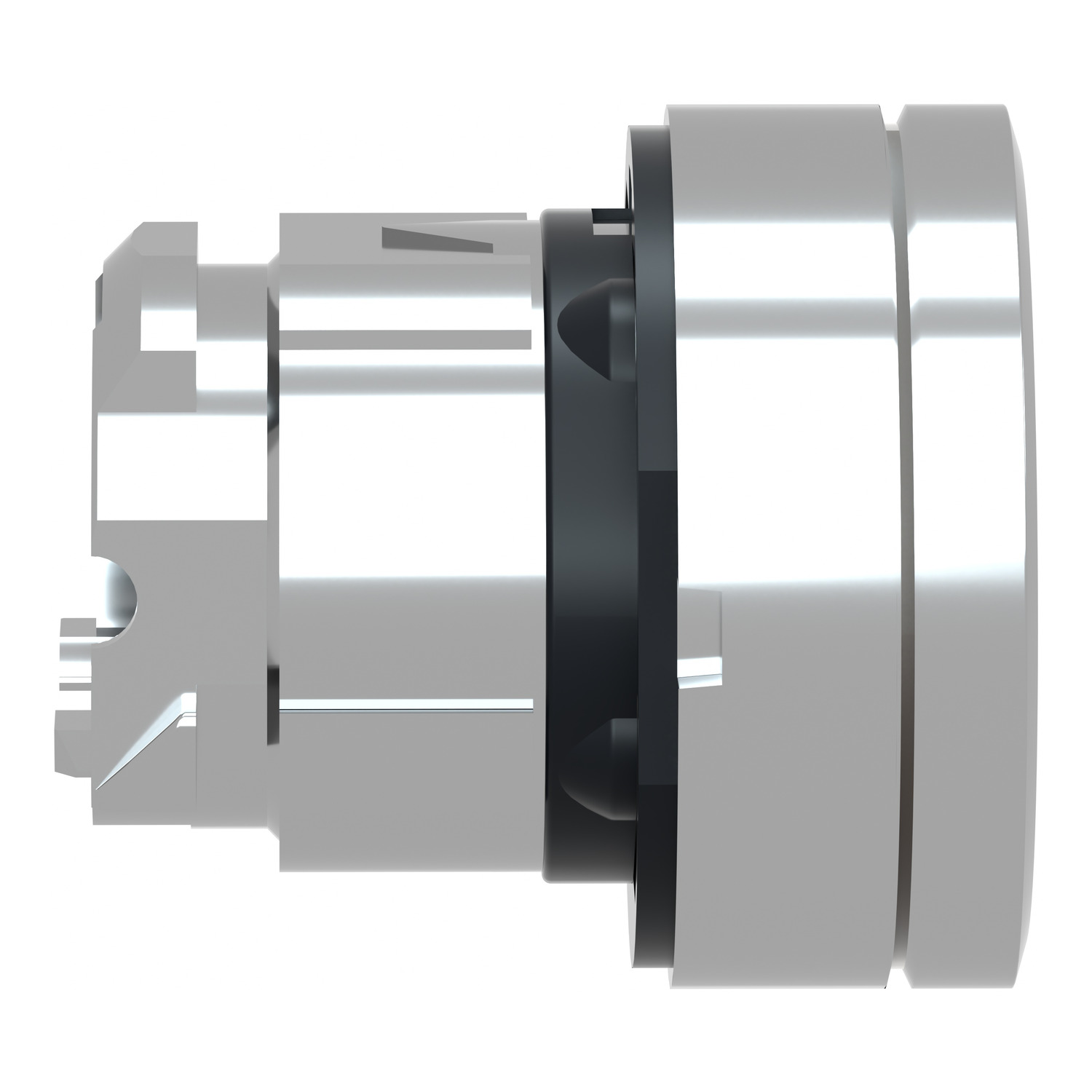

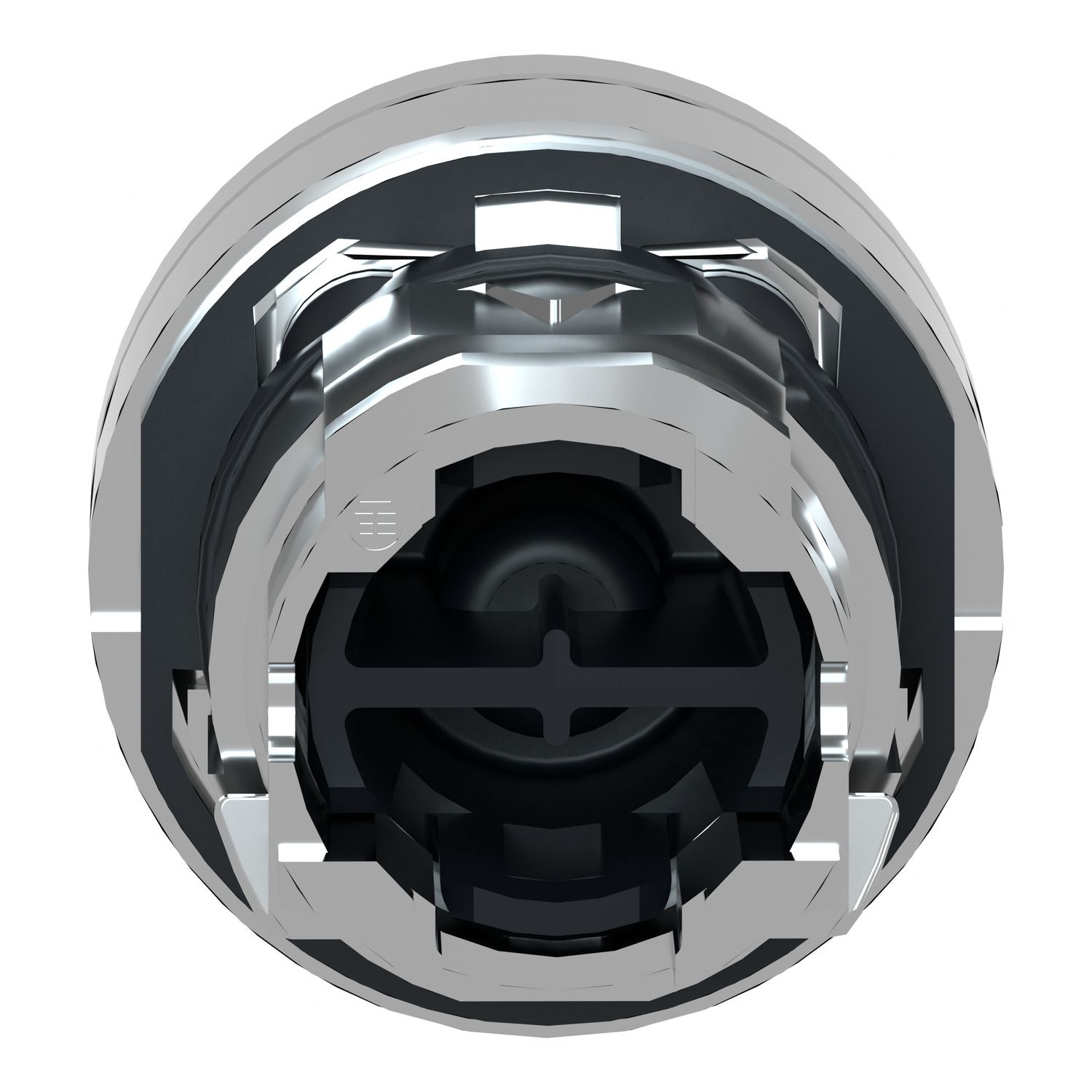

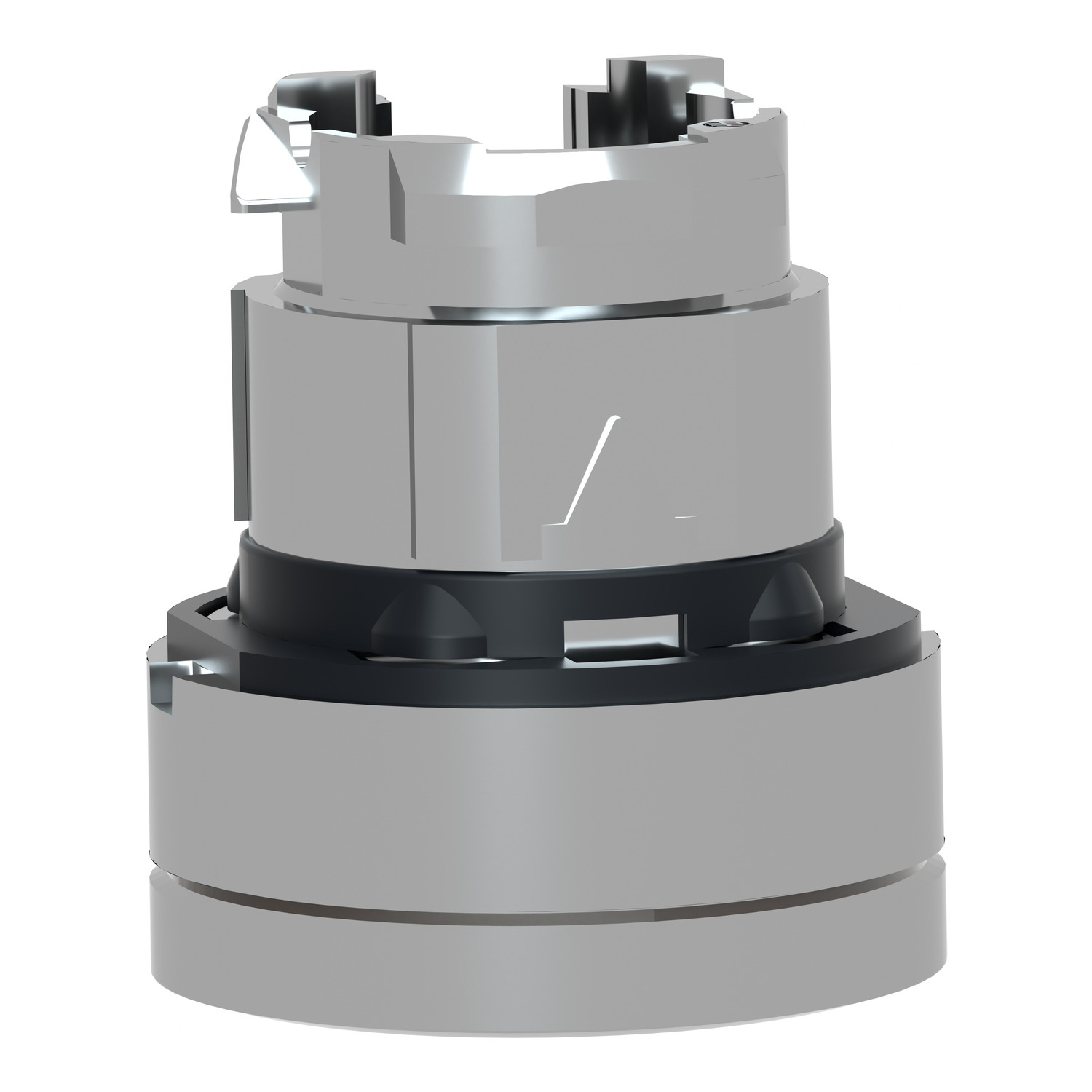

This Harmony XB4, recessed high guard green button head operates with a spring return / impulse mechanism. This button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly and is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Type of operator spring return
Range of product Harmony XB4
Operator profile green recessed, unmarked
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Mounting diameter 22 mm
Operator additional information high guard
Complementary
Group of product recessed push
Compatibility code ZB4
Mechanical durability 10000000 cycles
Device presentation basic element
CAD overall height 29 mm
Customizable 1, no
Electrical composition code C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting
Main group push-button
CAD overall depth 31 mm
CAD overall width 29 mm
Marking unmarked
Cap/operator or lens colour green
GCR BRIDGE ZB4BACUST02
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, UL 508, CSA C22.2 No 14, IEC 60947-5-5, JIS C8201-5-1, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4
Product certifications UL listed, BV, CSA, GL, DNV, LROS (Lloyds register of shipping)
Only registered users can write reviews

Head for non illuminated push button, Harmony XB4, metal, recessed, green, 22mm, spring return, unmarked
