Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZART |
| Control button type | 6 configurable auxiliary push-button, 6 configurable motion push-button |

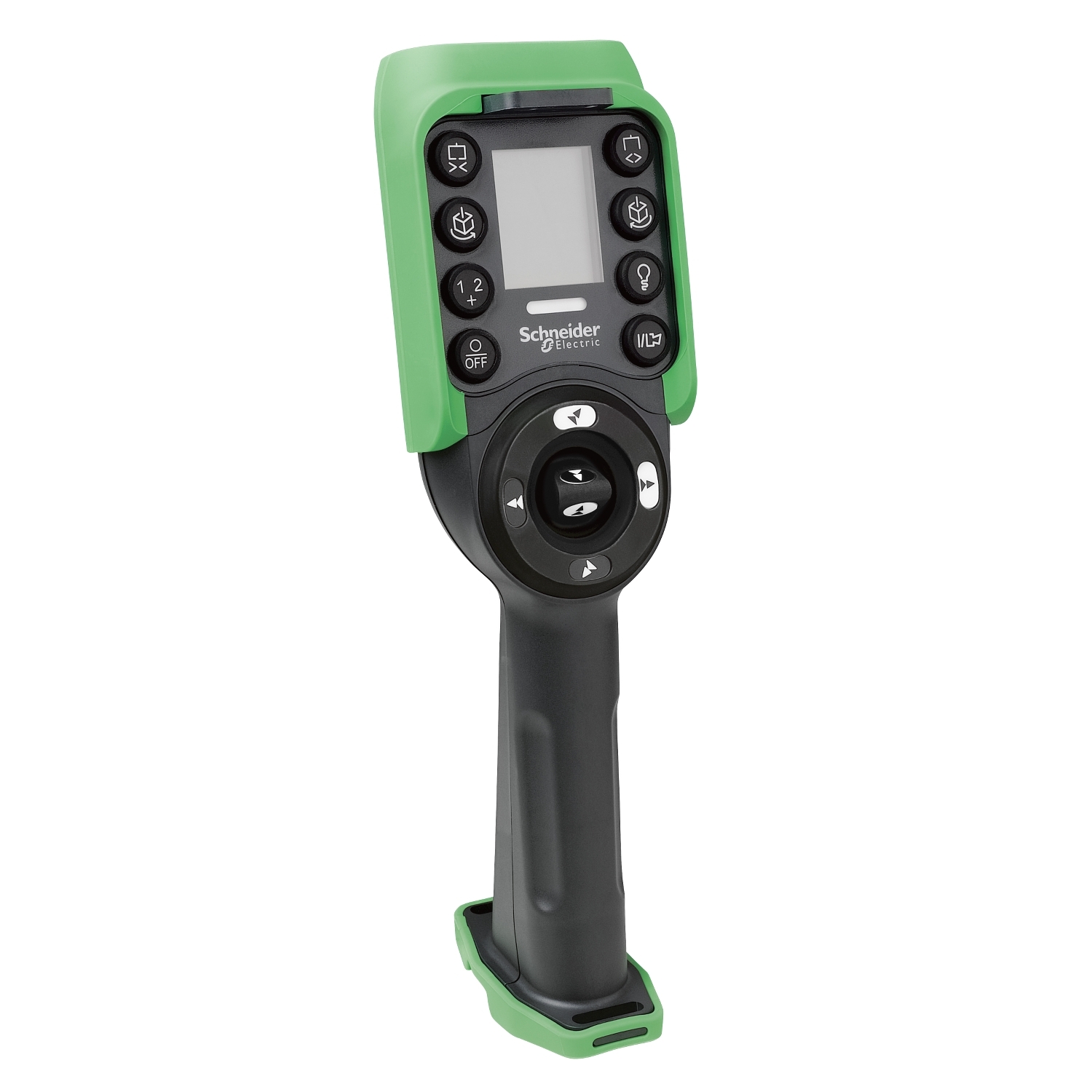

| Product or component type | hand-held remote control |
| Range of product | Harmony eXLhoist |
| Complementary | |
| Depth | 90 mm |
| Width | 100 mm |
| Display type | LCD display 34 x 42 mm |
| Device application | master and slave in multiple bridge control (tandem), slave in multiple bridge control (tandem), master in multiple bridge control (tandem) |
| Mechanical durability | 5000000 cycles |
| Material | protective cover: EPDM rubber, cover: PP (polypropylene), enclosure: PBT (polybutylene terephthalate), enclosure: PC (polycarbonate) |
| Service life | 5 year(s) |
| Maximum sensing distance | 100 m in free field |
| Function available | vibrator function, accelerometer function |
| Communication network type | wireless: bluetooth low energy |
| Charging time | 900 s |
| Net weight | 0.65 kg |
| Response time | < 300 ms at full duplex |
| Operating distance | 50 m |
| Autonomy | 30 h |
| Transmission frequency | 2.4 GHz |
| Height | 340 mm |
| Mechanical robustness | free fall resistance 4.5 m conforming to IEC 60068-2-27 |
| Environment | |
| Operating altitude | 0...2000 m |
| NEMA degree of protection | NEMA 4 |
| Relative humidity | 0-95 % at -20-60 °C operating |
| Ambient air temperature for storage | -20-45 °C |
| IP degree of protection | IP65 |
| Radio agreement | SRRC, ARIB, FCC, RSS, ICASA, ANATEL |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Vibration resistance | 0.075 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Storage altitude | 0-3000 m |
| Ambient air temperature for operation | -20-60 °C |
| Product certifications | EAC, KC, C-Tick, UL, CSA, CE, JIS |
