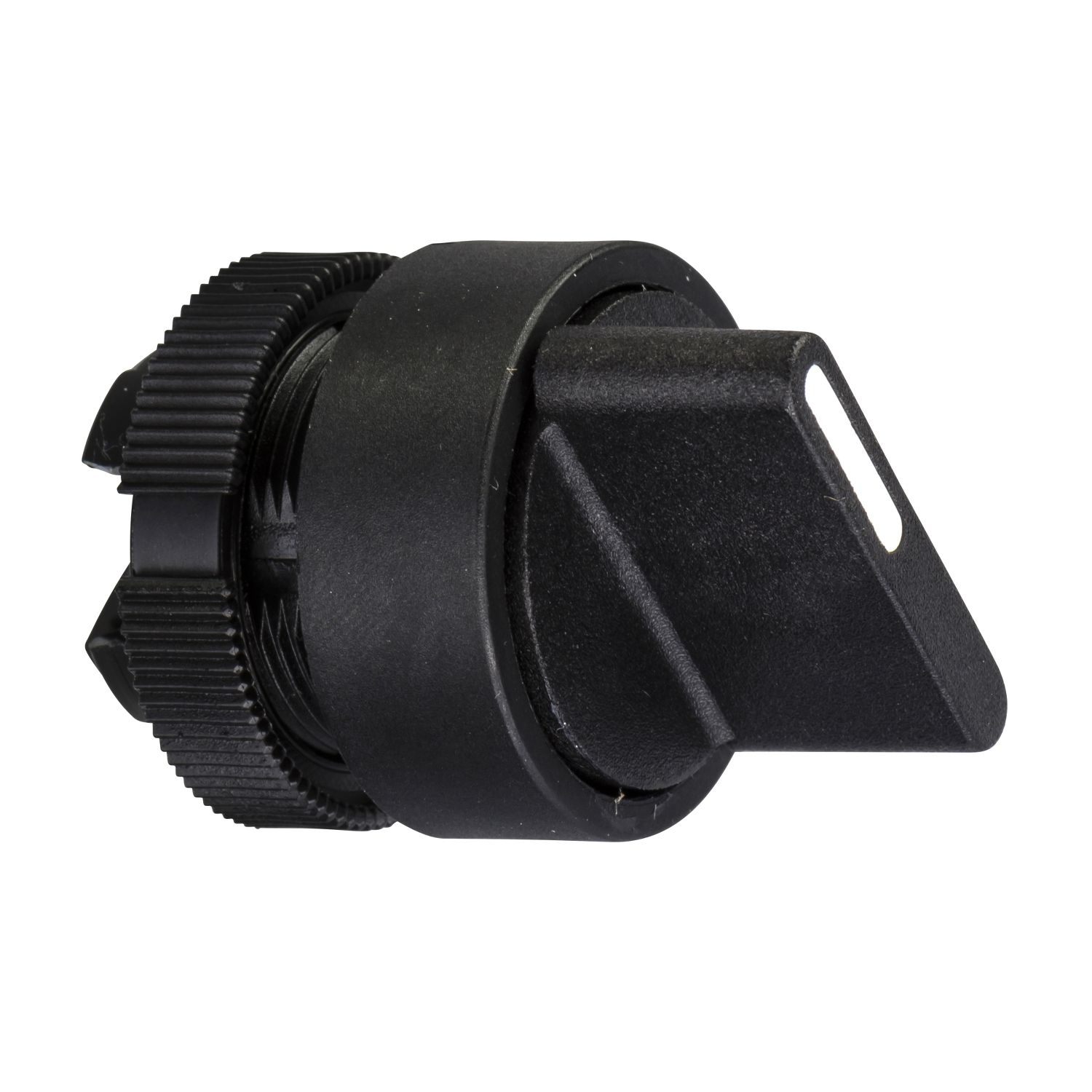

This Harmony ZA2BD2 is a black selector switch, 2 positions, standard handle. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | XACA |
| Component name | ZA2 |
| Product or component type | selector switch |
| Range of product | Harmony XAC |
| Complementary | |
| Sale per indivisible quantity | 1 |
| Mounting location | front of enclosure, base of enclosure |
| Net weight | 0.018 kg |
| Cap/operator or lens colour | black |
| Marking | unmarked |
| Environment | |
| Overvoltage category | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Standards | UL 508, EN/IEC 60204-32, EN/IEC 60947-5-1, CSA C22.2 No 14 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK08 conforming to EN 50102 |
