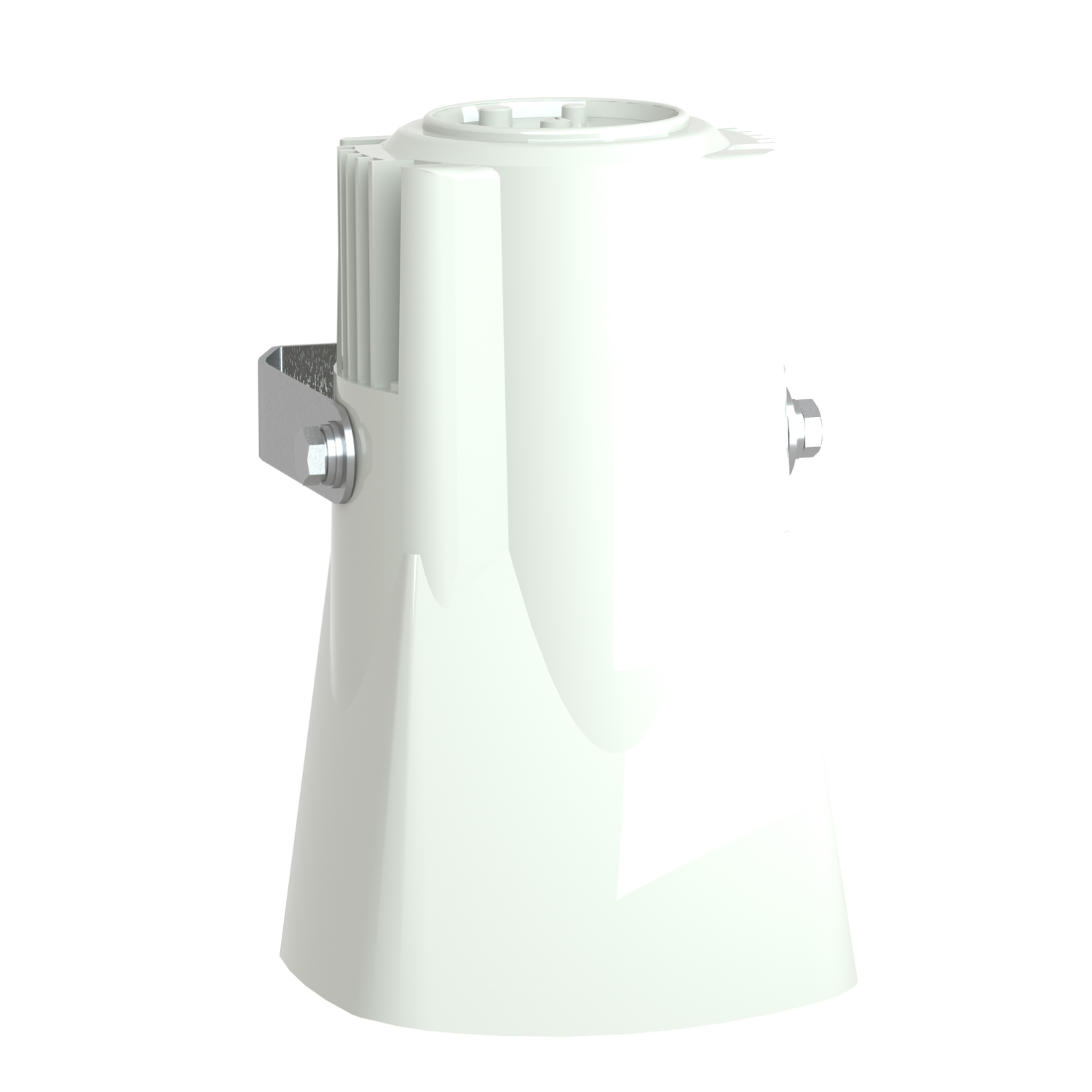

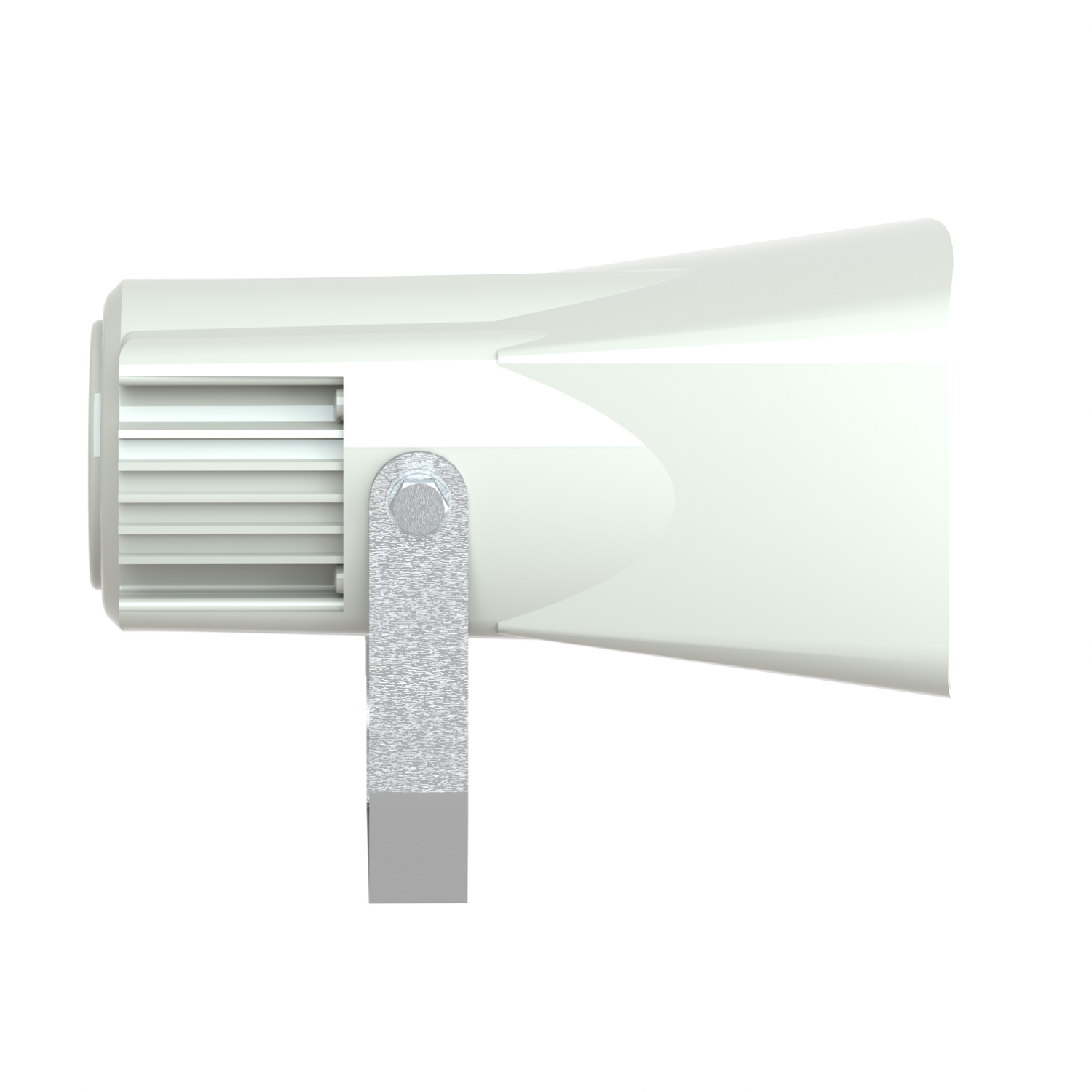

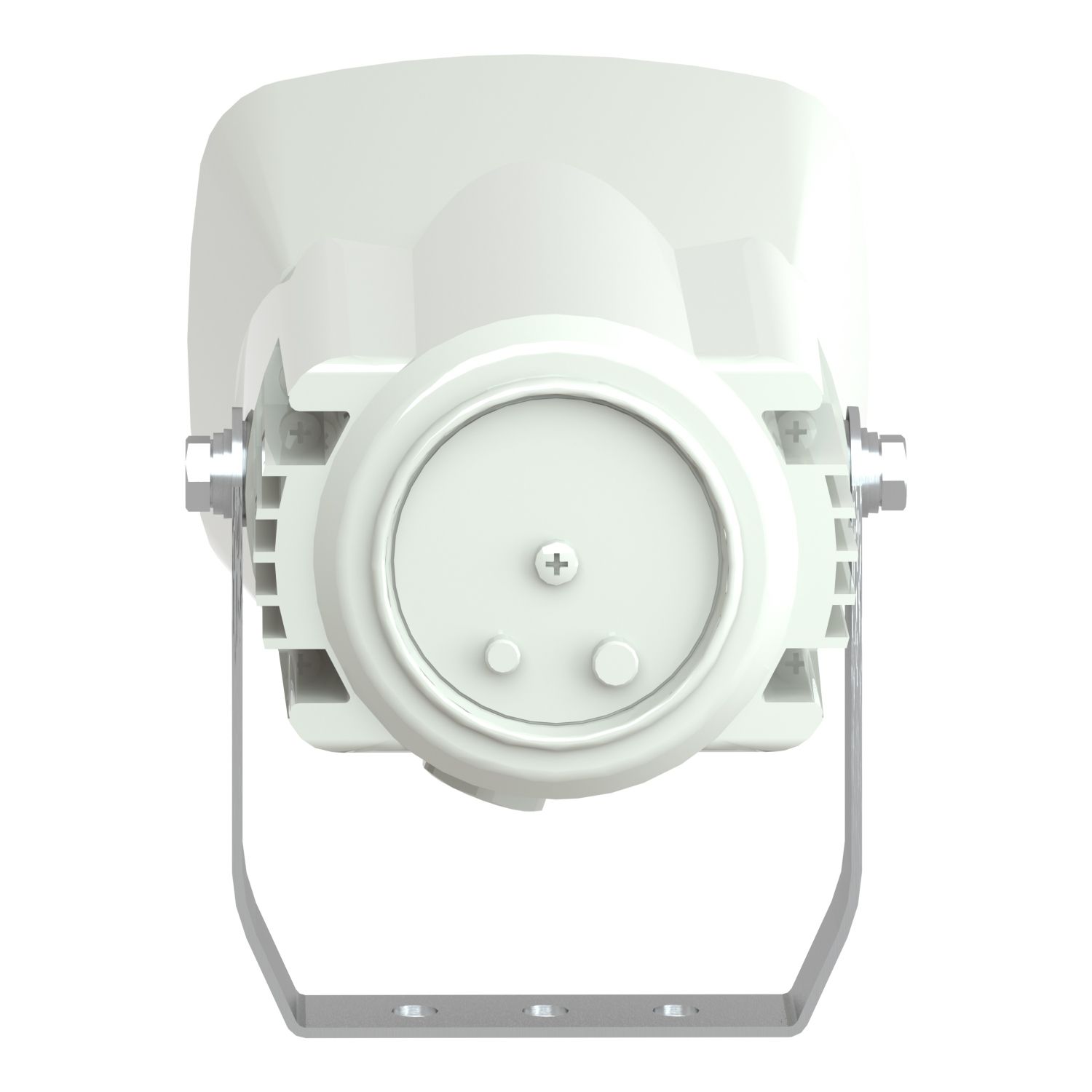

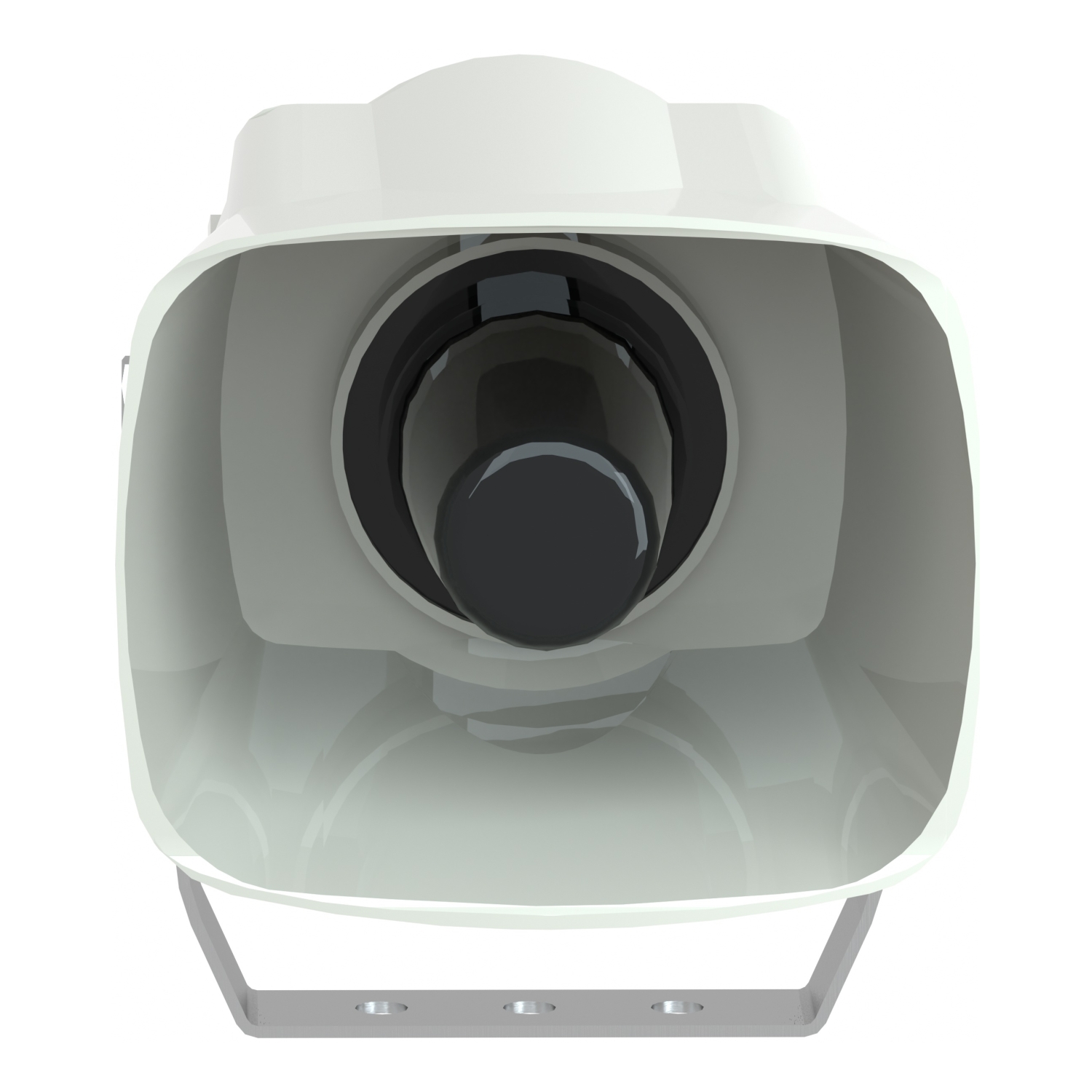

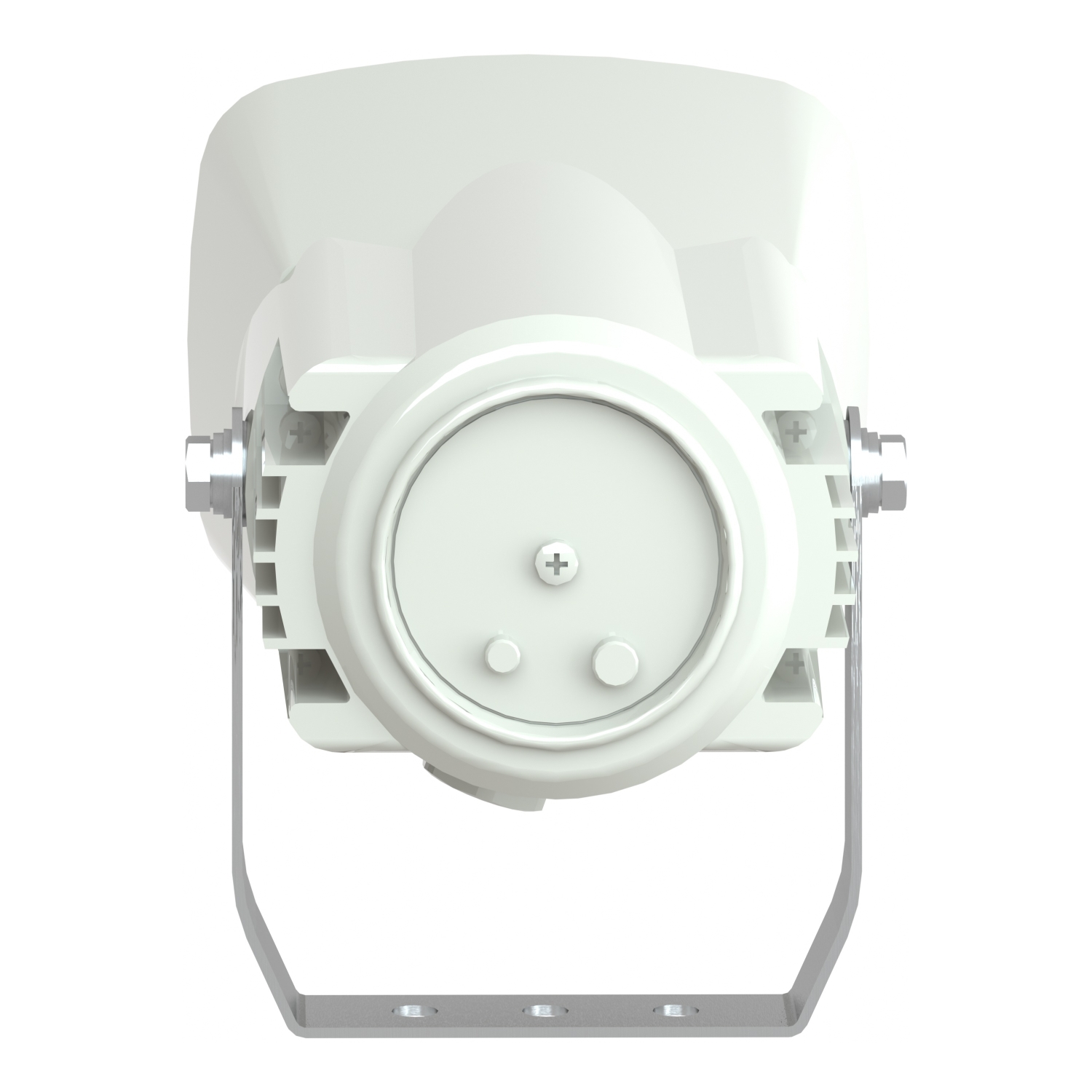

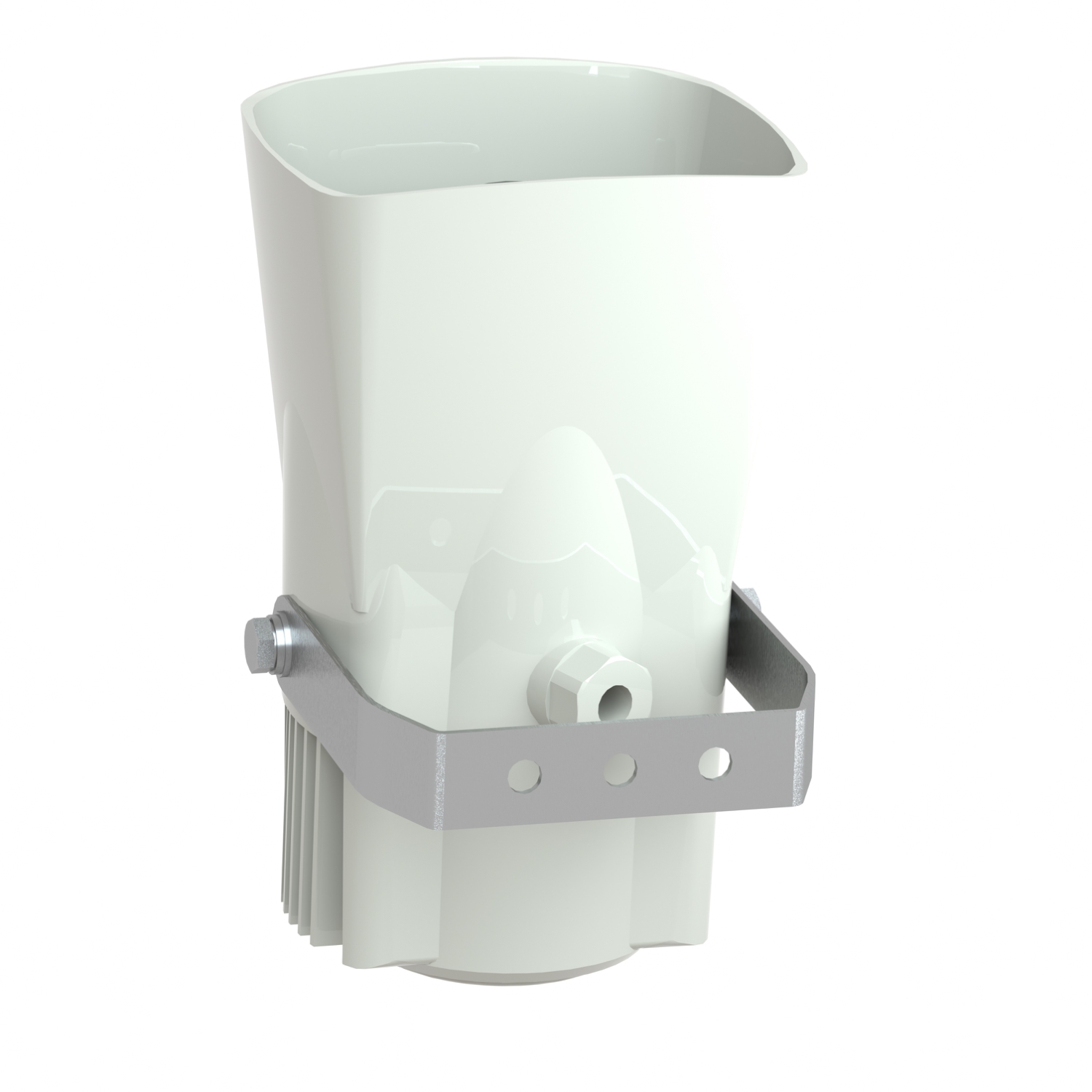

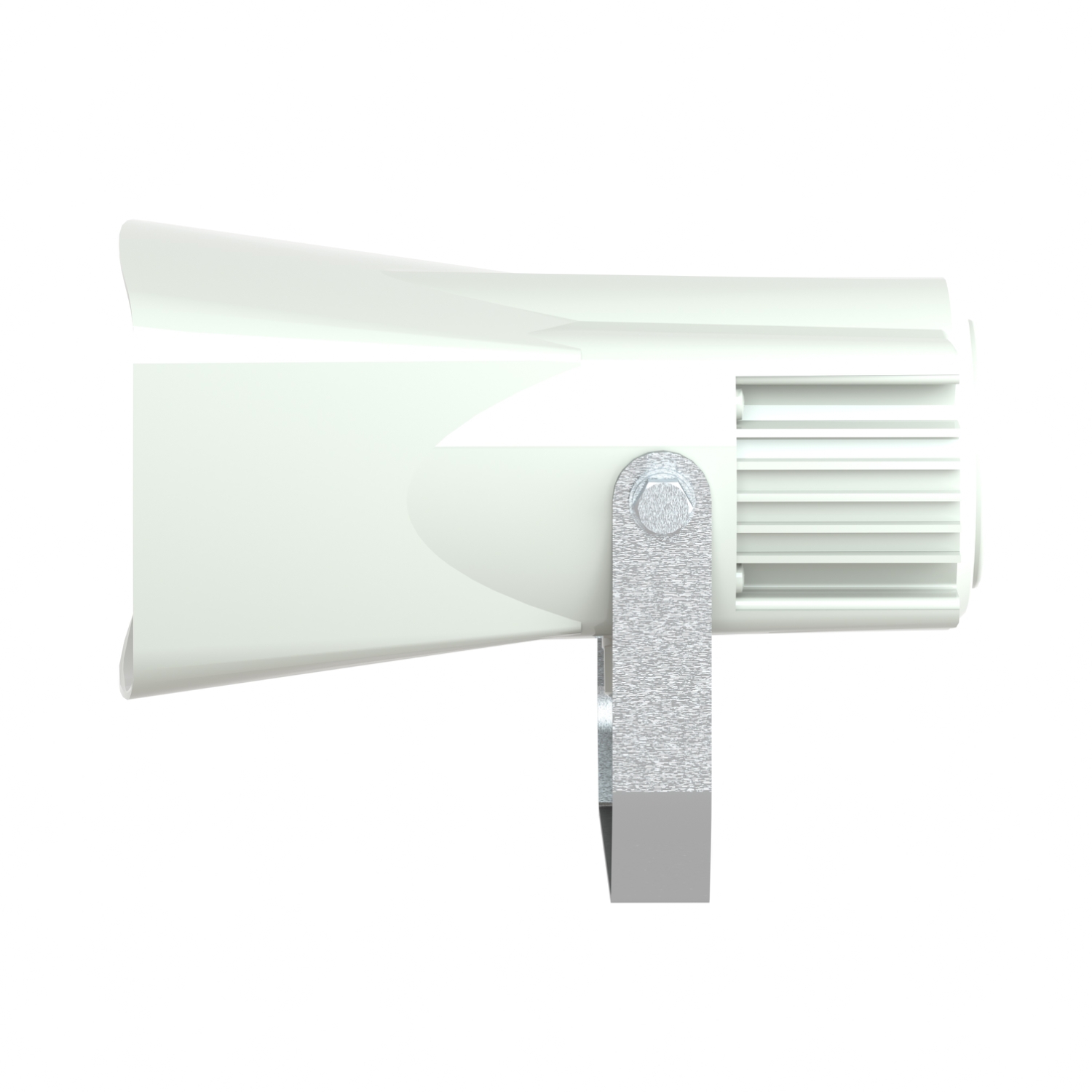

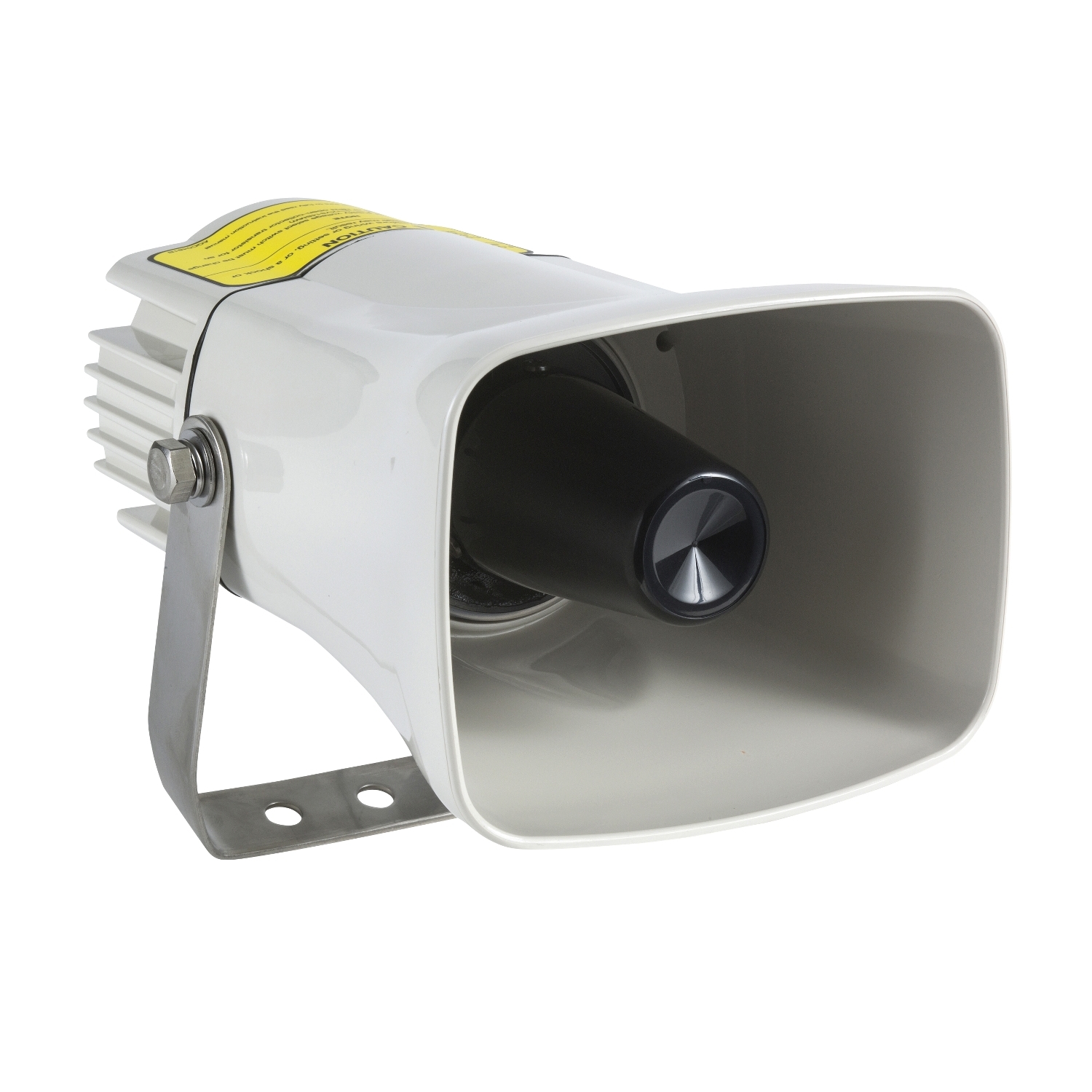

This Harmony XVS14BMW is a multi-sound siren. It is part of the range Harmony XVS sirens and electronics alarms range .
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XVS |
| Range of product | Harmony XVS |
| Product or component type | multisound siren |
| Complementary | |
| Compatibility code | XVS |
| Electrical connection | cable: 6.5-8.5 mm, 0.52-0.52 mm² / AWG 20 (power circuit), cable: 6.5-8.5 mm, 0.33-0.33 mm² / AWG 22 (signalling circuit) |
| Colour | white |
| Marking | CE |
| Height | 114 mm |
| Depth | 223 mm |
| Width | 140 mm |
| Material | PC (polycarbonate): back cover, ASA (Acrylonitrile Styrene Acrylate): back, ASA (Acrylonitrile Styrene Acrylate): front |
| [Uimp] rated impulse withstand voltage | 0.8 kV |
| Net weight | 1 kg |
| Current consumption | 250 mA at 12 V, 350 mA at 24 V |
| Fixing mode | 3 holes Ø 9 mm |
| Mounting support | bracket |
| Environment | |
| Protective treatment | TC |
| [Us] rated supply voltage | 24 V DC, 12 V DC |
| Noise level | 0-105 dB (continuous or intermittent tone) at 1 m |
| Ambient air temperature for storage | -35-70 °C |
| IP degree of protection | IP53 conforming to IEC 60529 |
| Ambient air temperature for operation | -10-50 °C |
| Overvoltage category | class II conforming to IEC 61140 |
| Signalling type | 43 tones siren |
| Standards | IEC 61000-6-3, EN 55022, EN 55014-2, IEC 61000-6-2 |
| Product certifications | UL |
