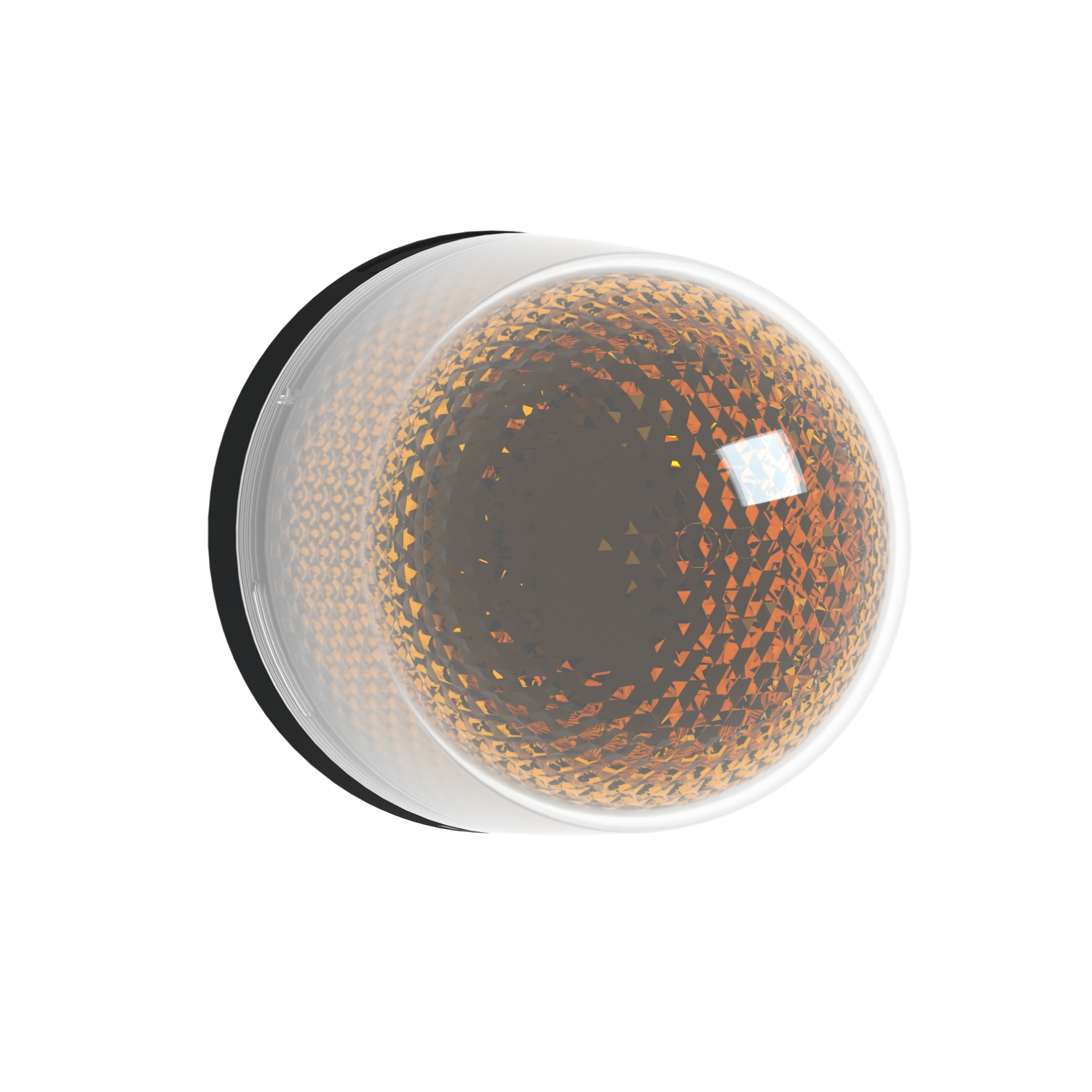

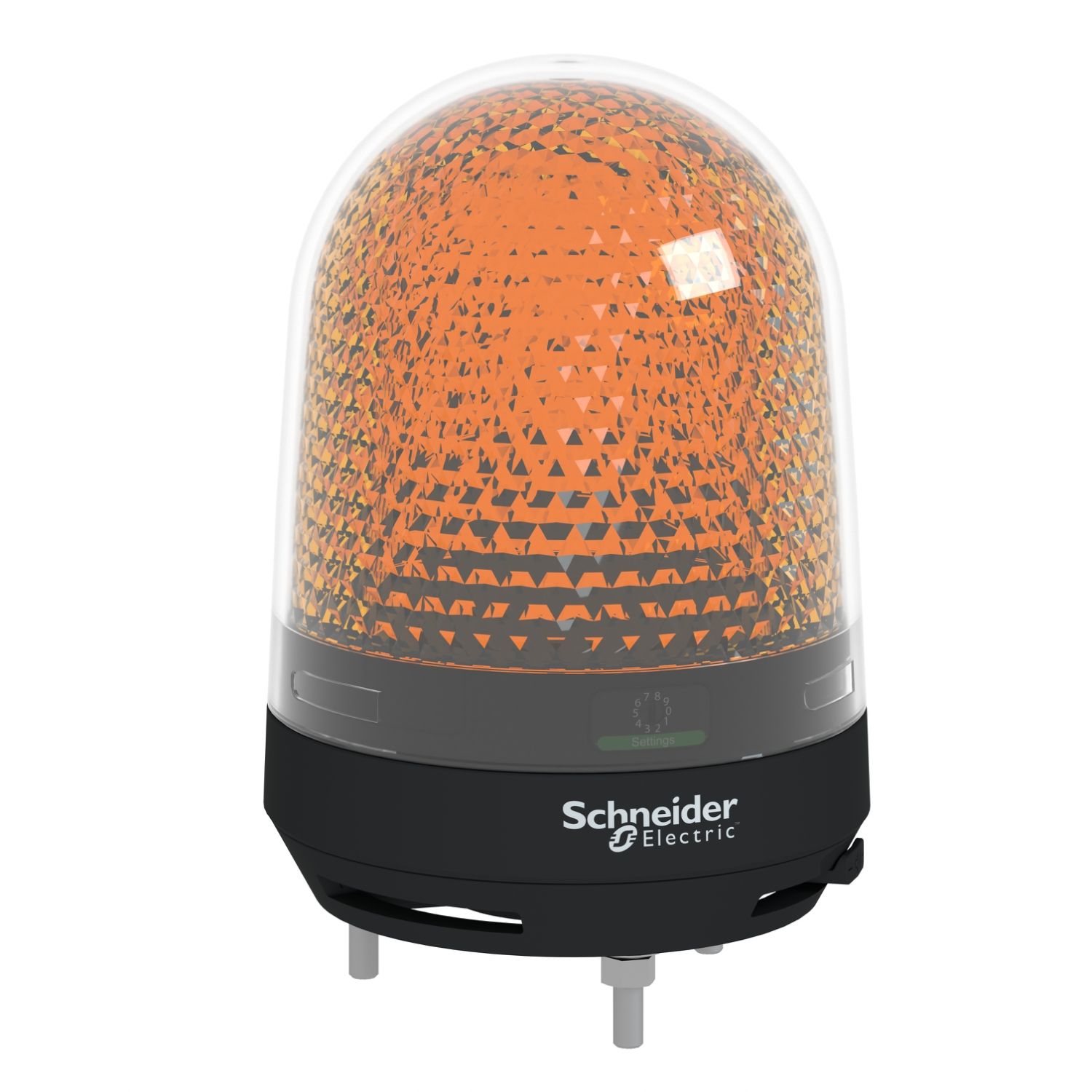

This illuminated beacon is designed as lighting accessory for tower light. Its integral LED offers a flashing / blinking / rotating light pattern and an audible unit allowing it to clearly display the status of your machines in applications such as forklift, bulldozer and automated guided vehicle (AGV). It is vibration resistant thanks to its IP23.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XVR3 |
| Device application | automated guided vehicle (AGV), bulldozer, forklift |
| Beacon or indicator bank unit type | LED unit |
| Sound signalling | buzzer: 70-90 dB at 1 m |
| Product or component type | beacon |
| Light source | LED, orange |
| Mounting diameter | 100 mm |
| Range of product | Harmony XVR |
| Complementary | |
| [Ue] rated operational voltage | 10...30 V DC |
| Width | 100 mm |
| Material | EPDM (ethylene propylene diene monomer): base, PBT (polybutylene terephthalate) + PC (polycarbonate): body, PC (polycarbonate): lenses |
| Installation direction | upright outdoor, inverted indoor, sideways indoor, upright indoor |
| Assembly style | ready assembled |
| Signalling type | flashing, blinking, rotating |
| [Us] rated supply voltage | 12...24 V DC |
| Electrical insulation class | class II |
| Net weight | 0.538 kg |
| Length | 100 mm |
| Current consumption | 3000 mA |
| Marking | CE |
| Power consumption in W | 3.1 W |
| Inrush current | 3 A |
| Height | 139 mm |
| Environment | |
| Relative humidity | 35-85 % without condensation |
| Ambient air temperature for storage | -35-70 °C |
| Vibration resistance | 7.1 gn (upright), 4.6 gn (inverted), 4.6 gn (sideways) |
| IP degree of protection | IP23 (upright), IP23 (inverted), IP23 (sideways) |
| Ambient air temperature for operation | -20-50 °C |
