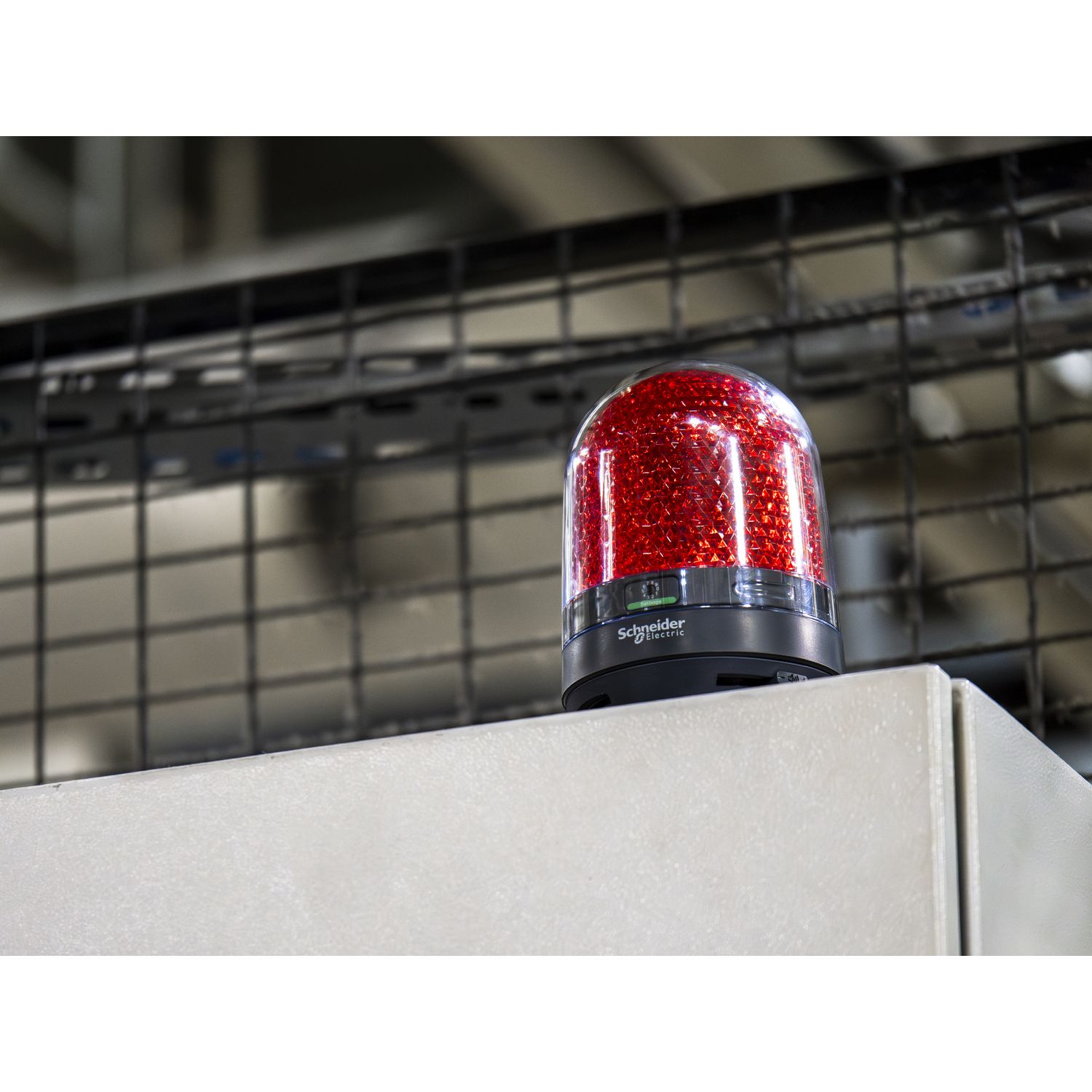

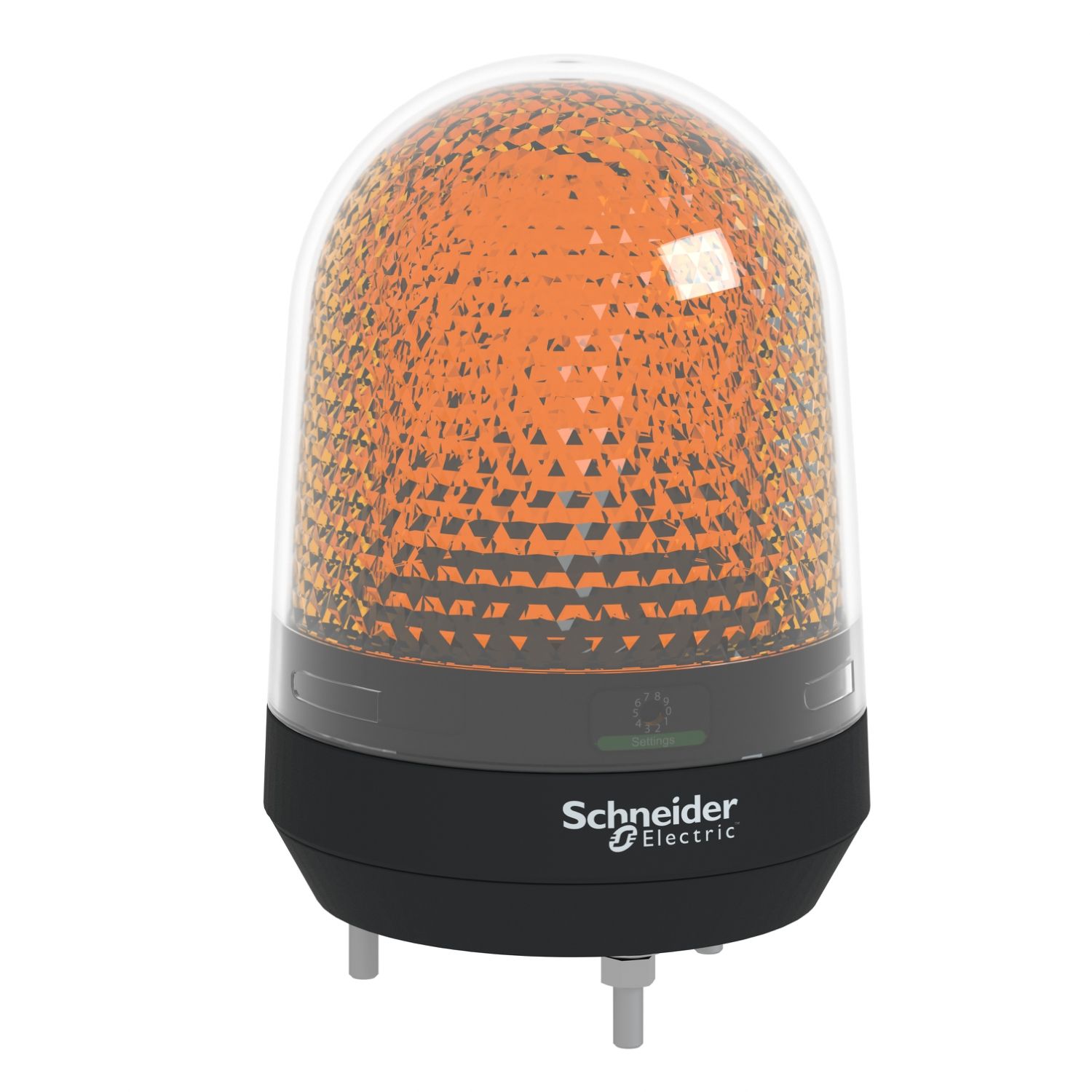

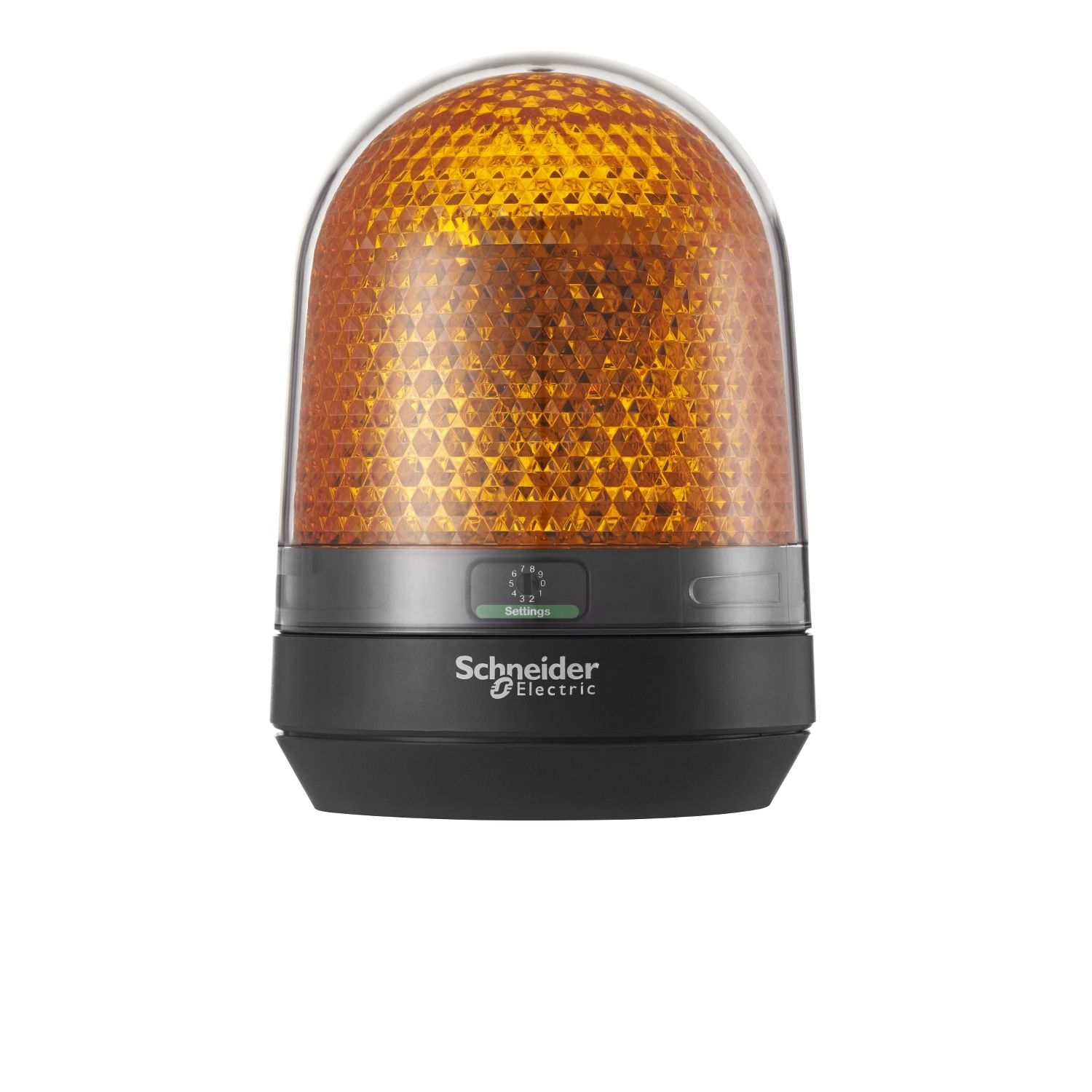

This illuminated beacon is designed as lighting accessory for tower light. Its integral LED offers a flashing / blinking / rotating light pattern, allowing it to clearly display the status of your machines in applications such as forklift, bulldozer and automated guided vehicle (AGV). It is vibration resistant thanks to its IP23.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XVR3 |
| Device application | forklift, bulldozer, automated guided vehicle (AGV) |
| Beacon or indicator bank unit type | LED unit |
| Light source | LED, orange |
| Range of product | Harmony XVR |
| Product or component type | beacon |
| Mounting diameter | 100 mm |
| Complementary | |
| Installation direction | upright outdoor, inverted indoor, sideways indoor, upright indoor |
| Assembly style | ready assembled |
| [Us] rated supply voltage | 12...24 V DC |
| Electrical insulation class | class II |
| Marking | CE |
| Power consumption in W | 2.8 W |
| Height | 139 mm |
| [Ue] rated operational voltage | 10...30 V DC |
| Width | 100 mm |
| Material | EPDM (ethylene propylene diene monomer): base, PBT (polybutylene terephthalate) + PC (polycarbonate): body, PC (polycarbonate): lenses |
| Signalling type | blinking, rotating, flashing |
| Net weight | 0.484 kg |
| Length | 100 mm |
| Current consumption | 3000 mA |
| Inrush current | 3 A |
| Environment | |
| Relative humidity | 35-85 % without condensation |
| Ambient air temperature for storage | -35-70 °C |
| IP degree of protection | IP23 (inverted), IP23 (sideways), IP65 (upright) |
| Ambient air temperature for operation | -20-50 °C |
| Vibration resistance | 7.1 gn (upright), 4.6 gn (inverted), 4.6 gn (sideways) |
