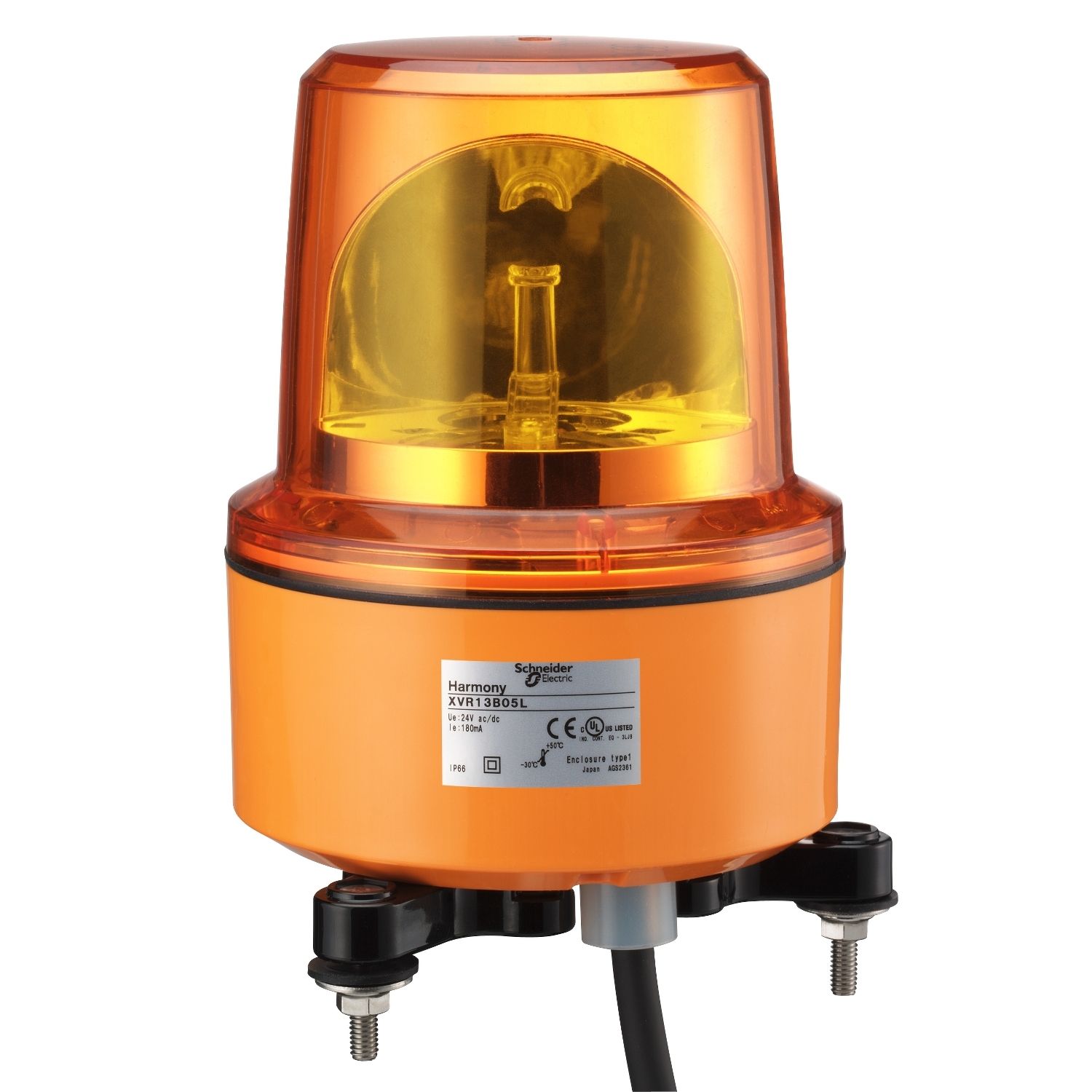

This orange beacon is part of the range of rotating beacons Harmony XVR diameter 130mm. It is supplied complete and pre-cabled. Supply voltage is 24V AC/DC and degree of protection is IP 66 and IP 67. It is designed for long distance signaling applications, thanks to the use of “super-bright” LED which provides good illuminating power, a long service life and reduced time for maintenance and also energy saving. It is used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XVR |
| IP degree of protection | IP67 conforming to IEC 60529, IP66 conforming to IEC 60529 |
| Light source | high luminosity LED, orange |
| Range of product | Harmony XVR |
| [Us] rated supply voltage | 24 V AC/DC |
| Sound signalling | without |
| Product or component type | prewired rotating mirror beacon |
| Mounting diameter | 130 mm |
| Complementary | |
| Compatibility code | XVR |
| Product mounting | by 3 M6 screws |
| Marking | CE |
| Cable length | 400 mm |
| Flashing frequency | 2.7 Hz |
| Clamping connection capacity | 1.25 mm² |
| CAD overall depth | 130 mm |
| CAD overall width | 130 mm |
| Material | PC: globe, ABS (acrylonitrile butadiene-styrene): body part |
| AWG gauge | AWG 18 |
| Current consumption | 125 mA |
| [Uimp] rated impulse withstand voltage | 0.8 kV |
| Net weight | 0.82 kg |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -35-70 °C |
| Ambient air temperature for operation | -30-50 °C |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Standards | EN/IEC 61000-6-4, EN/IEC 61000-6-2 |
