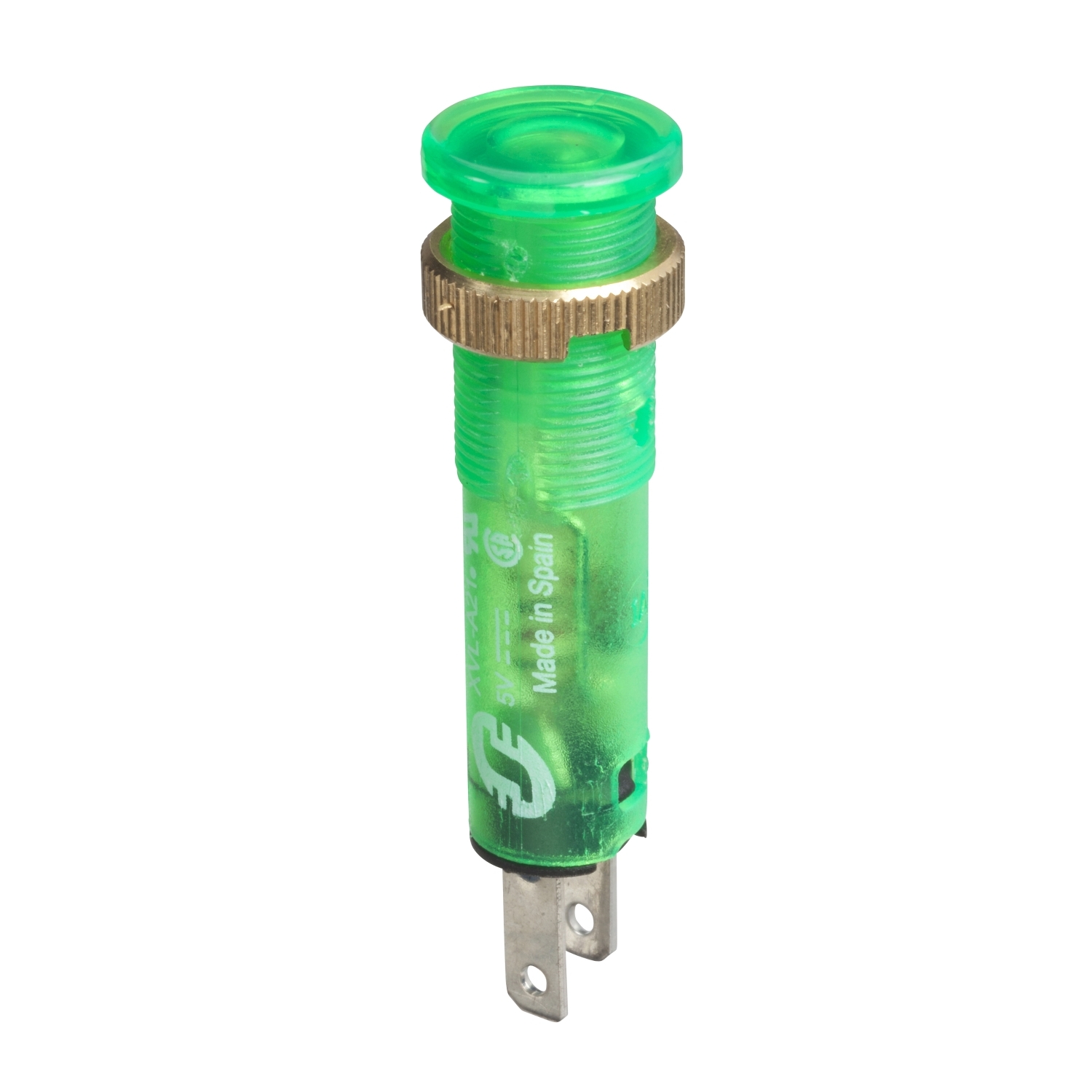

This Harmony XVLA223 is a green pilot light diameter 8mm. Its degree of protection is IP40/IP65 (with seal). It has covered LED included, 12V, faston connection. It is part of the range Harmony XVL diameter 8-12 mm plastic pilot lights.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Light block colour | green |
| Protection type | built-in by diode, integral ballast resistor |
| [Us] rated supply voltage | 12 V |
| IP degree of protection | IP40 conforming to NF C 20-010, IP40 conforming to IEC 60529, IP65 (with seal XVLZ911) conforming to NF C 20-010, IP65 (with seal XVLZ911) conforming to IEC 60529 |
| Range of product | Harmony XVL |
| Component name | XVL |
| Product or component type | LED pilot light with integral lens cap |
| Mounting diameter | 8 mm |
| Light source | covered LED |
| Complementary | |
| Nominal voltage limit | 0.8...1.1 Un |
| Connections - terminals | tag for soldering connectors, tag for Faston connectors: 2.8 x 0.5 mm |
| Bulb lifespan | 100000 h |
| Height | 10 mm |
| Depth | 36 mm |
| Width | 10 mm |
| Supply circuit type | DC |
| [Ui] rated insulation voltage | 50 V conforming to IEC 60947-1 |
| Current consumption | 18 mA |
| Net weight | 0.003 kg |
| Terminals description ISO n°1 | (X1-X2)PL |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -25-70 °C |
| Overvoltage category | class 3 conforming to NF C 20-030, class 3 conforming to IEC 60536 |
| Product certifications | CSA, UL |
