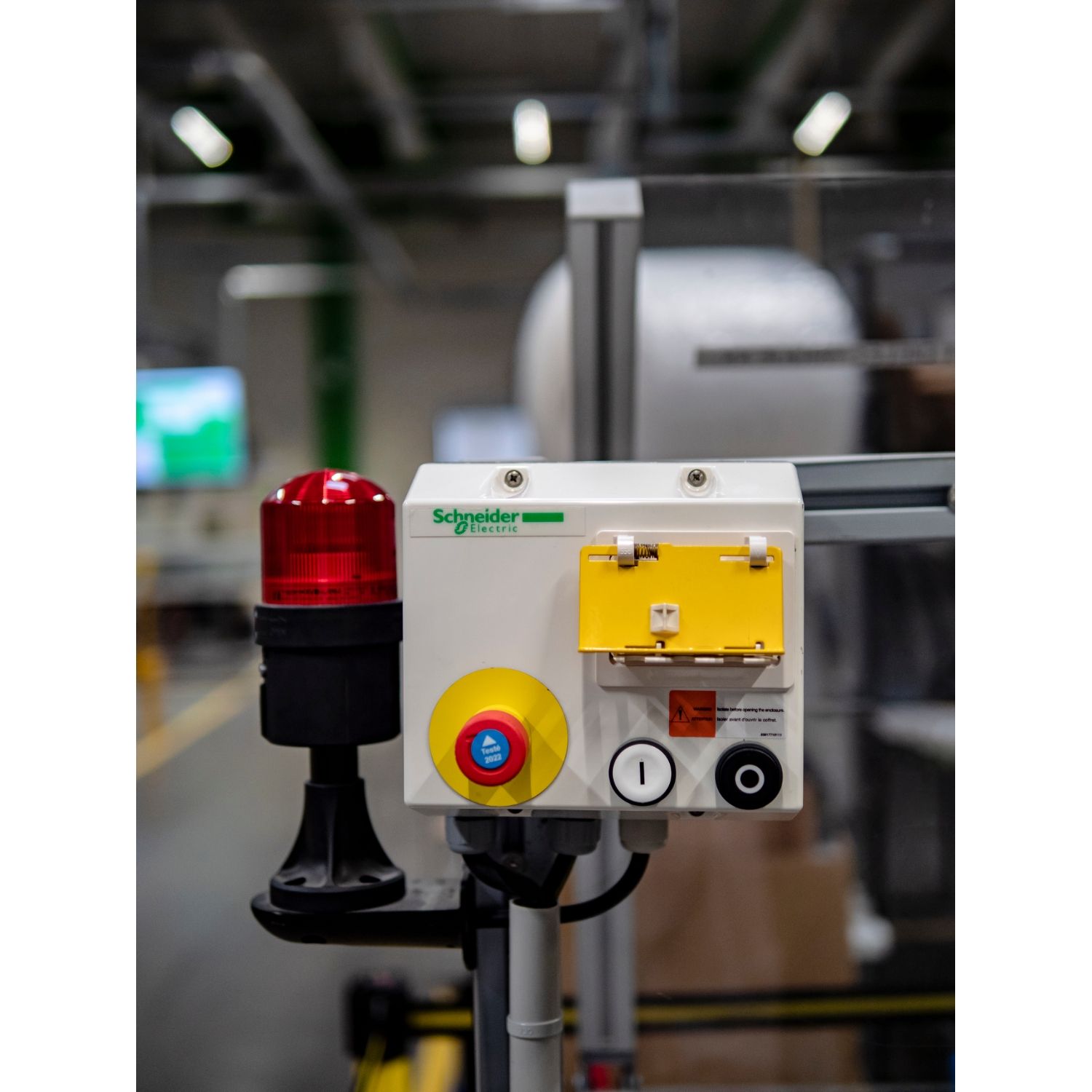

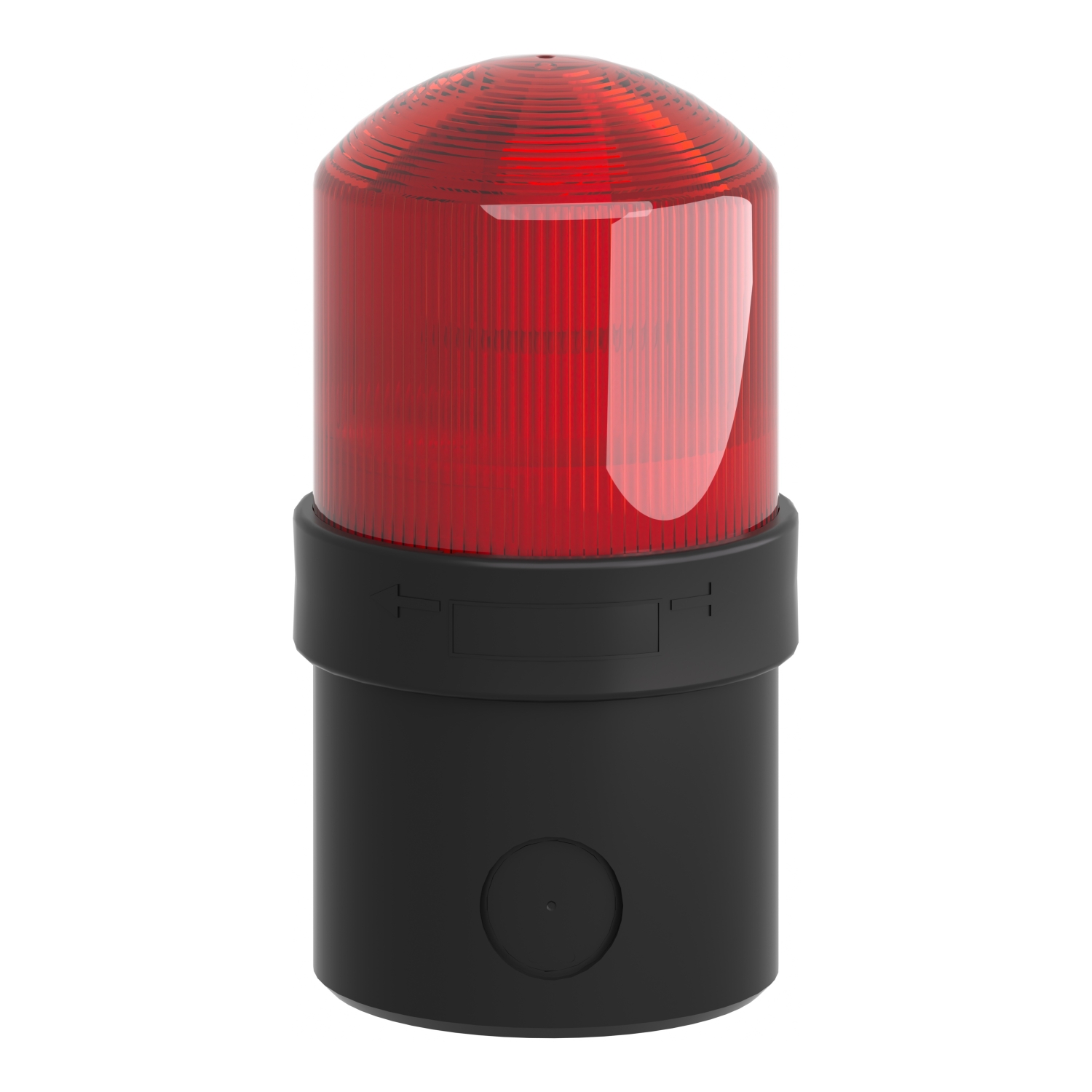

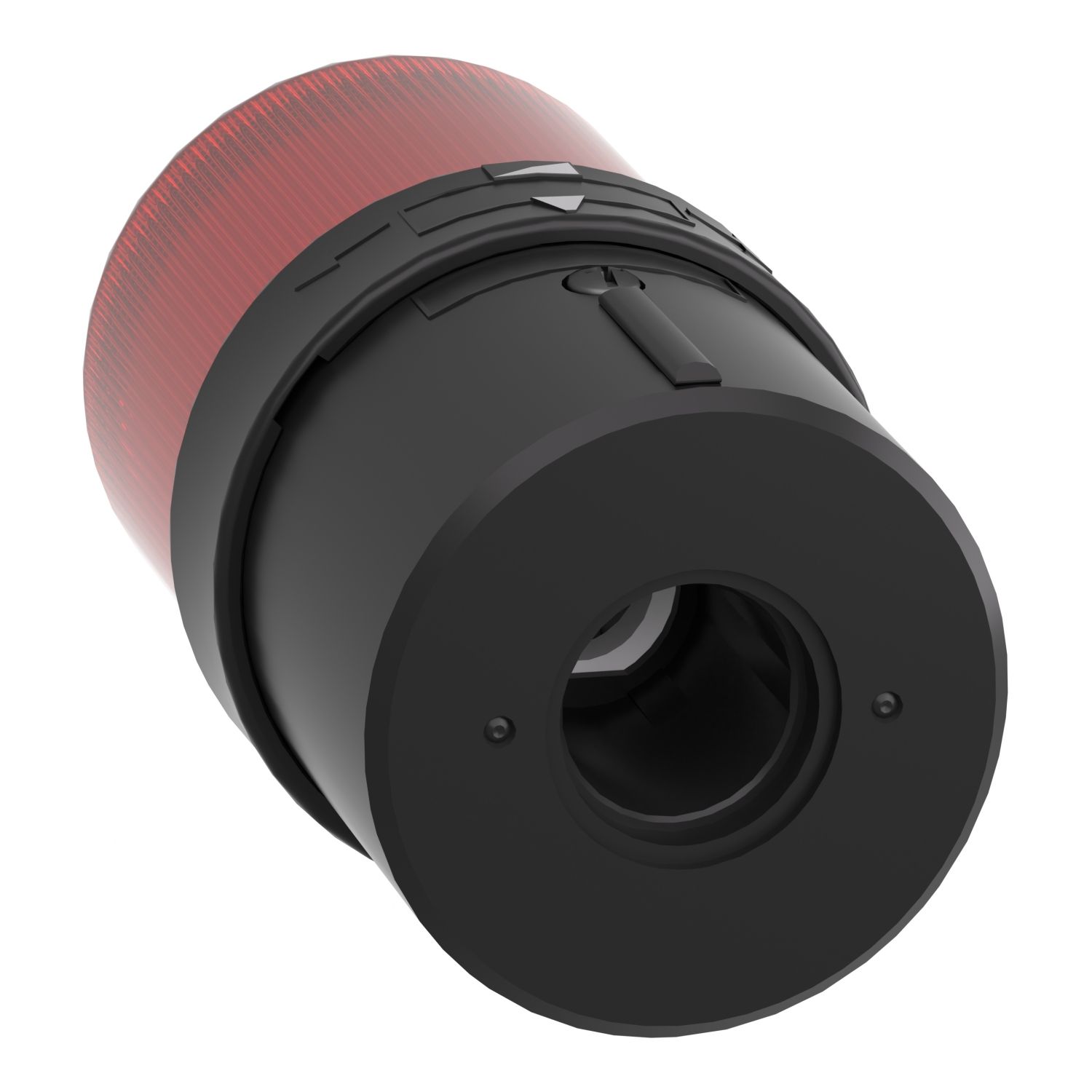

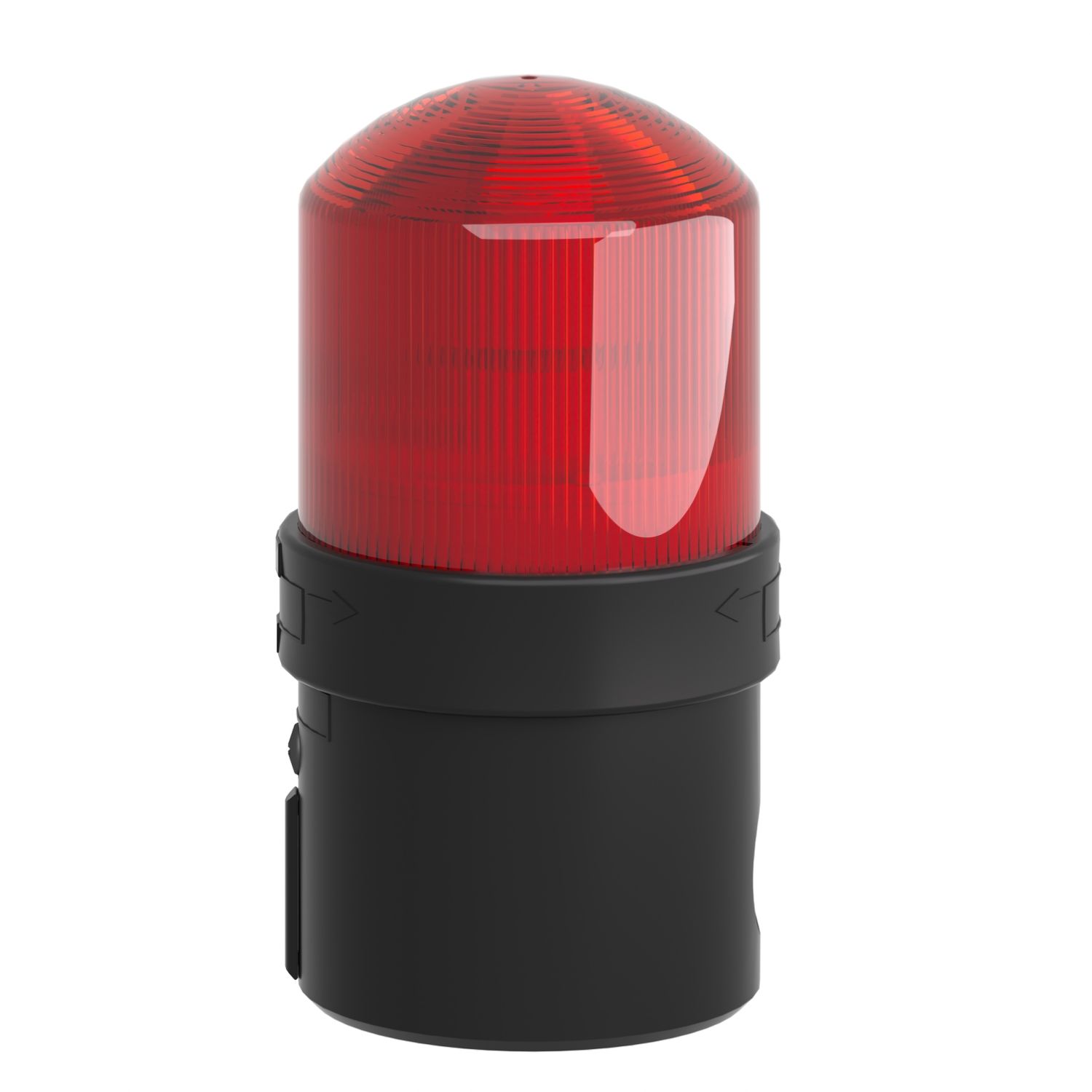

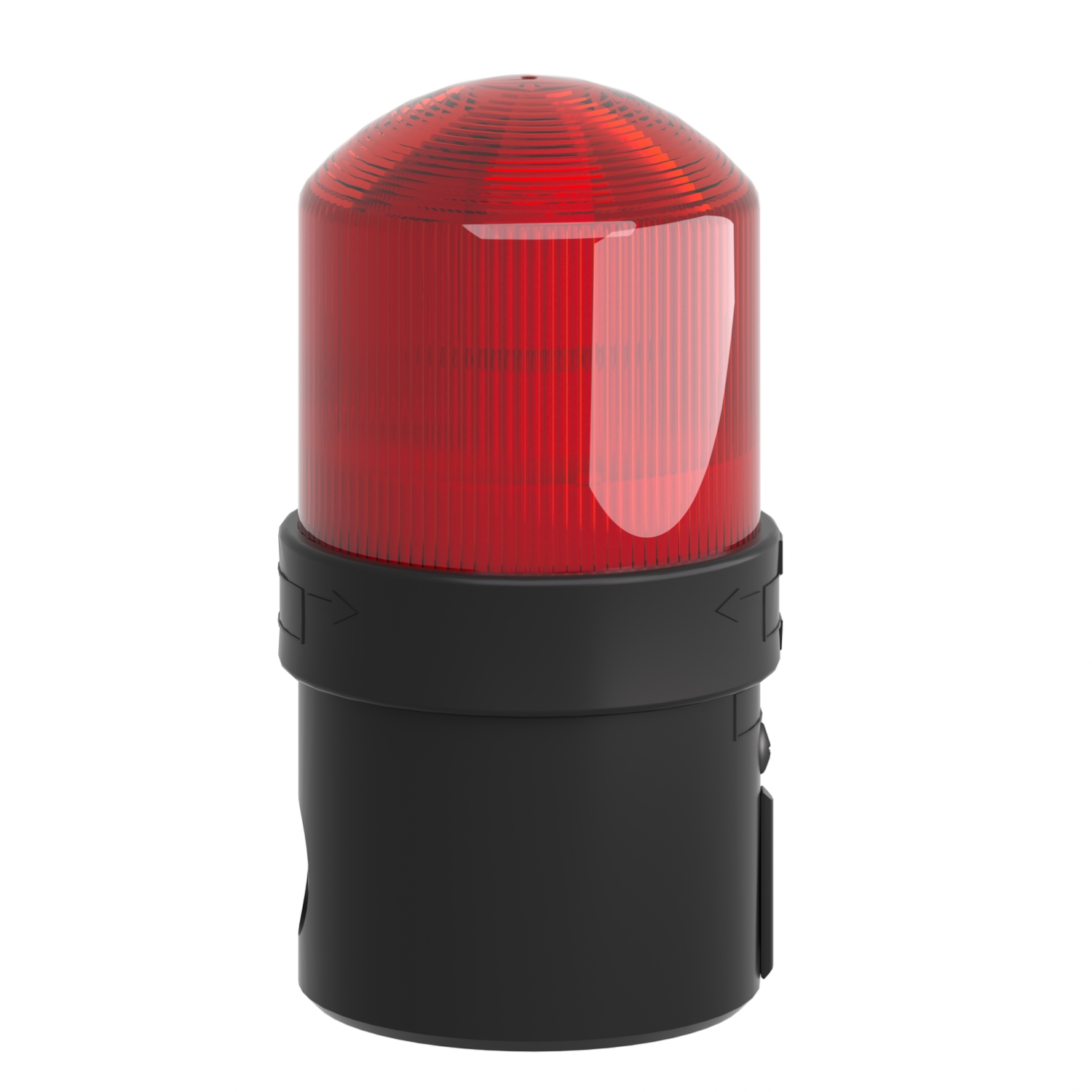

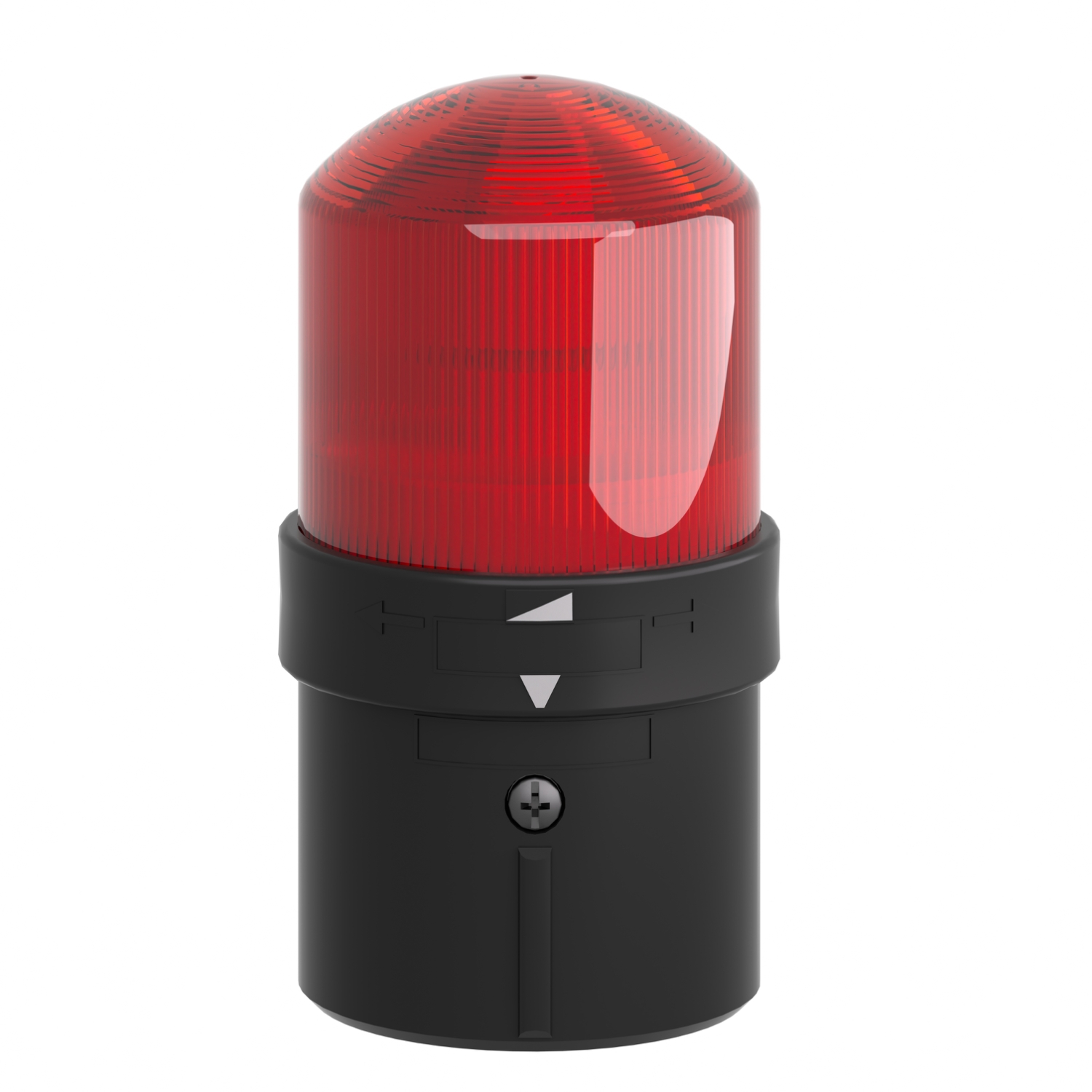

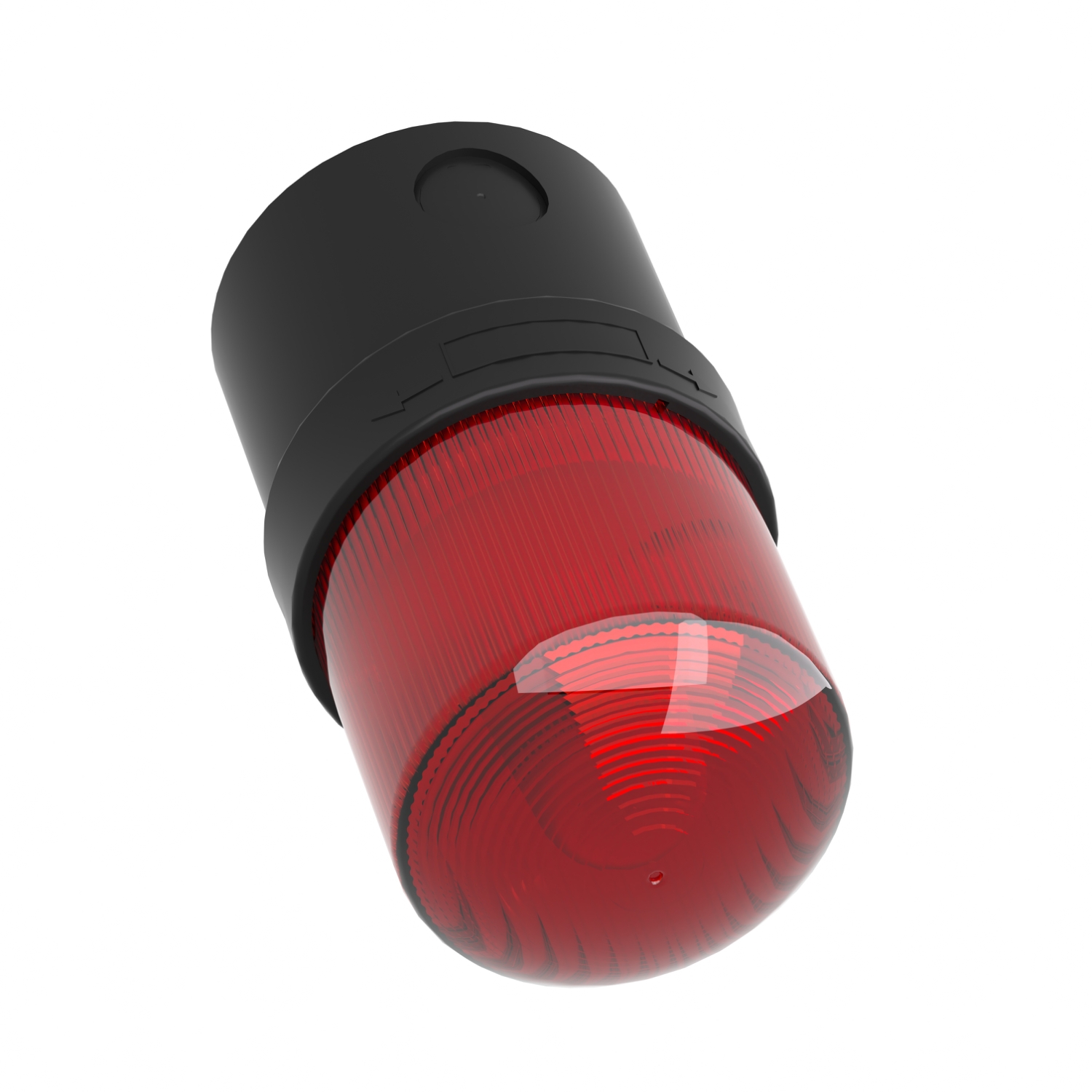

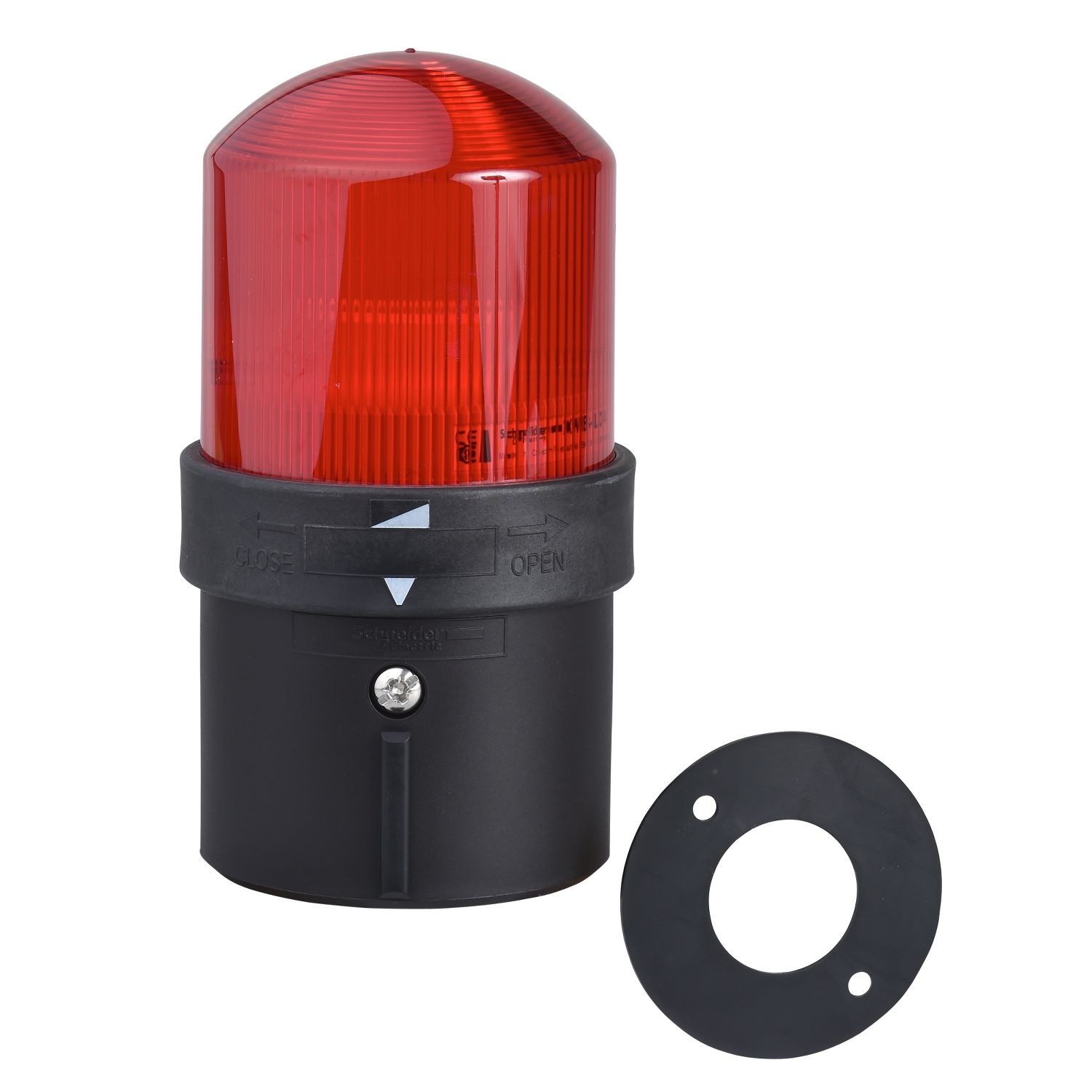

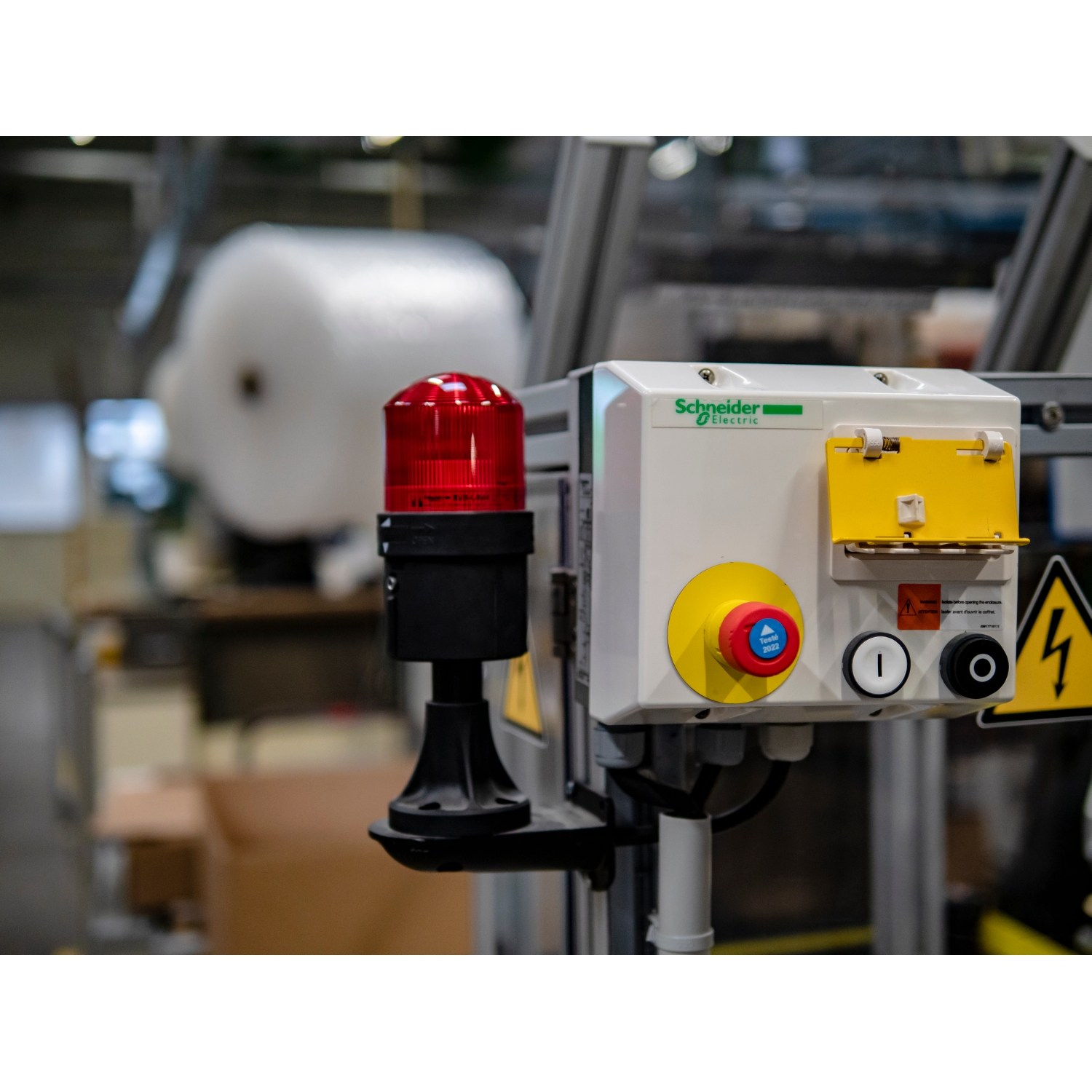

This illuminated complete beacon is designed as lighting accessory for tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | <= 250 V |
| Material | polycarbonate: illuminated unit, glass reinforced polyamide: base unit |
| Bulb type | protected LED, incandescent with BA 15d base |
| Signalling type | steady |
| Maximum power dissipation in W | 7 W |
| Component name | XVBL |
| Product or component type | complete beacon |
| Light source | bulb not included, red |
| Mounting diameter | 70 mm |
| Range of product | Harmony XVB Universal |
| Beacon or indicator bank unit type | illuminated unit, base unit direct or tube fixing |
| Complementary | |
| CAD overall depth | 70 mm |
| CAD overall width | 70 mm |
| Nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| CAD overall height | 139 mm |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Net weight | 0.26 kg |
| Terminals description ISO n°1 | (GND)GROUND, (COM-1)PW |
| Environment | |
| Protective treatment | TC |
| Electrical shock protection class | class II on base unit conforming to IEC 61140, class I on support tube conforming to IEC 61140 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP66 on base unit conforming to IEC 60529, IP65 on fixing base XVBZ0. conforming to IEC 60529 |
| Pollution degree | 2 |
| Standards | IEC 60947-5-1 |
| Ambient air temperature for operation | -25-70 °C: incandescent, -25-50 °C: LED |
| Product certifications | UL 508, CSA C22-2 No 14, EAC, CCC |
