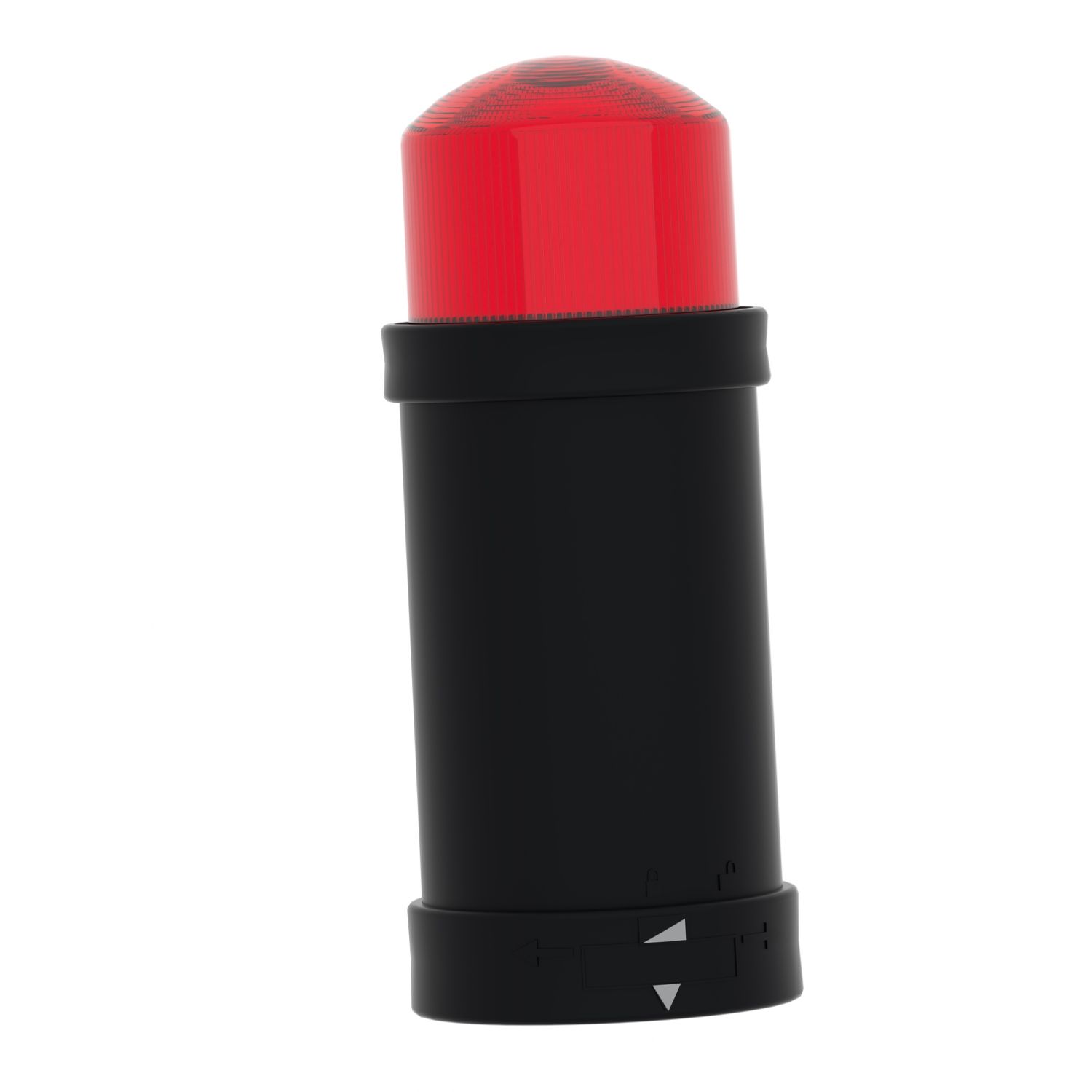

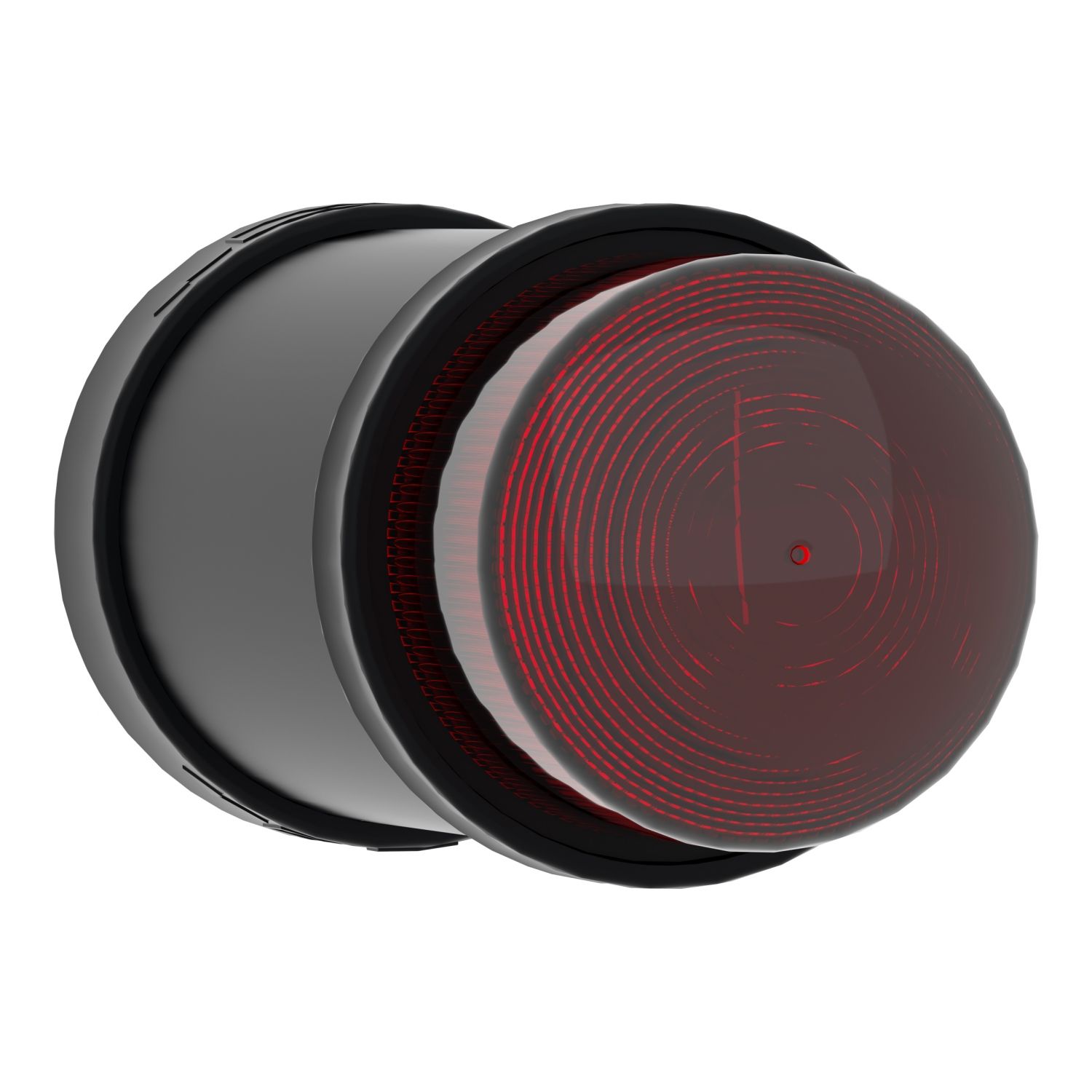

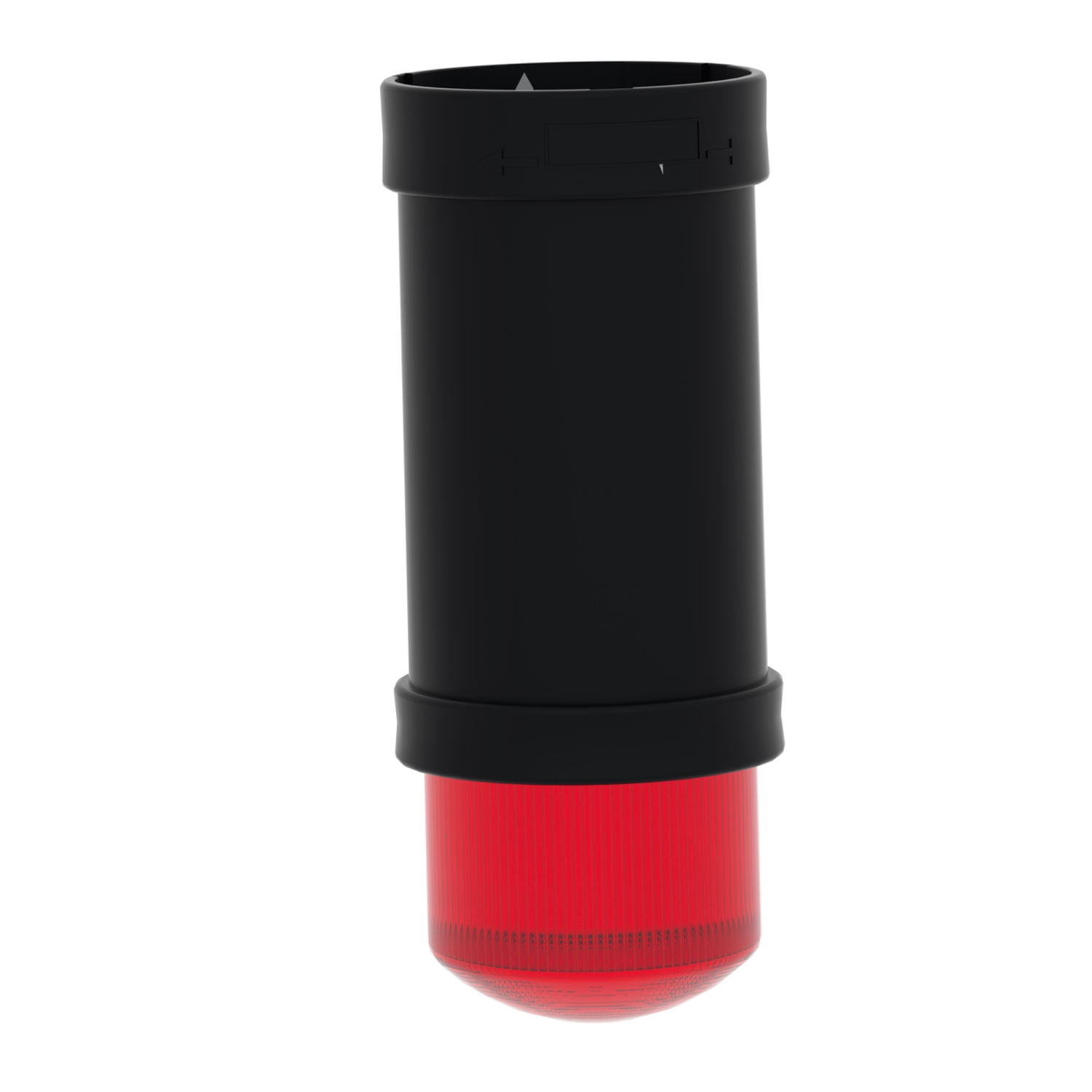

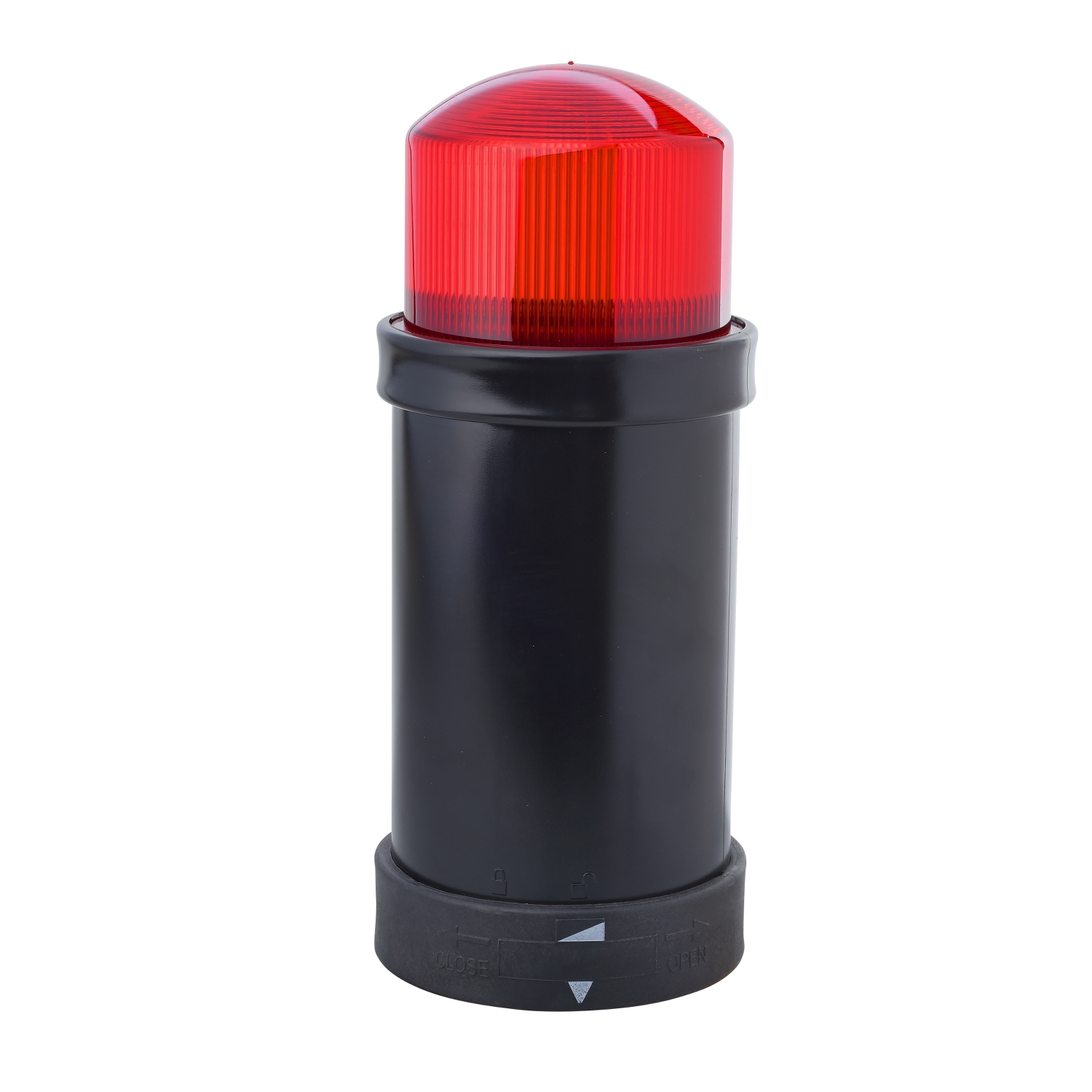

This red illuminated unit is designed to be connected with base to create complete tower light. Its flash discharge tube offers a strobe light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 24 V AC/DC |
| Beacon or indicator bank unit type | illuminated unit |
| Bulb type | flash discharge tube |
| Signalling type | flashing |
| Material | polycarbonate |
| Component name | XVBC |
| Product or component type | indicator bank |
| Light source | integral flash discharge tube, red |
| Mounting diameter | 70 mm |
| Range of product | Harmony XVB Universal |
| Flash energy | 10 J |
| Complementary | |
| CAD overall depth | 70 mm |
| CAD overall width | 70 mm |
| Assembly style | customer assembly, up to 5 units |
| Flashing frequency | 1-1 Hz |
| Nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| CAD overall height | 157 mm |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Net weight | 0.305 kg |
| Current consumption | < 850 mA DC, < 1300 mA AC |
| Environment | |
| Protective treatment | TC |
| Electrical shock protection class | class II on base unit conforming to IEC 61140, class I on support tube conforming to IEC 61140 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP66 on base unit conforming to IEC 60529, IP65 on fixing base XVBZ0. conforming to IEC 60529 |
| Standards | IEC 60947-5-1 |
| Product certifications | UL 508, CSA C22-2 No 14, EAC, CCC |
