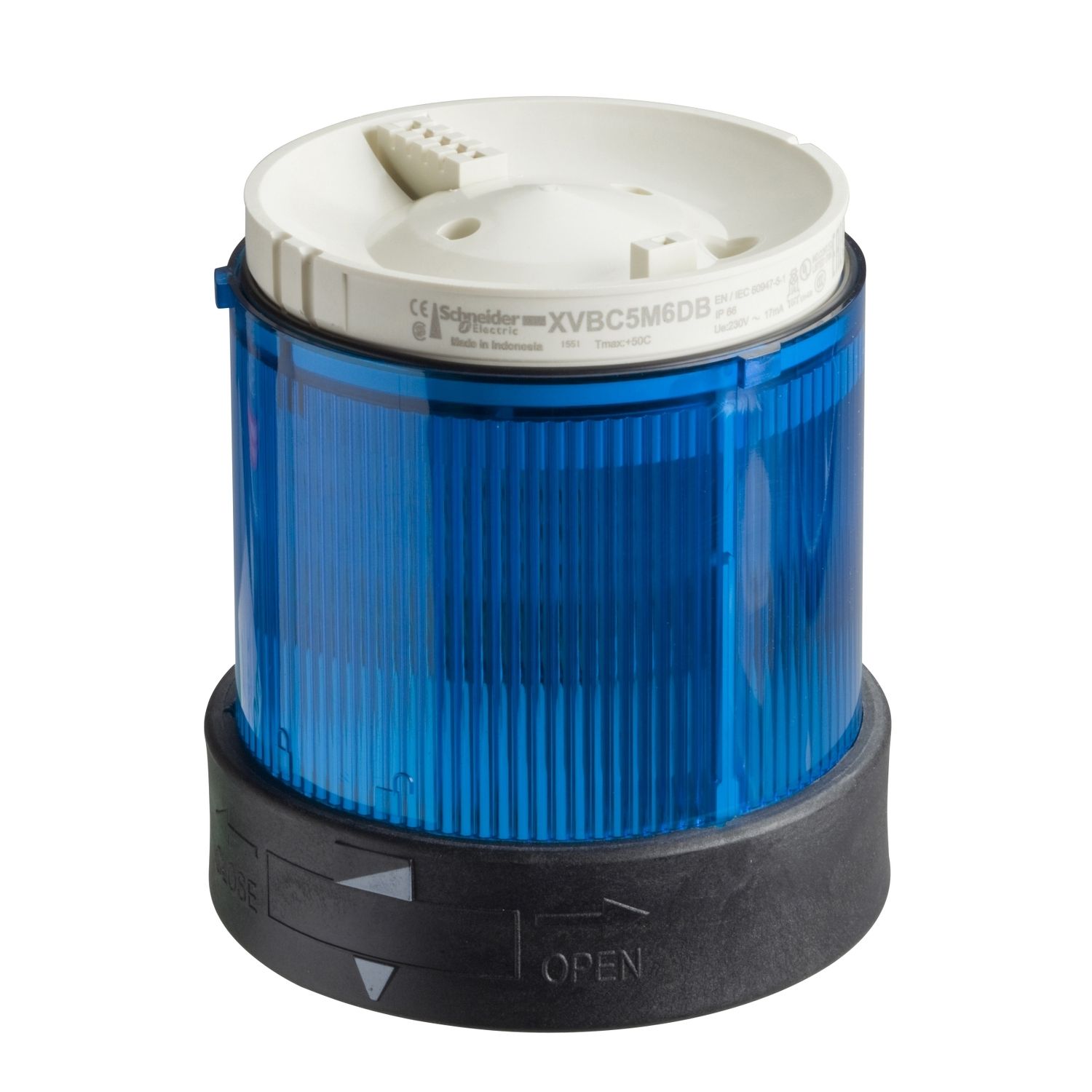

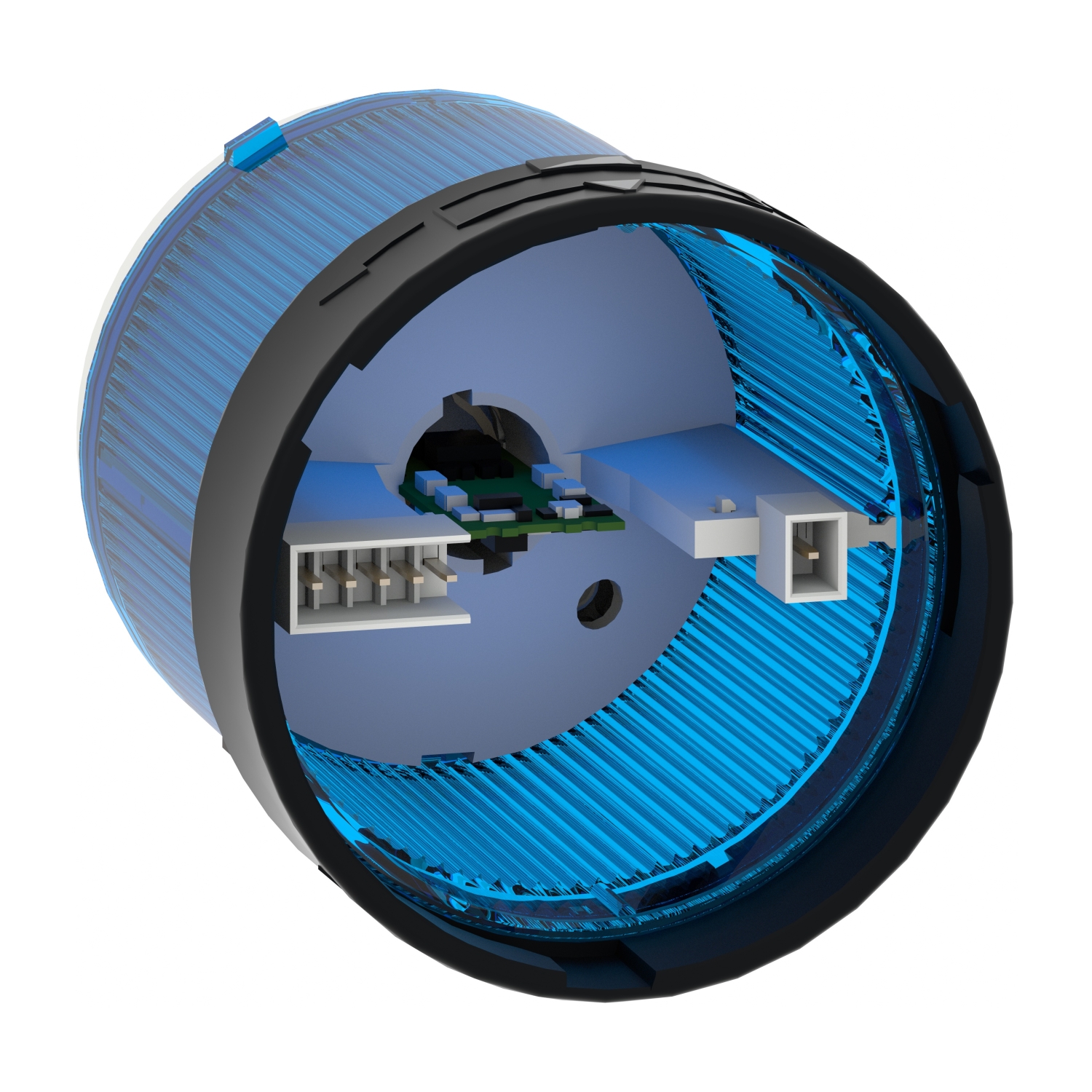

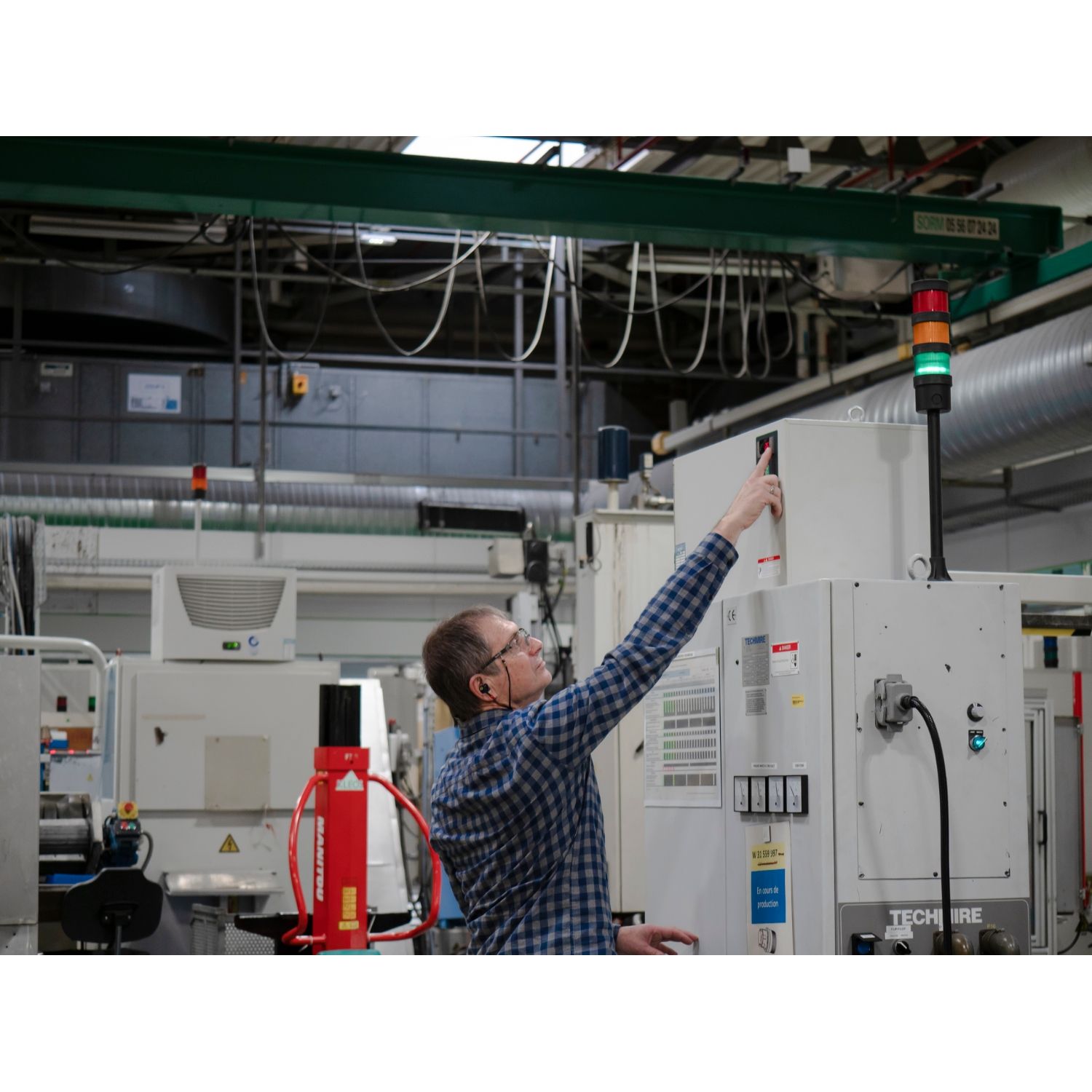

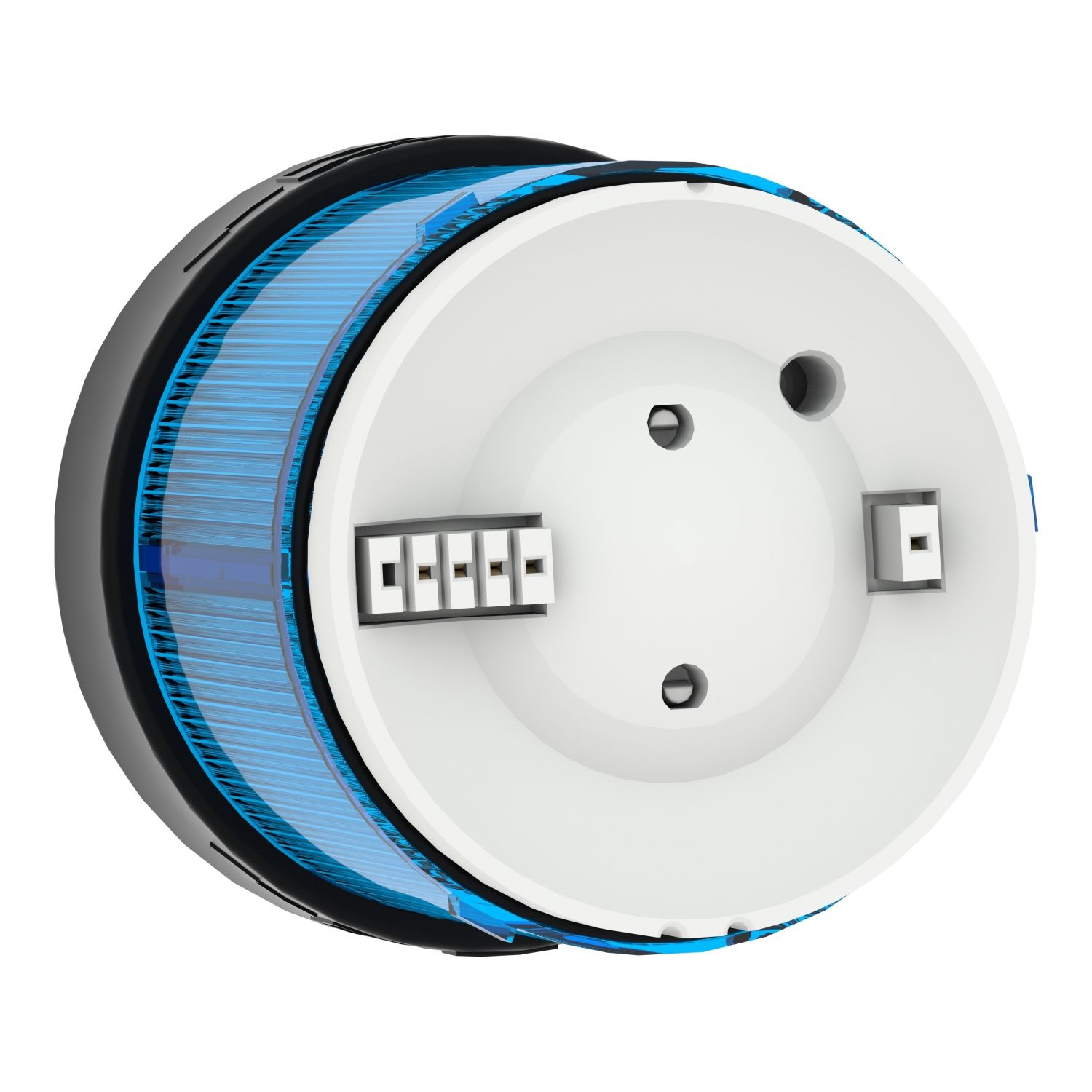

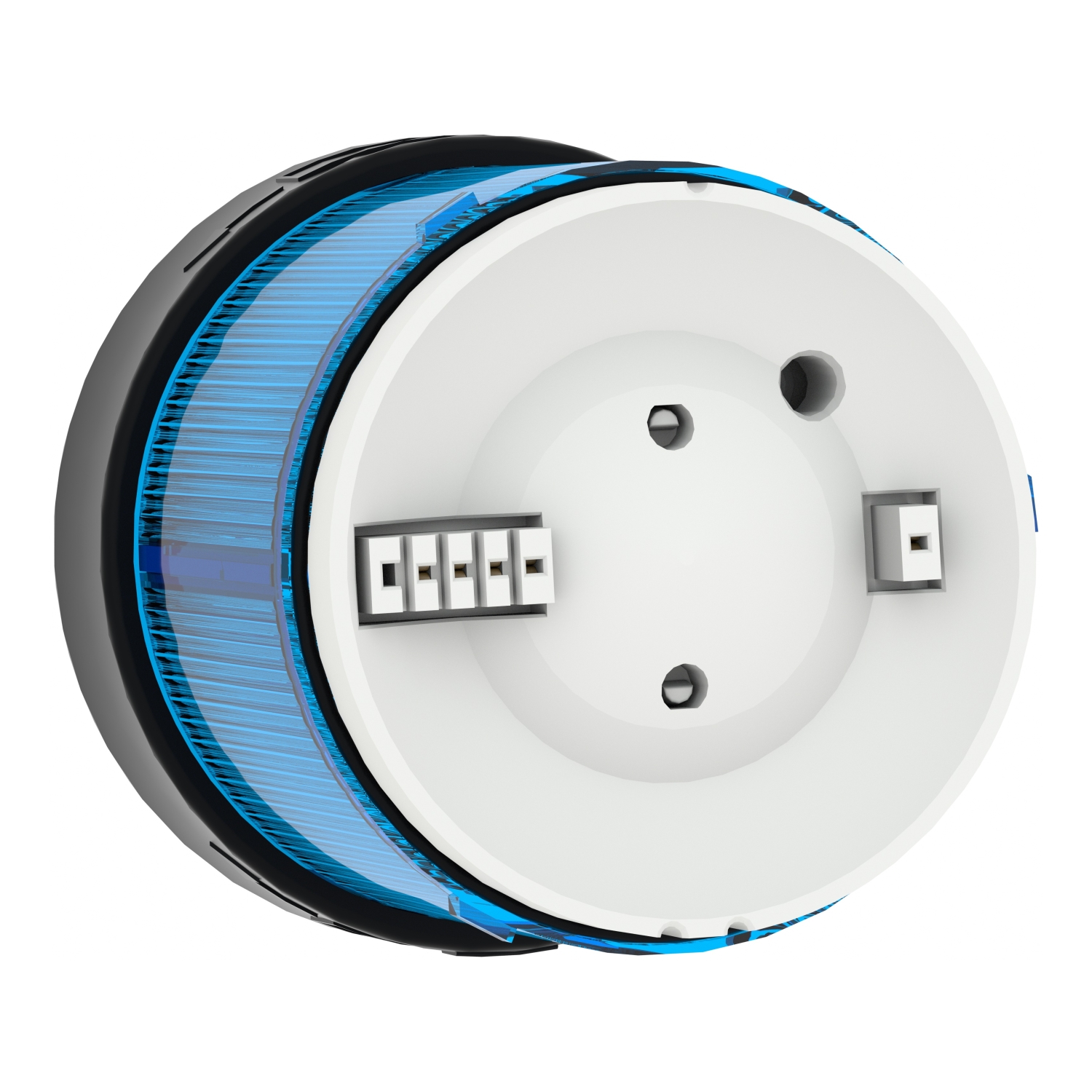

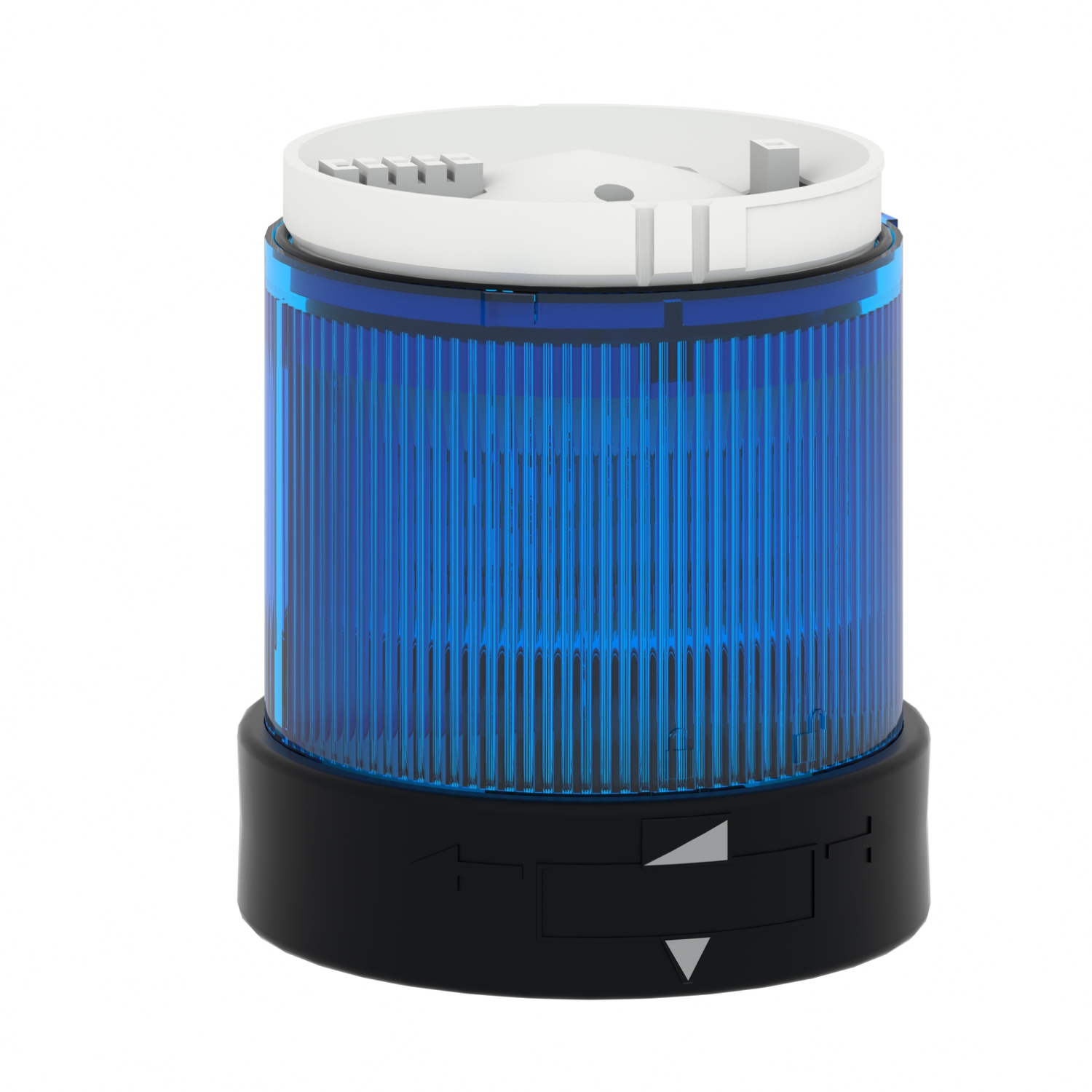

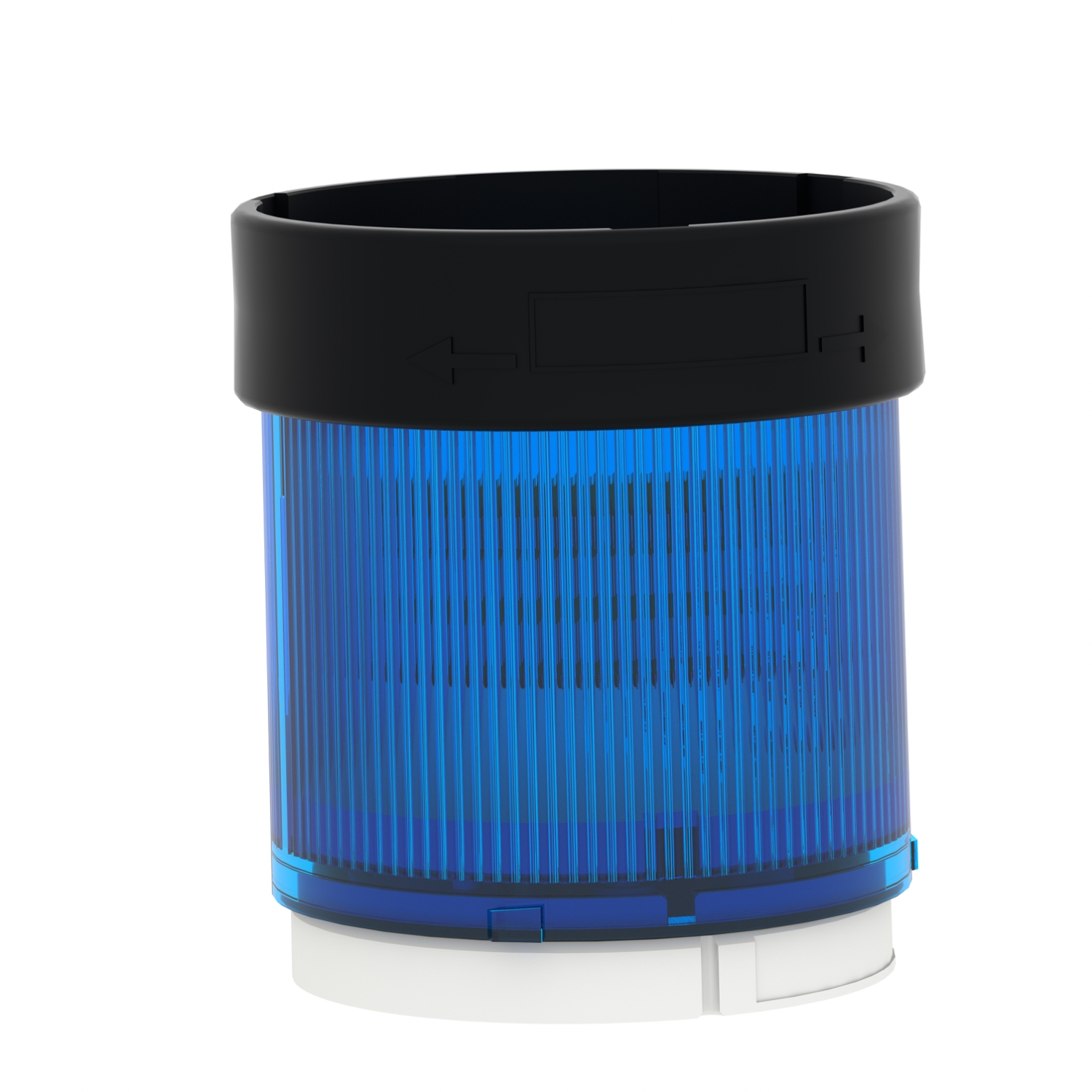

This blue illuminated unit is designed to be connected with base to create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Beacon or indicator bank unit type | illuminated unit |
| Bulb type | protected LED |
| Light source | integral LED, blue |
| Range of product | Harmony XVB Universal |
| [Us] rated supply voltage | 230 V AC |
| Signalling type | steady |
| Material | polycarbonate |
| Component name | XVBC |
| Product or component type | indicator bank |
| Mounting diameter | 70 mm |
| Complementary | |
| Assembly style | customer assembly, up to 5 units |
| Nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| CAD overall height | 63 mm |
| CAD overall depth | 70 mm |
| CAD overall width | 70 mm |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Net weight | 0.15 kg |
| Current consumption | < 17 mA AC |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP66 on base unit conforming to IEC 60529, IP65 on fixing base XVBZ0. conforming to IEC 60529 |
| Pollution degree | 2 |
| Electrical shock protection class | class II on base unit conforming to IEC 61140, class I on support tube conforming to IEC 61140 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Standards | EN/IEC 60947-5-1 |
| Product certifications | UL 508, CSA C22-2 No 14, EAC, CCC |
