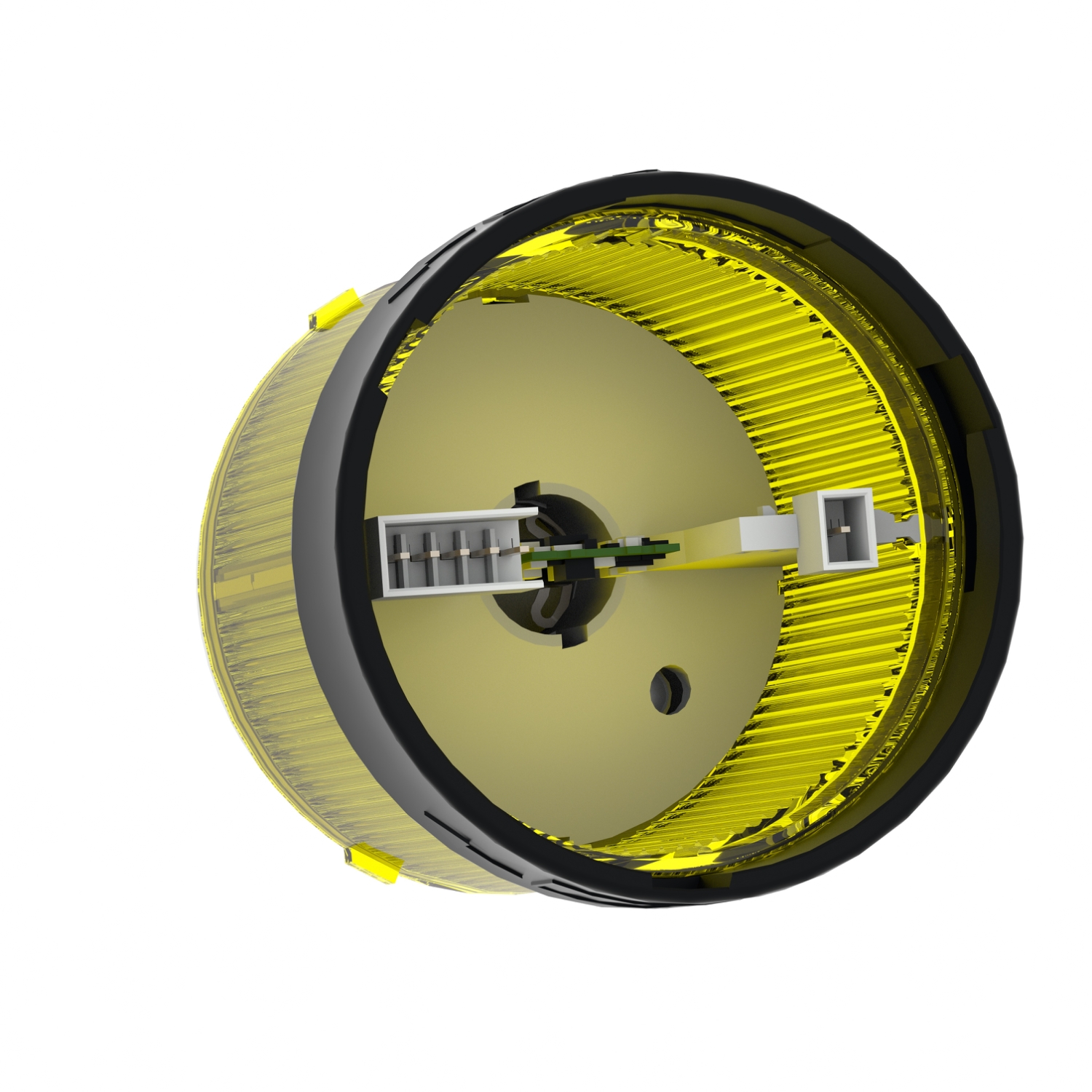

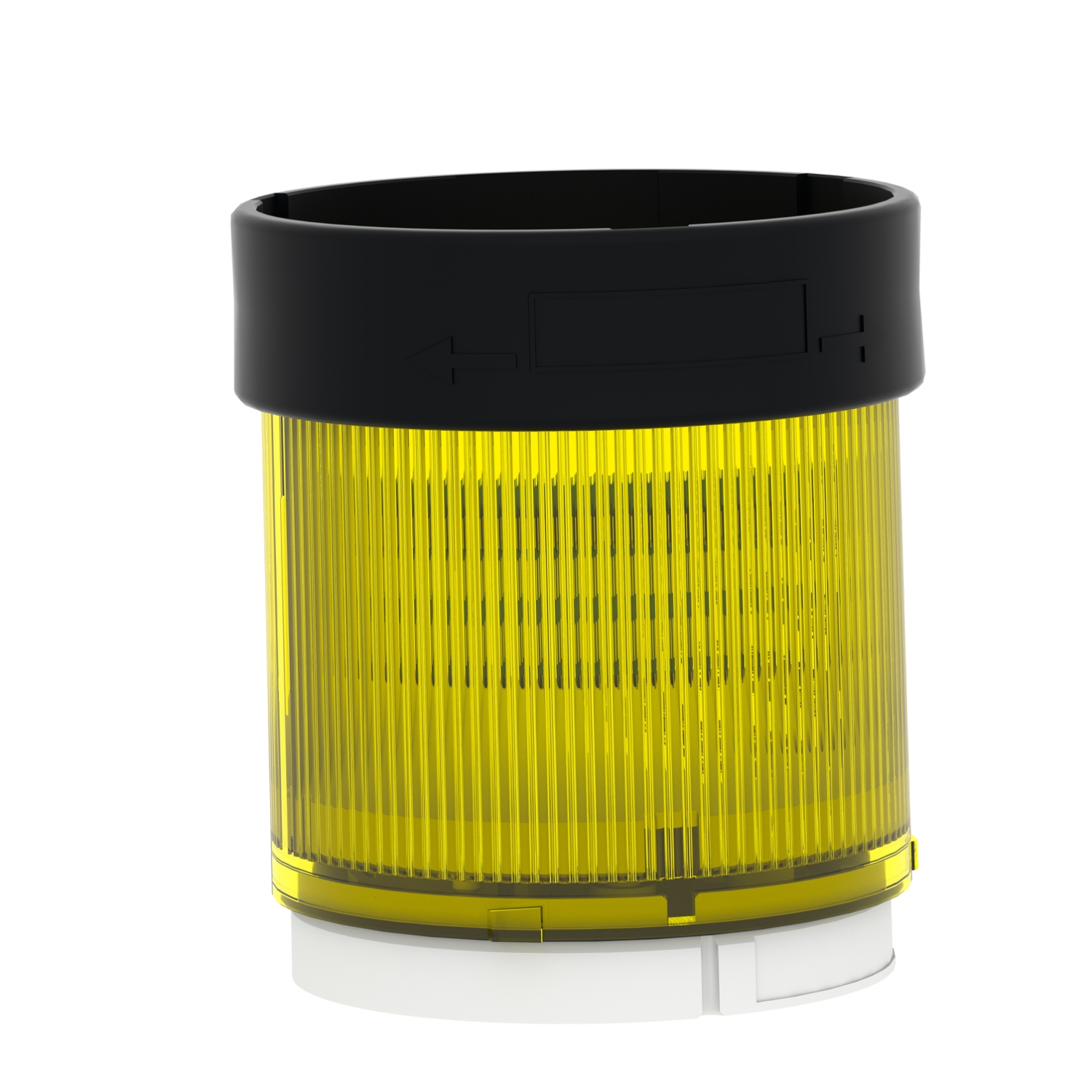

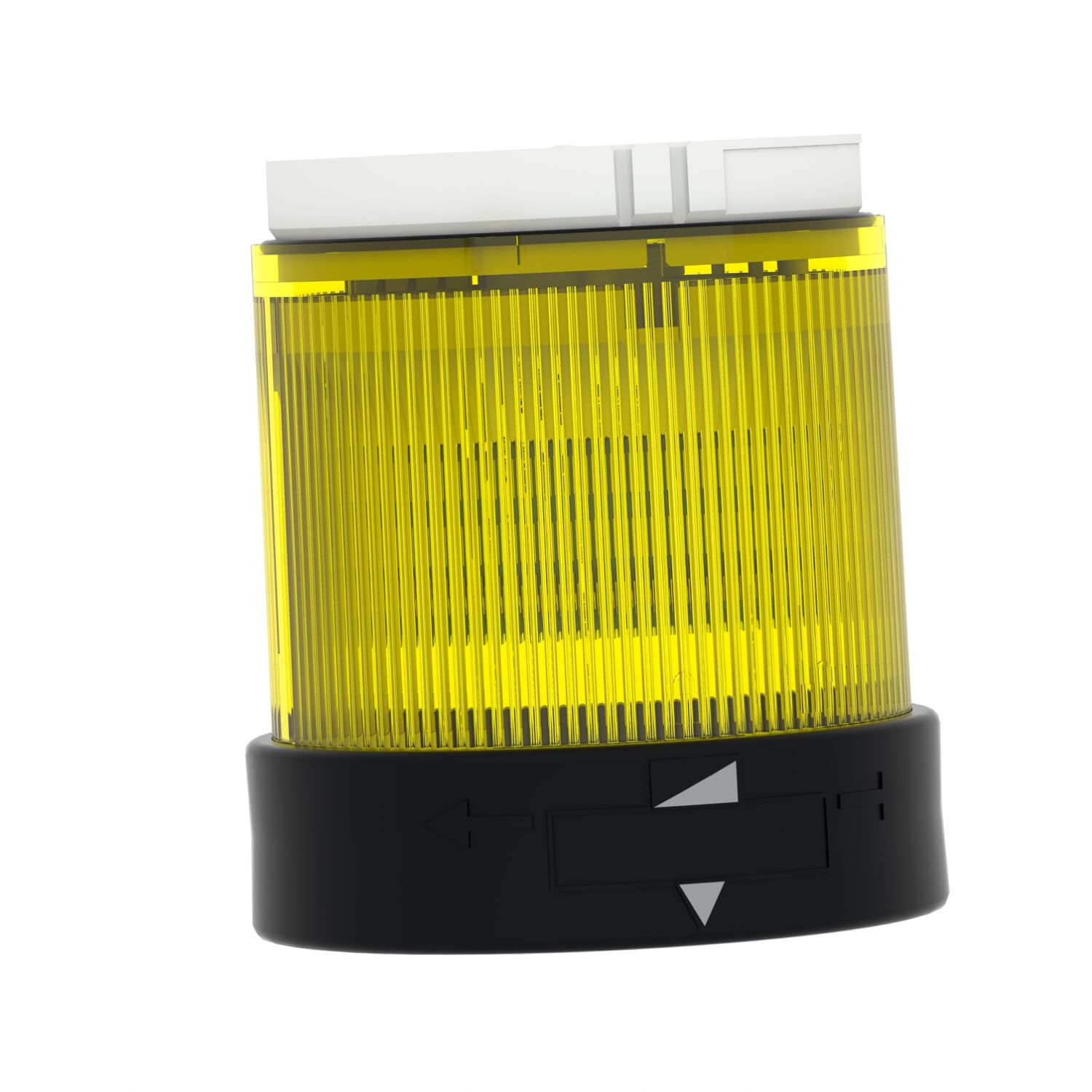

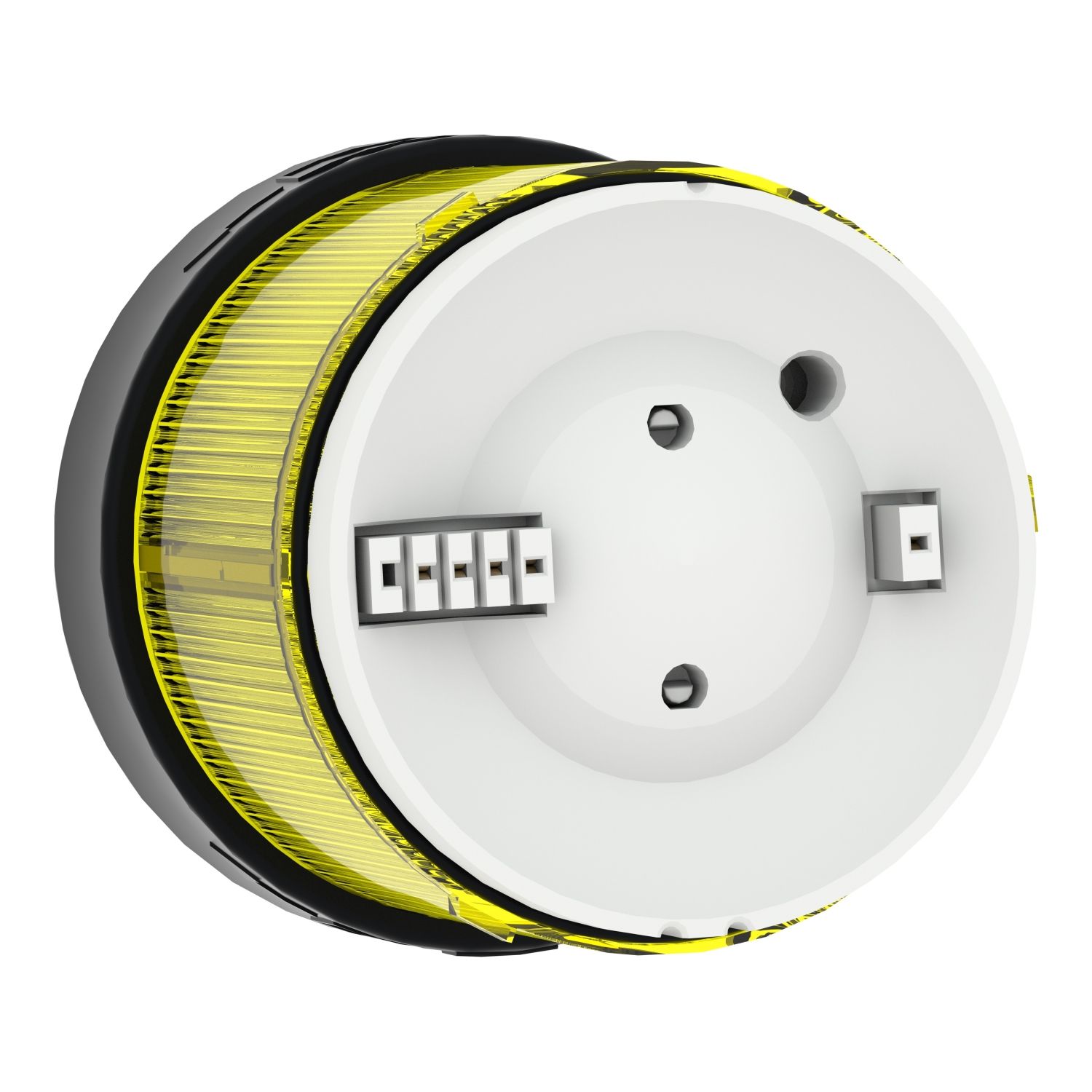

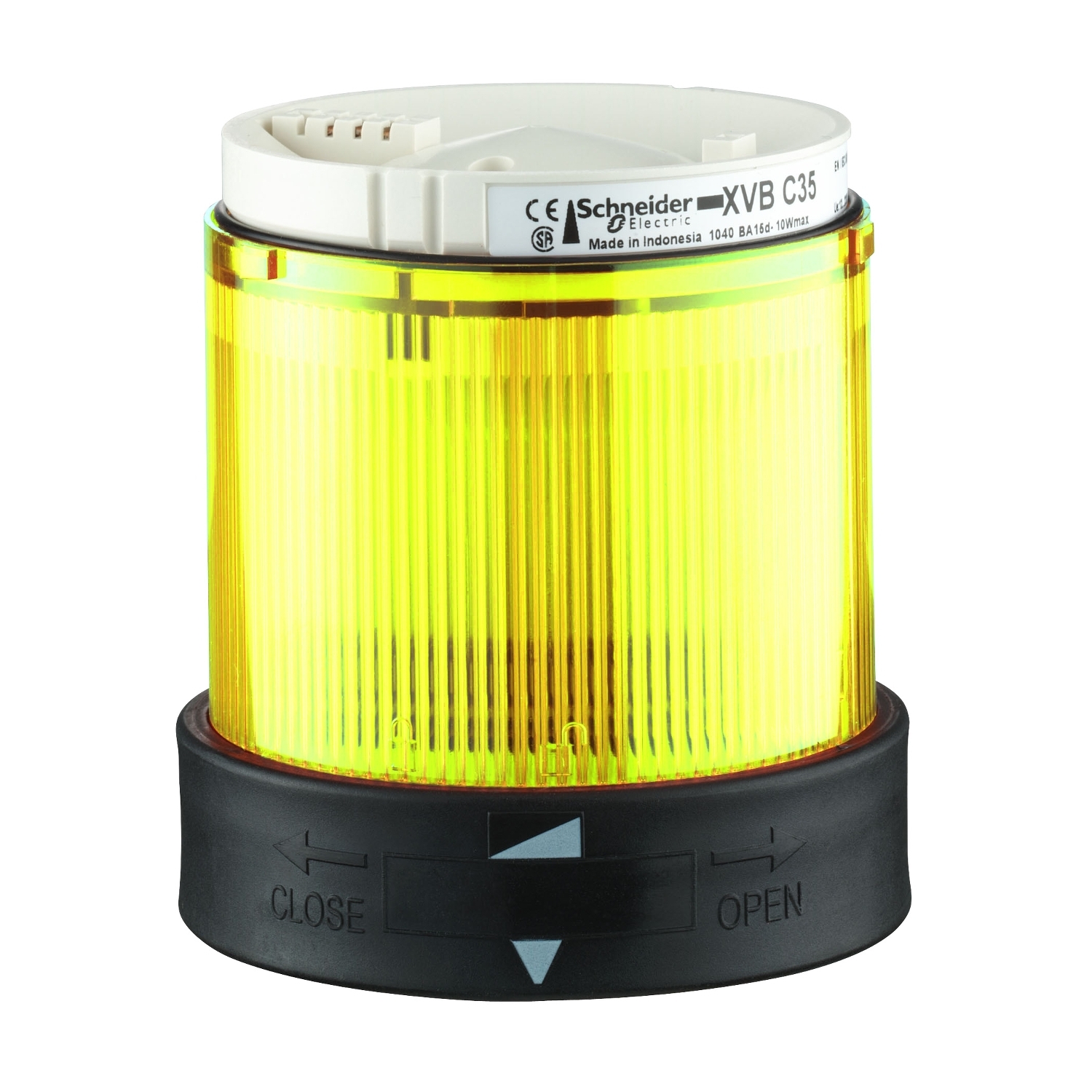

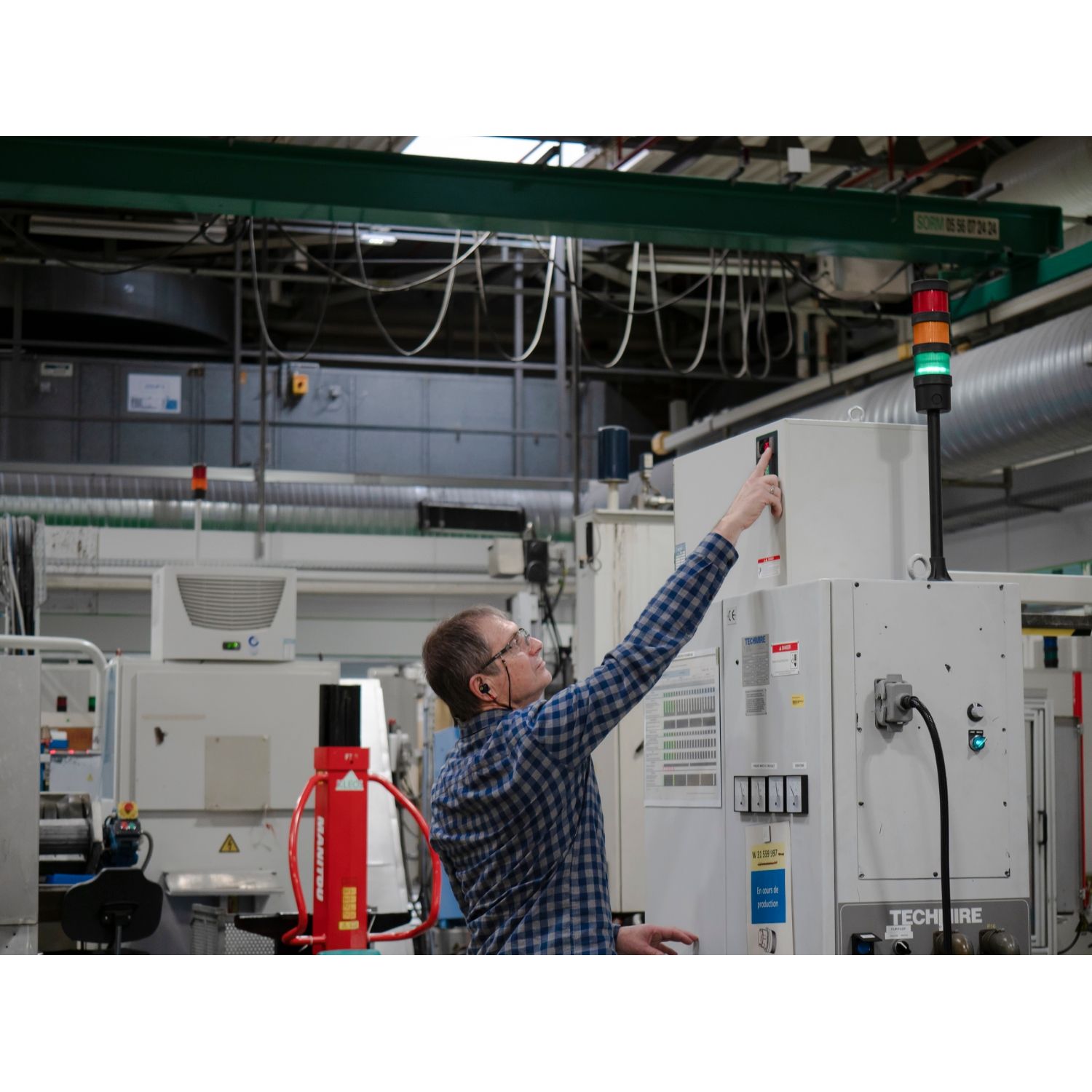

This Harmony XVB illuminated unit is supplied with 24V AC/DC and has a yellow LED with a steady light. This yellow indicating bank lens is designed as an illuminated unit to be connected with base and create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with base unit and make complete tower light. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Beacon or indicator bank unit type | illuminated unit |
| Bulb type | protected LED |
| Light source | integral LED, yellow |
| Range of product | Harmony XVB Universal |
| [Us] rated supply voltage | 24 V AC/DC |
| Signalling type | steady |
| Material | polycarbonate |
| Component name | XVBC |
| Product or component type | indicator bank |
| Mounting diameter | 70 mm |
| Complementary | |
| Assembly style | customer assembly, up to 5 units |
| Nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| CAD overall height | 63 mm |
| CAD overall depth | 70 mm |
| CAD overall width | 70 mm |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Net weight | 0.15 kg |
| Current consumption | < 47 mA AC/DC |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP66 on base unit conforming to IEC 60529, IP65 on fixing base XVBZ0. conforming to IEC 60529 |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25-50 °C |
| Electrical shock protection class | class II on base unit conforming to IEC 61140, class I on support tube conforming to IEC 61140 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Standards | IEC 60947-5-1 |
| Product certifications | UL 508, CSA C22-2 No 14, EAC, CCC |
