| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting diameter | 70 mm |
| Material | polycarbonate |
| Signalling type | continuous or intermittent buzzer, 2 tones |
| Mounting position | upright/inverted |
| Housing colour | dark grey |
| Range of product | Harmony XVB7 |
| Device short name | XVB7 |
| Net weight | 0.080 kg |

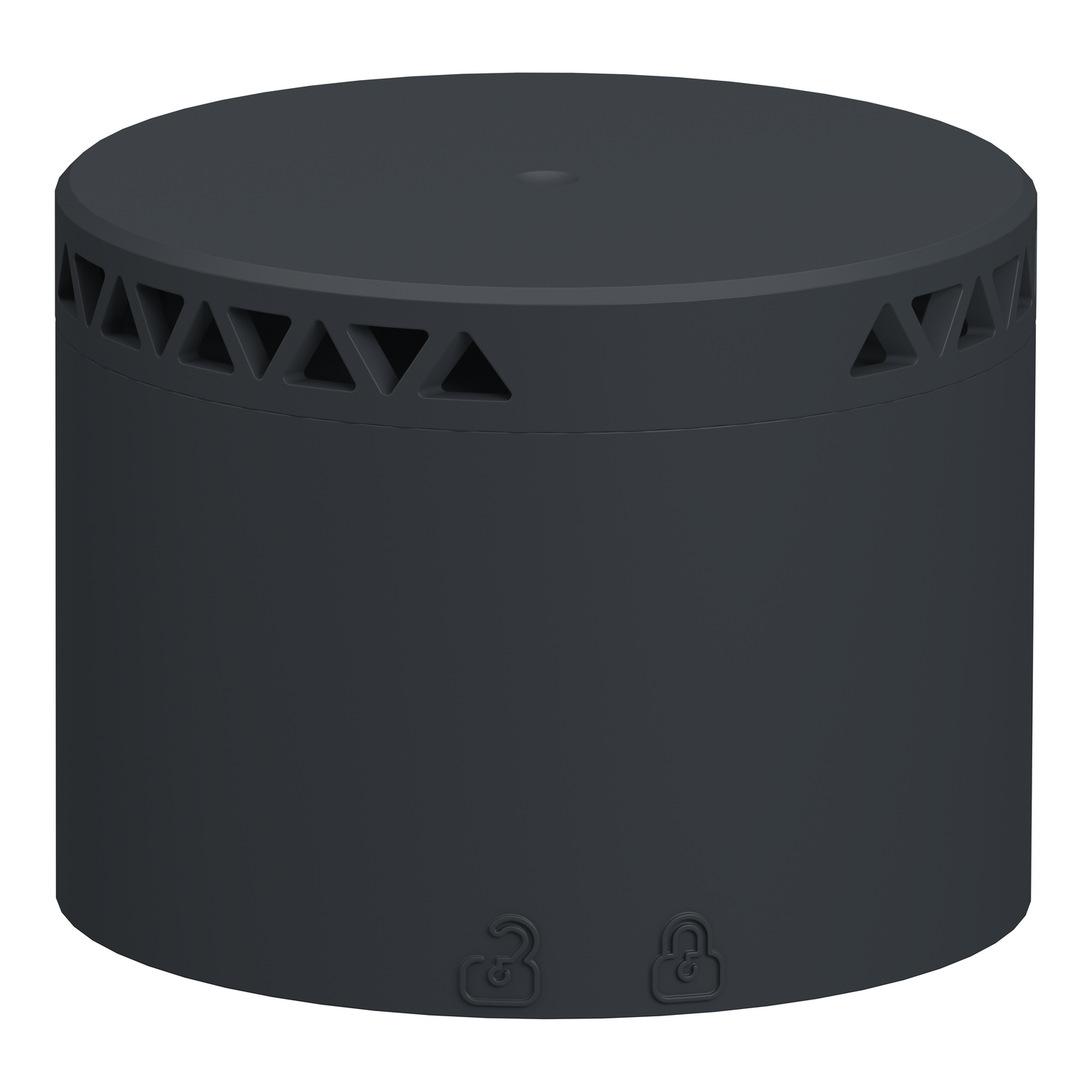

| Device composition | 2 tone buzzer |
| Complementary | |
| [Ue] rated operational voltage | 24 V AC/DC |
| Inrush current | 1 A |
| [Ui] rated insulation voltage | 50 V |
| Rated operational voltage limits | 21.6...26.4 V AC/DC |
| Pulse frequency | 1 Hz |
| Control type | DIP switch for tone/loudness |
| Current consumption | 33 mA at 24 V AC, 22 mA at 24 V DC |
| Electrical shock protection class | class II |
| [Uimp] rated impulse withstand voltage | 0.5 kV |
| Noise level | 88-102 dB at 1 m |
| Environment | |
| Standards | UL 60947-5-1, IEC 60947-5-1, CSA C22.2 No 60947-5-1 |
| Vibration resistance | 6 gn, amplitude = +/- 0.5 mm (f = 10-500 Hz)in operation |
| Shock resistance | 30 gn (duration = 6 ms) for in operation |
| Ambient air temperature for operation | -25-60 °C |
| Pollution degree | 2 |
| IP degree of protection | IP66 |
| Product certifications | cULus, CCC, RCM, UKCA, CE |
| NEMA degree of protection | Type 4/4X/12/13 indoor use only |
| Ambient air temperature for storage | -40-70 °C |
| Contractual warranty | |
| Warranty | 18 |
