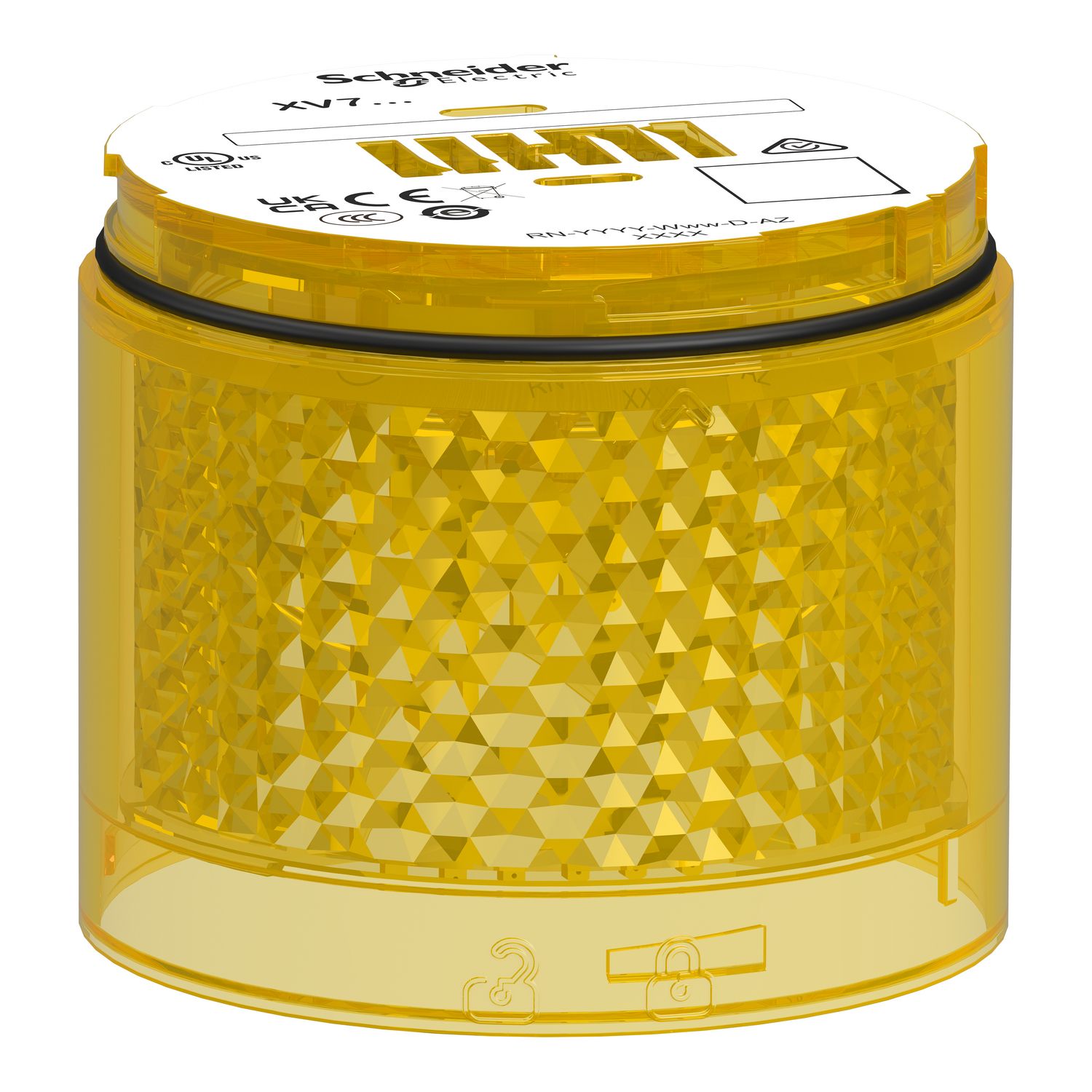

Light Module, Harmony XVB7 Modular Tower Light, Yellow, Ø70mm, Flashing, Colored Lens
Manufacturer: Schneider Electric
SKU: XVB7C68
GTIN: 3606487129462
This light module is part of the Harmony XVB7 range, featuring Ø 70mm modular tower lights designed for easy customer assembly. This yellow light module is designed as a lighting unit that connects to a base and to other light or sound modules to form a complete tower light. The XVB7C68 light module is powered by 24V ACDC and features an energy-efficient LED that emits a flashing light signal. Featuring a simple and modular design, this unit allows for easy installation with a base unit to create a complete tower light. Its energy-efficient LED maximizes brightness while minimizing energy consumption. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66, making it ideal for operation in harsh environments. The Harmony XVB7 modular tower lights are visual or audible signaling units used for indicating, throughout 360°, the various states of a machine or installation. This product complies with UL 60947-5-1, IEC 60947-5-1, and CSA C22.2 No 60947-5-1 standards. It features CE marking and holds cULus, CCC, RCM, and UKCA certifications. Other light modules, base modules, beacons, and audible modules can be assembled to make a complete tower light. To simplify mounting, fixing plates, tubes, and brackets are available for separate purchase. Harmony XVB7 offers a wide range of voltage selection and flexible mounting options with visual and audible functions. The Harmony XVB7 range features a sleek design incorporating energy-efficient LEDs to maximize brightness while minimizing energy consumption.
Availability: Out of stock
Old price: $167.83 inc GST
$102.11 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Mounting diameter 70 mm
Product or component type light module
Material PC (polycarbonate)
Signalling type flashing
Mounting position upright/inverted
Range of product Harmony XVB7
Device short name XVB7
Net weight 0.108 kg
Device composition standard lens
Light source LED, yellow
Complementary
[Ue] rated operational voltage 24 V AC/DC
Inrush current 1 A
[Ui] rated insulation voltage 50 V
Rated operational voltage limits 21.6...26.4 V AC/DC
Flashing frequency 2 Hz
Service life in hours 50000 h
Current consumption 180 mA at 24 V AC, 250 mA at 24 V DC
Electrical shock protection class class II
[Uimp] rated impulse withstand voltage 0.5 kV
Environment
Standards UL 60947-5-1, IEC 60947-5-1, CSA C22.2 No 60947-5-1
Vibration resistance 6 gn, amplitude = +/- 0.5 mm (f = 10-500 Hz)in operation
Shock resistance 30 gn (duration = 6 ms) for in operation
Ambient air temperature for operation -25-60 °C
Pollution degree 2
IP degree of protection IP66
Product certifications cULus, CCC, RCM, UKCA, CE
NEMA degree of protection Type 4/4X/12/13 indoor use only
Ambient air temperature for storage -40-70 °C
Contractual warranty
Warranty 18
