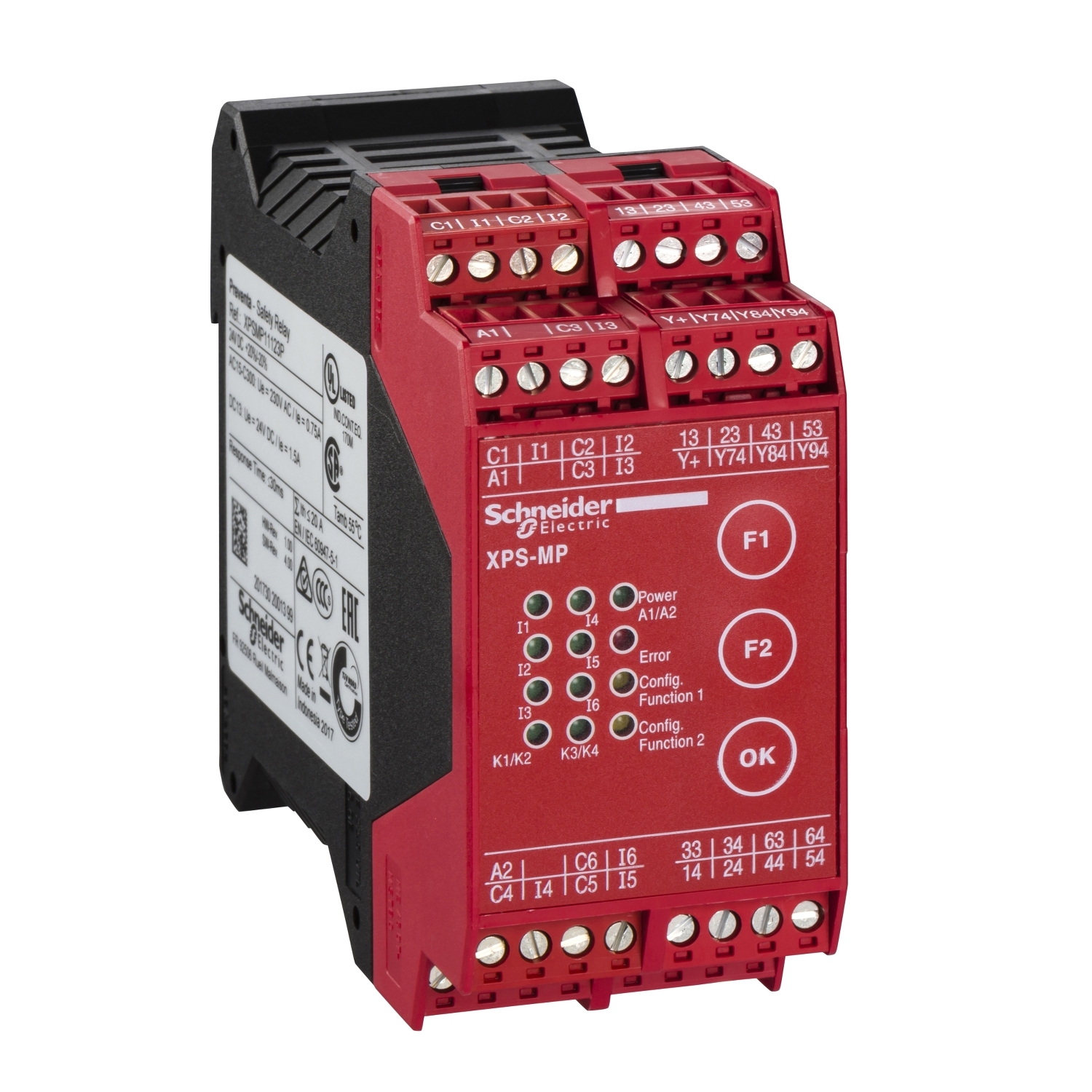

This XPSMP safety contoller can handle 2 independent safety functions. This safety controller with pre-defined functions meets the requirements of PL e/Category 4 conforming EN ISO 13849-1 and SILCL 3 conforming to EN/IEC 61508 and EN/IEC 62061. It enables two independent safety functions (selected from a choice of 15 pre-defined configurations) to be performed using the same product. It complies with the most stringent functional safety requirements thanks to multiple configurable safety functions. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Safety use category | category 4 maximum conforming to EN/IEC 60954-1 |
| Checks | configuration (configuration 9), configuration (configuration 6), configuration (configuration 5), configuration (configuration 4), configuration (configuration 3), configuration (configuration 13), configuration (configuration 10) |
| Safety module application | 2 independent functions |
| Connections - terminals | captive screw clamp terminals, removable terminal block flexible cable: 0.5...1.5 mm² with cable end, with double bezel, 2 wires, captive screw clamp terminals, removable terminal block flexible cable: 0.25...2.5 mm² with cable end, without bezel, 1 wire, captive screw clamp terminals, removable terminal block flexible cable: 0.25...2.5 mm² with cable end, with bezel, 1 wire, captive screw clamp terminals, removable terminal block flexible cable: 0.25...1 mm² with cable end, without bezel, 2 wires, captive screw clamp terminals, removable terminal block solid cable: 0.2...2.5 mm² without cable end, 1 wire, captive screw clamp terminals, removable terminal block flexible cable: 0.2...2.5 mm² without cable end, 1 wire, captive screw clamp terminals, removable terminal block flexible cable: 0.2...1.5 mm² without cable end, 2 wires, captive screw clamp terminals, removable terminal block solid cable: 0.2...1 mm² without cable end, 2 wires |
| Safety module name | XPSMP |
| Range of product | Preventa Safety automation |
| [Us] rated supply voltage | 24 V DC - 20...20 % |
| Type of start | monitored (configuration 13), monitored (configuration 12), automatic or unmonitored (configuration 7), automatic or unmonitored (configuration 5), automatic or unmonitored (configuration 3), automatic or unmonitored (configuration 14), automatic or unmonitored (configuration 11), automatic or unmonitored (configuration 10), monitored (configuration 9), monitored (configuration 8), monitored (configuration 6), monitored (configuration 4), monitored (configuration 2), monitored (configuration 15), automatic or unmonitored (configuration 1) |
| Safety level | can reach SIL 3 conforming to EN/IEC 62061, can reach PL e/category 4 conforming to EN/ISO 13849-1 |
| Product or component type | safety controller with pre-defined function |
| Standards | EN/IEC 60947-5-1, EN/IEC 60947-1 + A11, EN/IEC 60204-1, DIN V VDE 801 + A1 |
| Product certifications | CSA, BIA, UL |
| Complementary | |
| Maximum response time on input open | 30 ms |
| Function of module | configuration 2: emergency stop monitoring 1-channel wiring, category 2, configuration 15: coded magnetic switch monitoring, category 4, configuration 14: coded magnetic switch monitoring, category 4, configuration 13: relay output safety light curtain monitoring, category 4, configuration 12: sensing mat and edges monitoring, category 3, configuration 11: sensing mat and edges monitoring, category 3, configuration 10: enabling grip switch monitoring (3-position switch), category 4, configuration 1: emergency stop monitoring 1-channel wiring, category 2, configuration 9: guard monitoring for injection presses and blowing machines, category 4, configuration 8: emergency stop monitoring 2-channel wiring, or guard monitoring, category 4, configuration 7: emergency stop monitoring 2-channel wiring, or guard monitoring, category 4, configuration 6: emergency stop monitoring 2-channel wiring, or guard monitoring, category 4, configuration 5: emergency stop monitoring 2-channel wiring, or guard monitoring, category 4, configuration 4: emergency stop monitoring 2-channel wiring, or guard monitoring, category 4, configuration 3: emergency stop monitoring 2-channel wiring, or guard monitoring, category 4, configuration 0: functions disabled (factory setting) |
| [Uc] control circuit voltage | 24 V |
| Input protection type | internal, electronic |
| Maximum line resistance | 100 Ohm <2000 m |
| Number of additional circuits | 3 solid state outputs |
| Associated fuse rating | 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200, 4 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output voltage | 17 V for relay output |
| Output thermal current | 6 A for 1 output and 2 A for the other 2 outputs for relay, 3.3 A for all 3 outputs relay simultaneously, 2 A for 1 output and 4 A for the other 2 outputs for relay |
| Height | 99 mm |
| Breaking capacity | 1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output, 20 mA at 24 V for static output circuit |
| Synchronisation time between inputs | unlimited (configuration 7), unlimited (configuration 4), unlimited (configuration 3), 1.5 s (configuration 9), 1.5 s (configuration 6), 1.5 s (configuration 5), 1.5 s (configuration 15), 1.5 s (configuration 14), unlimited (configuration 8), 0.5 s (configuration 13) |
| Depth | 114 mm |
| Number of safety circuits | 3 NO relays per function (6 NO total), volt-free |
| Width | 45 mm |
| Local signalling | 12 LEDs |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2 |
| Net weight | 0.32 kg |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2 |
| [Ith] conventional free air thermal current | 20 A |
| Minimum output current | 10 mA for relay output |
| Power consumption in W | 5 W |
| Mounting support | 35 mm symmetrical DIN rail |
| Environment | |
| Ambient air temperature for storage | -25-85 °C |
| IP degree of protection | IP40 (enclosure), IP20 (terminals) |
| Ambient air temperature for operation | -10-55 °C |
