Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Function of module | monitoring safety actuators, monitoring safety dialogue |
| Safety use category | SIL 3 conforming to EN/IEC 61508, performance level e conforming to EN/ISO 13849-1, category 4 maximum conforming to EN 954-1 |
| Connections - terminals | removable screw terminal block, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) solid without cable end, removable screw terminal block, 2 x 0.5 mm² (AWG 20) flexible with cable end, removable screw terminal block, 2 x 0.25...2 x 0.34 mm² (AWG 22) flexible without cable end, removable screw terminal block, 2 x 0.14...2 x 0.75 mm² (AWG 28...AWG 18) flexible without cable end, removable screw terminal block, 2 x 0.14...2 x 0.5 mm² (AWG 28...AWG 20) solid without cable end, removable screw terminal block, 1 x 0.25...1 x 1.5 mm² (AWG 22...AWG 16) flexible without cable end, removable screw terminal block, 1 x 0.25...1 x 0.5 mm² (AWG 22...AWG 20) flexible with cable end, removable screw terminal block, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) flexible without cable end |
| Safety module name | XPS MF60 |

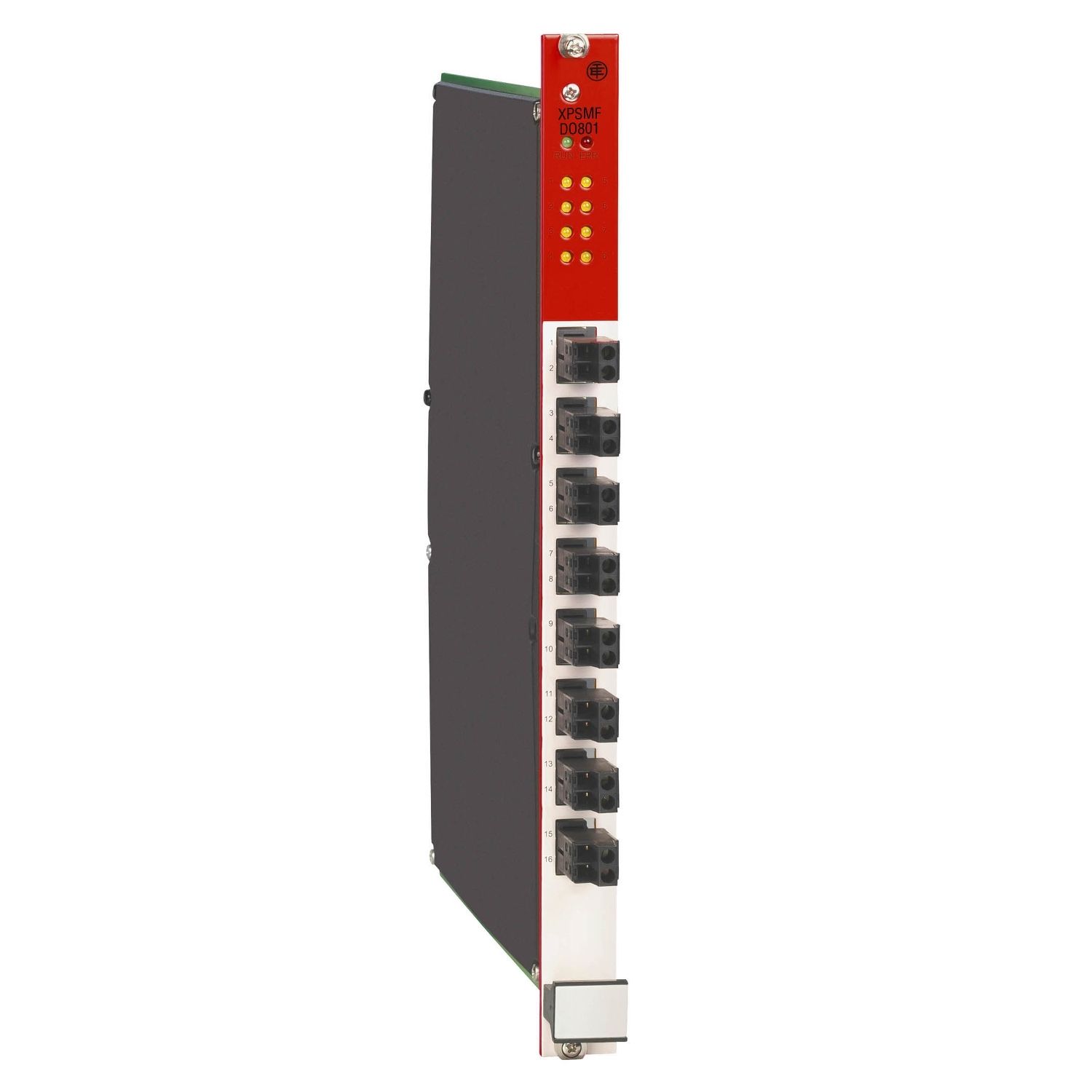

| Product or component type | relay output card |
| Number of outputs | 8 relay |
| Standards | DIN V 19250, IEC 61131, DIN V 0801, EN 50156 pending |
| Range of product | Preventa Safety automation |
| [Us] rated supply voltage | 24 V DC - 15...20 % |
| Complementary | |
| Maximum switching capacity in W | <40 switching voltage: 70 V, <33 switching voltage: 110 V, <95 switching voltage: 30 V (with suitable external fuse) |
| Electrical durability | 250000 cycles |
| Contact bounce time | 30 ms |
| Mechanical durability | 10000000 cycles |
| Switching current capacity | 3.15 A / 100 A with internal fuse |
| Output type | relay, 2 NO per output circuit(s), volt-free |
| Maximum switching voltage | 250 V AC |
| Minimum switching voltage | 6 V AC |
| Net weight | 0.6 kg |
| Marking | CE |
| Current consumption | 0.7 A at 24 V DC power supply, 0.2 A at 3.3 V DC rack |
| Reset time | 20 ms |
| Contacts material | silver alloy, gold flashed |
| Maximum switching capacity in VA | <700 VA, cos f = 1 |
| Switching time | 30 ms |
| Environment | |
| Operating altitude | < 2000 m |
| Electrical shock protection class | class II conforming to IEC 61131-2 |
| Resistance to electrostatic discharge | 8 kV on air conforming to EN/IEC 61000-4-2, 4 kV contact conforming to EN/IEC 61000-4-2 |
| Relative humidity | 95-95 % supply not connected |
| Ambient air temperature for storage | -40-85 °C conforming to EN/IEC 61131-2 |
| Electromagnetic compatibility | EN/IEC 61131-2 |
| IP degree of protection | IP20 (with covering plate on unused in rack I/O card slots) |
| Shock resistance | 15 gn for 11 ms (2 cycles per axis) conforming to EN 61131-2 |
| Vibration resistance | 1 gn (f = 10-150 Hz) - 10 cycles per axis - conforming to EN 61131-2 |
| Ambient air temperature for operation | 0-60 °C conforming to EN/IEC 61131-2 |
| Pollution degree | 2 |
| Resistance to electromagnetic fields | 10 V/m (26-1000 MHz), amplitude modulation 80 % conforming to EN/IEC 61000-4-3 |
| Product certifications | C-Tick, CSA, UL, TÜV |
