Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Function of module | monitoring safety dialogue for discrete output, monitoring safety dialogue for discrete input, monitoring safety detection for discrete input, monitoring safety actuators for discrete output |
| Safety use category | SIL 3 conforming to EN/IEC 61508, performance level e conforming to EN/ISO 13849-1, category 4 maximum conforming to EN 954-1 |
| Discrete input number | 24 isolated discrete input(s) |
| Discrete output number | 16 |
| Connections - terminals | discrete output: removable screw terminal block, 2 x 0.25...2 x 0.34 mm² (AWG 22) flexible without cable end, discrete output: removable screw terminal block, 2 x 0.14...2 x 0.75 mm² (AWG 28...AWG 18) flexible without cable end, discrete output: removable screw terminal block, 2 x 0.14...2 x 0.5 mm² (AWG 28...AWG 20) solid without cable end, discrete output: removable screw terminal block, 1 x 0.25...1 x 1.5 mm² (AWG 22...AWG 16) flexible without cable end, discrete output: removable screw terminal block, 1 x 0.25...1 x 0.5 mm² (AWG 22...AWG 20) flexible with cable end, discrete output: removable screw terminal block, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) solid without cable end, discrete output: removable screw terminal block, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) flexible without cable end, discrete output: removable screw terminal block, 2 x 0.5 mm² (AWG 20) flexible with cable end, discrete input: removable screw terminal block, 2 x 0.25...2 x 0.34 mm² (AWG 22) flexible without cable end, discrete input: removable screw terminal block, 2 x 0.14...2 x 0.75 mm² (AWG 28...AWG 18) flexible without cable end, discrete input: removable screw terminal block, 2 x 0.14...2 x 0.5 mm² (AWG 28...AWG 20) solid without cable end, discrete input: removable screw terminal block, 1 x 0.25...1 x 1.5 mm² (AWG 22...AWG 16) flexible without cable end, discrete input: removable screw terminal block, 1 x 0.25...1 x 0.5 mm² (AWG 22...AWG 20) flexible with cable end, discrete input: removable screw terminal block, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) solid without cable end, discrete input: removable screw terminal block, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) flexible without cable end, discrete input: removable screw terminal block, 2 x 0.5 mm² (AWG 20) flexible with cable end |
| Safety module name | XPS MF60 |

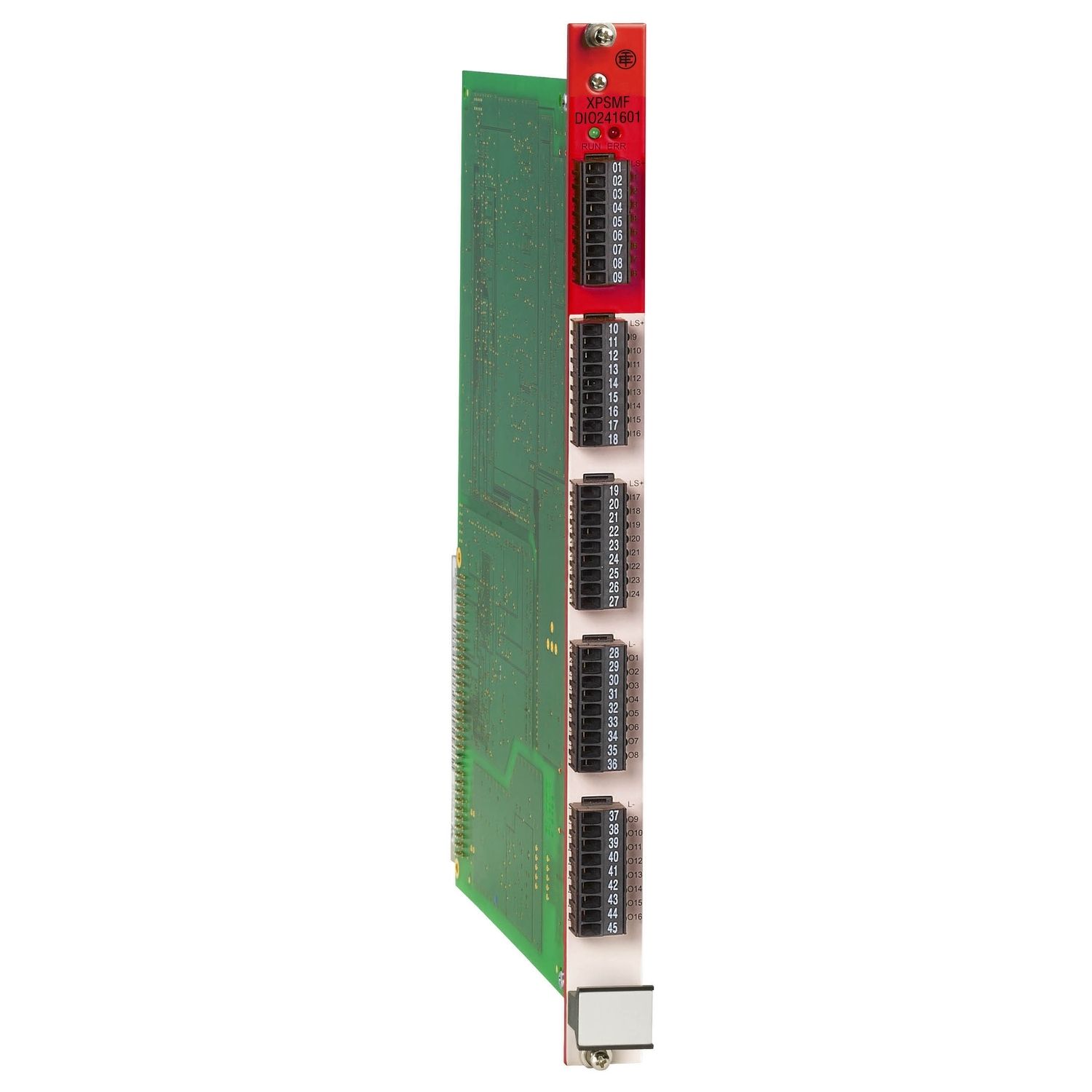

| Product or component type | digital input/output cards |
| Standards | DIN V 19250, EN 50156 pending, DIN V 0801, IEC 61131 |
| Range of product | Preventa Safety automation |
| [Us] rated supply voltage | 24 V DC - 15...20 % |
| Complementary | |
| Discrete output current | <= 2 mA (per channel), 8 A at 30 °C (per card), 2 A at 30 °C (per channel) |
| Current state 0 guaranteed | <= 1 mA (discrete input) |
| Voltage state 1 guaranteed | 10...30 V for discrete input |
| Maximum leakage current | 1 mA, at 2 V at state 0 |
| Discrete output voltage | 18.4...26.8 V DC |
| Voltage state 0 guaranteed | <= 5 V for discrete input |
| Net weight | 0.26 kg |
| Marking | CE |
| Current state 1 guaranteed | 2...5 mA (discrete input) |
| Current consumption | 0.5 A at 24 V DC, 0.3 A at 3.3 V DC |
| Maximum voltage drop | <2 V at 2 A for discrete output |
| Discrete input voltage | 24 V DC |
| Number of terminal blocks | 3 for discrete input, 2 for discrete output |
| Environment | |
| Operating altitude | < 2000 m |
| Electrical shock protection class | class II conforming to IEC 61131-2 |
| Resistance to electrostatic discharge | 8 kV on air conforming to EN/IEC 61000-4-2, 4 kV contact conforming to EN/IEC 61000-4-2 |
| Relative humidity | 95-95 % supply not connected |
| Ambient air temperature for storage | -40-85 °C conforming to EN/IEC 61131-2 |
| Electromagnetic compatibility | EN/IEC 61131-2 |
| IP degree of protection | IP20 (with covering plate on unused in rack I/O card slots) |
| Shock resistance | 15 gn for 11 ms (2 cycles per axis) conforming to EN 61131-2 |
| Vibration resistance | 1 gn (f = 10-150 Hz) - 10 cycles per axis - conforming to EN 61131-2 |
| Ambient air temperature for operation | 0-60 °C conforming to EN/IEC 61131-2 |
| Pollution degree | 2 |
| Resistance to electromagnetic fields | 10 V/m (26-1000 MHz), amplitude modulation 80 % conforming to EN/IEC 61000-4-3 |
| Product certifications | TÜV, C-Tick, UL, CSA |
