Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Function of module | single-pole measuring, using shunt, 0 A to 20 mA, single-pole measuring of 0 V to 10 V or - 10 V to 0 V, closed circuit scanning of output channels |
| Safety use category | SIL 3 conforming to EN/IEC 61508, performance level e conforming to EN/ISO 13849-1, category 4 maximum conforming to EN 954-1 |
| Analogue output number | 8 |
| Connections - terminals | removable screw terminal block, 2 x 0.5 mm² (AWG 20) flexible with cable end, removable screw terminal block, 2 x 0.25...2 x 0.34 mm² (AWG 22) flexible without cable end, removable screw terminal block, 2 x 0.14...2 x 0.75 mm² (AWG 28...AWG 18) flexible without cable end, removable screw terminal block, 2 x 0.14...2 x 0.5 mm² (AWG 28...AWG 20) solid without cable end, removable screw terminal block, 1 x 0.25...1 x 1.5 mm² (AWG 22...AWG 16) flexible without cable end, removable screw terminal block, 1 x 0.25...1 x 0.5 mm² (AWG 22...AWG 20) flexible with cable end, removable screw terminal block, 1 x 0.14...2 x 1.5 mm² (AWG 28...AWG 16) solid without cable end, removable screw terminal block, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) flexible without cable end |
| Safety module name | XPS MF60 |

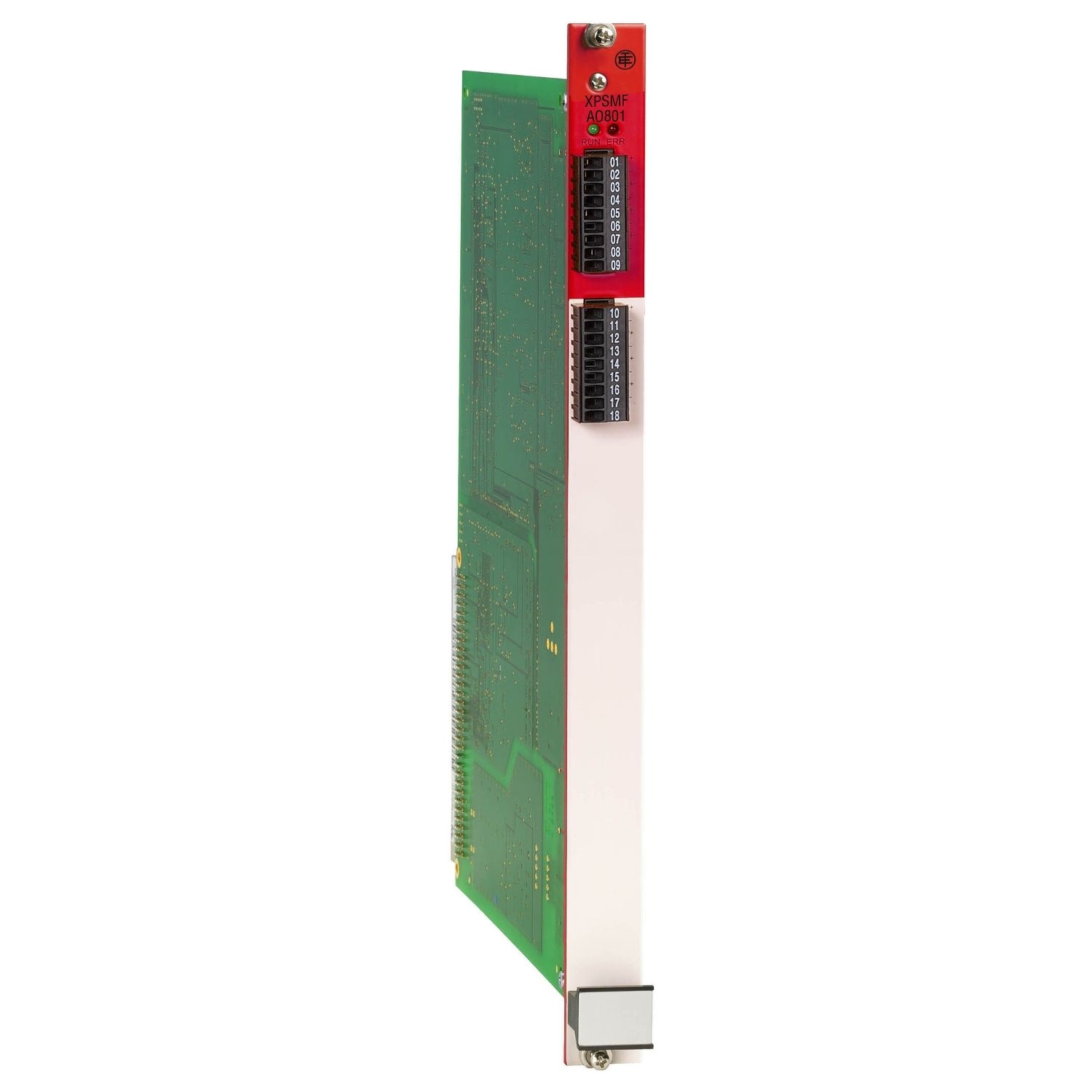

| Product or component type | analogue output card |
| Standards | DIN V 0801, IEC 61131, DIN V 19250, EN 50156 pending |
| Range of product | Preventa Safety automation |
| Group of channels | 2 groups of 4 outputs |
| [Us] rated supply voltage | 24 V DC - 15...20 % |
| Complementary | |
| Input overvoltage protection | 24-24 V |
| Analogue input resolution | 12 bits maximum, 7 bits effective |
| Output voltage limits | +/- 10.25 V |
| Internal resistance | <= 600 Ohm for current circuit, >= 1 kOhm for voltage circuit |
| Net weight | 0.28 kg |
| Processing time | 45 µs |
| Safety accuracy | +/- 1 % |
| Marking | CE |
| Acquisition period | once per CPU cycle |
| Analogue output range | 0...20 mA, - 10...0 V, 0...10 V |
| Current consumption | 630 mA at 24 V DC power supply, 280 mA at 5 V DC rack, 130 mA at 3.3 V DC rack |
| Output current limits | 0-21 mA |
| Transient deviation | <= +/-1 % |
| Number of terminal blocks | 2 |
| Environment | |
| Operating altitude | < 2000 m |
| Electrical shock protection class | class II conforming to IEC 61131-2 |
| Resistance to electrostatic discharge | 8 kV on air conforming to EN/IEC 61000-4-2, 4 kV contact conforming to EN/IEC 61000-4-2 |
| Relative humidity | 95-95 % supply not connected |
| Ambient air temperature for storage | -40-85 °C conforming to EN/IEC 61131-2 |
| Electromagnetic compatibility | EN/IEC 61131-2 |
| IP degree of protection | IP20 (with covering plate on unused in rack I/O card slots) |
| Shock resistance | 15 gn for 11 ms (2 cycles per axis) conforming to EN 61131-2 |
| Vibration resistance | 1 gn (f = 10-150 Hz) - 10 cycles per axis - conforming to EN 61131-2 |
| Ambient air temperature for operation | 0-60 °C conforming to EN/IEC 61131-2 |
| Pollution degree | 2 |
| Resistance to electromagnetic fields | 10 V/m (26-1000 MHz), amplitude modulation 80 % conforming to EN/IEC 61000-4-3 |
| Product certifications | TÜV, UL, C-Tick, CSA |
