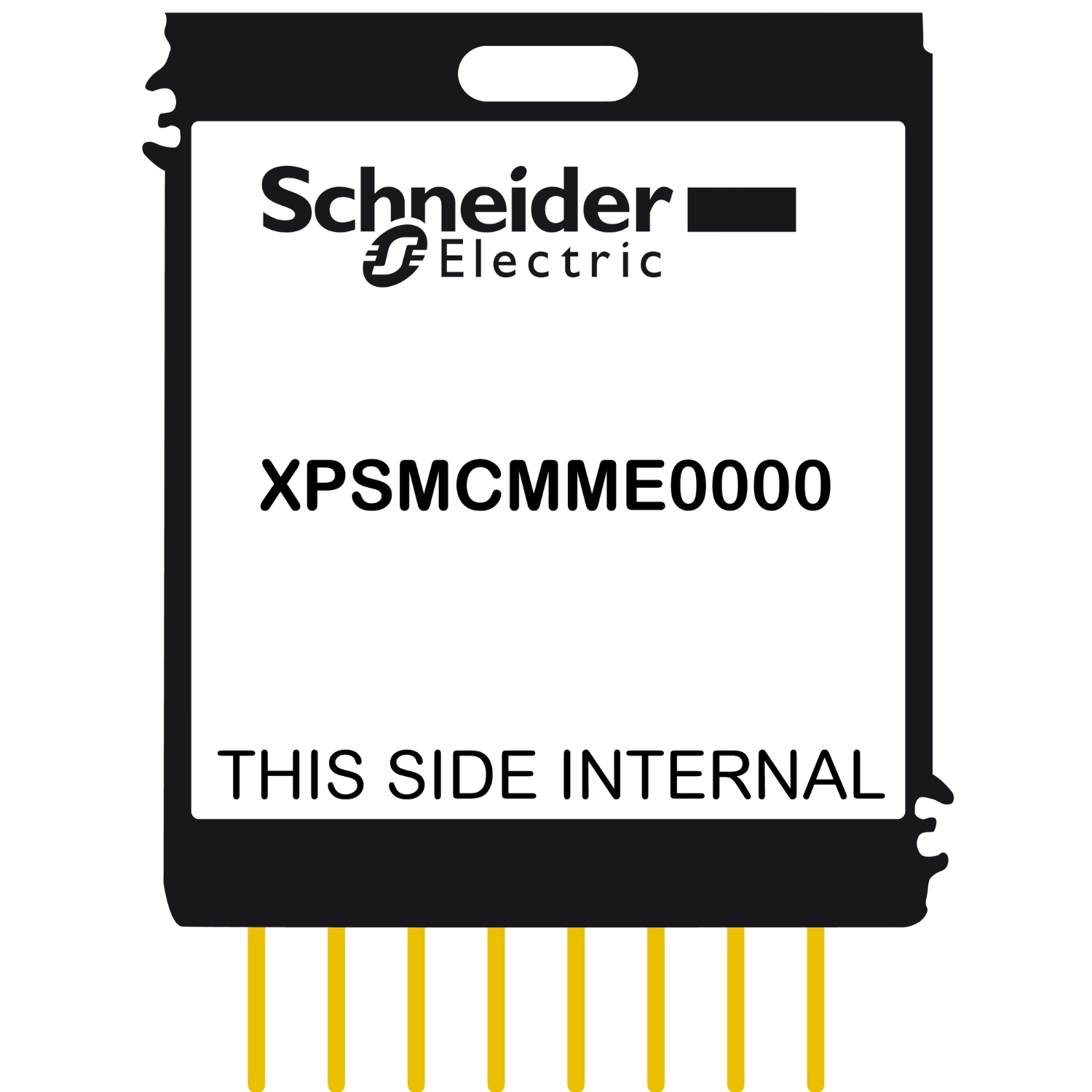

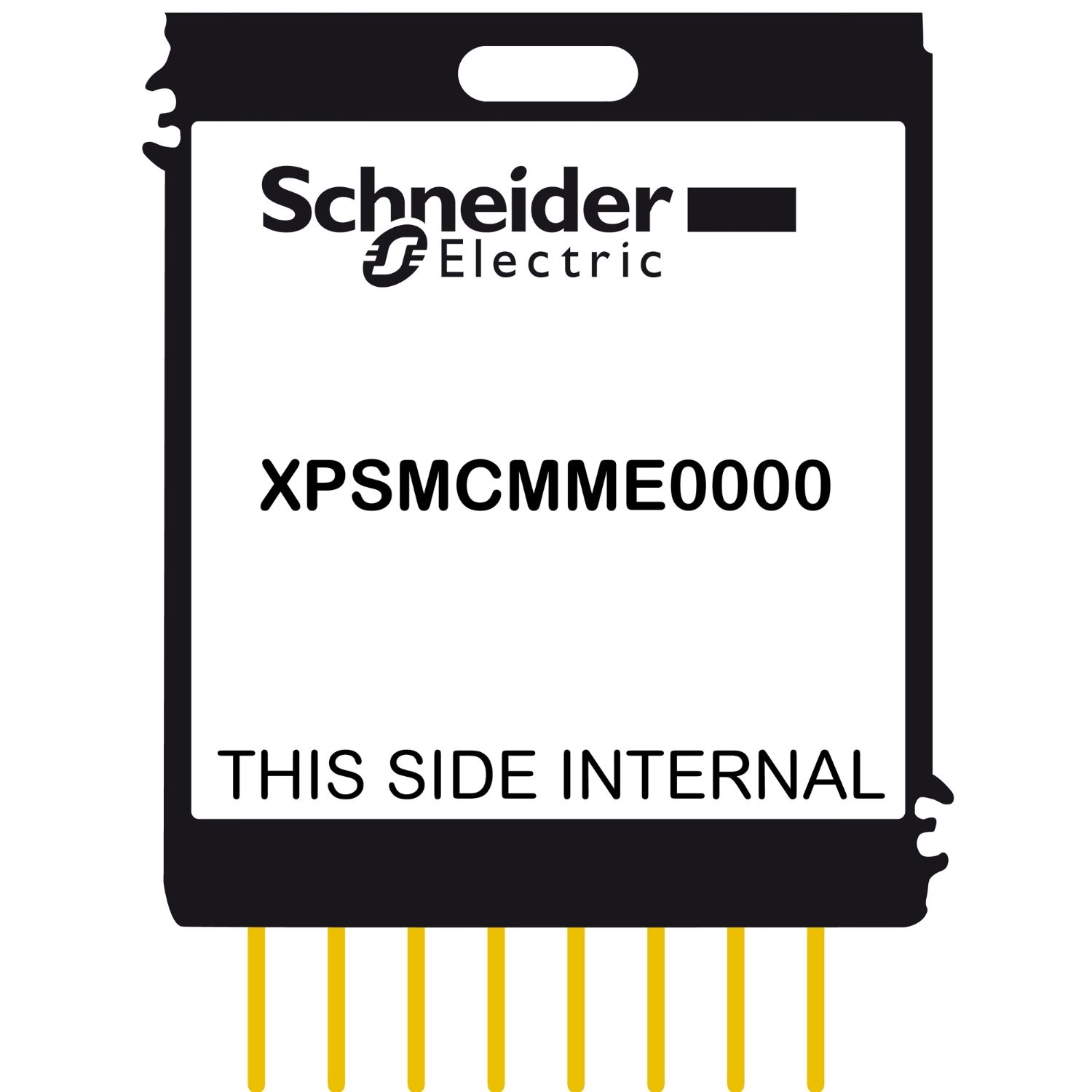

memory card, Modicon MCM, to save configuration data and transfer to a new device
Manufacturer: Schneider Electric
SKU: XPSMCMME0000
GTIN: 3606480748837
Old price: $78.87 inc GST
$113.57 inc GST
Supported cards
Supported cards
This Modicon MCM memory card is used to save safety PLC configuration data for subsequent transfer to a new PLC without using a PC. It enables quick and easy restart of your safety controller after an incident, without using a PC or checking configuration parameters. Its capacity is 512MB. Its dimensions are 18mm (Depth), 21.5mm (Height), and 2mm (Width). It weighs 0.004kg. The modular safety controllers Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. This memory card is compatible with the expansion modules and the safety controllers CPU. The memory card instals in the slot in the rear panel of the controller. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Products specifications

Attribute name Attribute value
Main
Memory type SDRAM
Memory usage save and transfer configuration
Accessory / separate part type memory card
Product compatibility XPSMCM
Memory capacity 512 MB
Range of product Preventa Safety automation
Complementary
Depth 18 mm
Width 2 mm
Quantity per set 1
Net weight 0.004 kg
Accessory / separate part category separate parts
Height 21.5 mm
Environment
Relative humidity 10-95 % without condensation
Ambient air temperature for storage -20-85 °C
Ambient air temperature for operation -10-55 °C
