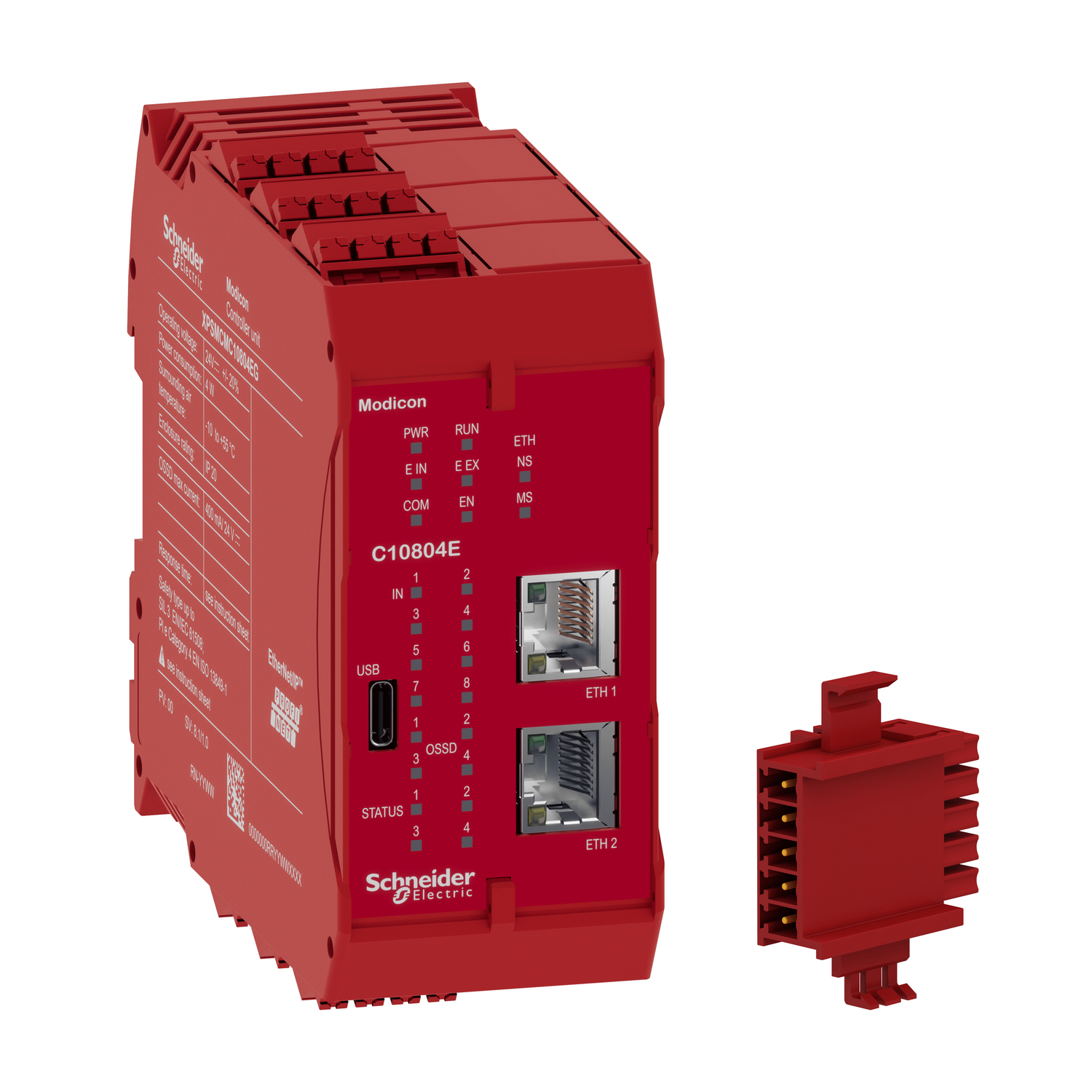

This safety controller CPU is designed to monitor the safe I/Os remotely and belongs to the Modicon MCM, a range of Modular safety controllers. It has 8 safety DI, 4 single channel OSSD, 4 status outputs, a communication interface for 4 configurable protocols such as ModbusTCP, Ethernet/IP, EtherCAT, PROFINET. It figures LEDs on its front face to display the status, removable spring clamp terminals for electrical connection and is IP20-rated. It can be used as standalone or with fourteen expansion modules. It embeds a Mini USB 2.0 connector to receive the configuration done with SoSafe Configurable software, and 2 Ethernet-based RJ45 ports. It has a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It weighs 0.225kg. Its dimensions are 45mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is designed to monitor E-stops, guard monitoring, perimeter guarding, position monitoring, speed monitoring, enabling movement, on Ethernet-based networks. It is certified by the TüV SÜD, RCM, cULus. It reaches Category 4, PL e, according to EN/ISO 13849-1, SIL CL 3, and IEC/EN 61508, IEC/EN 60261. It is compatible with a memory card and the backplane connectors. It is sold as a kit that includes 1x safety controller CPU and 1x backplane expansion connector. It instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM range is designed to provide the most comprehensive protection for personnel and equipment. Modicon MCM range is designed to provide safety applications requiring conformity to Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508.
