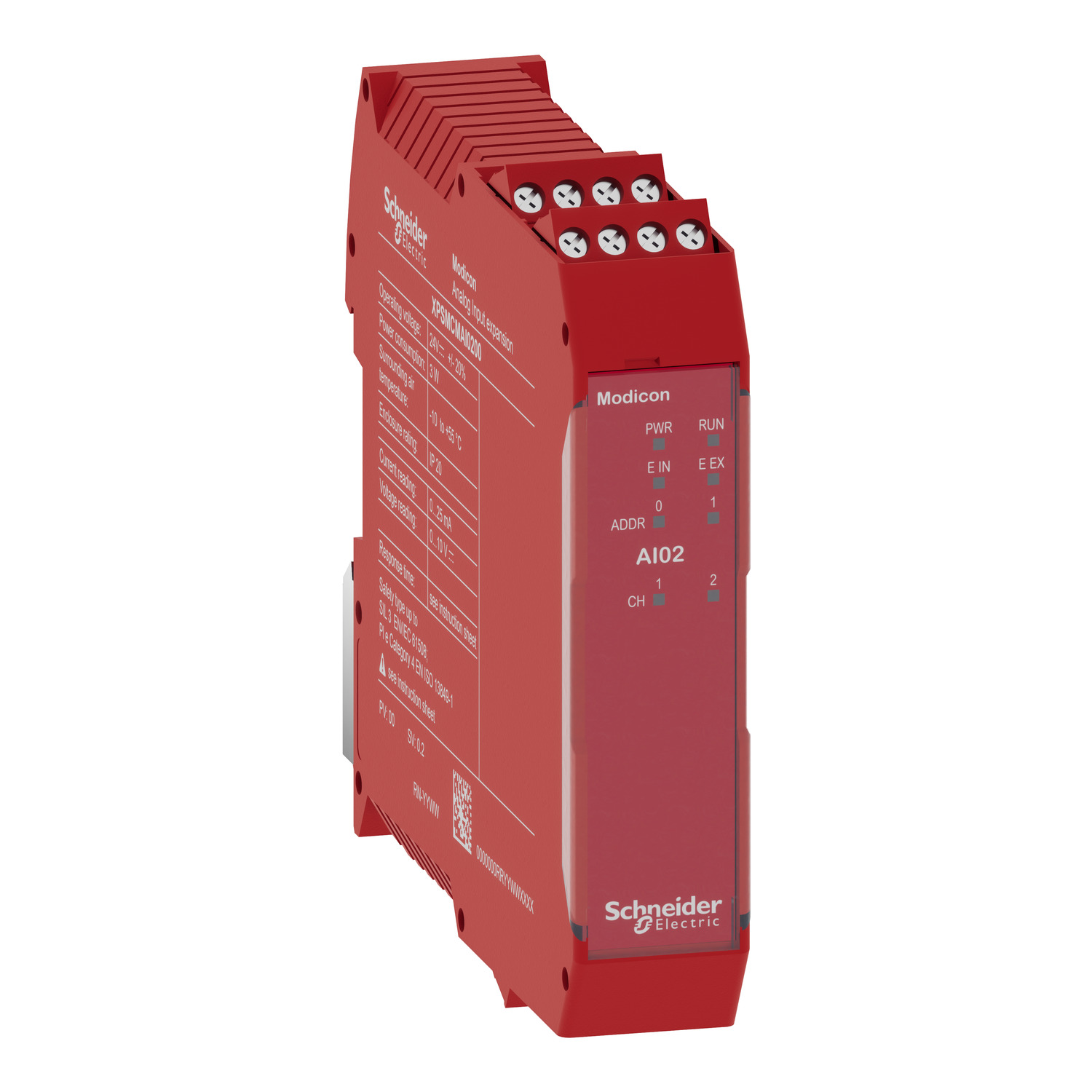

This safe expansion module is designed for safe inputs and belongs to the Modicon MCM, a range of Modular safety controllers. It has 2 configurable analog inputs, 0 to 20mA and 0 to10V, selectable via SoSafe configurable software. It figures LEDs on its front face to display the status, removable screw clamp terminals for electrical connection and is IP20-rated. The analog inputs are configurable individually or in pairs, with configurable filters and delays for each input. It has a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It weighs 0.127kg. Its dimensions are 45mm (Depth), 99mm (Height), and 114.5mm (Width). Its housing is red. It provides a safe signal if the current input value is within the defined and adjustable safety range. It is certified by the TüV SÜD, RCM, cULus. It reaches Category 4, PL e, according to EN/ISO 13849-1, SIL CL 3, and IEC/EN 61508, IEC/EN 60261. It is compatible with the backplane connectors. It is sold in a 1-piece package. It instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM range is designed to provide the most comprehensive protection for personnel and equipment. Modicon MCM range is designed to provide safety applications requiring conformity to Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508.
