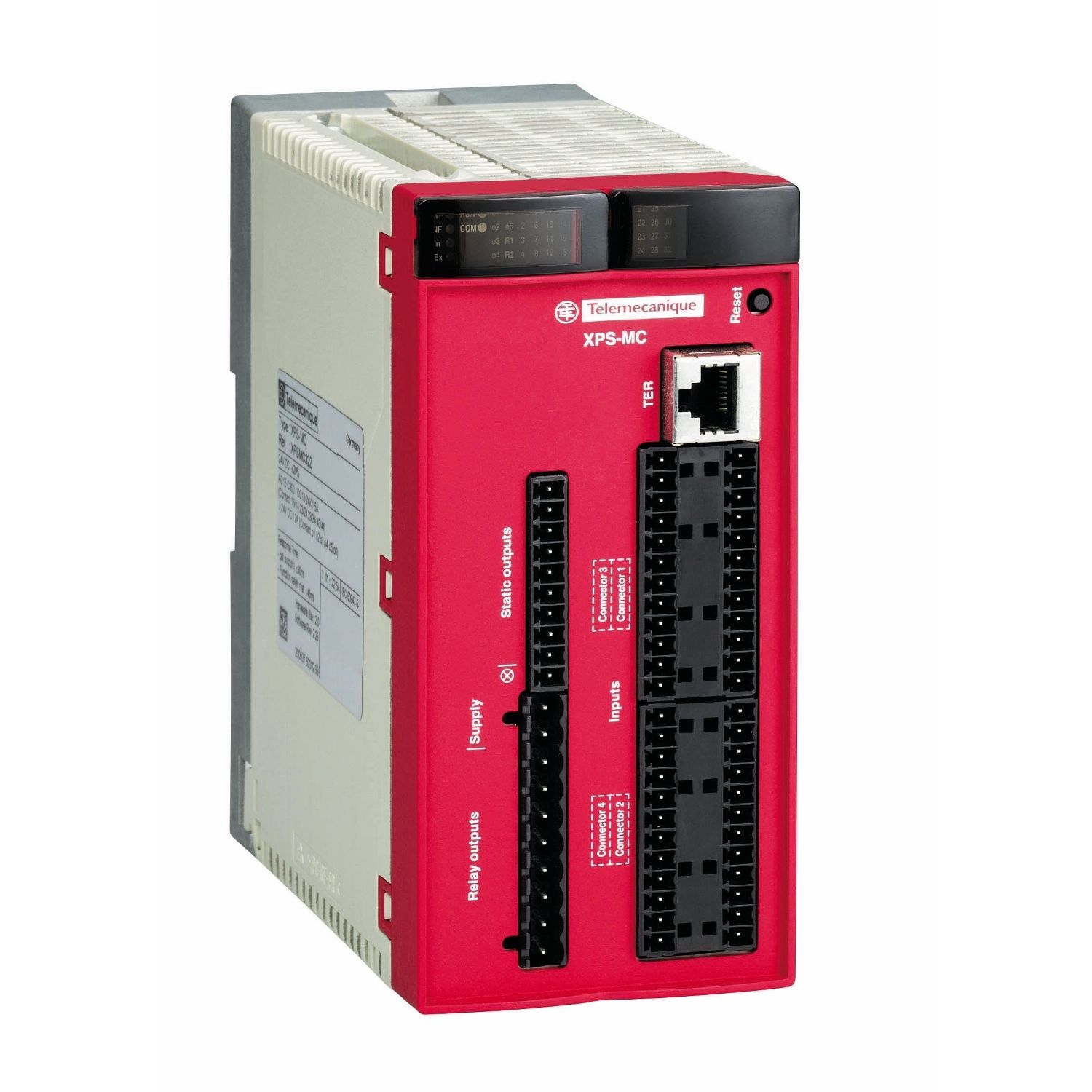

safety controller, Harmony XPS MC, 24V DC, 32 inputs, 46 LEDs signalling

Manufacturer: Schneider Electric

SKU: XPSMC32Z

GTIN: 3389119010276

Catalog

User guide

Instruction sheet

Environmental Disclosure

CAD

Circularity Profile

Declaration of conformity

Old price: $3,408.90 inc GST

Price: $4,908.82 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is part of preventa XPCMC configurable safety controller range. It is a configurable safety controller. It is supplied with 24 V DC. It has 32 safety inputs. It conforms to Category 4 maximum conforming to EN 954-1/EN/ISO 13849-1, PLE safety level conforming to EN/ISO 13849-1 and SIL 3 level conforming to IEC 61508. It embeds 1 RJ45 port for a serial link communication with Modbus protocol. The transmission rate are 1200bps, 2400 bps, 4800bps, 9600bps or 19200bps. This product measures 153mm depth, 151.5mm height, and 74mm width. It weighs 0.84kg. This safety controller is designed for monitoring multiple safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This product is certified by CSA, UL and TÜV. It conforms to EN 954-1/EN/ISO 13849-1, EN/IEC 61496-1, IEC 61508, EN/IEC 60204-1, EN 1760-1/ISO 13856-1, EN 574/ISO 13851 and EN/IEC 60947-5-1 standards. The Safety controller XPSMC is configurable and addressable using software XPSMCWIN running on a PC and using a USB/RJ45 cable type TCSMCNAM3M002P to connect to the safety controller. It installs with a mounting plate for mounting on rail. Preventa XPSMC configurable safety controller is designed to provide a solution for safety applications requiring conformity to Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508. The configurable safety controller consists of 6 variants with 16 or 32 digital inputs and 8 digital outputs and communication possibilities of Modbus RTL Serial, Profibus DP and CANopen.

Products specifications

Attribute name	Attribute value
Main
Safety use category	SIL 3 maximum conforming to IEC 61508, PLE maximum conforming to ISO 13849-1, category 4 maximum conforming to EN 954-1/EN/ISO 13849-1
Safety module name	XPSMC
Number of inputs	32
Range of product	Preventa Safety automation
[Us] rated supply voltage	24 V DC - 20...20 %
Safety level	can reach SIL 3 conforming to IEC 61508, can reach PL e/category 4 conforming to EN 954-1/EN/ISO 13849-1
Communication port protocol	Modbus with 1 RJ45 port(s), serial link, transmission rate: 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps
Type of start	configurable
Product or component type	configurable safety controller
Standards	IEC 60204-1, EN 574/ISO 13851, EN 1760-1/ISO 13856-1, IEC 61508, IEC 60947-5-1, IEC 61496-1, EN 954-1/EN/ISO 13849-1
Product certifications	TÜV, UL, CSA
Complementary
Synchronisation time between inputs	depending on configuration selected
Function of module	two-hand control category 3 conforming to EN 574/ISO 13851, light curtain monitoring category 4 conforming to IEC 61496, zero speed detection, shaft/chain breaking monitor, safety time delays, safety mat monitoring, position selector, muting function of light curtains, monitoring safety stop at top dead centre on eccentric press category 3 conforming to EN 574/ISO 13851, magnetic switch monitoring category 4 conforming to EN/IEC 61496, hydraulic press, guard monitoring with 1 or 2 limit switches, guard monitoring for injection presses and blowing machines, foot switch monitoring, enabling switch monitoring, 2 or 3 contacts, emergency stop monitoring, with or without time delay, 1 or 2-channel wiring, eccentric press, dynamic monitoring of hydraulic valves on linear presses
[Uc] control circuit voltage	28.8 V
Input protection type	external fuse 16 A
Maximum line resistance	100 Ohm <2000 m
Method of access	slave
Associated fuse rating	6 A fast blow for relay output, 4 A gL for relay output, 16 A gL for power supply
Response time	configurable : 20 ms or 30 ms with software XPSMCWIN
Minimum output voltage	17 V for relay output
Power consumption in W	12 W
Output thermal current	6 A for 1 output and 2 A for the other for relay output, 4 A for both outputs simultaneously
[Ith] conventional free air thermal current	6.5 A for static output circuit, 16 A for relay output
Height	151.5 mm
Breaking capacity	1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output, 2 A at 24 V for static output circuit
Depth	153 mm
Width	74 mm
Number of addresses	1-247 for Modbus
Local signalling	46 LEDs
Supported modbus function	03: information and errors, 02: 32-bit input data/8-bit output data, 01: 8-bit output data/32-bit input data
Exchange size	14 words
Parity	odd for Modbus, no for Modbus, even for Modbus
[Ui] rated insulation voltage	300 V (pollution degree 2) conforming to IEC 60647-5-1, DIN VDE 0110 part 1
Output type	solid state, 6 circuit(s), volt-free, 2 relays, 2 NO contacts (4 NO total) circuit(s)
Net weight	0.84 kg
[Uimp] rated impulse withstand voltage	4 kV overvoltage category III conforming to IEC 60647-5-1, DIN VDE 0110 part 1
Minimum output current	10 mA for relay output
Data format	RTU (Remote Terminal Unit) mode, 2 stop bits without parity, 1 stop bit even or odd, 1 start bit/8 data bits
Mounting support	mounting plate
Environment
Ambient air temperature for storage	-25-85 °C
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-10-55 °C
