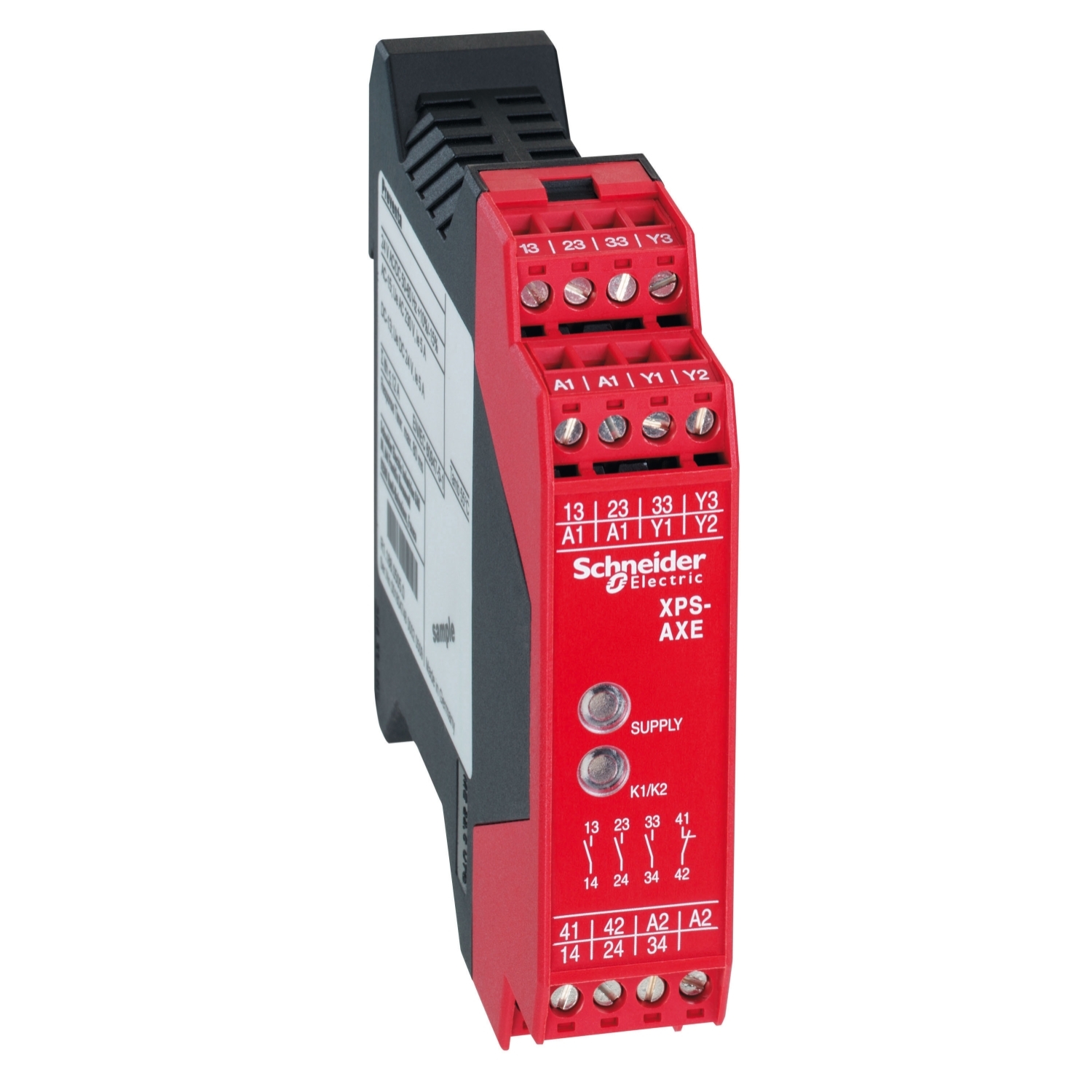

This XPSAXE safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has spring terminals for fast and reliable wiring of safety circuits.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Safety reliability data | PFHd = 3E-8 1/h conforming to EN/IEC 62061, MTTFd = 457 years conforming to EN/ISO 13849-1, DC > 99 % conforming to EN/ISO 13849-1 |
| Safety module application | for emergency stop and switch monitoring |
| Safety module name | XPSAXE |
| Range of product | Preventa Safety automation |
| [Us] rated supply voltage | 24 V AC, 24 V DC - 15...10 % |
| Safety level | can reach SILCL 3 conforming to EN/IEC 62061, can reach PL e/category 4 conforming to EN/ISO 13849-1 |
| Number of additional circuits | 1 NC |
| Connections - terminals | spring terminals, removable terminal block, spring terminals, removable terminal block, 2 x 0.5...2 x 1 mm² flexible with cable end, with double bezel, spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel, spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel, spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end, spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end |
| Output type | relay instantaneous opening, 3 NO circuit(s), volt-free |
| Product or component type | Preventa safety module |
| Complementary | |
| Maximum response time on input open | 80 ms |
| Supply frequency | 50/60 Hz |
| Synchronisation time between inputs | < 0.5 s |
| Associated fuse rating | 6 A gG for instantaneous outputs |
| Minimum output voltage | 17 V for relay output |
| Output thermal current | 6 A for instantaneous and time delay outputs |
| Breaking capacity | 360 VA holding AC-15 B300 relay output, 3600 VA inrush AC-15 B300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output |
| Maximum power consumption in VA | 4 VA DC |
| Local signalling | 2 LEDs |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1, 300 V (pollution degree 2) conforming to IEC 60947-5-1 |
| Net weight | 0.229 kg |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to DIN VDE 0110 part 1, 4 kV overvoltage category III conforming to IEC 60947-5-1 |
| Minimum output current | 10 mA for relay output |
| Mounting support | 35 mm symmetrical DIN rail |
| [Uc] control circuit voltage | 24 V DC |
| Environment | |
| Ambient air temperature for storage | -25-75 °C |
| IP degree of protection | IP40 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 60529 |
| Ambient air temperature for operation | -25-55 °C |
| Standards | EN/IEC 60947-5-1, EN/IEC 60204-1, EN 1088/ISO 14119, EN/ISO 13850 |
| Product certifications | UL, CSA, BG |
