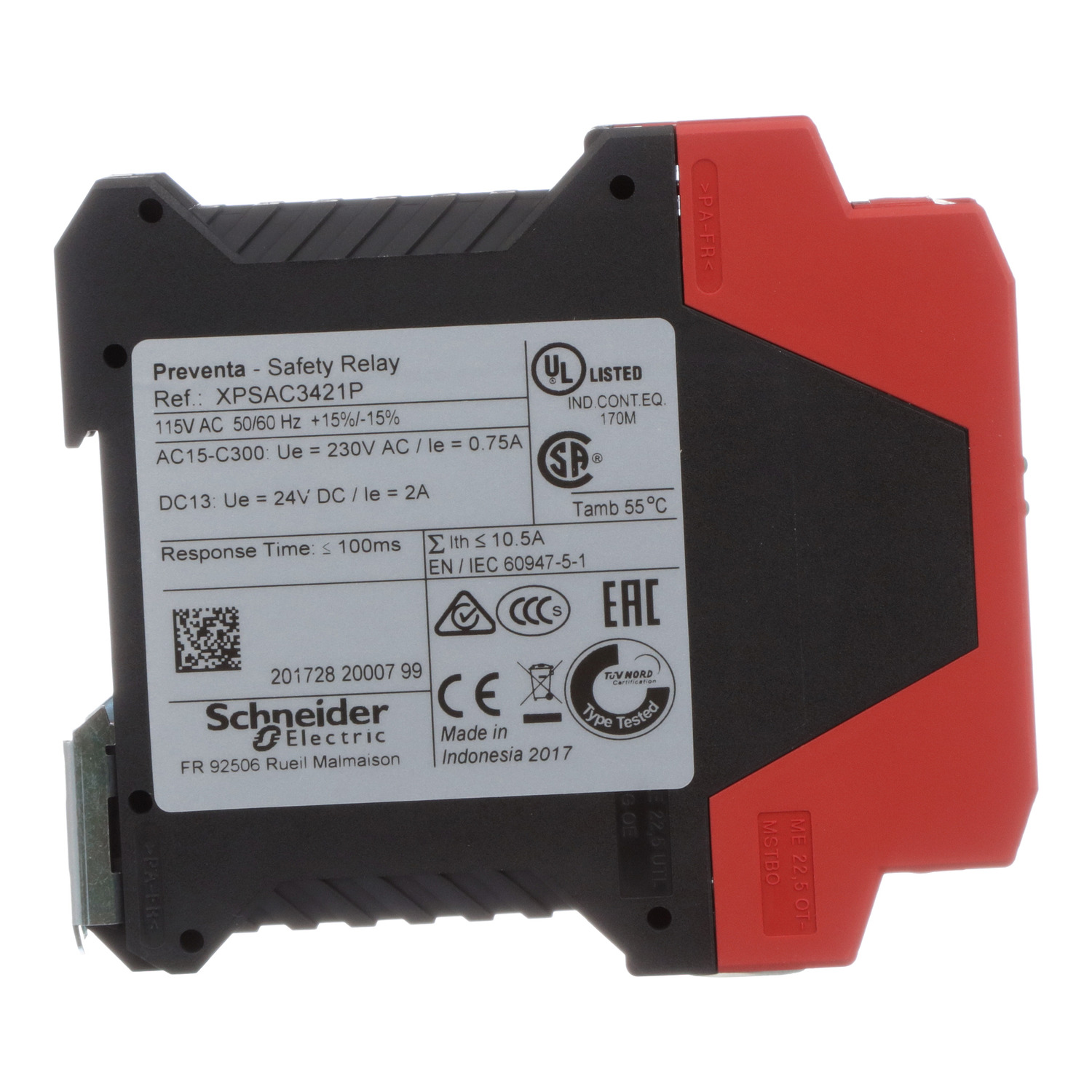

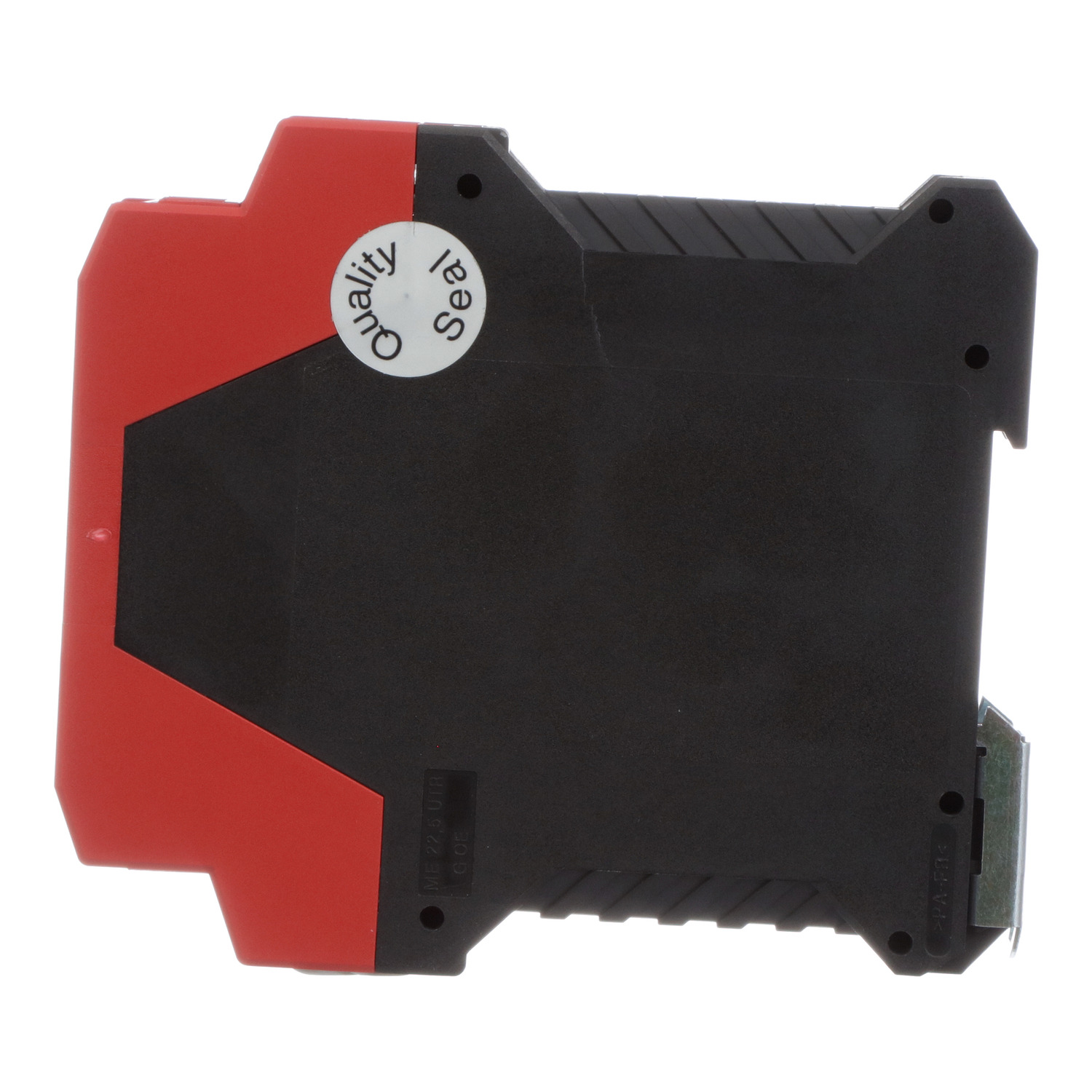

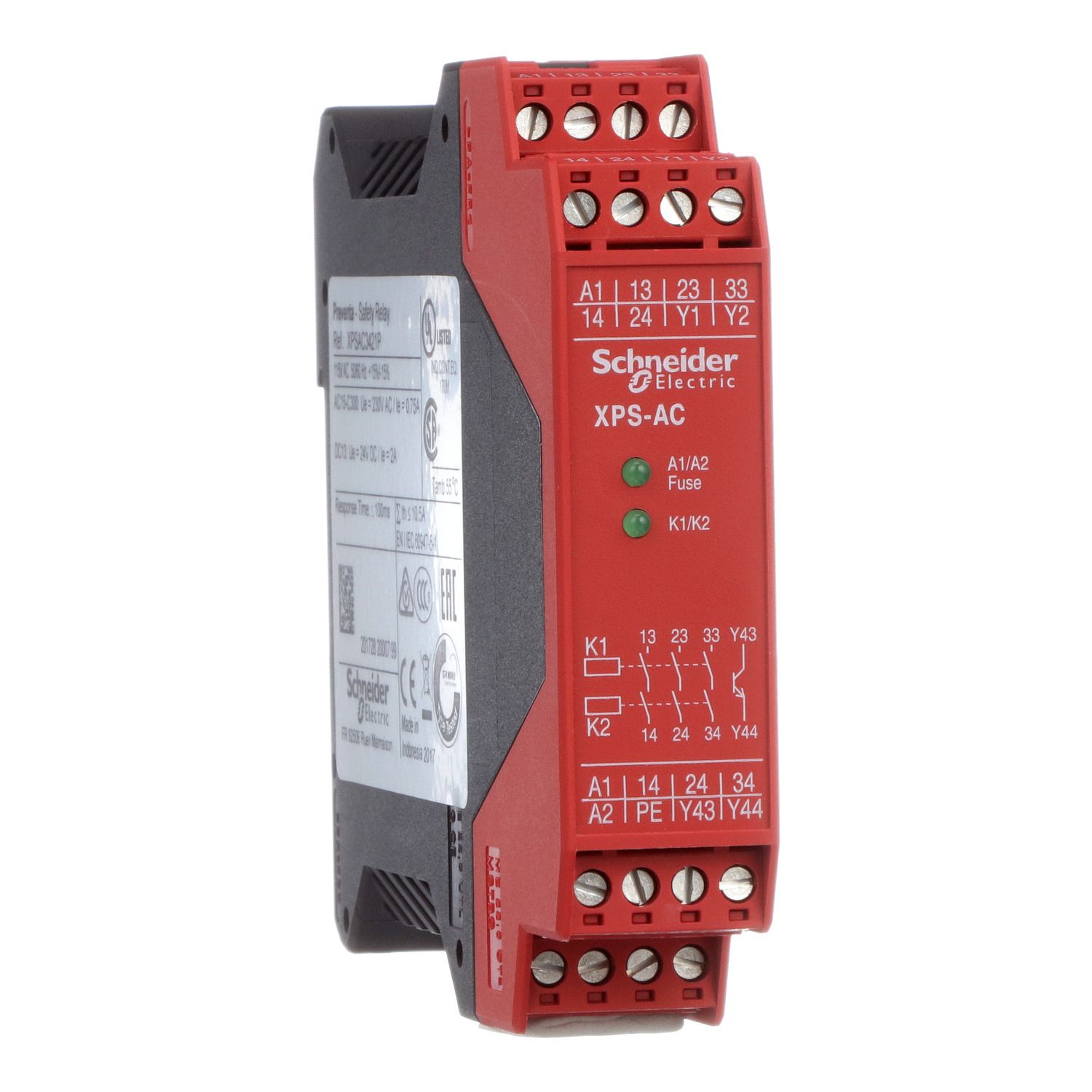

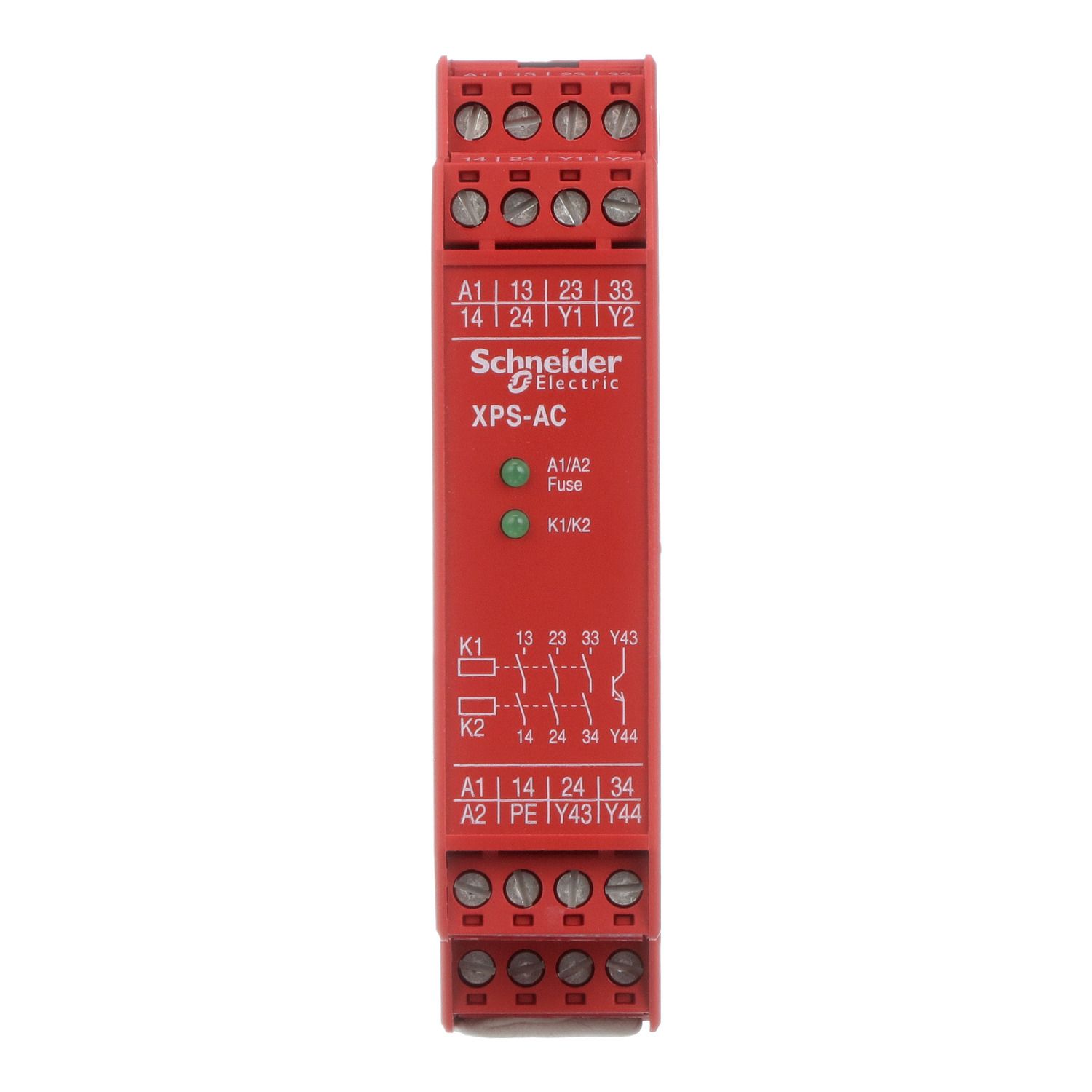

This XPSAC safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Safety reliability data | PFHd = 3.56E-9 1/h conforming to EN/IEC 62061, DC > 99 % conforming to EN/ISO 13849-1, MTTFd = 210.4 years conforming to EN/ISO 13849-1 |
| Safety module application | for emergency stop and switch monitoring |
| Safety module name | XPSAC |
| Range of product | Preventa Safety automation |
| [Us] rated supply voltage | 115 V AC - 15...15 % |
| Safety level | can reach SILCL 3 conforming to EN/IEC 62061, can reach PL e/category 4 conforming to EN/ISO 13849-1 |
| Function of module | emergency stop, switch monitoring |
| Number of additional circuits | 1 solid state output |
| Connections - terminals | captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mm² flexible with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible with cable end, with double bezel |
| Output type | relay instantaneous opening, 3 NO circuit(s), volt-free |
| Type of start | unmonitored |
| Product or component type | Preventa safety module |
| Complementary | |
| Maximum response time on input open | 100 ms |
| Supply frequency | 50/60 Hz |
| Associated fuse rating | 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200, 4 A gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output voltage | 16 V for relay output |
| Output thermal current | 6 A per relay for relay output |
| Breaking capacity | 1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output |
| Maximum power consumption in VA | 7 VA AC |
| Local signalling | 2 LEDs |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1, 300 V (pollution degree 2) conforming to IEC 60947-5-1 |
| Net weight | 0.21 kg |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to DIN VDE 0110 part 1, 4 kV overvoltage category III conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10.5 A |
| Minimum output current | 10 mA for relay output |
| Current consumption | 60 mA at 115 V AC on power supply |

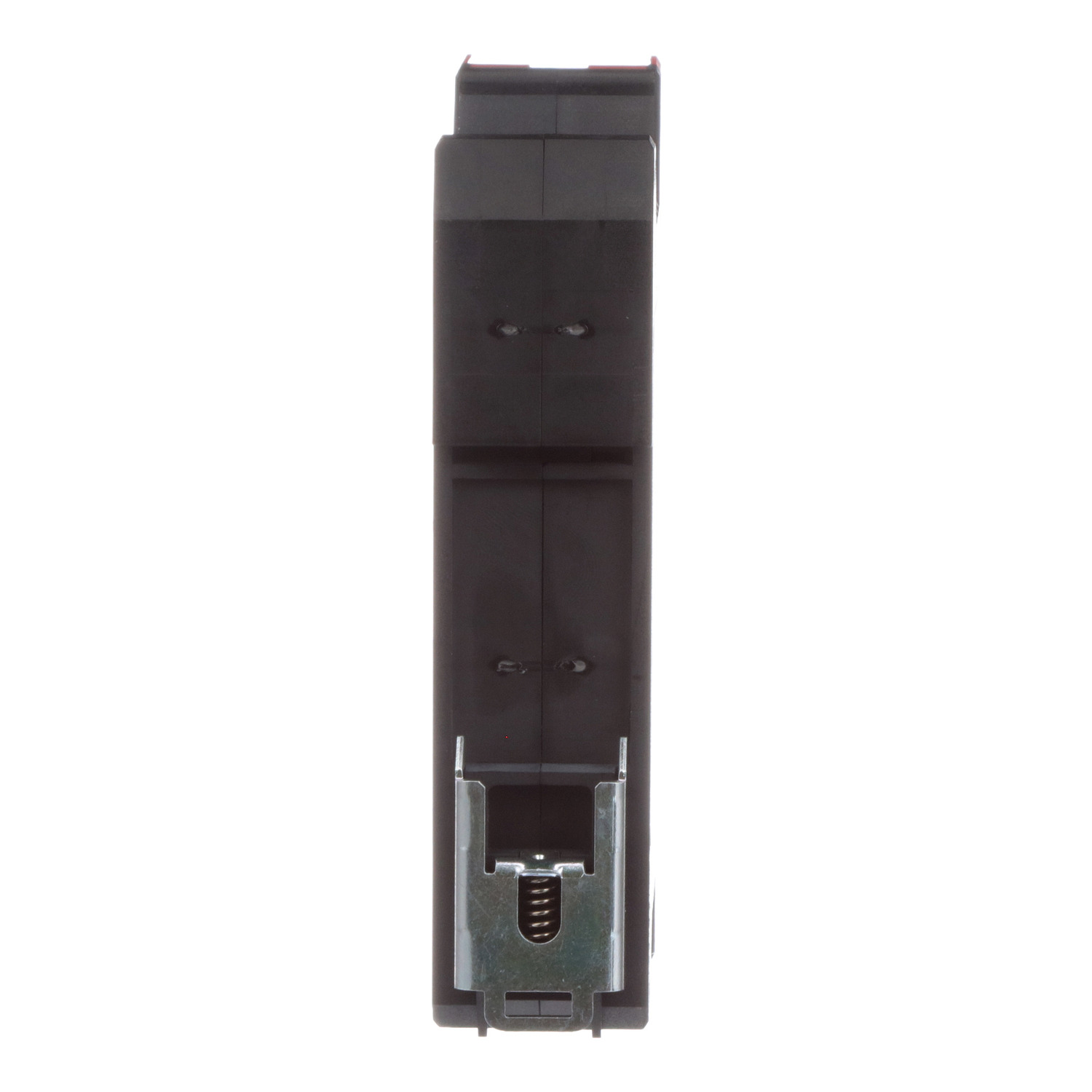

| Mounting support | 35 mm symmetrical DIN rail |
| [Uc] control circuit voltage | 115 V |
| Environment | |
| Ambient air temperature for storage | -25-85 °C |
| IP degree of protection | IP40 (enclosure) conforming to EN/IEC 60529, IP20 (terminals) conforming to EN/IEC 60529 |
| Ambient air temperature for operation | -10-55 °C |
| Standards | EN 60204-1, EN 1088/ISO 14119, EN/ISO 13850, EN/IEC 60947-5-1 |
| Product certifications | TÜV, CSA, UL |
