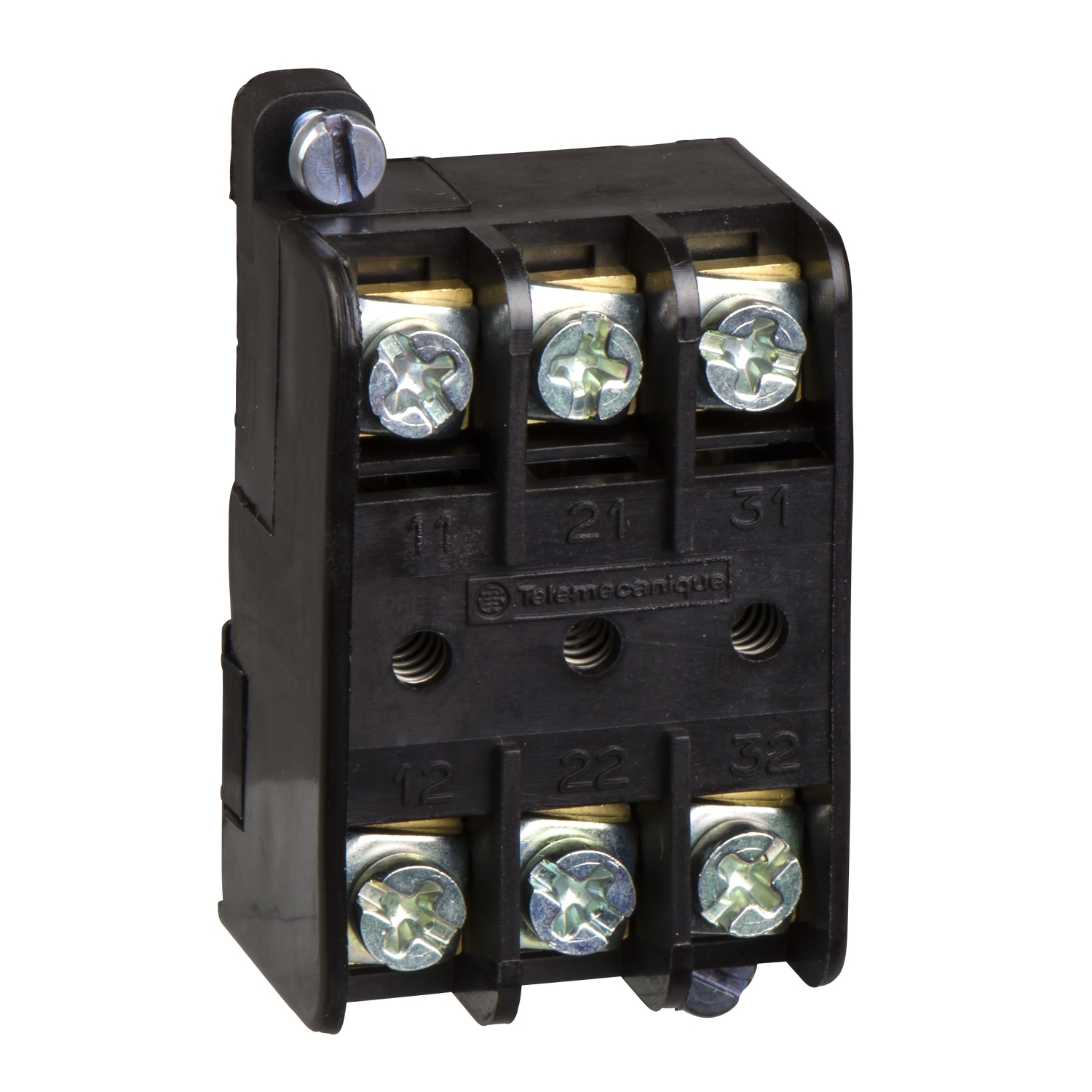

This Harmony XENT2991 is a pendant station contact 240V AC 3A. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | XACB |
| Electrical circuit type | power circuit, control circuit |
| Type of operator | spring return |
| Contact operation | slow-break |
| Contacts type and composition | 3 NC |
| Component name | XENT |
| Contact block application | emergency stop push-button |
| Product or component type | contact block |
| Contact block type | single |
| Range of product | Harmony XAC |
| Complementary | |
| Rated operational power in W | 3000 W AC-23B at 400 V |
| Mechanical durability | 3000000 cycles |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Net weight | 0.04 kg |
| Short-circuit protection | 6 A fuse protection by cartridge fuse type aM |
| [Ithe] conventional enclosed thermal current | 10 A |
| Terminals description ISO n°1 | (21-22)NC, (11-12)NC, (31-32)NC |
| Environment | |
| Overvoltage category | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -40-70 °C |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn conforming to IEC 60068-2-27 |
| Standards | UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14 |
| Ambient air temperature for operation | -25-70 °C |
