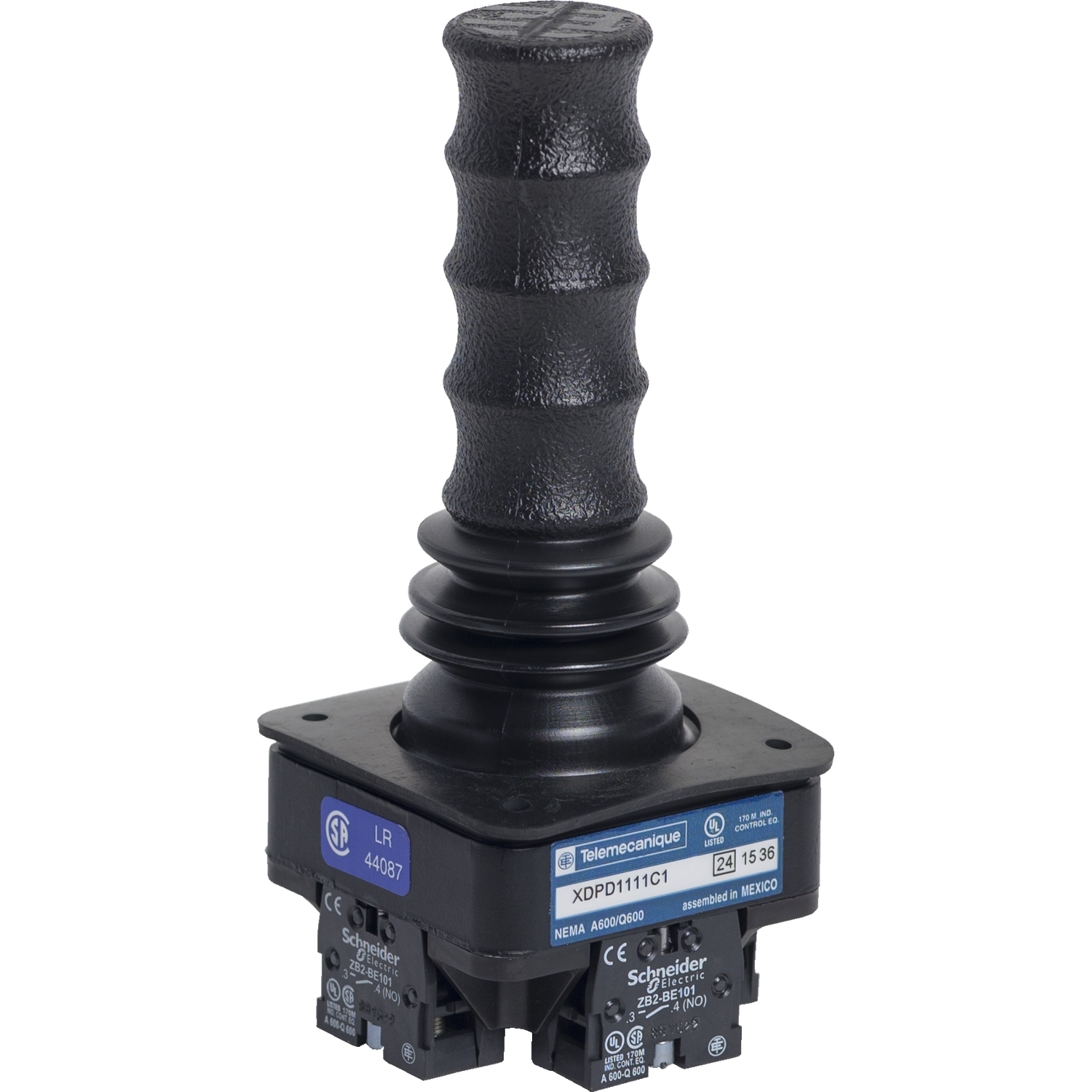

This complete joystick controller provides an ergonomic interface for controlling your machines The joystick pocess 8 directions with 1 NO contact per direction It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments It is easily installed into a standard panel cut-outs and connected to control circuits with classic screw-clamp connections It provides a smooth and precise control of your machine in a variety of industrial applications
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XDP |
| Bezel material | plastic |
| Sale per indivisible quantity | 1 |
| Product or component type | complete joystick controller |
| Mounting diameter | 48 mm |
| Range of product | Harmony XK |
| Complementary | |
| Depth | 44 mm |
| Width | 65 mm |
| Return | spring return |
| Mechanical durability | 1000000 cycles |
| Operator position information | 2 positions |
| Contacts type and composition | 8 NO |
| Net weight | 0.5 kg |
| Operator direction information | 1 direction |
| Height | 158.6 mm |
| Contacts usage | standard |
| Environment | |
| IP degree of protection | IP65 |
| Standards | IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, UL 508, JIS C 4520, IEC 60947-5-4, IEC 60947-5-5 |
| Ambient air temperature for operation | -40-60 °C |
