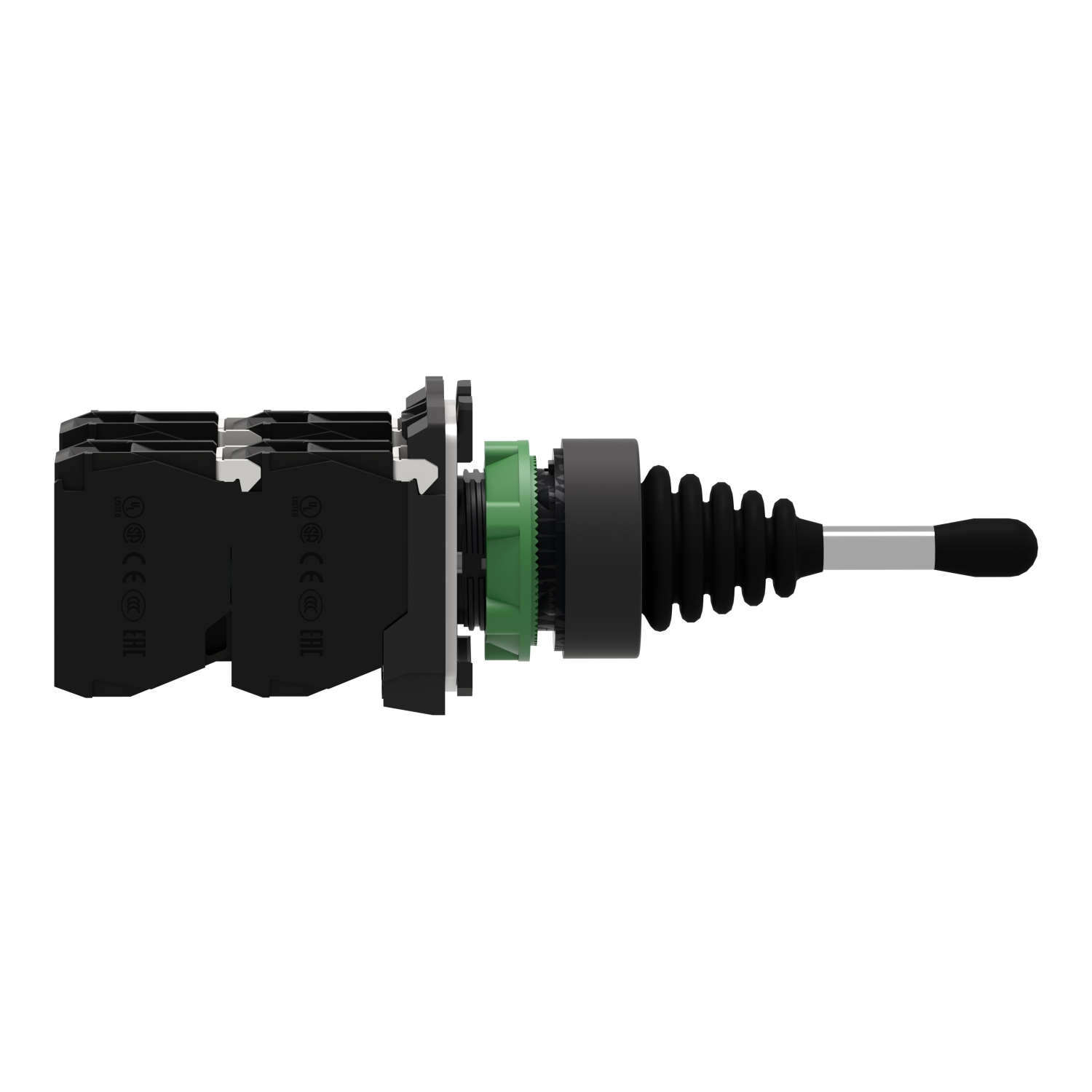

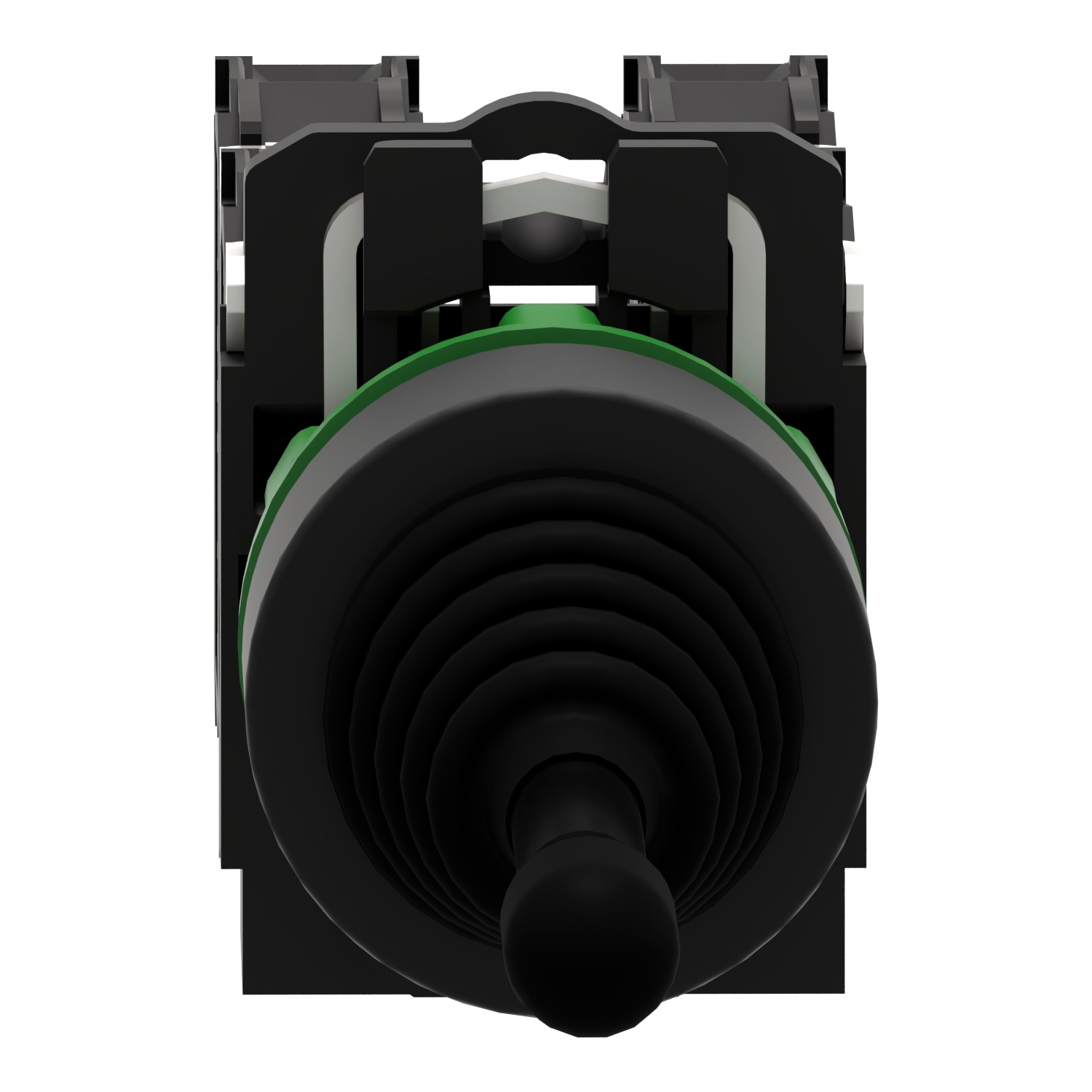

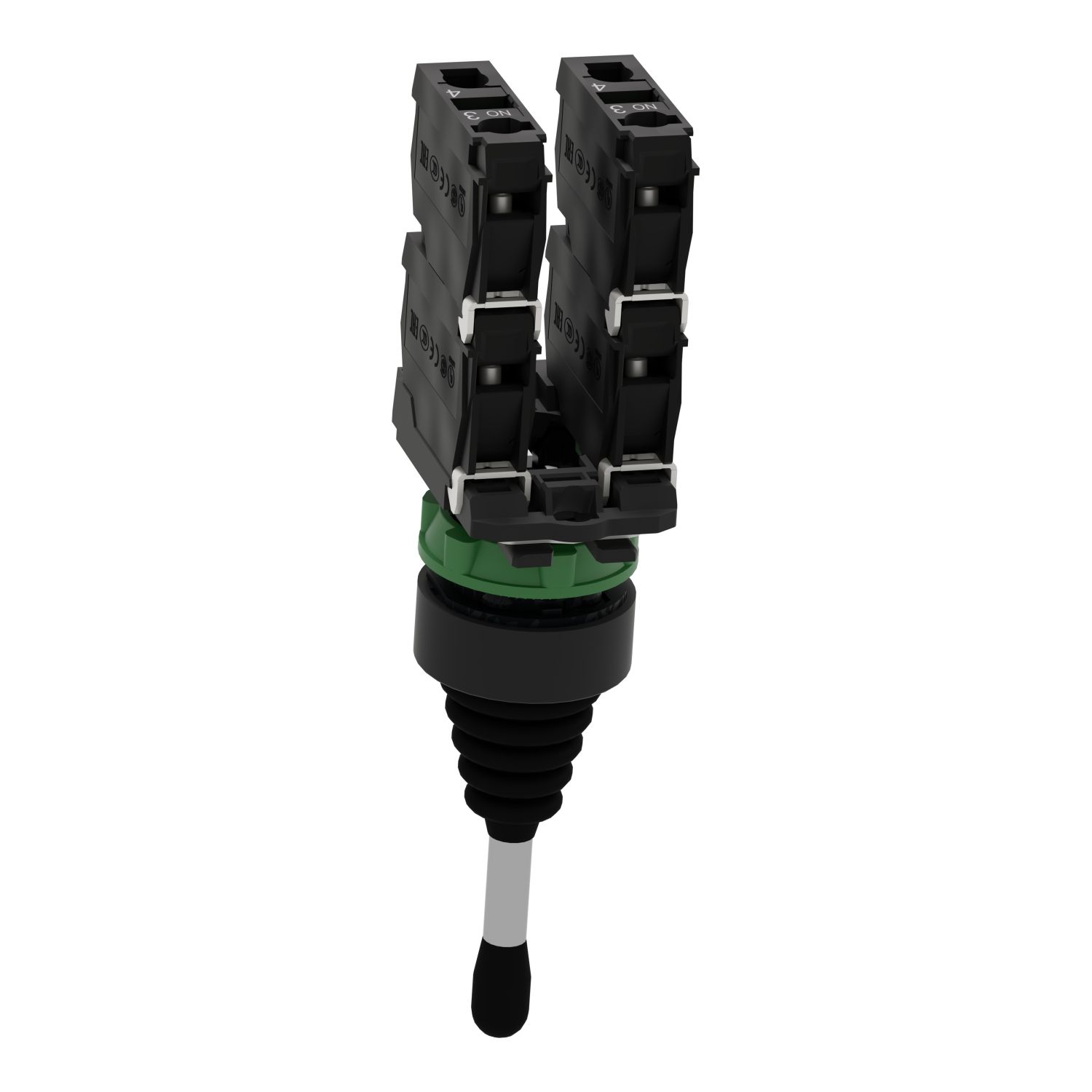

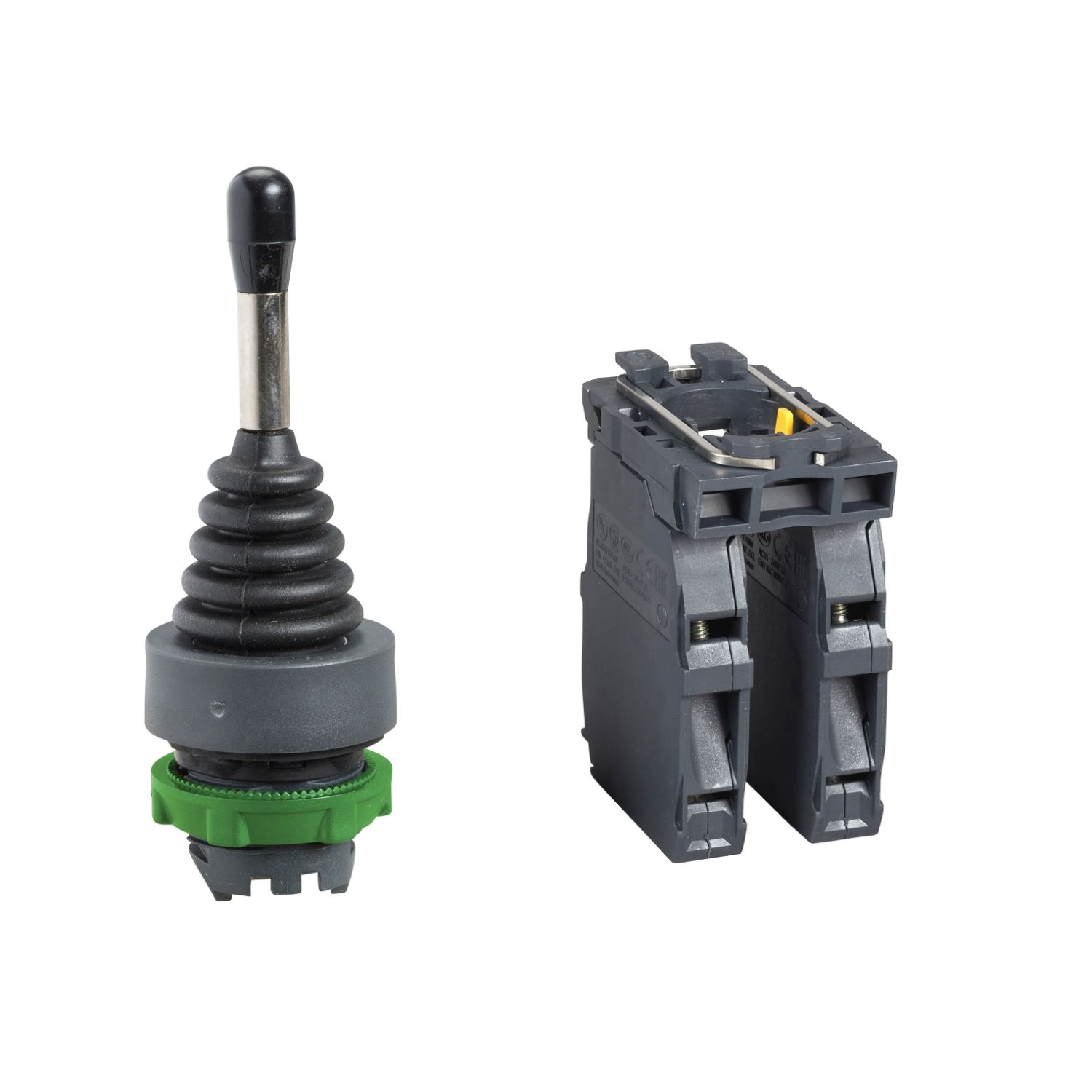

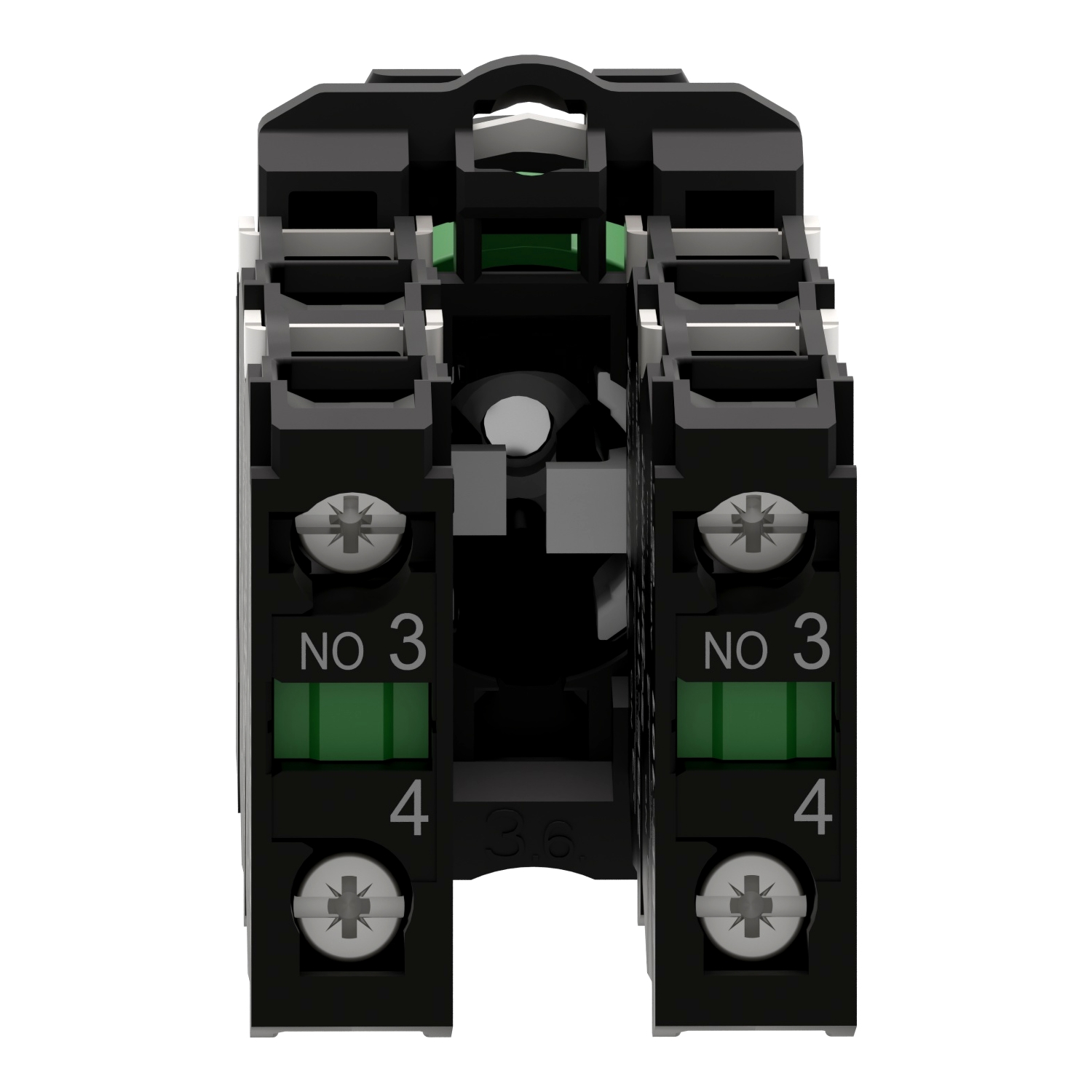

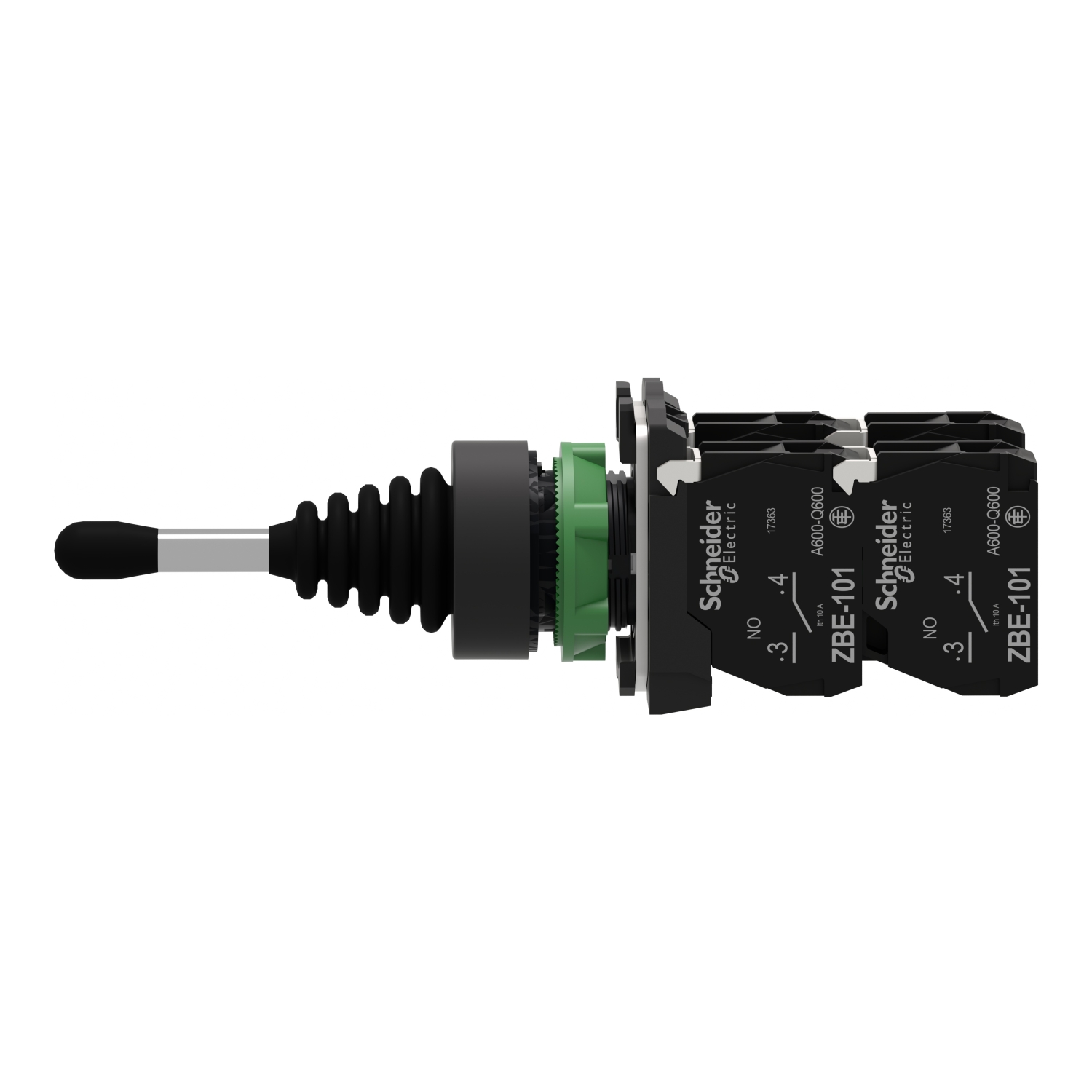

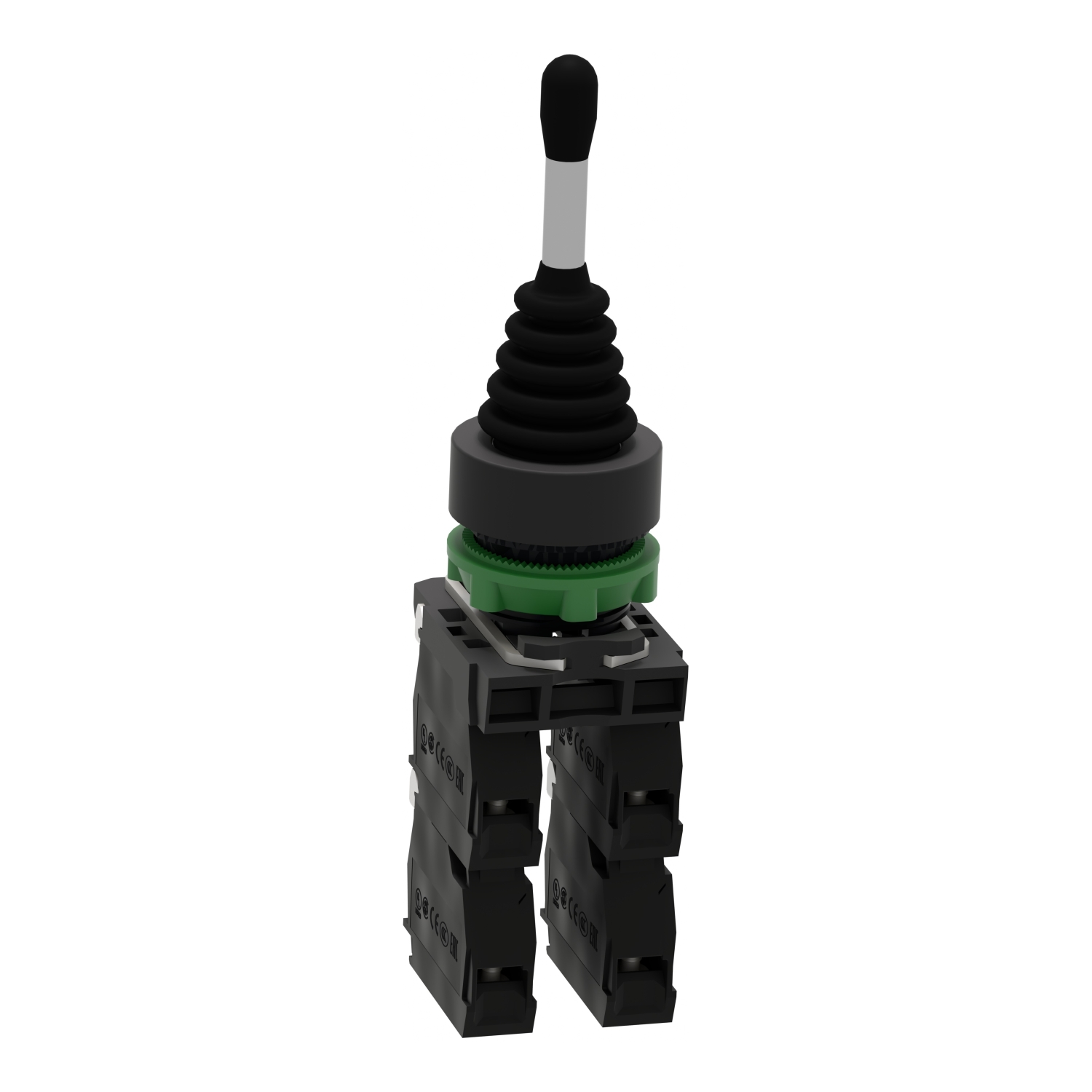

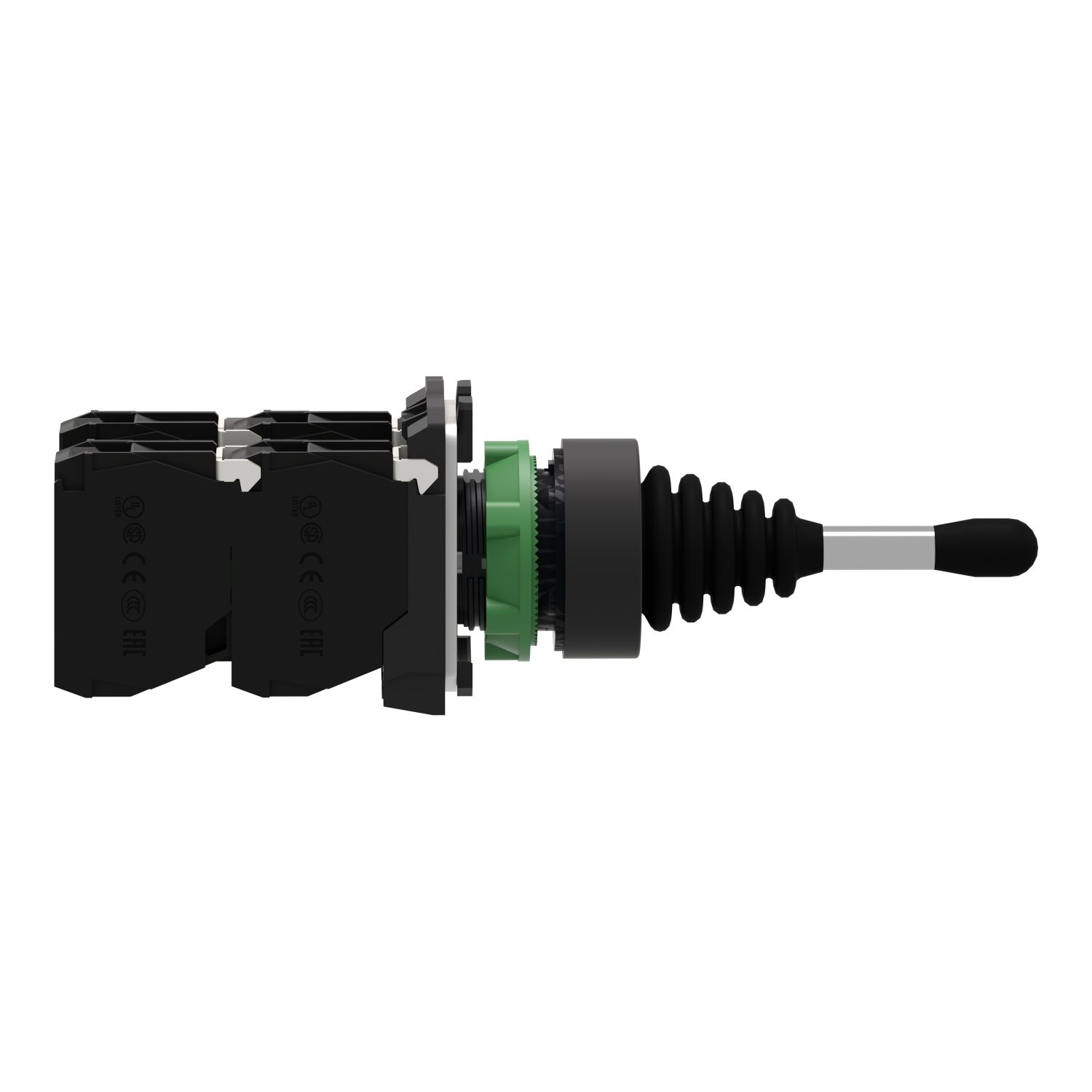

This Harmony XB5, joystick controller operates with 4 direction stay-put mechanism. It has 1 x NO contact and a plastic bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is deal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XD5 |
| Operator position information | 5 positions |
| Operator profile | 54 mm long operating shaft |
| Bezel material | plastic |
| Sale per indivisible quantity | 1 |
| Connections - terminals | screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Fixing collar material | plastic |
| Operator direction information | 4 directions |
| Shape of signaling unit head | round |
| Product or component type | joystick controller |
| Type of operator | stay put |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Complementary | |
| Shape of screw head | slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Depth | 132 mm |
| Width | 30 mm |
| Electrical reliability | λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 |
| Compatibility code | XD5 |
| Notch per direction | 1/1/2024 12:00:00 AM |
| Mechanical durability | 1000000 cycles |
| Contact operation | slow-break |
| [Ie] rated operational current | 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Contacts type and composition | 1 NO |
| Electrical durability | 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Device presentation | complete product |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.077 kg |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| Positive opening | without |
| Contacts material | silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| Height | 47 mm |
| Contacts usage | standard |
| Environment | |
| Protective treatment | TH |
| Electrical shock protection class | class II conforming to IEC 60536 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, UL 508, IEC 60947-5-4, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Product certifications | GL, BV, UL listed, LROS (Lloyds register of shipping), DNV, CSA |
