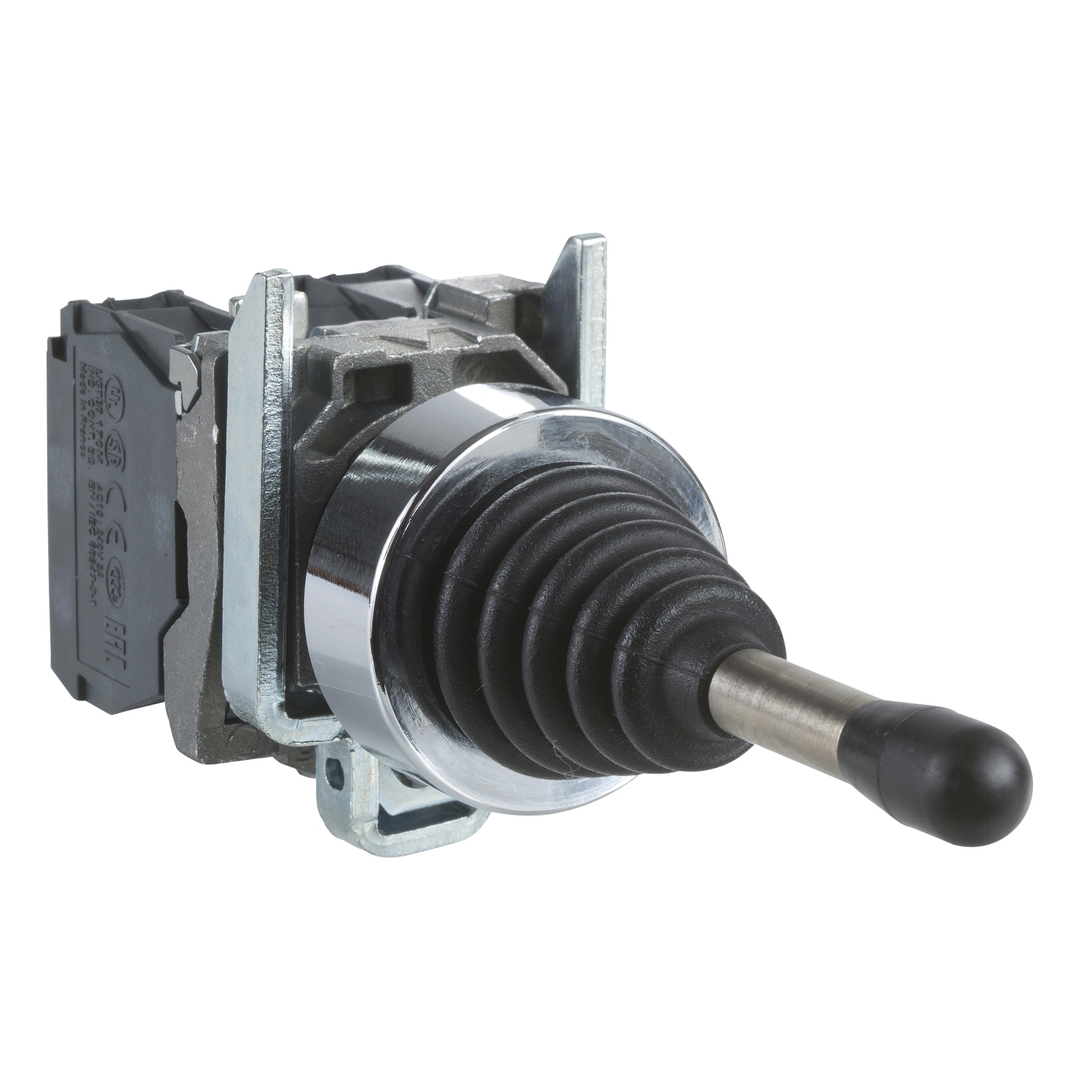

This XD4PA247 is a joystick controller diameter 22mm with 4 direction spring return - 1NO per direction. It is part of the range Harmony XB4 diameter 22 mm modular metal push buttons, switches, and pilot lights .
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XD4 |
| Operator position information | 5 positions |
| Contact operation | slow-break |
| Bezel material | black metal |
| Sale per indivisible quantity | 1 |
| Contacts type and composition | 1 NO |
| Connections - terminals | screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Type of operator | spring return to 0 position, long operating shaft 54 mm length |
| Fixing collar material | zamak |
| Operator direction information | 4 directions |
| Product or component type | joystick controller |
| Mounting diameter | 22 mm |
| Range of product | Harmony XDA |
| Complementary | |
| Shape of screw head | slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Electrical reliability | λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 |
| Compatibility code | XD4 |
| Notch per direction | 1/1/2024 12:00:00 AM |
| Mechanical durability | 1000000 cycles |
| [Ie] rated operational current | 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Electrical durability | 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Device presentation | complete product |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.133 kg |
| Shape of signaling unit head | round |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| Positive opening | without |
| Contacts material | silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| Contacts usage | standard |
| Environment | |
| Protective treatment | TH |
| Electrical shock protection class | class I conforming to IEC 60536 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-1, UL 508, IEC 60947-5-5 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Product certifications | CSA, LROS (Lloyds register of shipping), GL, UL listed, BV, DNV |
