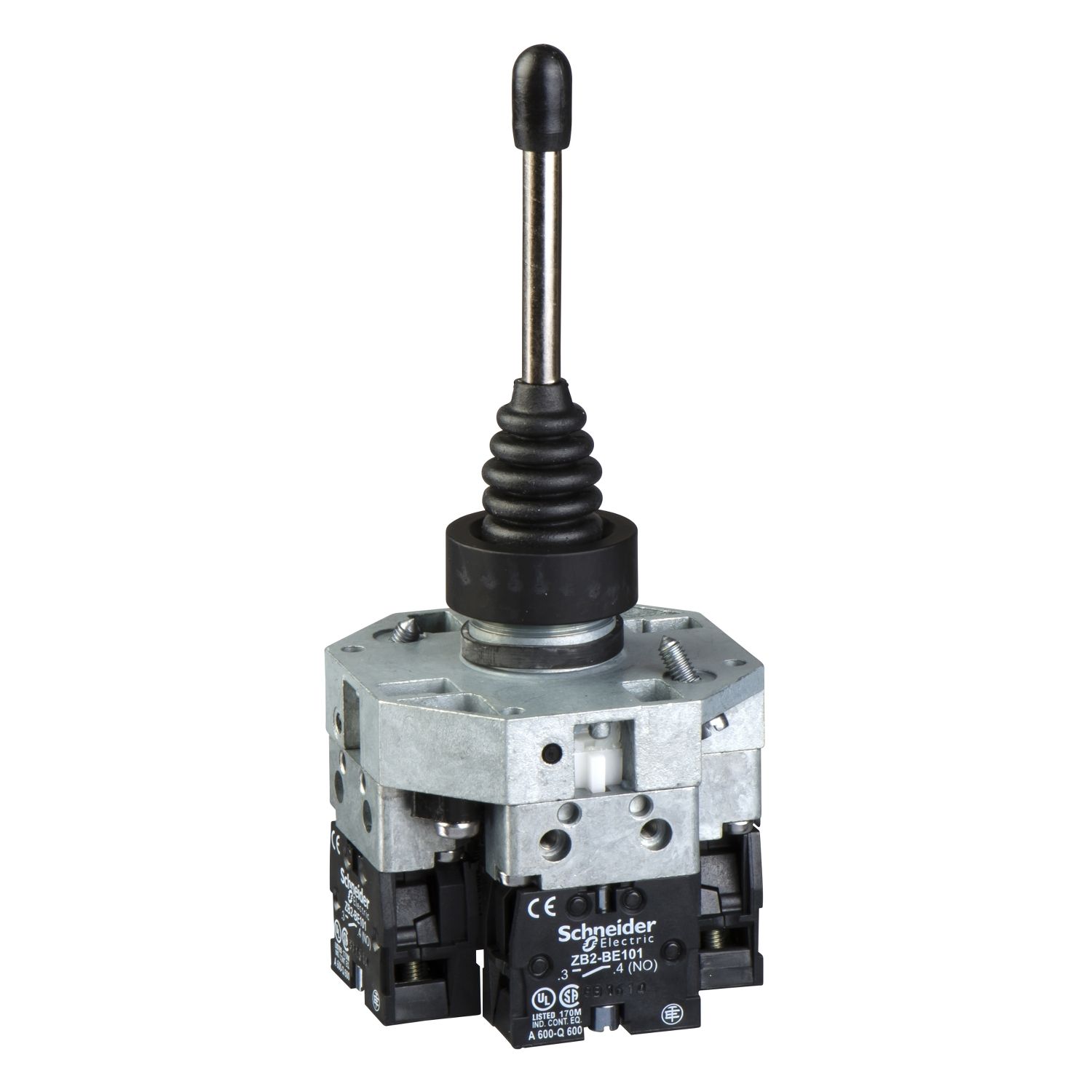

This Harmony XD2GA84217 is a joystick controller diameter 22mm with 4 directions - 1 NO per direction. It is part of the range Harmony XD controllers for hoisting applications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XD2 |
| Bezel material | black metal |
| Product or component type | complete joystick controller |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Complementary | |
| Depth | 90 mm |
| Electrical reliability | λ < 10exp(-6) |
| Compatibility code | XD2 |
| Notch per direction | 1/1/2024 12:00:00 AM |
| Mechanical durability | 1000000 cycles |
| Operator position information | all positions |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A300, 0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 |
| Overvoltage category | class I conforming to IEC 61140 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to CSA C22.2 No 14, 600 V (pollution degree 3) conforming to UL 508, 500 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Connections - terminals | Faston connectors, connection size: 6.3 mm, captive screw clamp terminals, 2 x 1.5 mm² with or without cable end, captive screw clamp terminals, 1 x 0.5 mm² |
| Electrical durability | 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 24...48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-1 |
| Net weight | 0.33 kg |
| Fixing center | 90 x 90 mm |
| Operator direction information | 4 directions |
| Short-circuit protection | 10 A gG (gl) Neozed cartridge fuse conforming to EN/IEC 60947-5-1<LineBreak/> |
| Contact code designation | A600-Q600 |
| Height | 145 mm |
| Return | to 0 position |
| Contacts type and composition | 1 NO for slow-break |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| Vibration resistance | 5 gn (f= 40-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 20 gn conforming to IEC 60068-2-27 |
| Standards | EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | LROS (Lloyds register of shipping), CSA |
