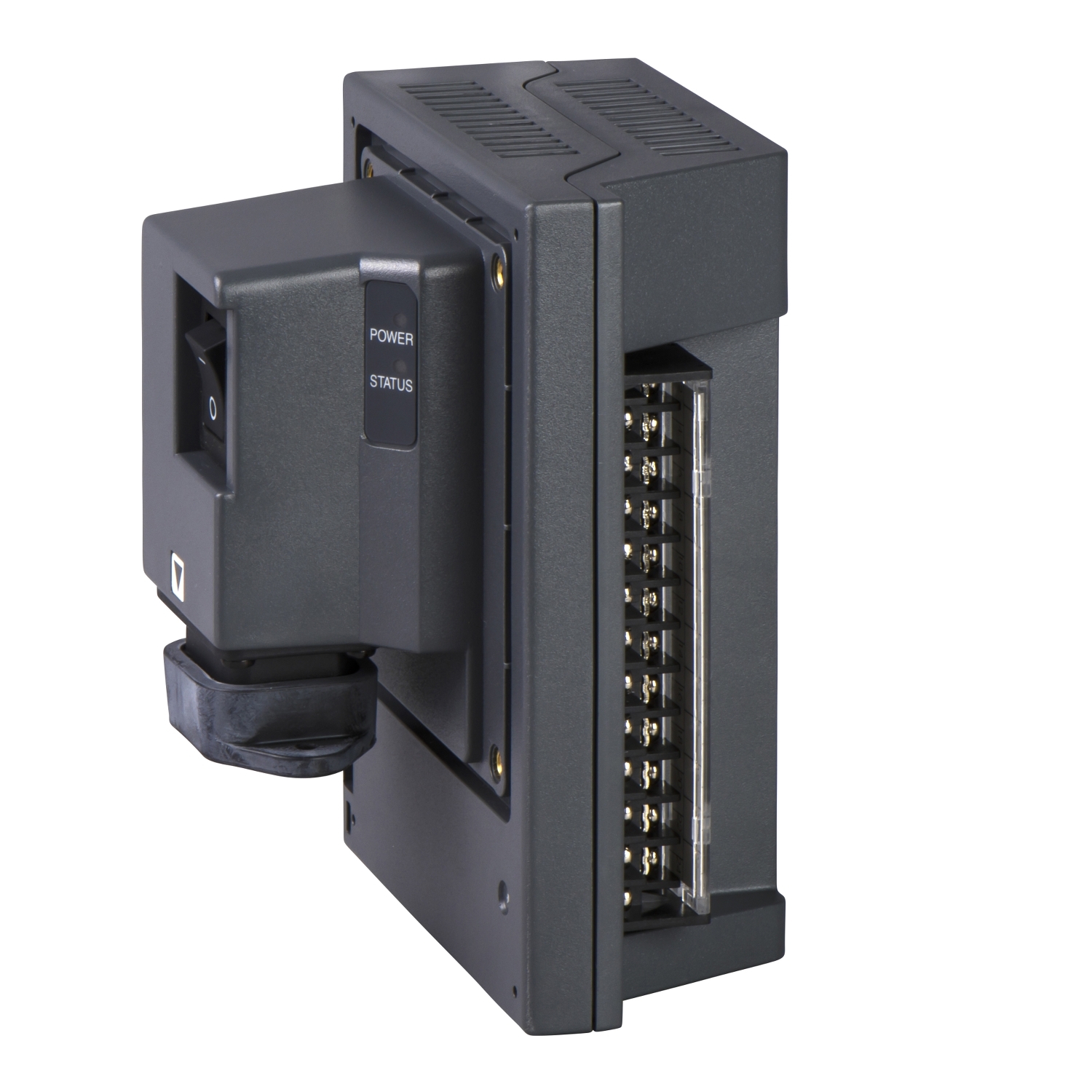

This Magelis XBTZ is a junction box for XBTGH touchscreen advanced hand-held panel. It enables 24V dc power supply to XBTGH terminal and connection of various safety inputs/outputs. It also enables connection on multiprotocol serial link (9-way SUB-D) or Ethernet TCP/IP (RJ45). It can be mounted on 35 mm symmetrical DIN rail.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Magelis XBTGH |
| Product specific application | for XBTGH advanced hand-held panel |
| Product or component type | junction box |
| Complementary | |
| Supply voltage limits | 19.2-28.8 V |
| Fixing mode | clip-on, mounting on 35 mm symmetrical DIN rail, by 4 M4 screws, mounting on 1.5 to 10 mm thick panel |
| Marking | CE |
| Power consumption in W | 6.3 W |
| [Us] rated supply voltage | 24 V DC |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Enclosure material | PPT |
| Inrush current | 30 A |
| Electrical connection | screw terminal block 24 inputs/outputs, 1 male connector SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s COM1 serial link, 1 connector RJ45 Ethernet TCP/IP, 1 connector 24-pin connector hand-held panel |
| Environment | |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
| Resistance to electrostatic discharge | 6 kV conforming to IEC 61000-4-2 level 3 |
| Relative humidity | 0-90 % without condensation or dripping water |
| Ambient air temperature for storage | -20-60 °C |
| IP degree of protection | IP65 (front panel), IP20 (rear panel) |
| Immunity to microbreaks | 10 ms |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Ambient air temperature for operation | 0-50 °C |
| Operating altitude | <= 2000 m |
| Vibration resistance | 3.5 mm (f = 5-9 Hz), 1 gn (f = 9-150 Hz) |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | UL 508, IEC 61000-6-2, EN 61131-2, FCC Class A |
| Product certifications | C-Tick, cULus |
Only registered users can write reviews
Related products

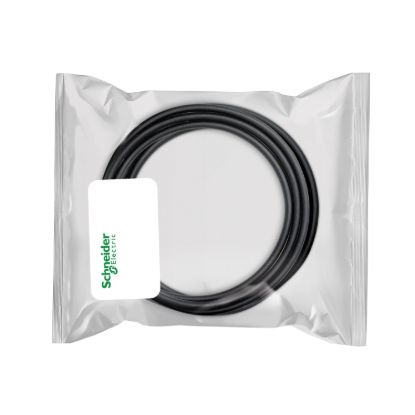

interface cable - L = 10 m - between advanced hand-held panel and junction box
