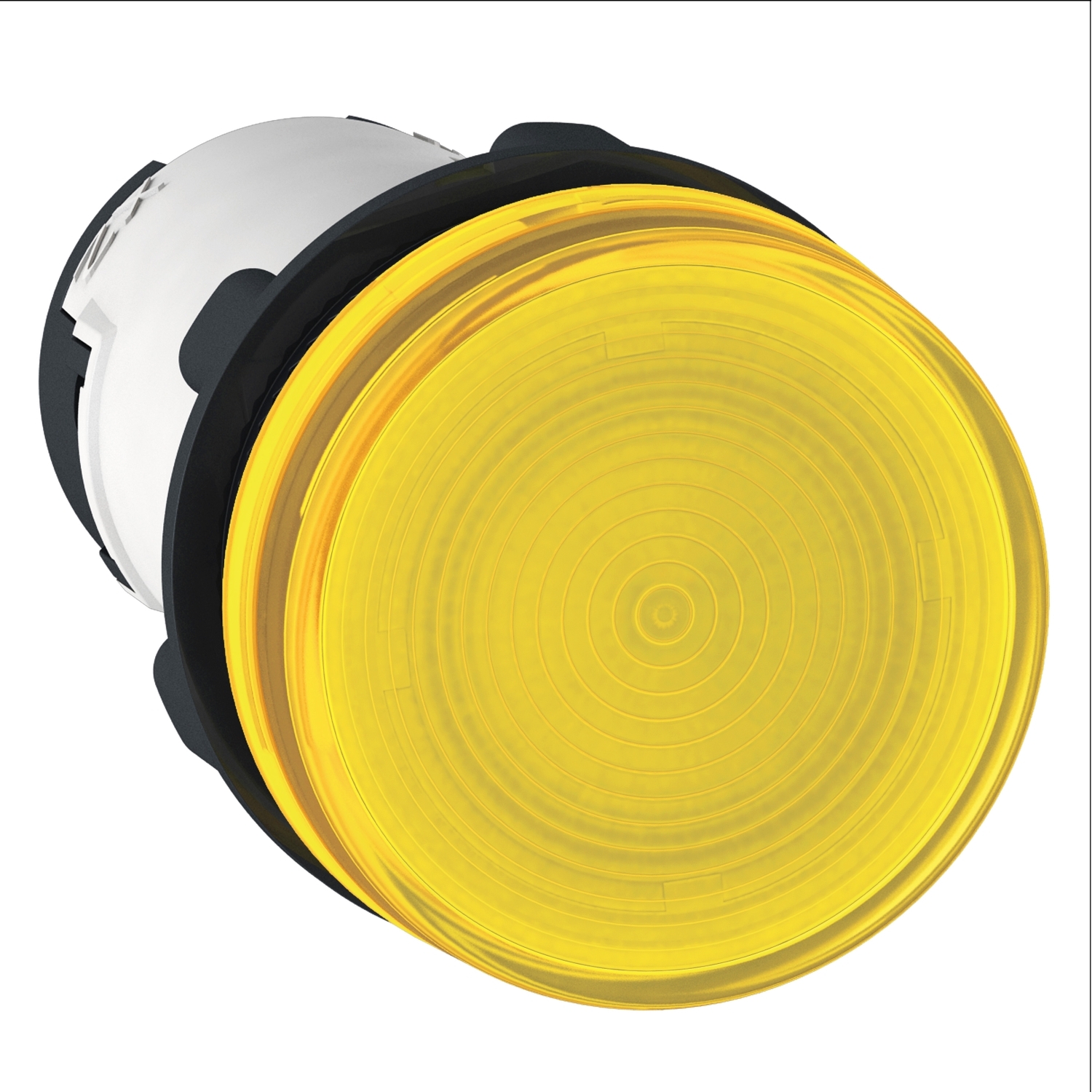

This Harmony XB7, monolithic yellow pilot light is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via BA9s base, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant thanks to its IP54, making it ideal for operation in low pressure environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB7 |
| Sale per indivisible quantity | 10 |
| Device presentation | monolithic product |
| Range of product | Harmony XB7 |
| Product or component type | pilot light |
| Mounting diameter | 22 mm |
| Light source | incandescent |
| Operator additional information | with plain lens |
| Complementary | |
| Device mounting | fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Shape of screw head | slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver, cross compatible with JIS No 1 screwdriver |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Compatibility code | XB7 |
| Supply voltage limits | 195-264 V AC |
| Cap/operator or lens colour | yellow |
| Fixing mode | fixing nut beneath head: 2-2.4 N.m |
| Light block supply | direct through resistor <2.6 W 130 V |
| Height | 29 mm |
| [Us] rated supply voltage | 230 V, 230 V AC at 50/60 Hz |
| Bulb base | BA 9s |
| Depth | 54 mm |
| Width | 29 mm |
| Overvoltage category | class II conforming to IEC 60536 |
| Signalling type | steady |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Service life | 2000 h at rated voltage and 25 °C |
| Connections - terminals | screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, forked type tag connectors, connection size: 6.5 mm conforming to IEC 60947-1, Faston connectors, connection size: 6.35 x 0.8 mm conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.02 kg |
| Shape of signaling unit head | round |
| Fixing center | >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm, >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP54 (front face) conforming to IEC 60529, IP20 (rear face) conforming to IEC 60529 |
| Electromagnetic compatibility | disturbing field emission class B conforming to IEC 55011 |
| Ambient air temperature for operation | -25-55 °C |
| NEMA degree of protection | NEMA 12 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, JIS C8201-5-1 |
