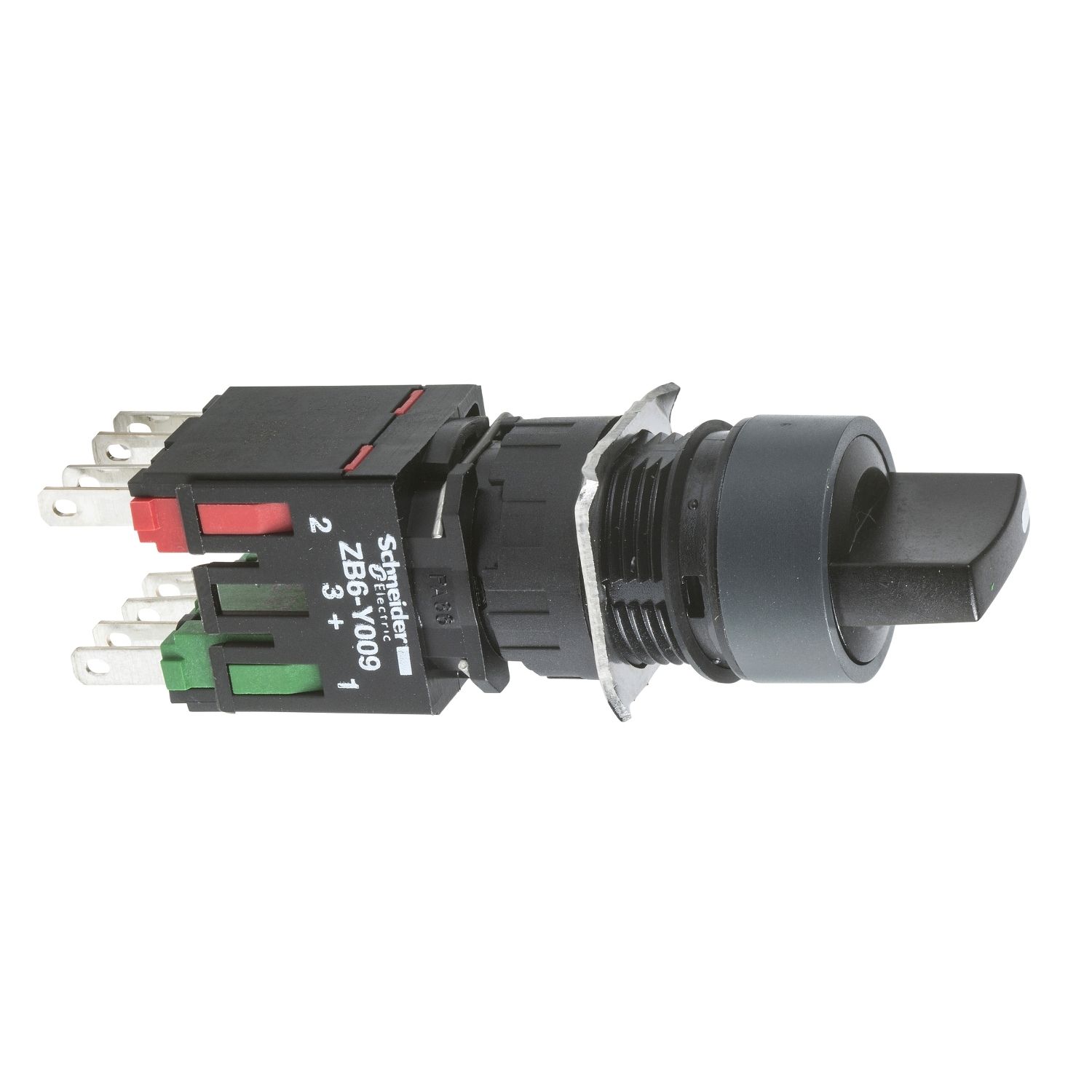

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB6 |
| Operating position | any position |
| Operator position information | 2 positions 60° |
| Operator profile | black standard handle |
| Contact operation | slow-break |
| Bezel material | plastic |
| Sale per indivisible quantity | 1 |
| Contacts type and composition | 1 NO |
| Shape of signaling unit head | square |
| Product or component type | complete selector switch |
| Type of operator | stay put |
| Mounting diameter | 16 mm |
| Range of product | Harmony XB6 |
| Complementary | |
| Depth | 68 mm |
| Width | 18 mm |
| Electrical reliability | λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4 |
| Compatibility code | XB6 |
| Mechanical durability | 500000 cycles |
| [Ie] rated operational current | 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1, 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1, 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | Faston connectors, connection size: 2.8 x 0.5 mm |
| Electrical durability | 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Net weight | 0.024 kg |
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Contacts material | silver alloy (Ag/Ni) |
| Short-circuit protection | 6 A cartridge fuse type gG |
| Terminals description ISO n°1 | (21-22)NC, (13-14)NO |
| Height | 18 mm |
| Environment | |
| Protective treatment | TC |
| Electrical shock protection class | class II conforming to IEC 61140 |
| NEMA degree of protection | NEMA 4X conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 13 conforming to CSA C22.2 No 94, NEMA 4X conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 13 conforming to UL 50 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, UL 508, JIS C 852, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-5 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | UL, GOST, CSA, CCC |
