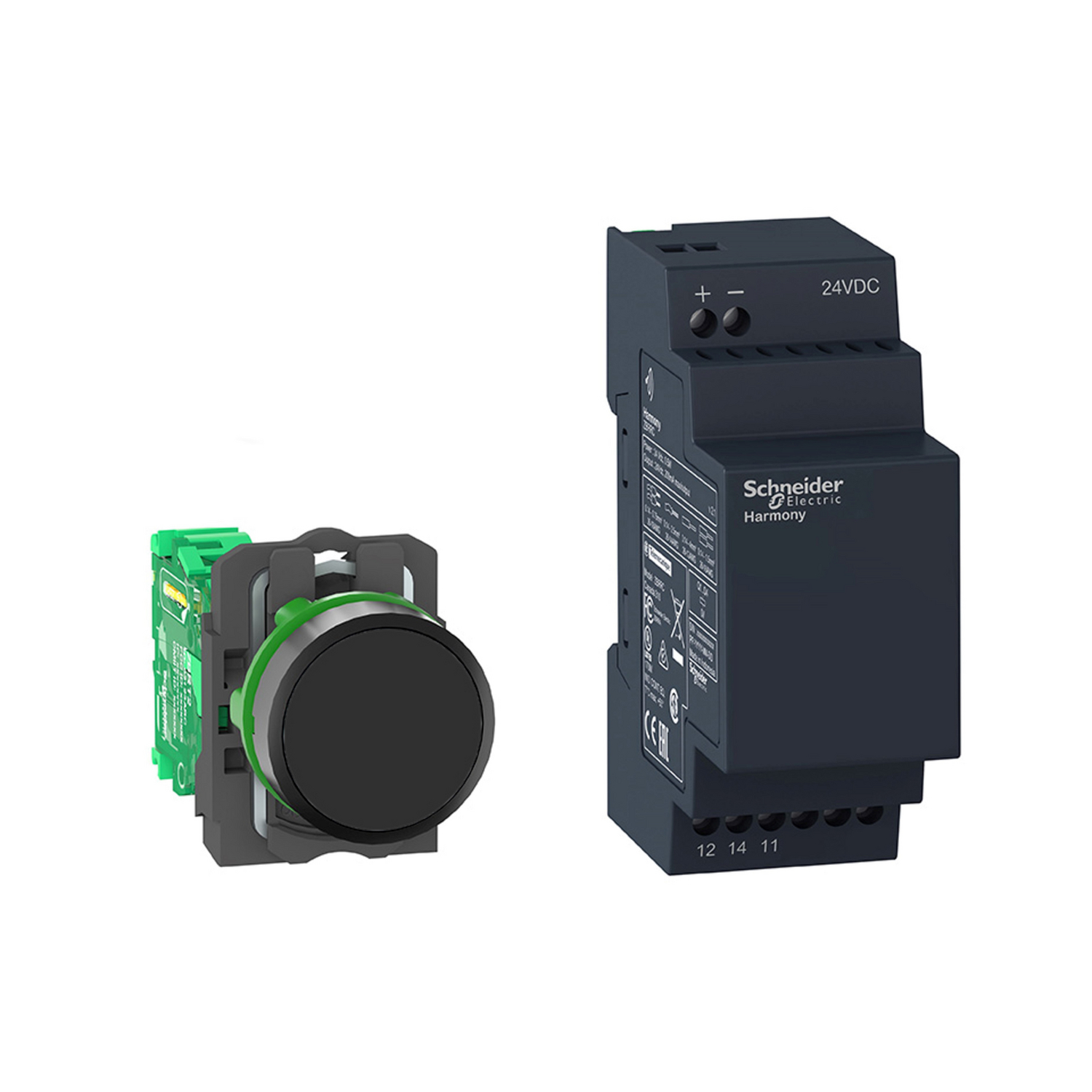

This Harmony XB5, flush black wireless push button and receiver unit set is supplied with a 24V DC input. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes. The button is easily installed into standard 22mm diameter panel cut-outs, while the receiver is DIN rail mountable. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It provides robust wireless communications, for guaranteed operation even in the most electromagnetically disturbed environments. Its simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. It is easily installed into standard 22mm diameter cut-outs. It complies with most radio emission standards, for a guaranteed comfort during design and project approval.

Products specifications

Attribute name Attribute value
Main
Transmission frequency 2405 MHz for receiver, 2405 MHz for transmitter
Device short name XB5R
Range of product Harmony XB5R
Antenna type omnidirectional
Level or class 5M00G7W
Head material plastic
Product or component type wireless and batteryless package
Complementary
Bandwidth 5-5 MHz
Compatibility code XB5R
Type of receiver non-programmable receiver (1 relay)
Number of channels 1
Customizable 0, no
Antenna gain 0 dBi
Communication port protocol Zigbee conforming to IEEE 802.15.4
Control type wireless and batteryless push-button Ø 22 mm assembled on fixing collar
[Us] rated supply voltage 24 V, 24 V DC
Max power consumption in W 1 mW
Kit composition 1 push-button head diameter: 22 mm, 1 diameter: 22 mm, 1 fixing collars, 1 receiver, 1 set of caps, 1 transmitter
Modulation Technique O-QPSK
Environment
Radio agreement ARIB T66, FCC, ANATEL, RSS, ICASA, SRRC
Marking CE
Standards UL 508, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1
Product certifications CCC, CSA, GOST, C-Tick, UL
Only registered users can write reviews

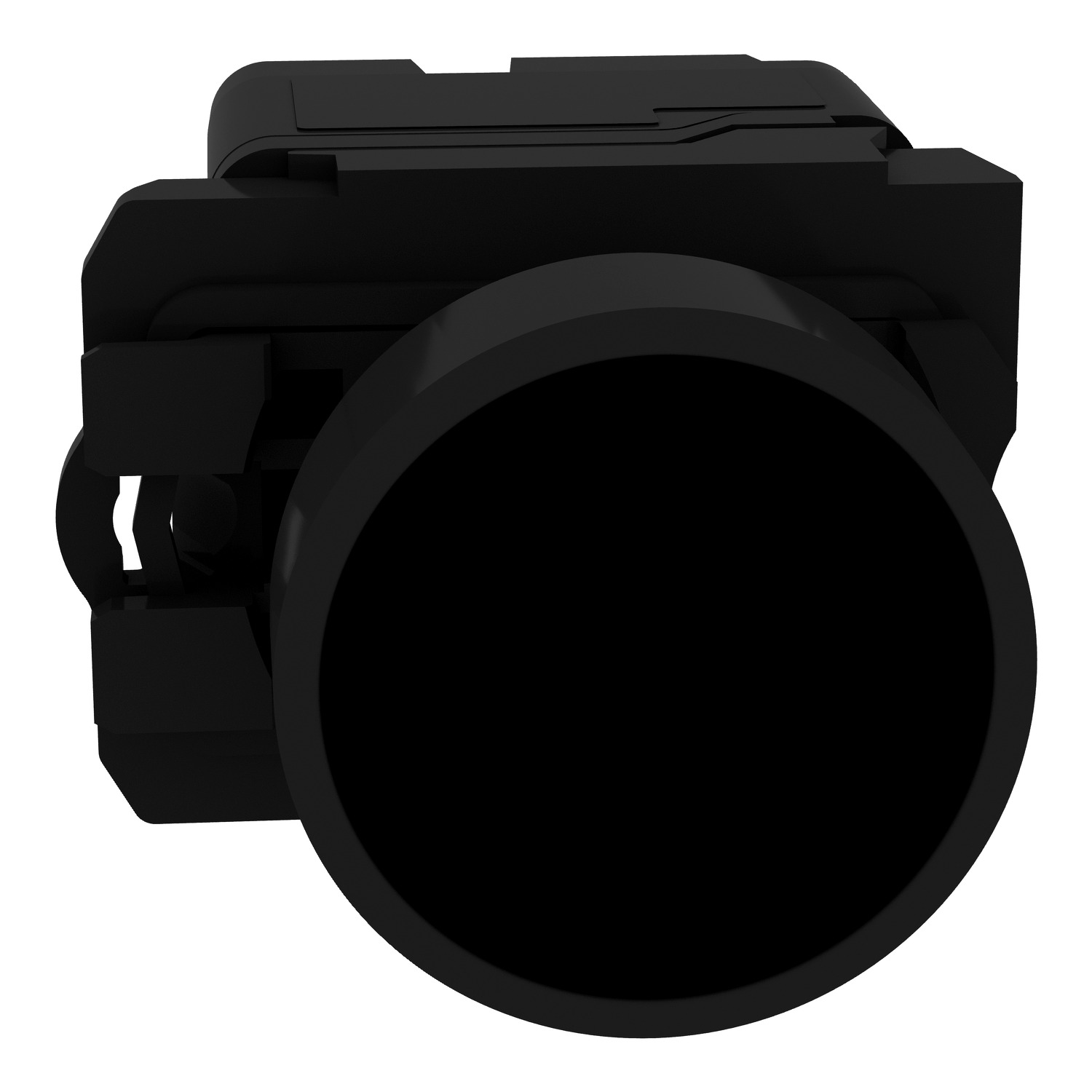

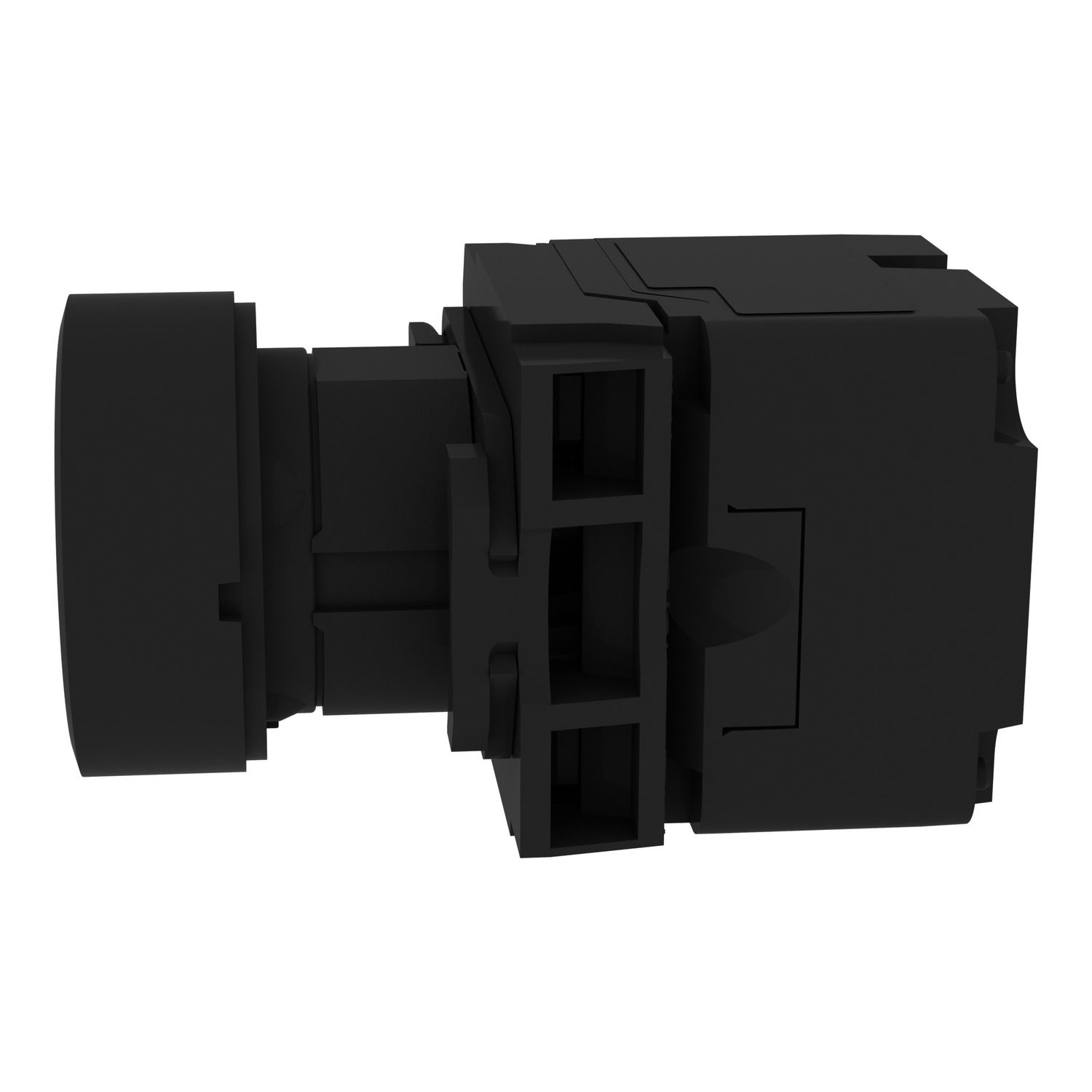

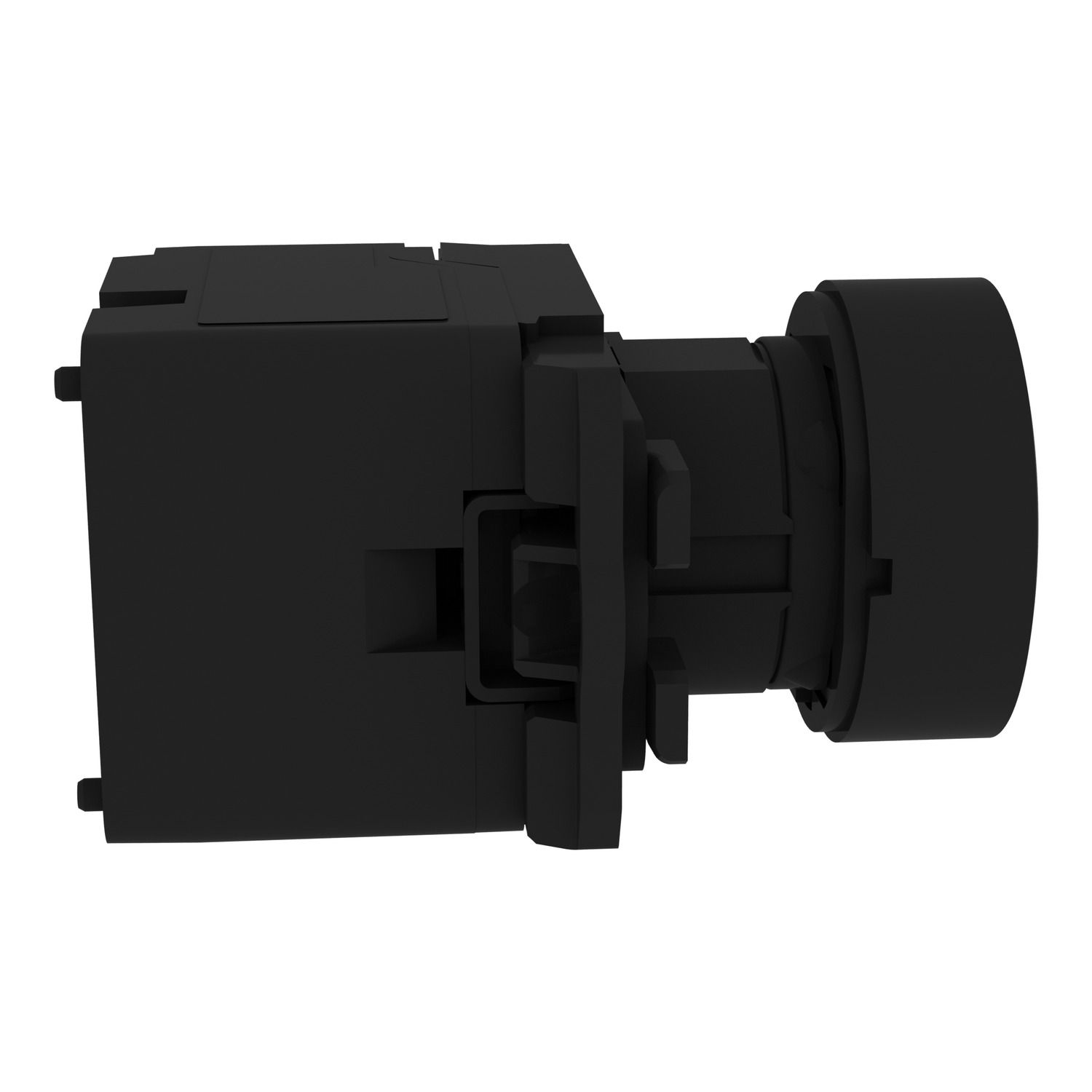

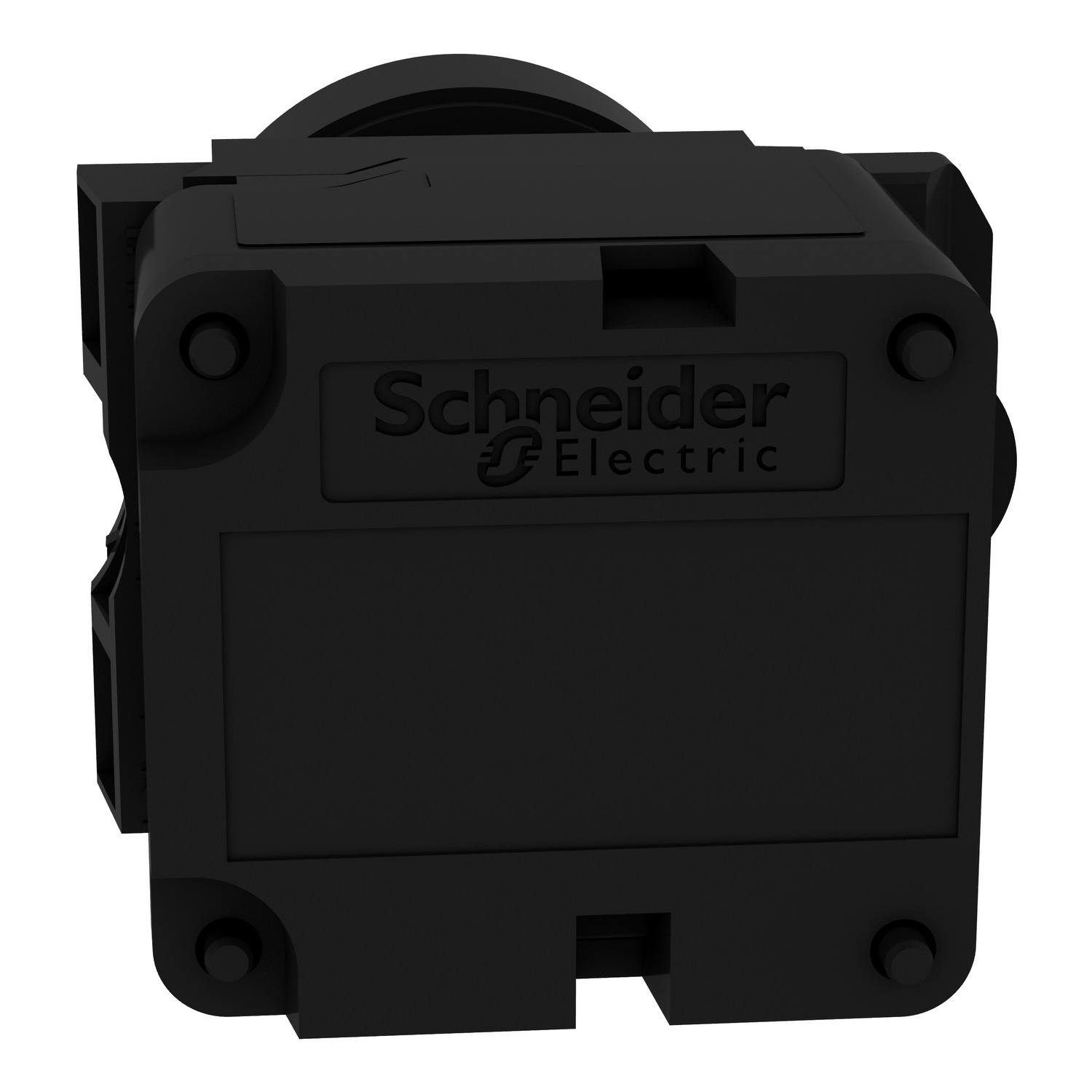

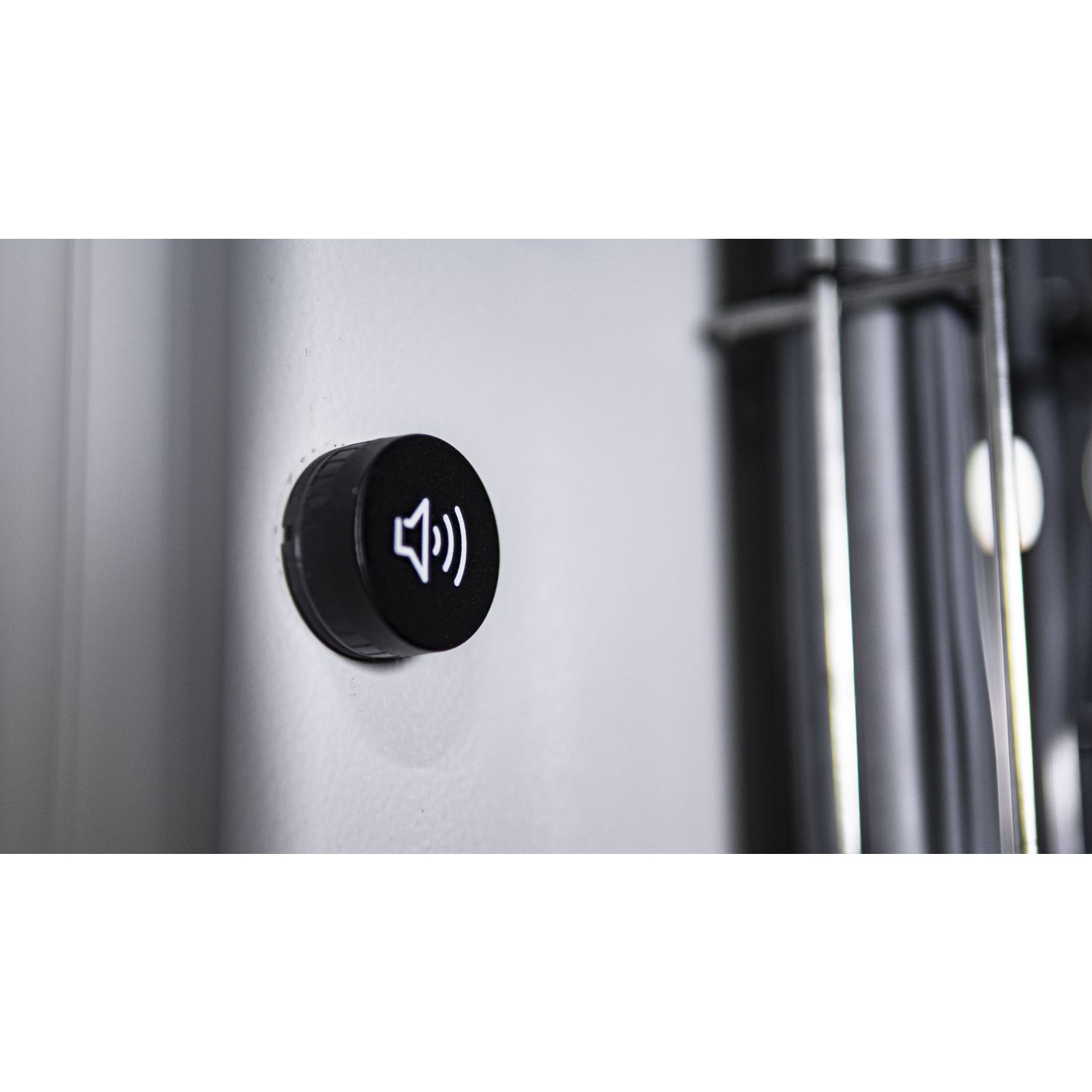

Wireless push button and non-configurable receiver, Harmony XB5R, plastic, Ø22, with 1 black cap, 24 V DC

Old price: $340.45 inc GST
$207.13 inc GST
