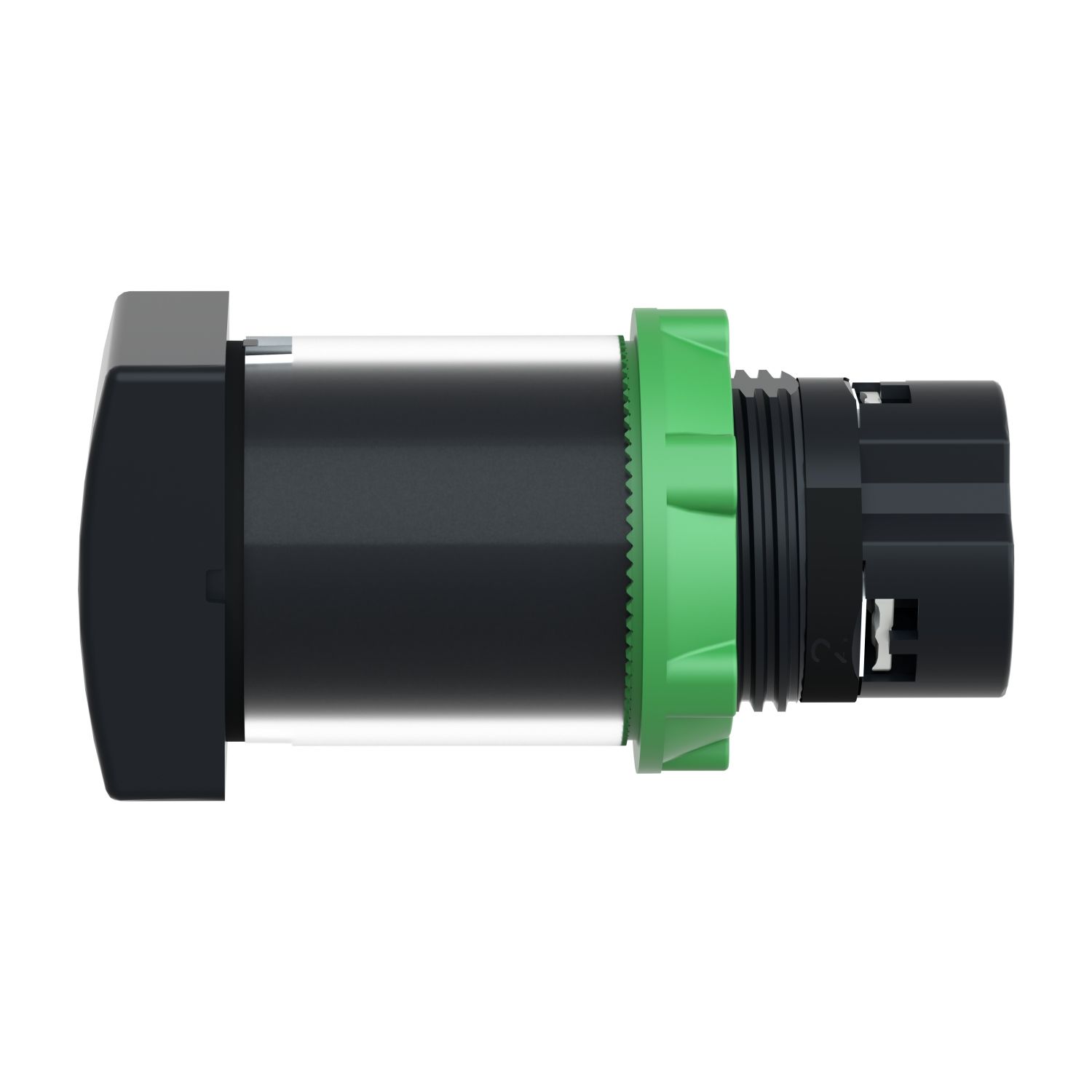

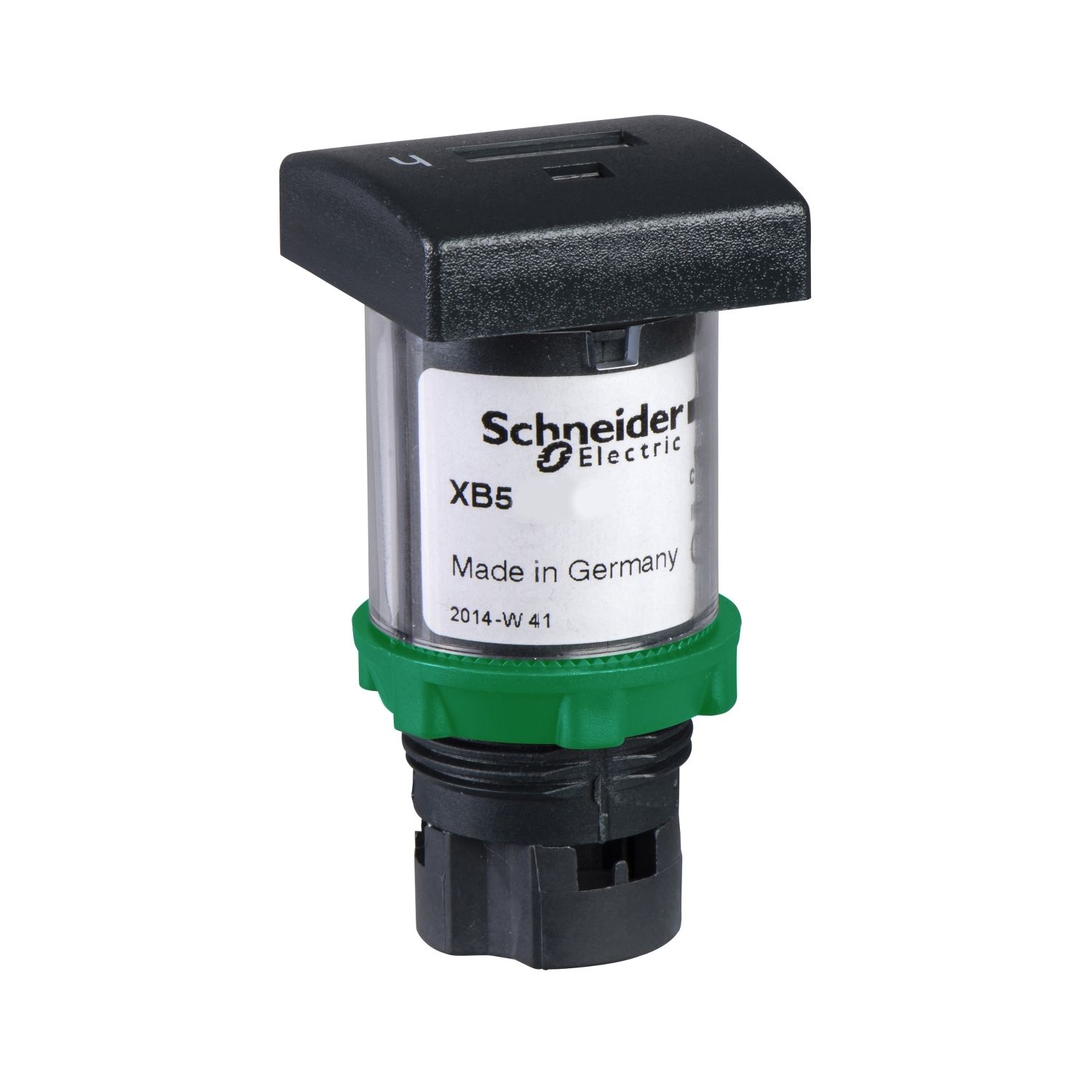

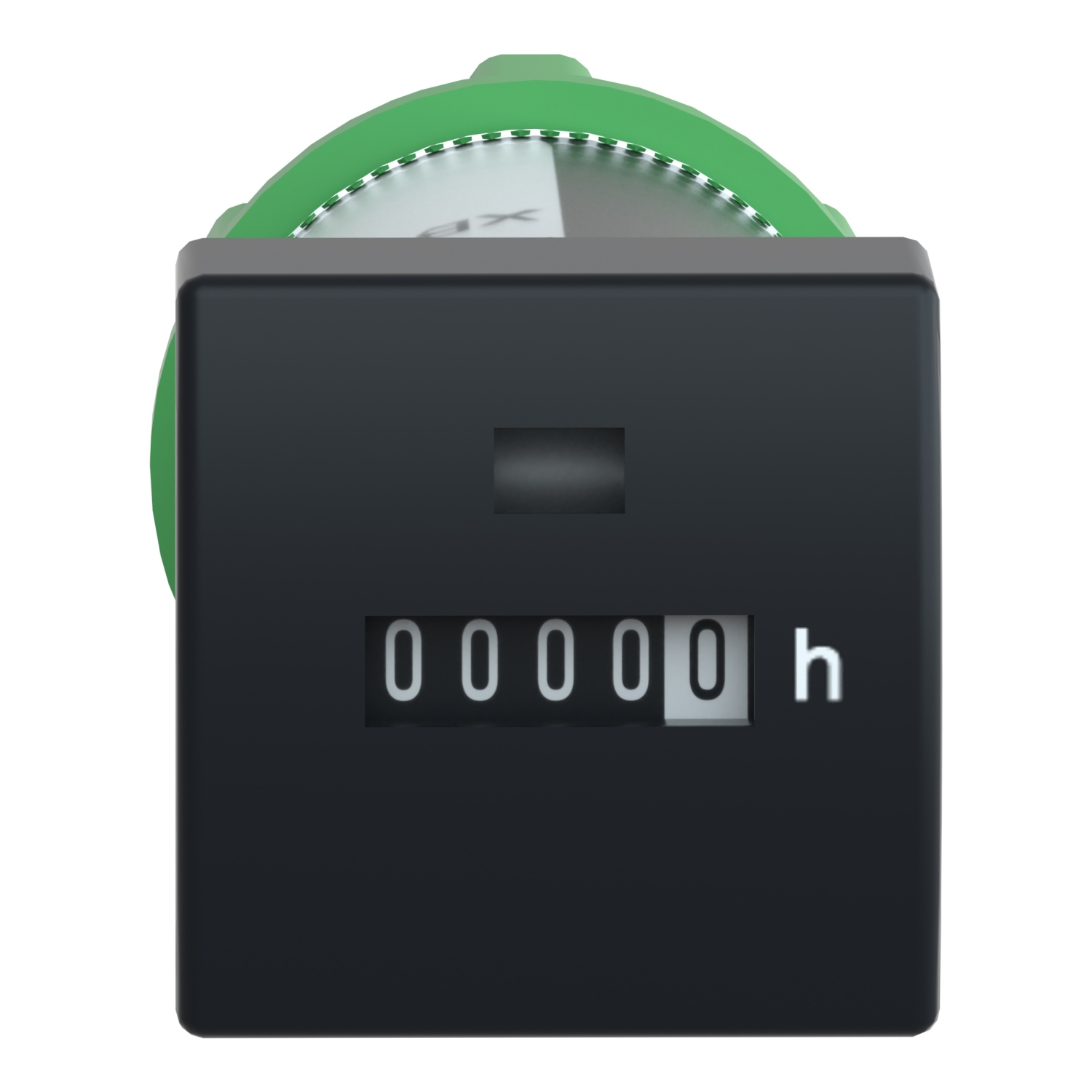

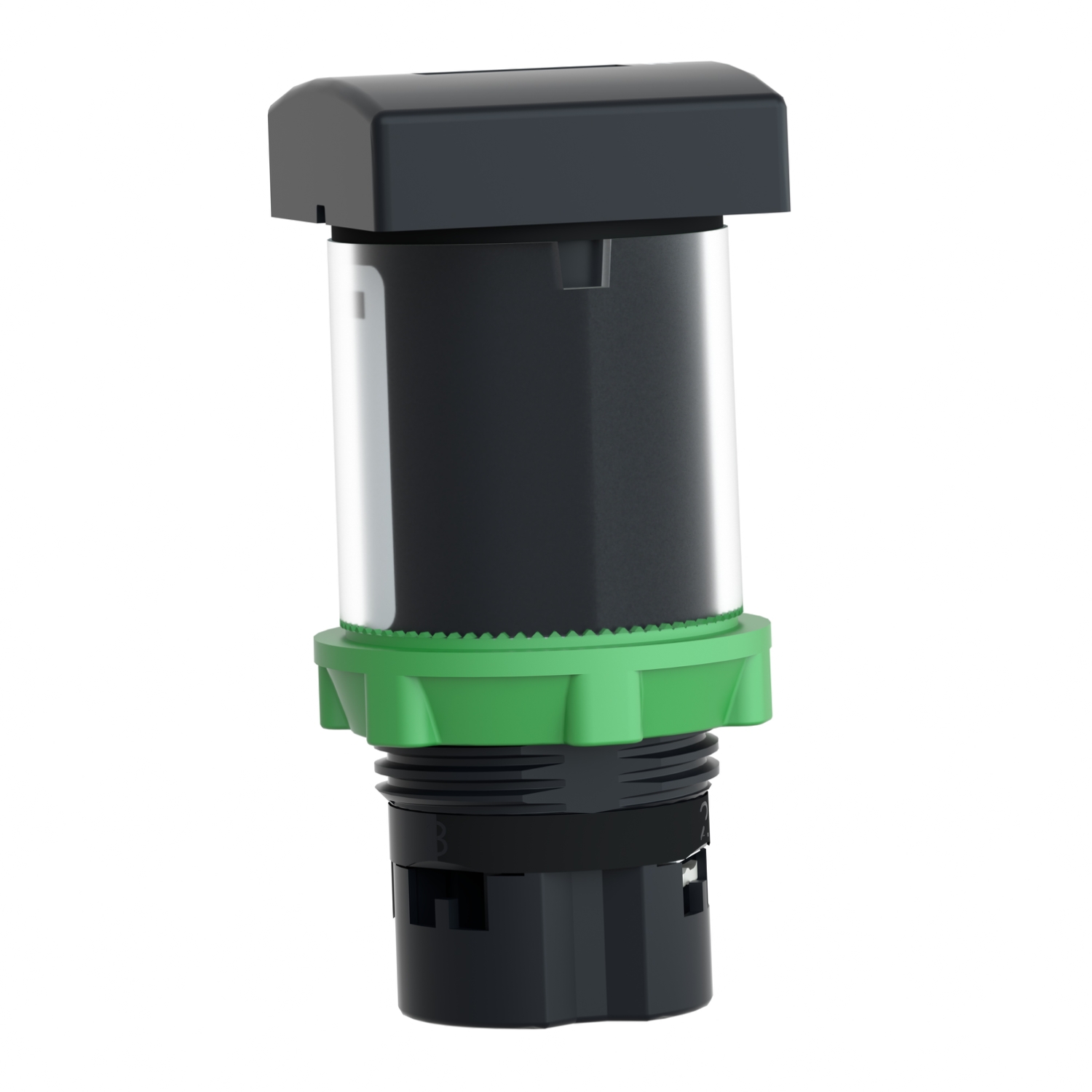

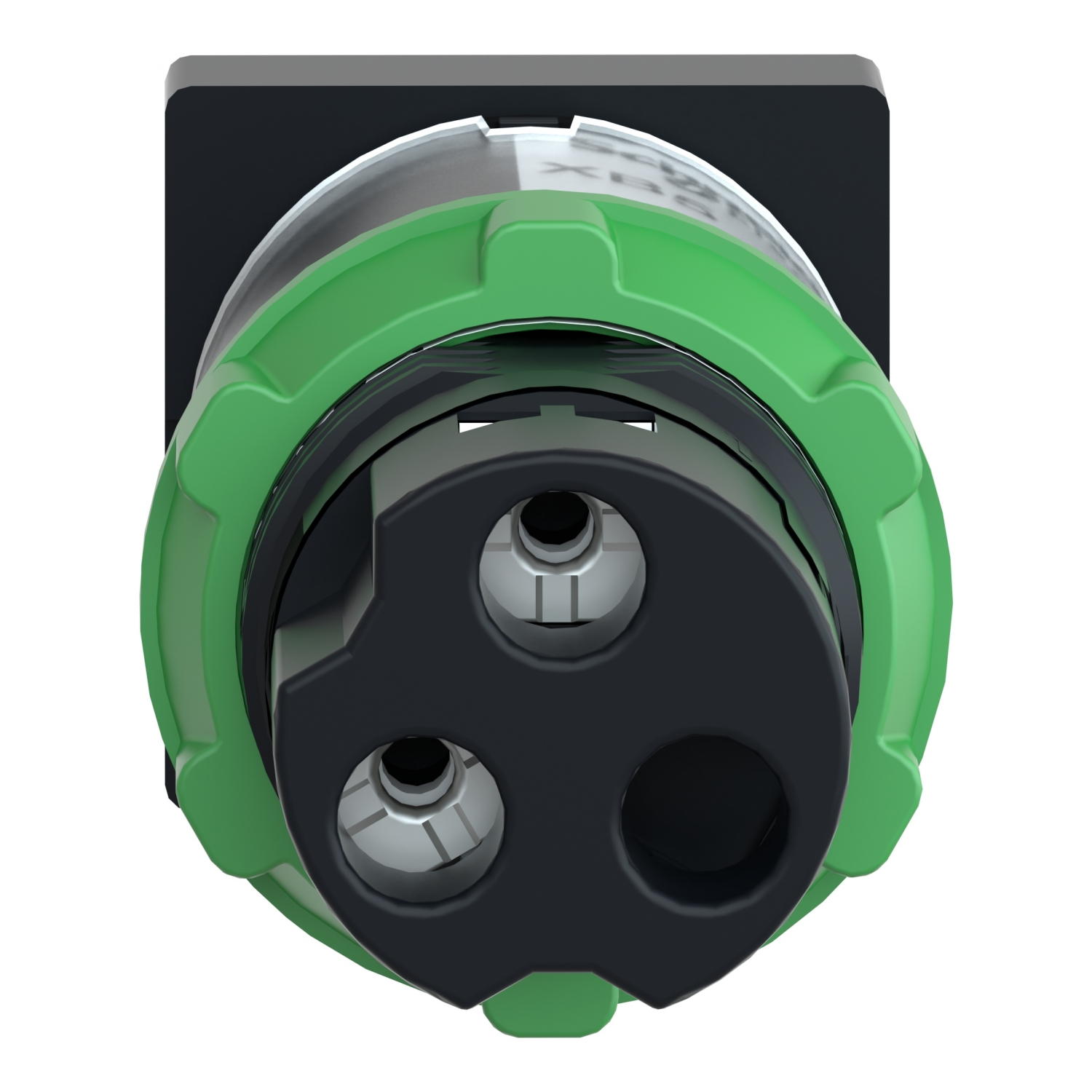

This hour counter is part of Harmony XB5 range of 22mm plastic control and signaling units. It provides mechanical 5 digit display. It is supplied with 230V to 240V AC. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 22mm diameter panel cut-out. It weighs 45g and its dimensions are, 30mm wide, 30mm high, 60mm deep. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications It is CE and UL certified. This range delivers an innovative and ergonomic design that allows easy operation and improves the look and feel of your control panels and machines.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Bezel material | dark grey plastic |
| Product or component type | hour counter |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Reset | without |
| Complementary | |
| Depth | 60 mm |
| Width | 30 mm |
| Customizable | no, 0 |
| Mounting mode | flush-mounted |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Device presentation | monolithic product |
| Current consumption | 8 mA |
| Net weight | 0.045 kg |
| Display digits | 5 |
| Mounting support | panel mounting |
| Height | 30 mm |
| [Us] rated supply voltage | 230...240 V +/- 10 %, 230...240 V |
| Environment | |
| Protective treatment | TH |
| Electrical shock protection class | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| NEMA degree of protection | NEMA 13 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Standards | IEC 60947-5-1 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | UL, CE |
