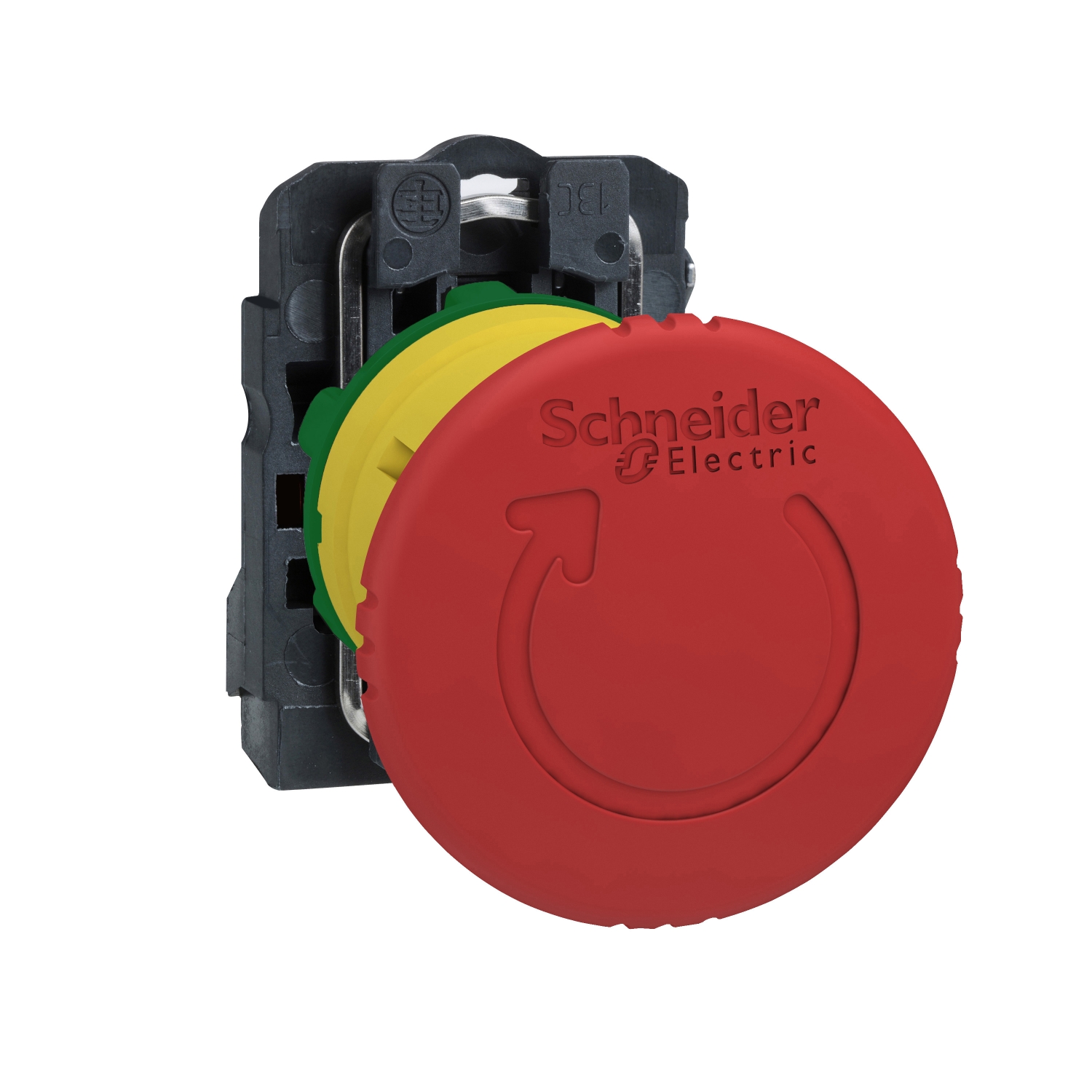

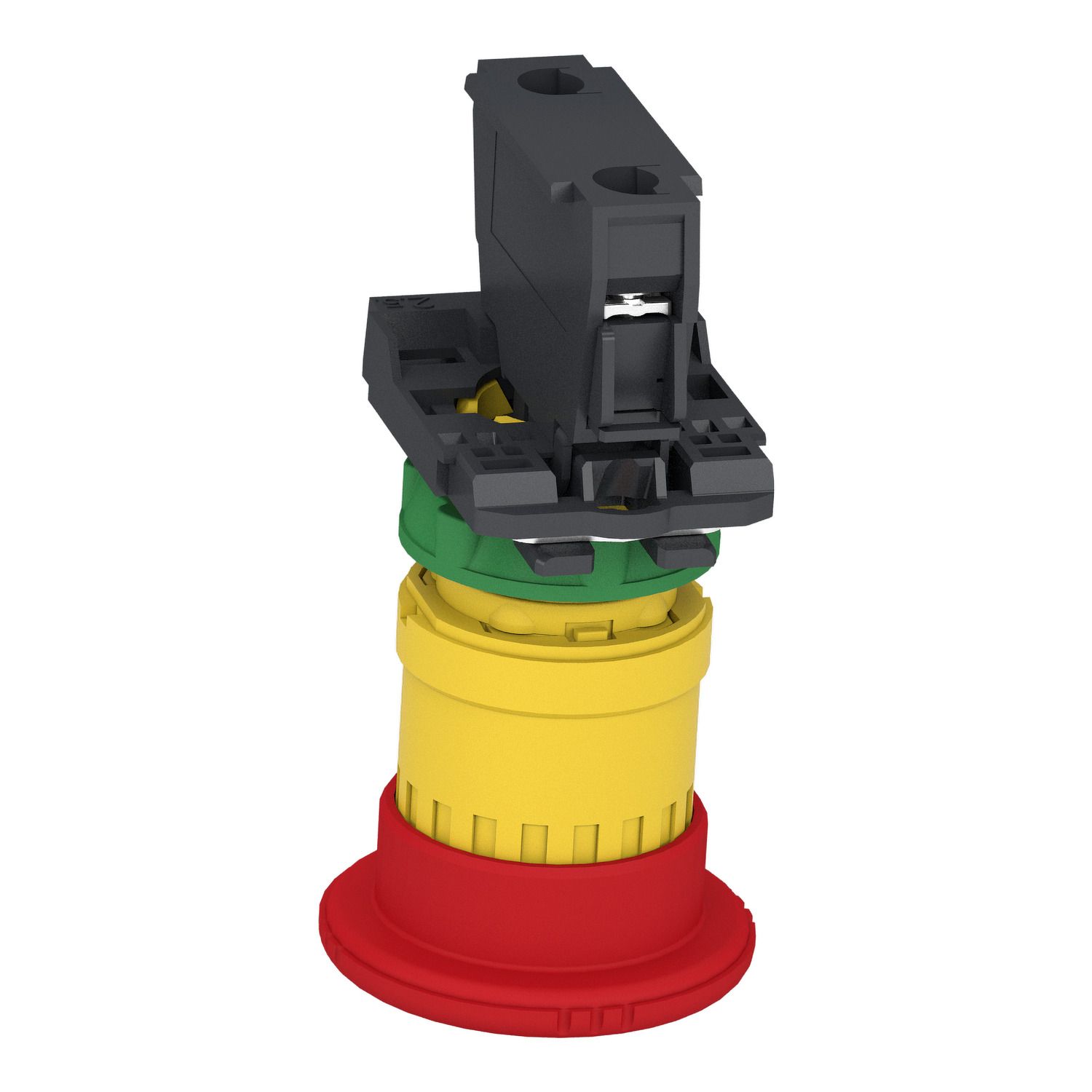

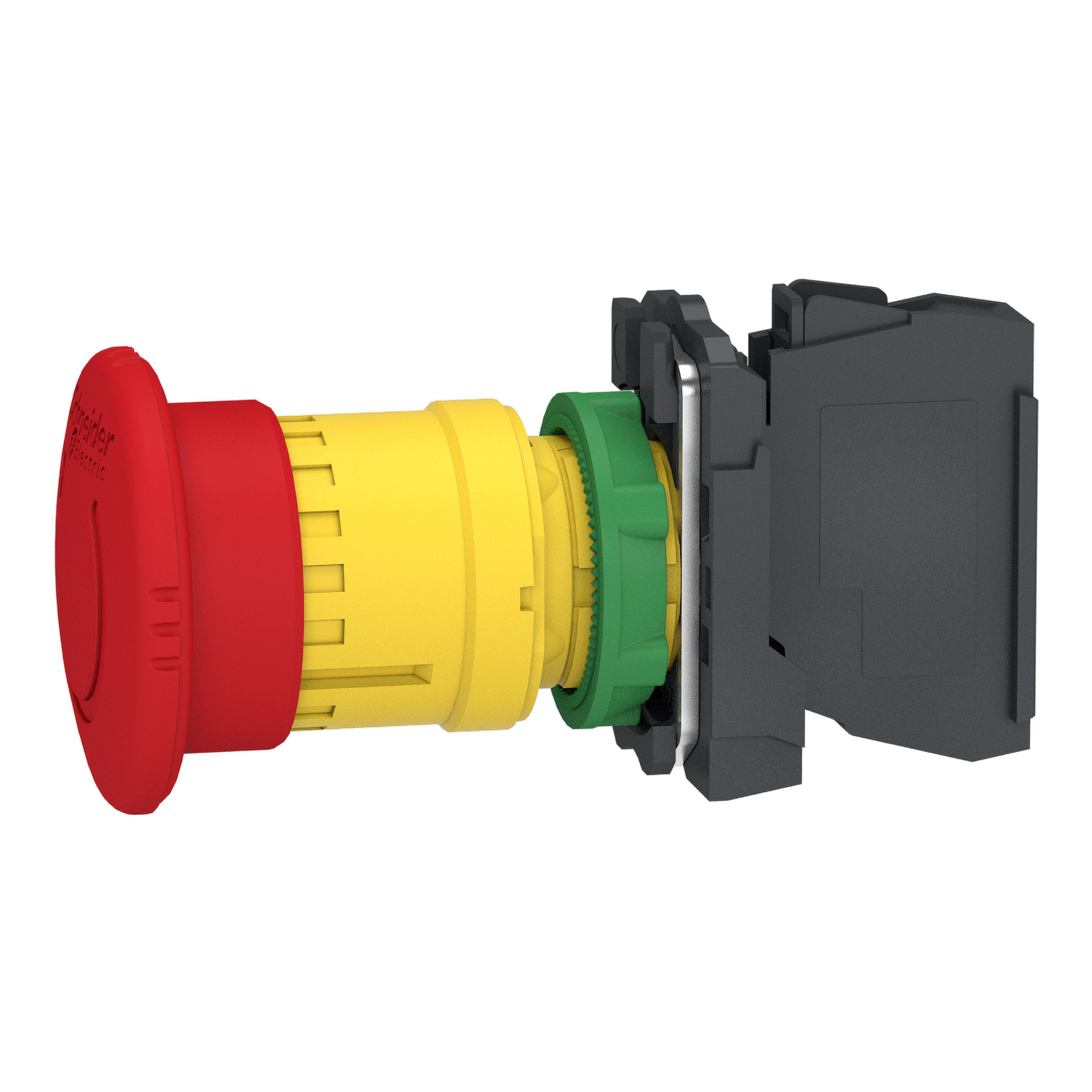

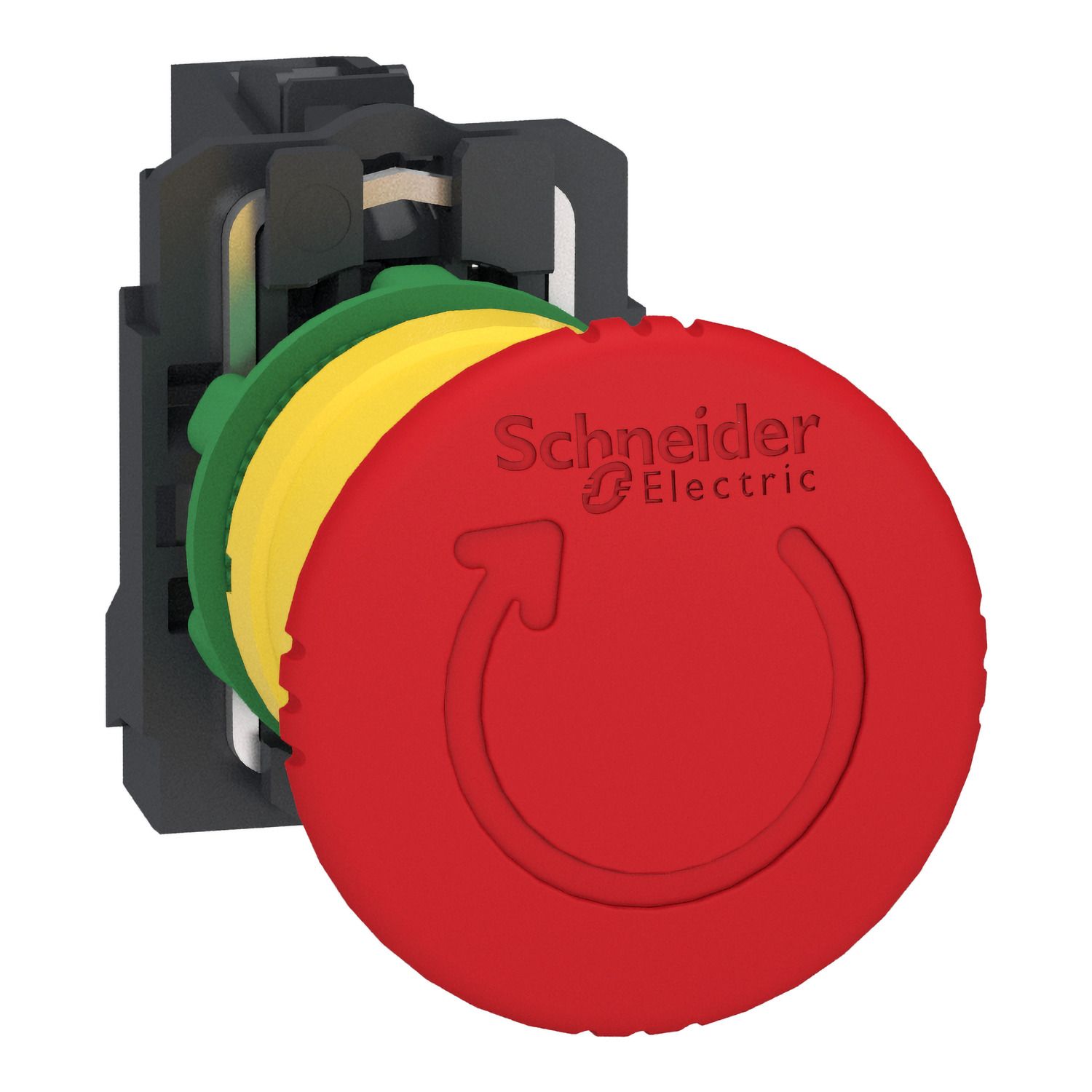

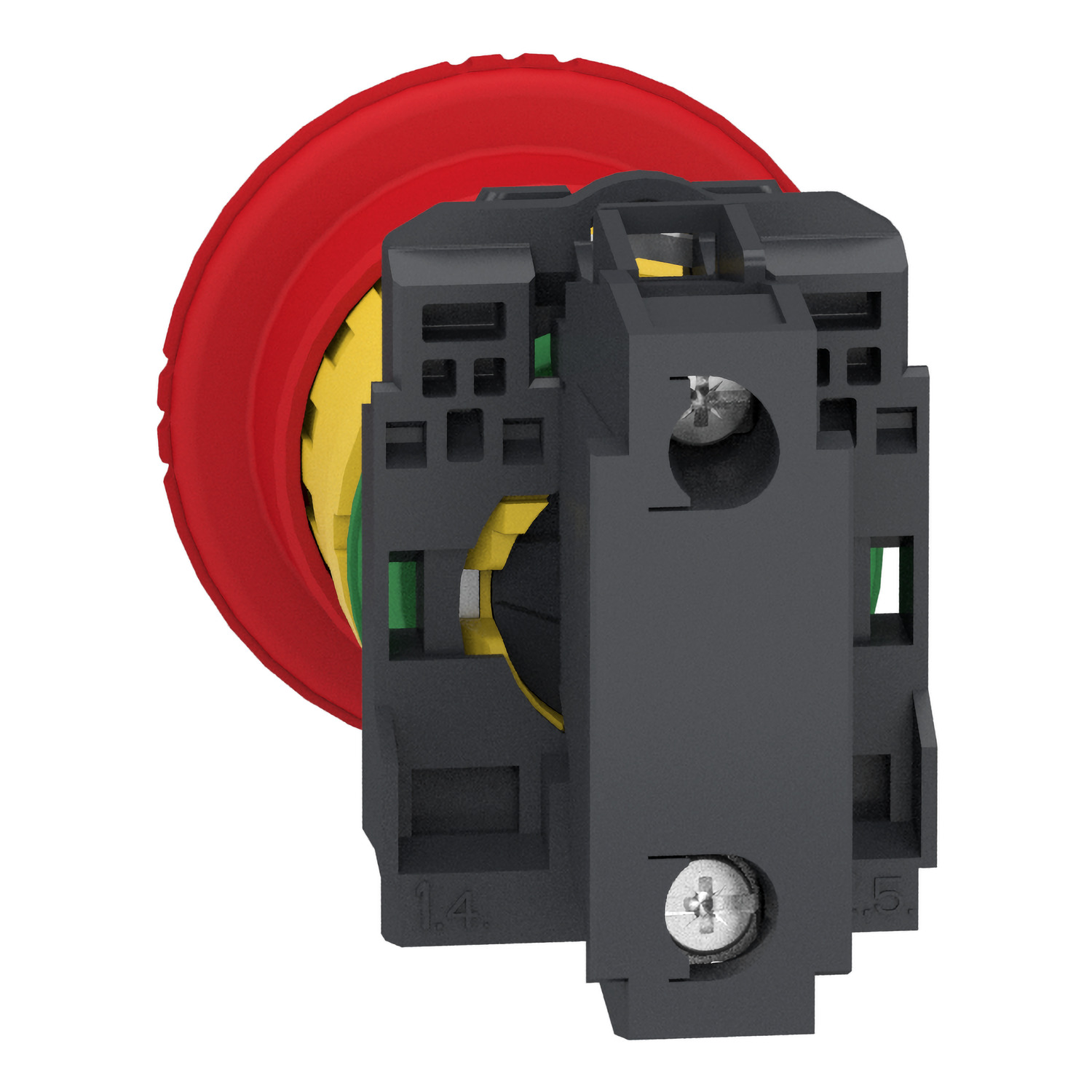

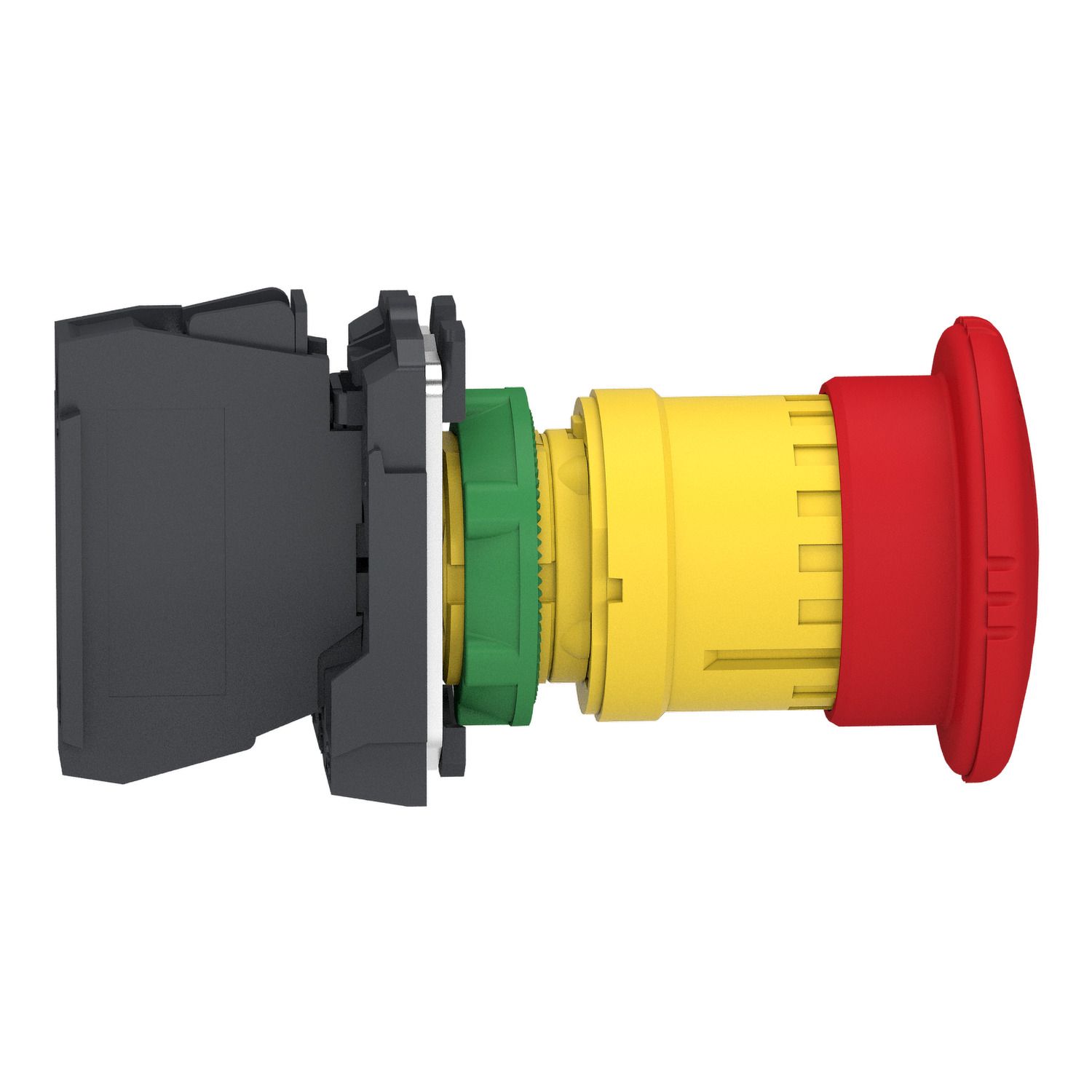

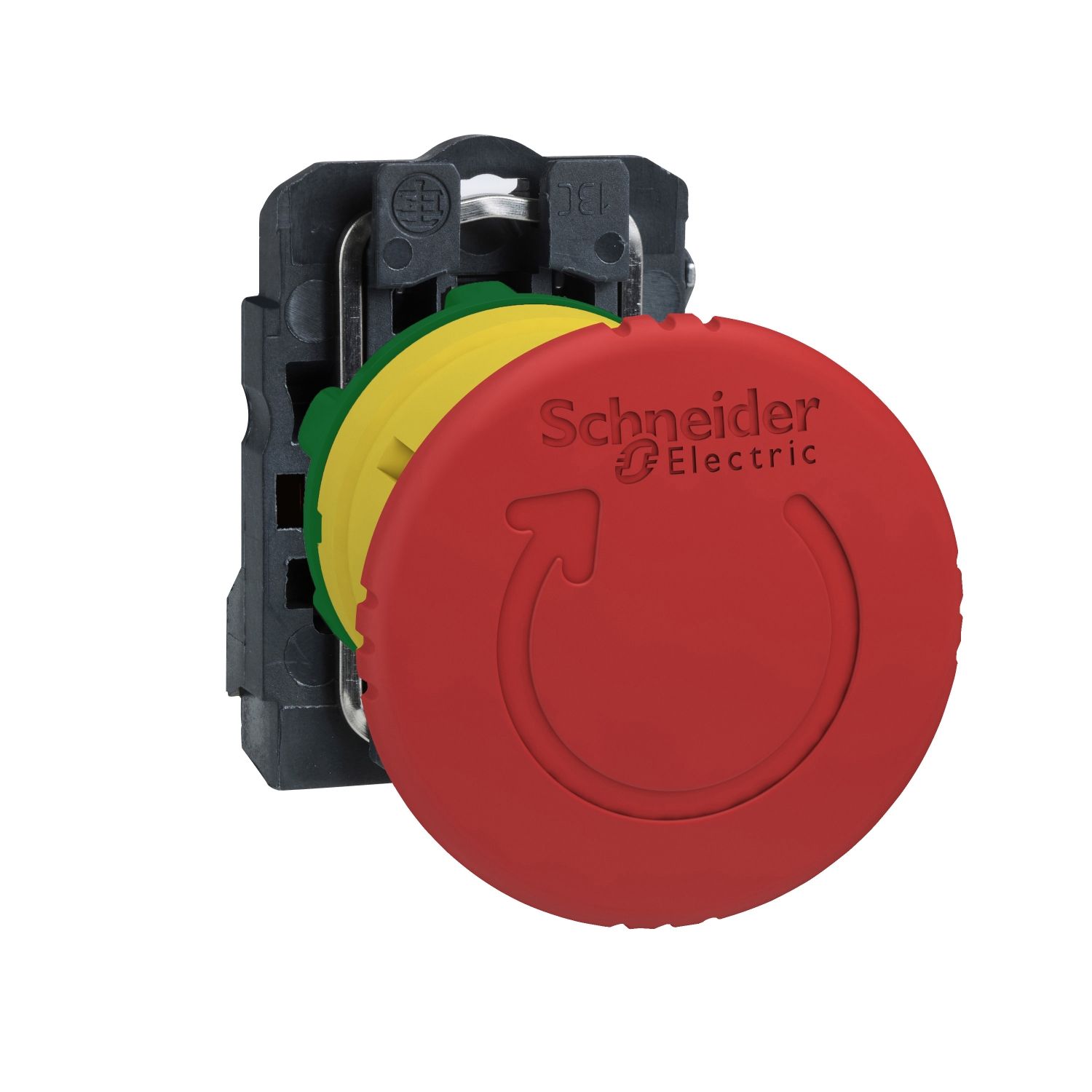

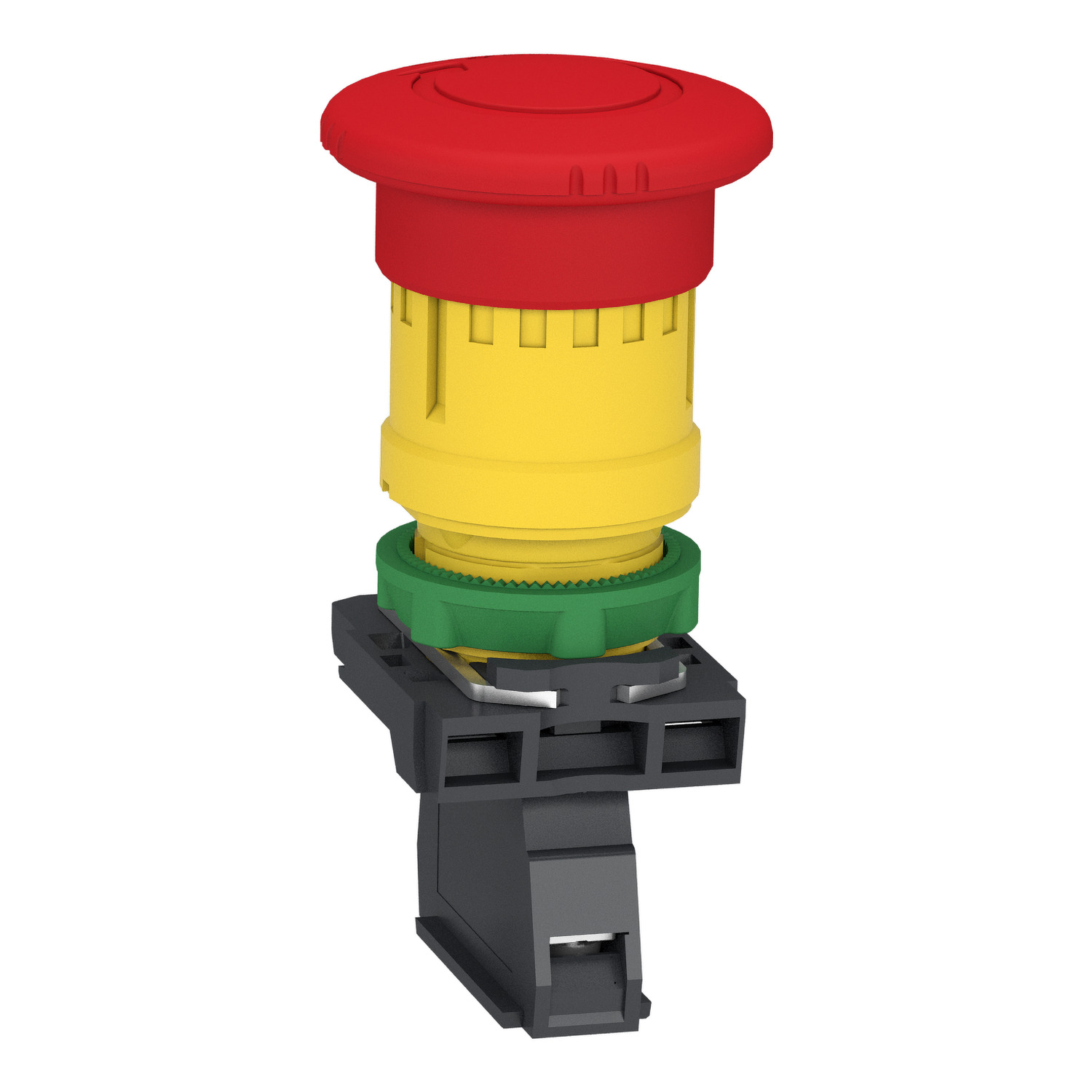

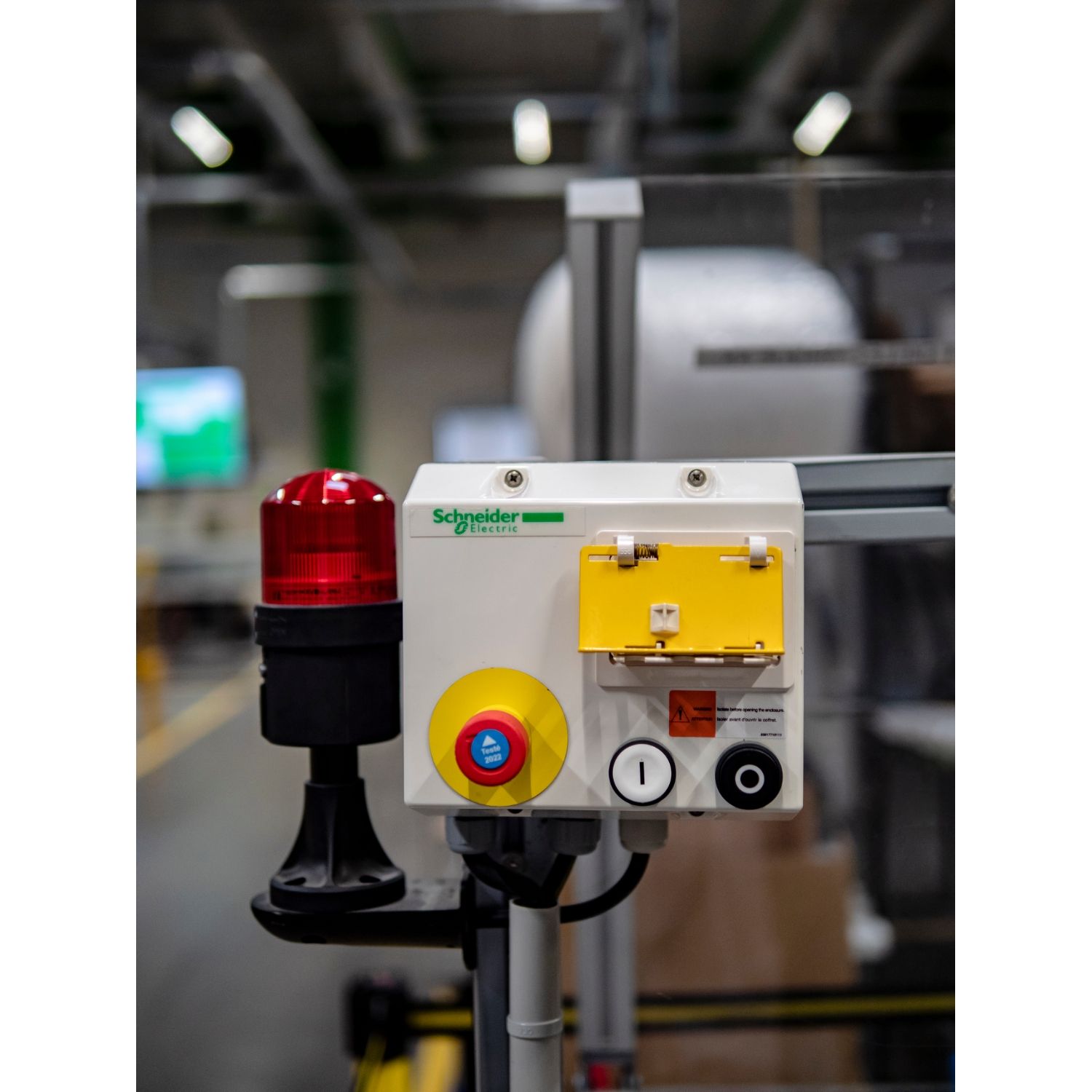

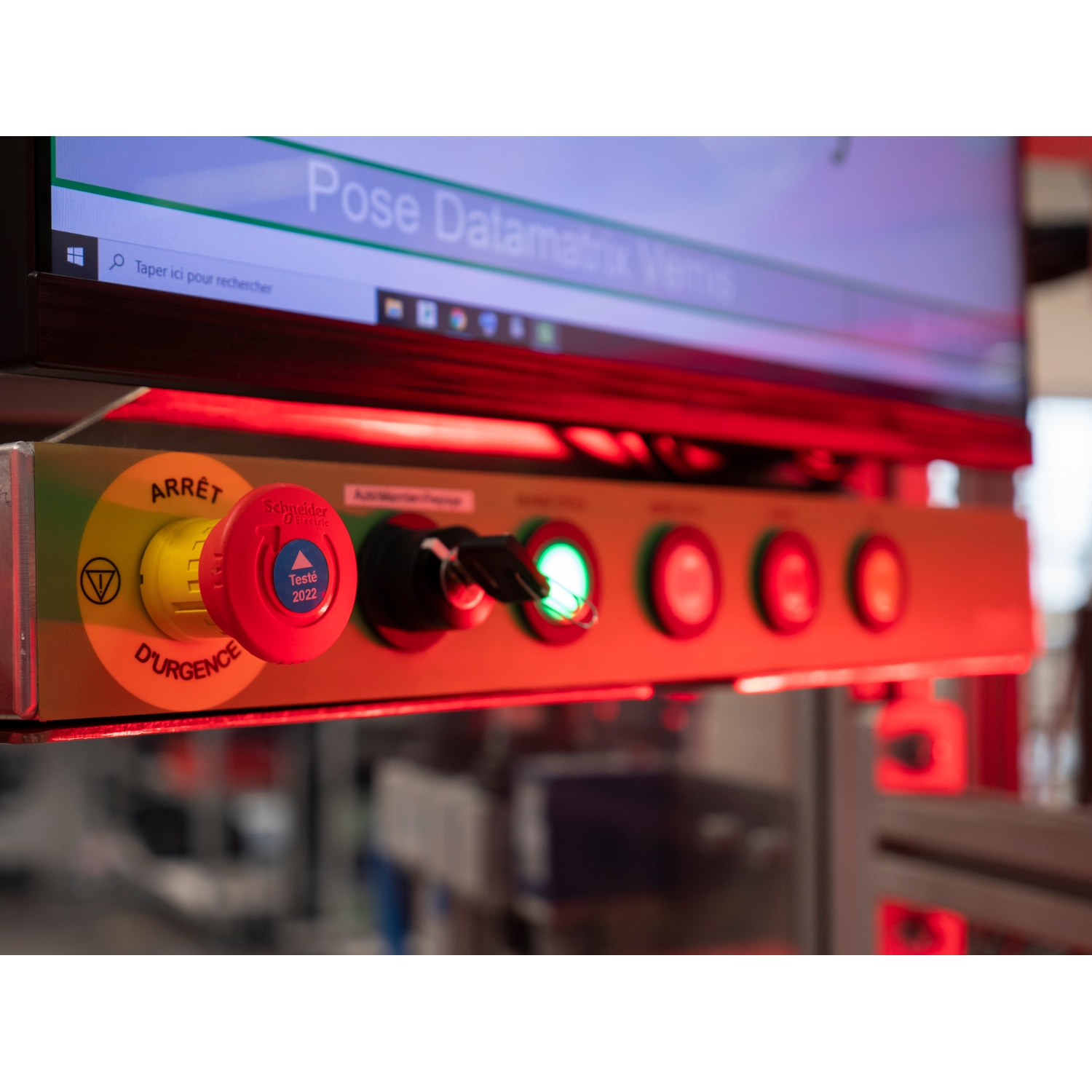

This product is part of the Harmony XB5 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This red Emergency stop pushbutton comes with a mushroom head. It operates with a turn to release mechanism. This mushroom headed pushbutton provides an ergonomic interface for controlling/stopping machines. It comes with 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a plastic bezal and has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB5 range offers innovative features for simple and efficient use.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB5 |
| Contact operation | slow-break |
| Sale per indivisible quantity | 1 |
| Device presentation | complete product |
| Head type | standard |
| Fixing collar material | plastic |
| Type of operator | trigger action and mechanical latching |
| Range of product | Harmony XB5 |
| Reset | turn to release |
| Operator profile | red mushroom Ø 40 mm, unmarked |
| Bezel material | plastic |
| Connections - terminals | screw clamp terminals, >= 1 x 0.34 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Shape of signaling unit head | round |
| Product or component type | emergency stop push-button, emergency switching off push-button |
| Mounting diameter | 22 mm |
| Complementary | |
| Device mounting | fixing hole - diameter: 22.5 mm +/- 0.2 mm |
| Shape of screw head | slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Electrical reliability | λ < 10exp(-8) at 17 V, 3.4 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 |
| Compatibility code | XB5 |
| Mechanical durability | 300000 cycles |
| [Ie] rated operational current | 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.11 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1, 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1, 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1 |
| Electrical durability | 300000 cycles, DC-13, 1 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 0.3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Cap/operator or lens colour | red |
| Contacts material | silver alloy (AgSnO2), silver alloy (AgNi) |
| Operating travel | 4.3 mm (total travel), 1.5 mm (NC changing electrical state) |
| Fixing mode | fixing nut recommended torque: 2.2 N.m (+/- 0.2) |
| Operating force | 47 N |
| Height | 43 mm |
| Depth | 85 mm |
| Width | 40 mm |
| Customizable | no |
| [Ui] rated insulation voltage | 300 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Net weight | 0.050 kg |
| [Ith] conventional free air thermal current | 6 A conforming to IEC 60947-5-1 |
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Short-circuit protection | 6 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| Contacts usage | monitoring contact |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | Type 4X conforming to UL 50E, Type 4 conforming to UL 50E, Type 12 conforming to UL 50E, Type 13 conforming to UL 50E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529 |
| Standards | GOST IEC 60947-5-1, BS EN 60947-5-1, GB/T 14048.5, JIS C8201-5-1, JIS C8201-1, CSA C22.2 No 60947-5-1, UL 60947-5-1, ISO 13850, IEC 60364-5-53, IEC 60947-5-4, IEC 60204-1, IEC 60947-5-5, IEC 60947-5-1, IEC 60947-1 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK03 conforming to IEC 60068-2-75 |
| Overvoltage category | class II conforming to IEC 60536 |
| Vibration resistance | 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Product certifications | EAC, UKCA, CB Scheme, CCC, CE, DNV, LROS (Lloyds register of shipping), UL listed, BV, CSA |
