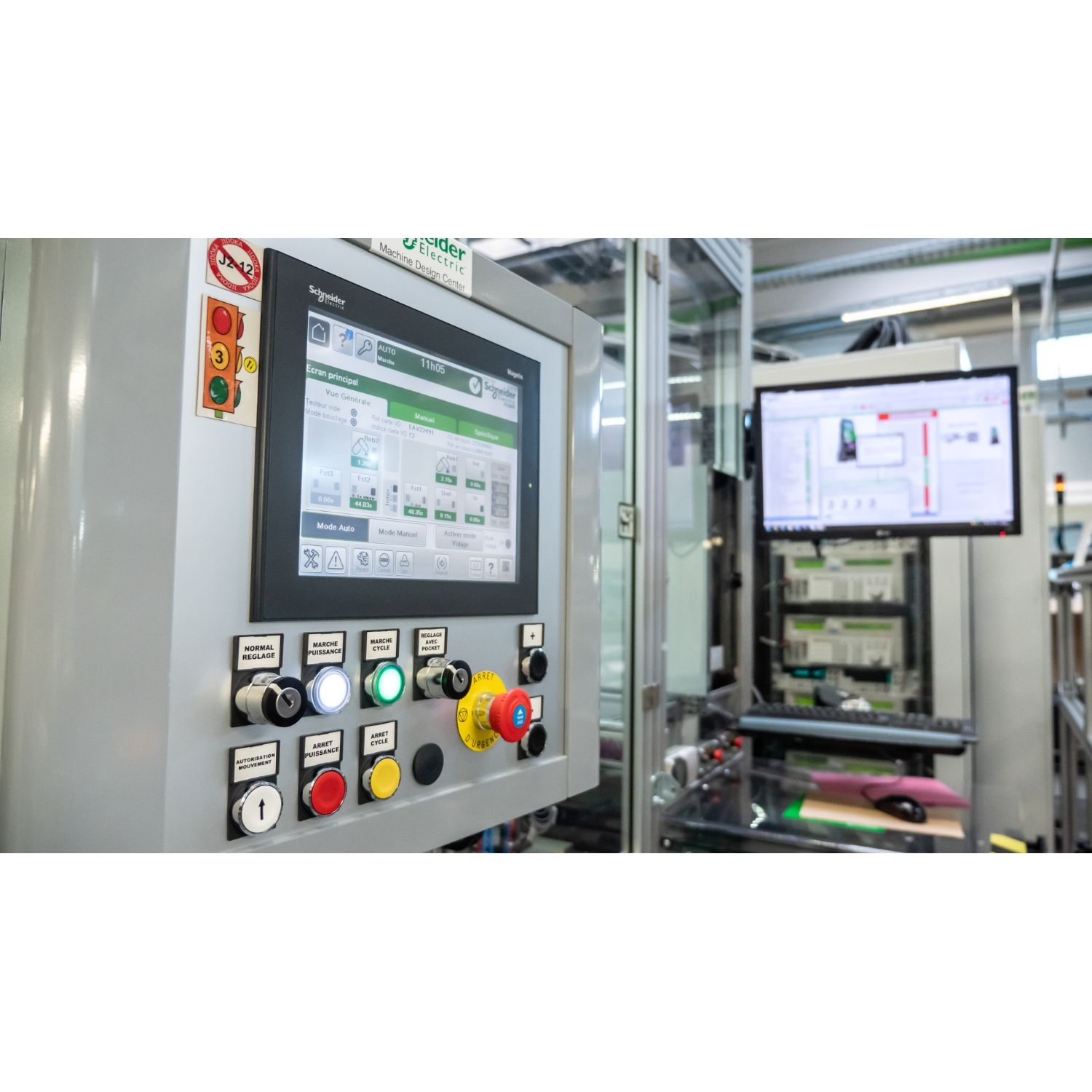

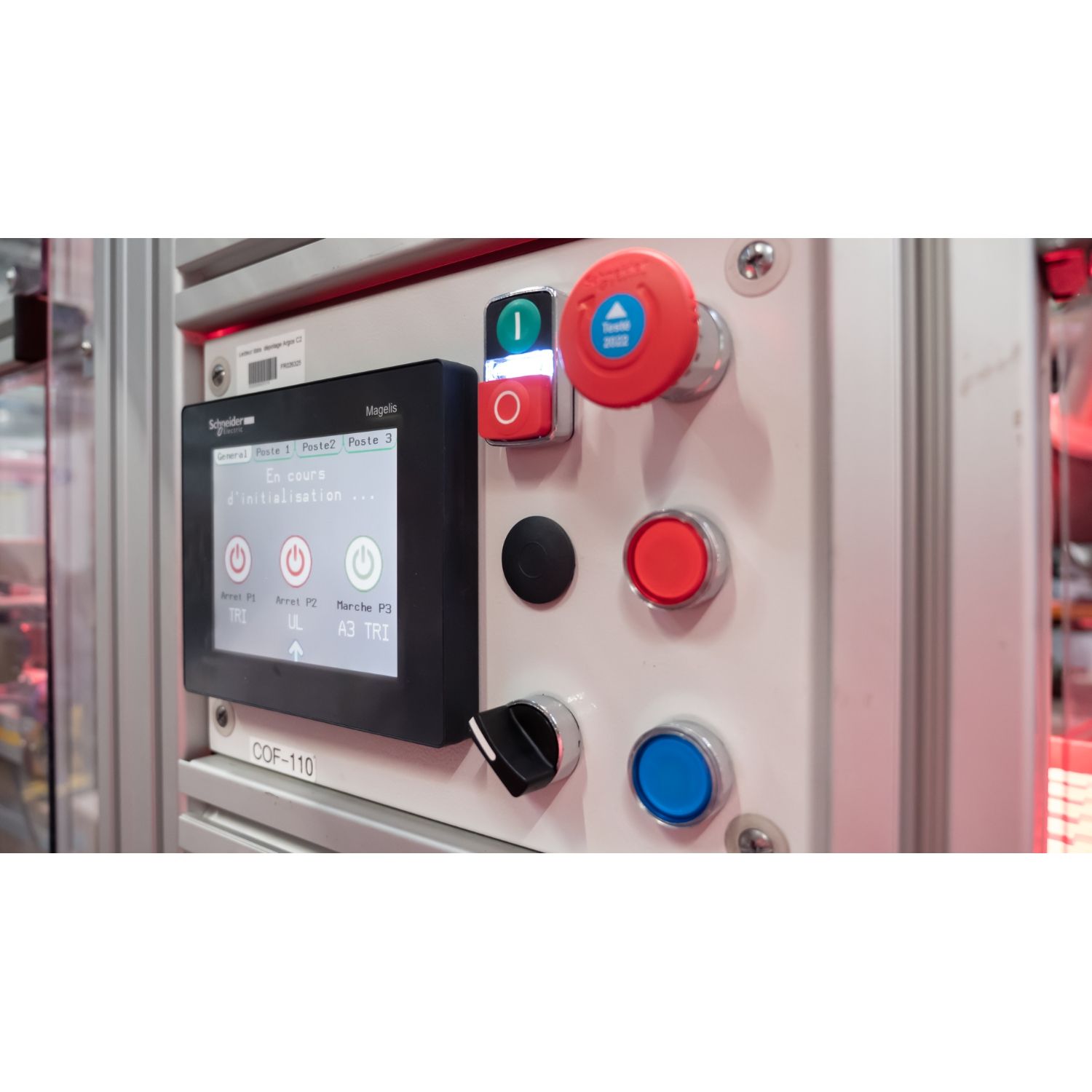

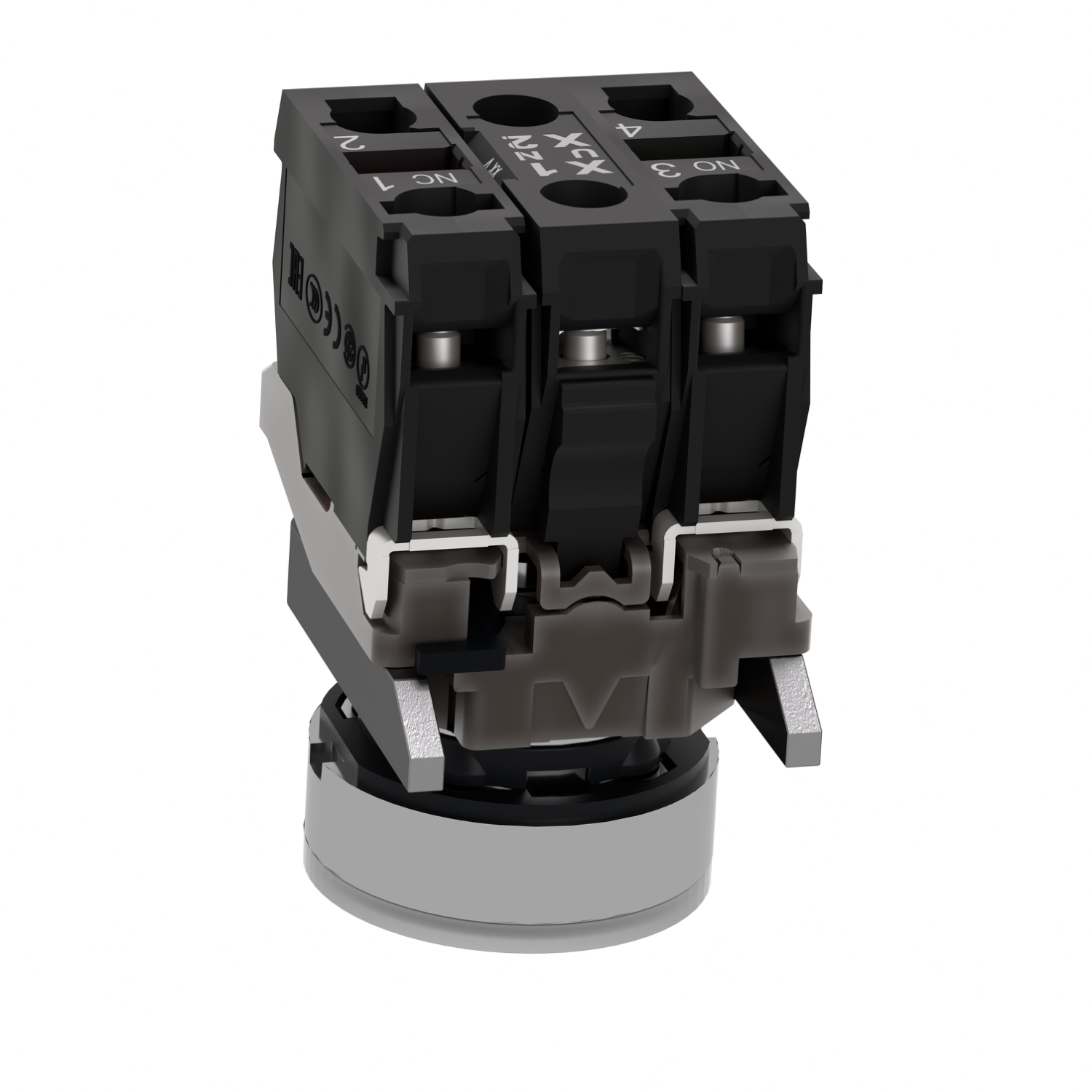

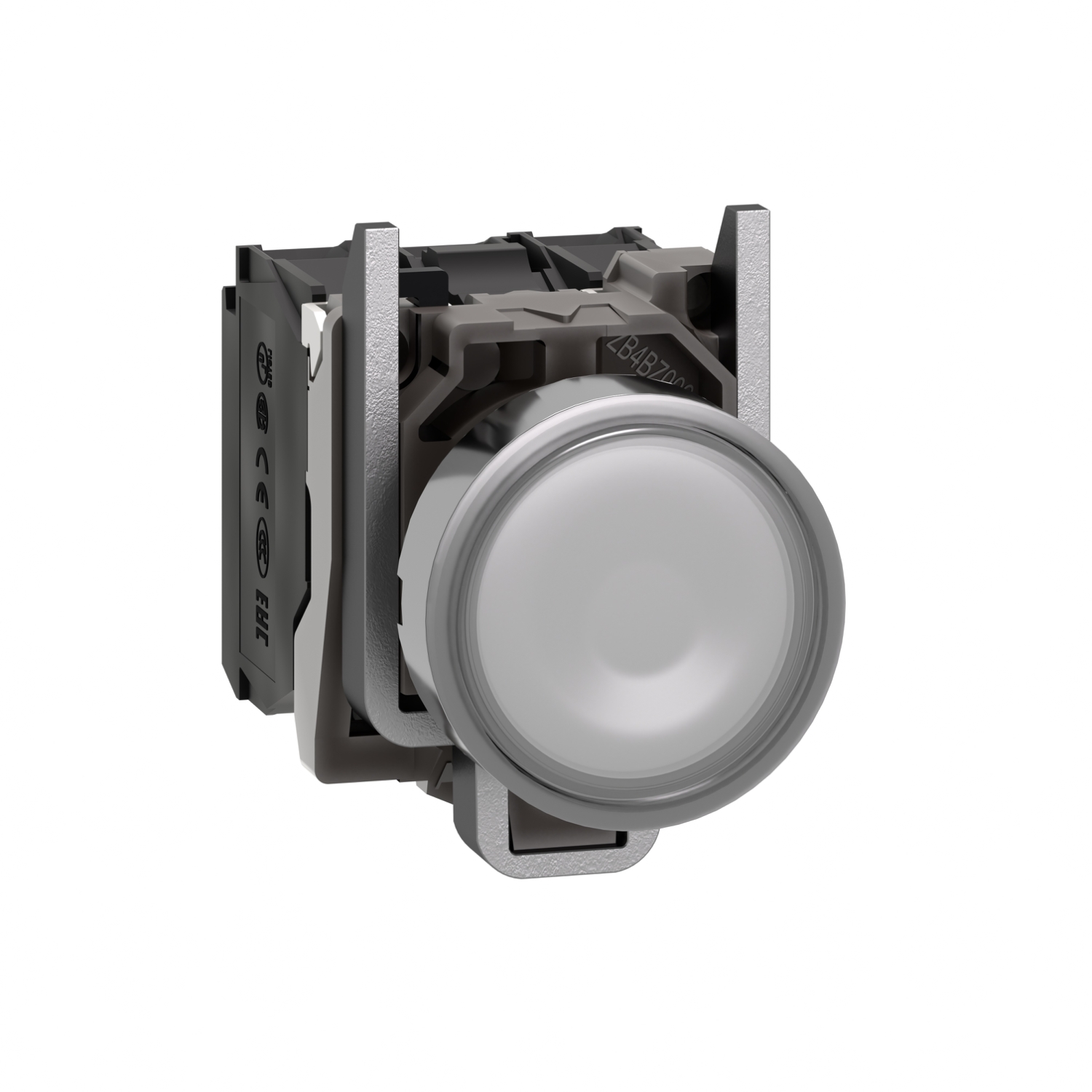

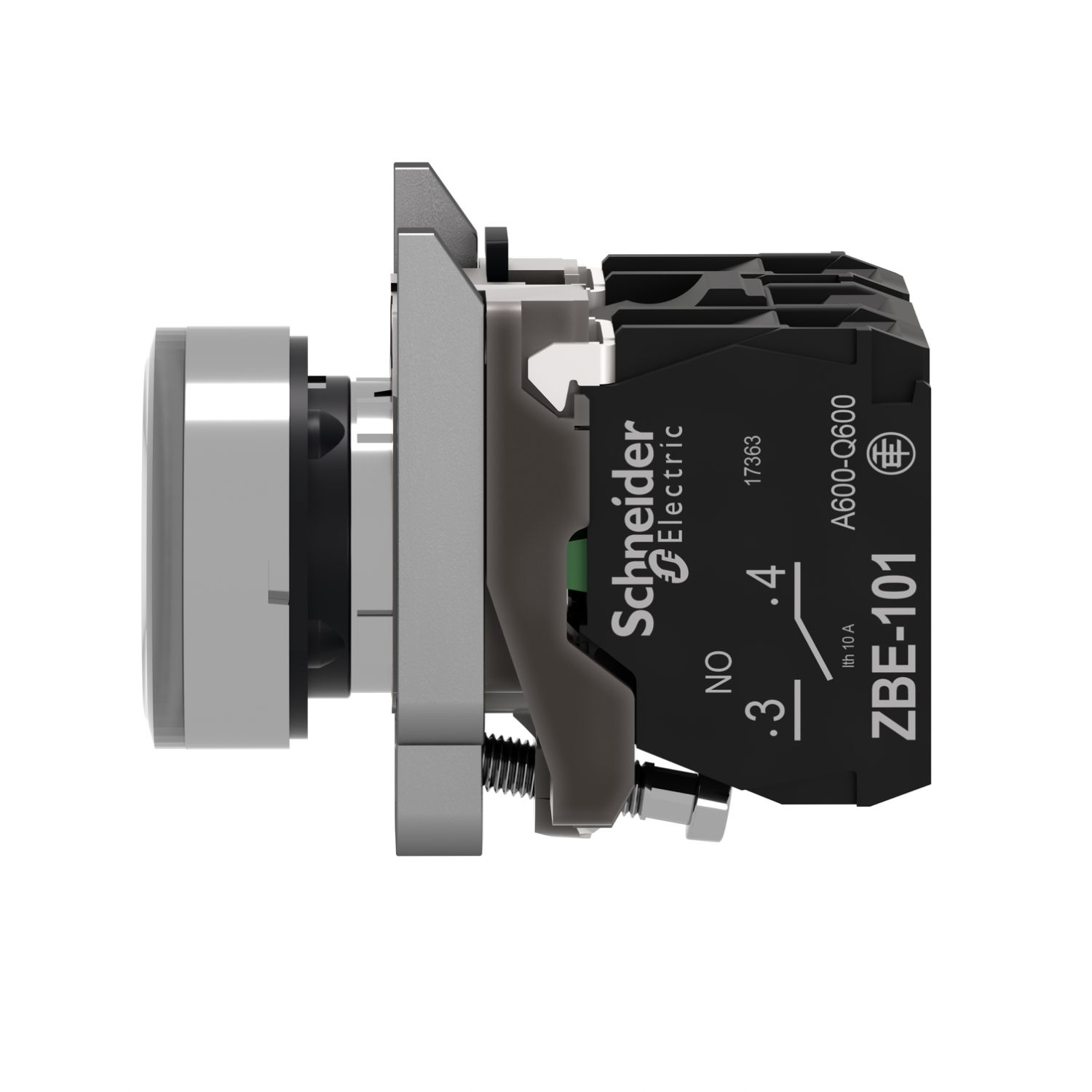

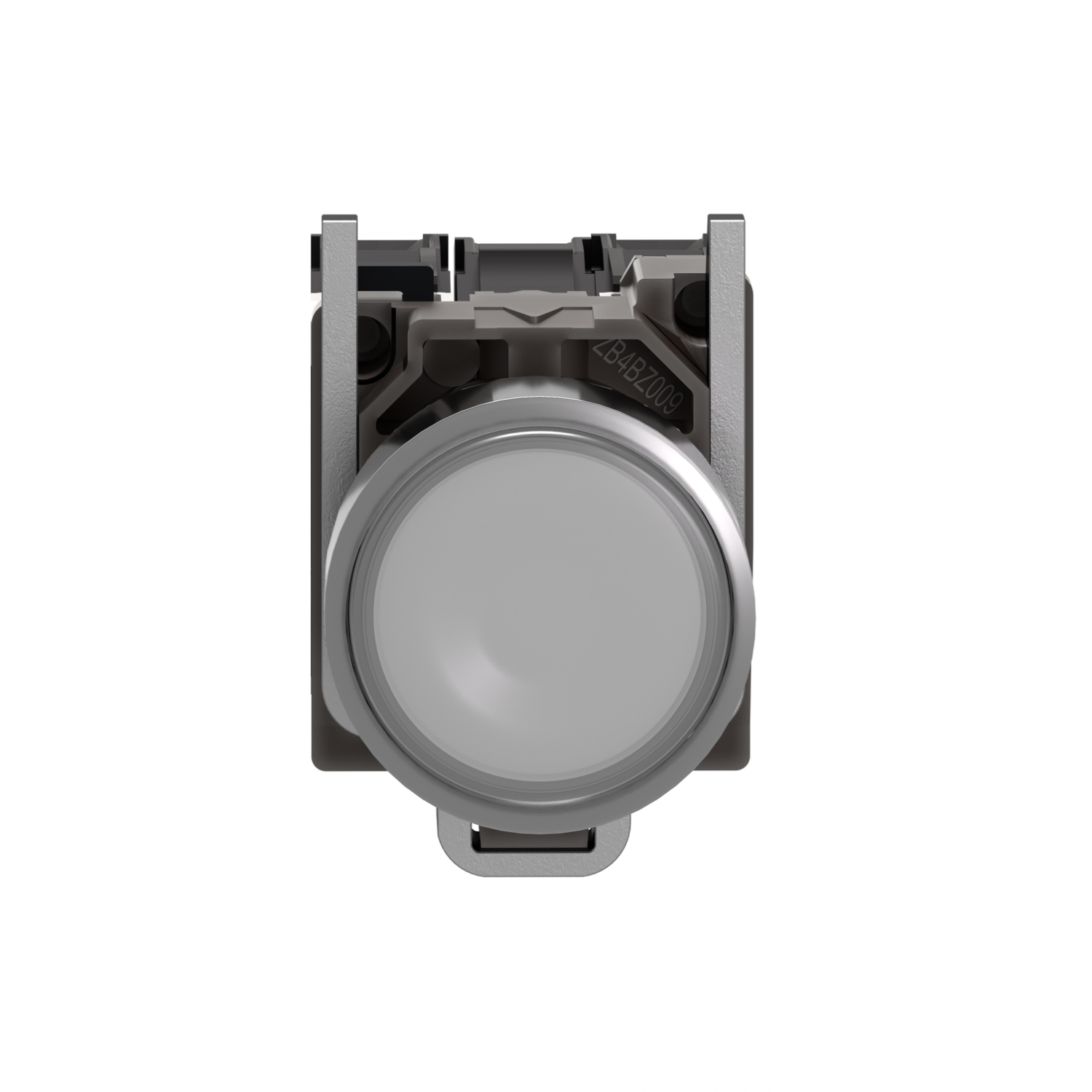

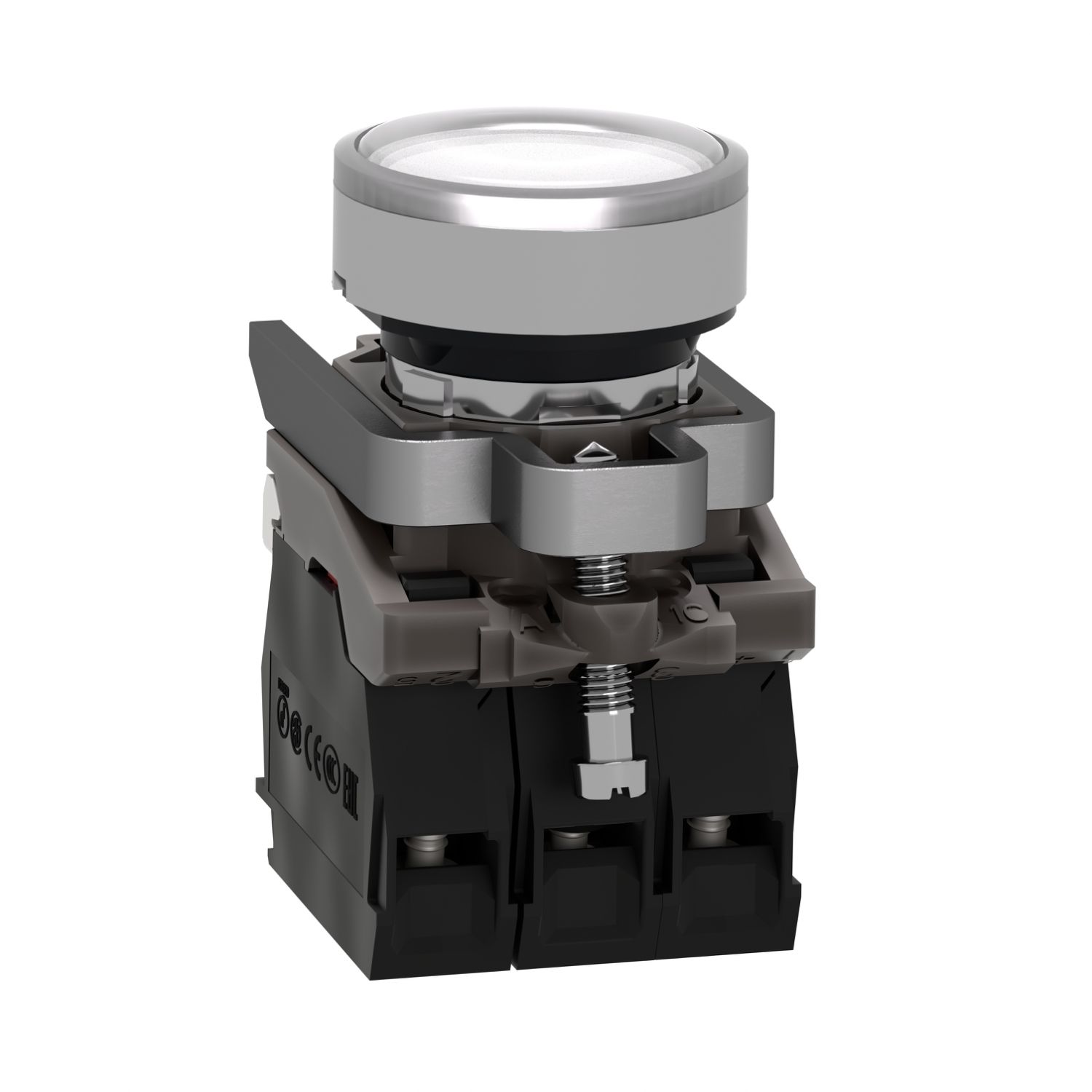

This Harmony XB4 illuminated modular white push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB4 |
| Contact operation | slow-break |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Fixing collar material | zamak |
| Type of operator | spring return |
| Range of product | Harmony XB4 |
| Bulb base | integral LED |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| Operator profile | white flush |
| Bezel material | chromium plated metal |
| Contacts type and composition | 1 NO + 1 NC |
| Connections - terminals | screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Shape of signaling unit head | round |
| Product or component type | illuminated push-button |
| Mounting diameter | 22 mm |
| Light source | universal LED |
| Operator additional information | with plain lens |
| Complementary | |
| Shape of screw head | slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Electrical reliability | λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 |
| Compatibility code | XB4 |
| Mechanical durability | 10000000 cycles |
| Supply voltage limits | 21.6-26.4 V AC, 19.2-30 V DC |
| [Ie] rated operational current | 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Electrical durability | 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Device presentation | complete product |
| Customizable | 1, no |
| Cap/operator or lens colour | white |
| Contacts material | silver alloy (Ag/Ni) |
| Operating travel | 4.3 mm (total travel), 2.6 mm (NO changing electrical state), 1.5 mm (NC changing electrical state) |
| Operating force | 3.8 N, 3.5 N NC changing electrical state |
| Height | 47 mm |
| [Us] rated supply voltage | 24 V |
| Depth | 57 mm |
| Width | 30 mm |
| Signalling type | steady |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Service life | 100000 h at rated voltage and 25 °C |
| GCR BRIDGE | XB4BWCUST03 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Current consumption | 18 mA |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.097 kg |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |

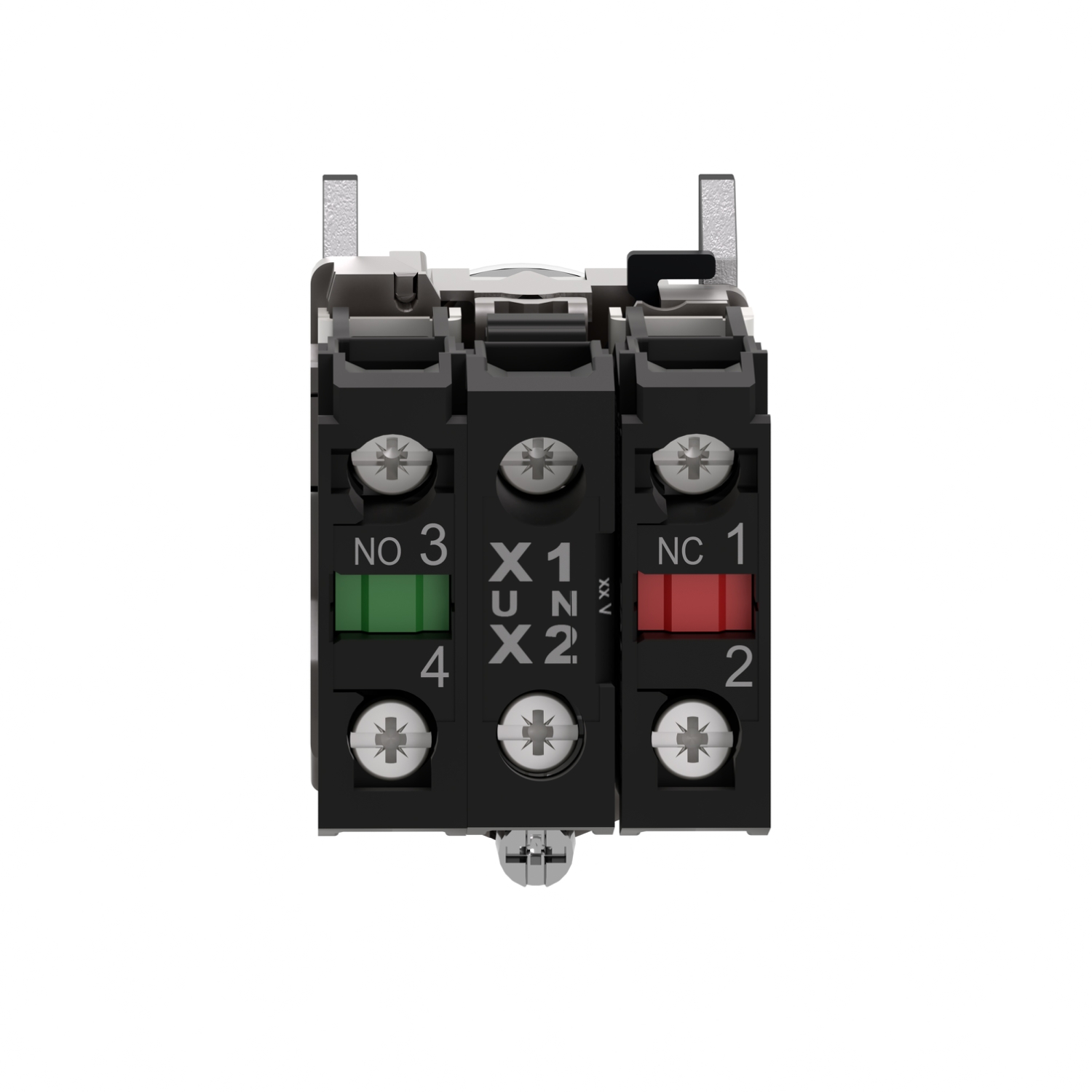

| Terminals description ISO n°1 | (21-22)NC, (13-14)NO |
| Contacts usage | standard contacts |
| Environment | |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Protective treatment | TH |
| Resistance to electrostatic discharge | 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Electromagnetic emission | class B conforming to IEC 55011 |
| Electrical shock protection class | class I conforming to IEC 60536 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, IEC 60947-1, UL 508, JIS C8201-5-1, IEC 60947-5-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-5 |
| Product certifications | BV, GL, LROS (Lloyds register of shipping), UL listed, CSA, DNV |
