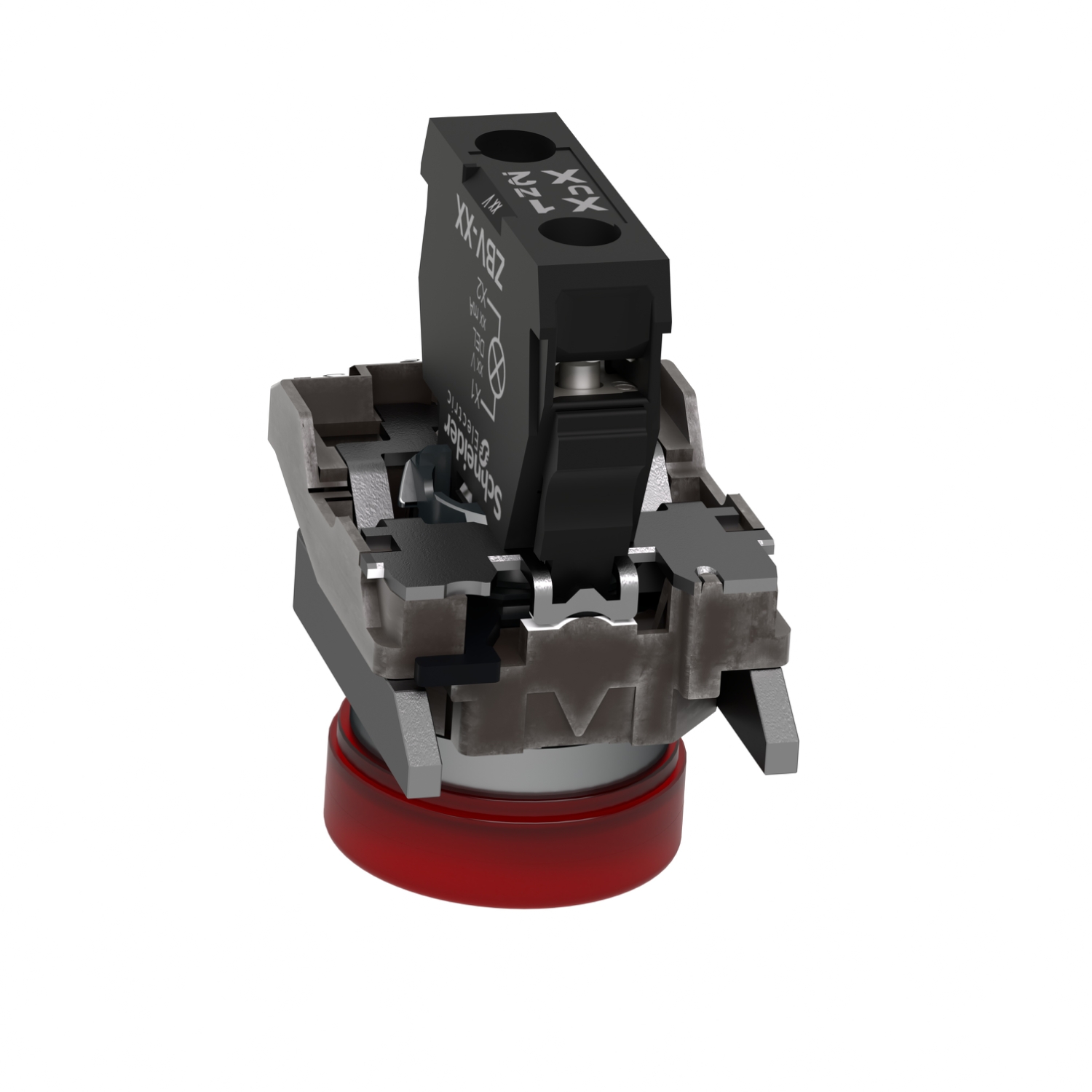

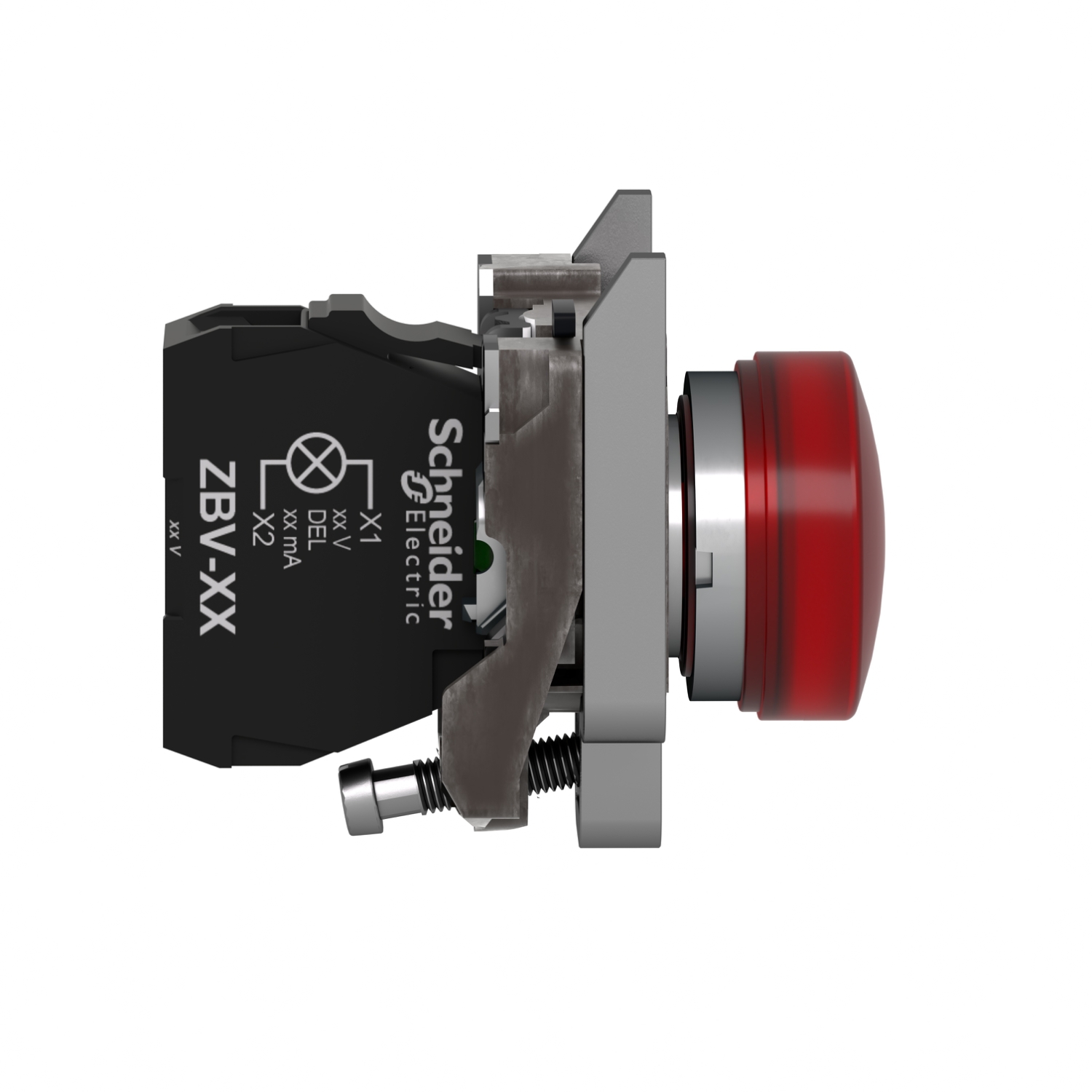

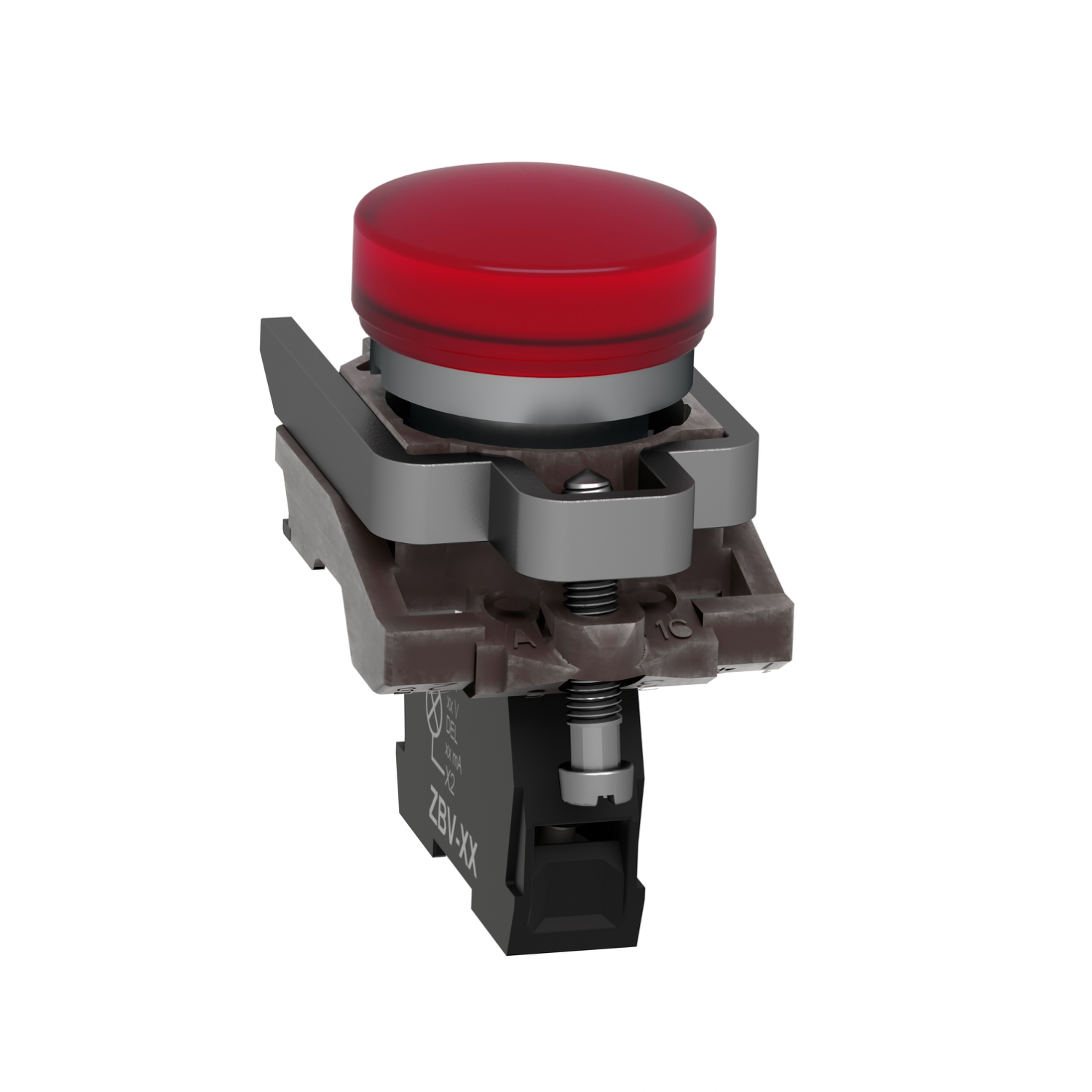

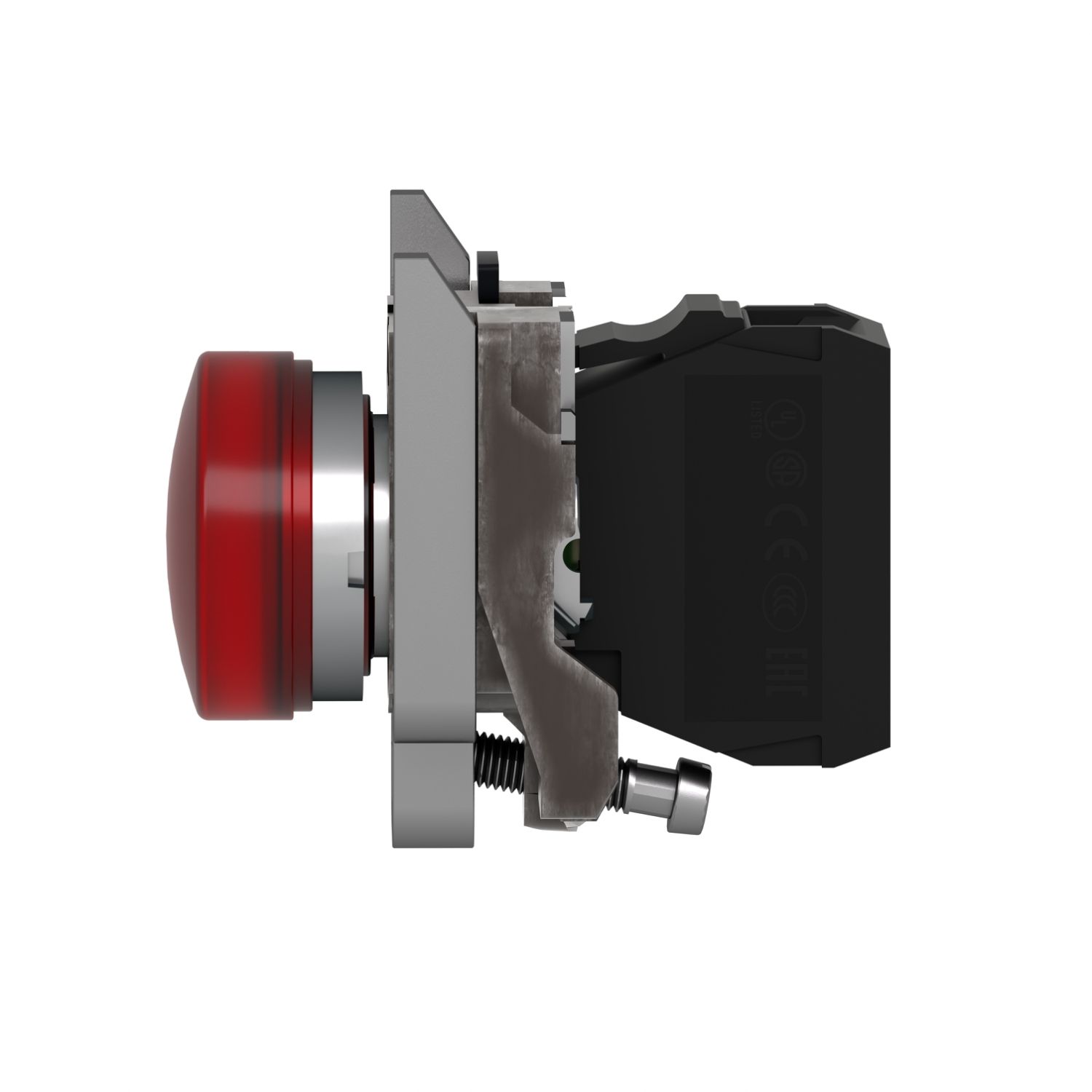

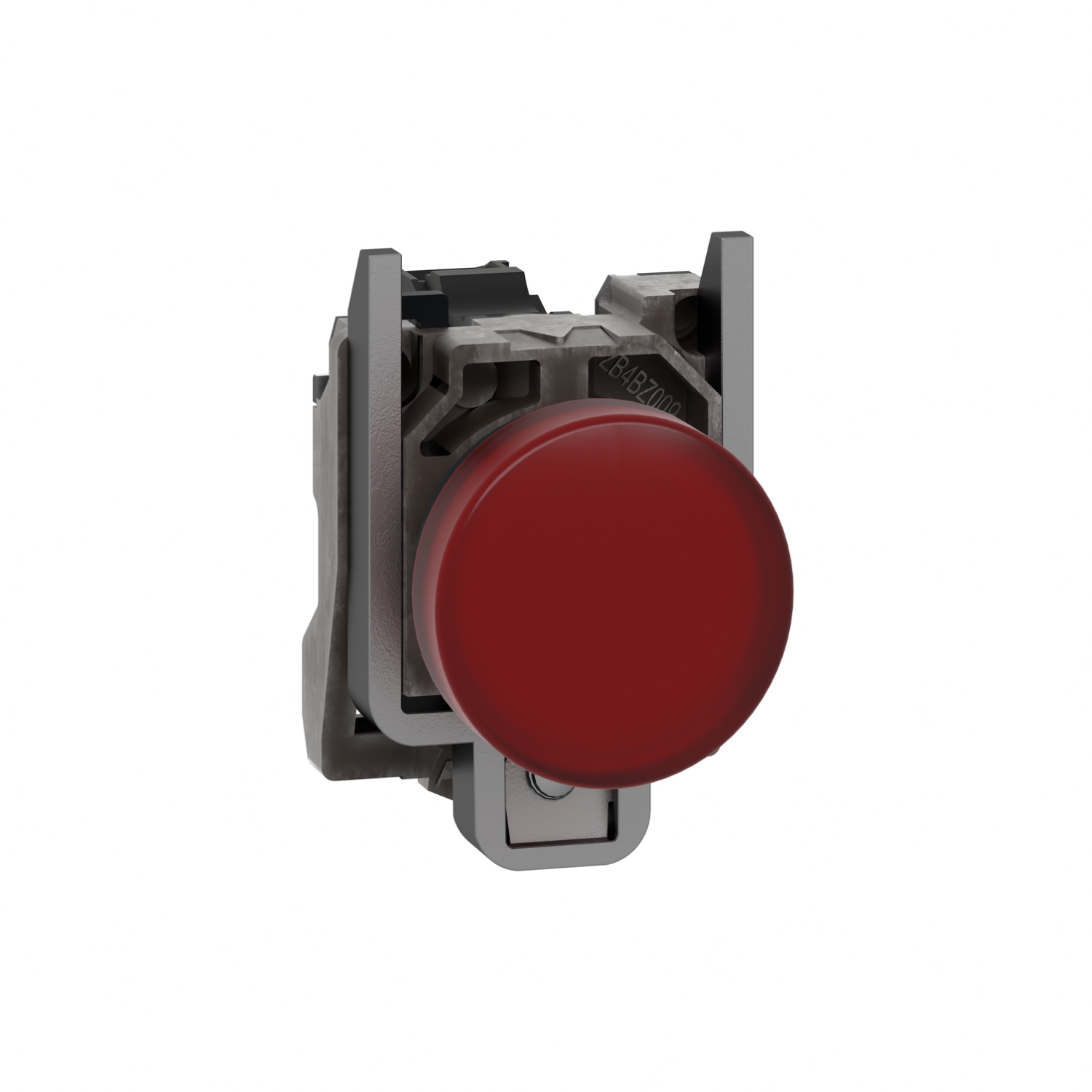

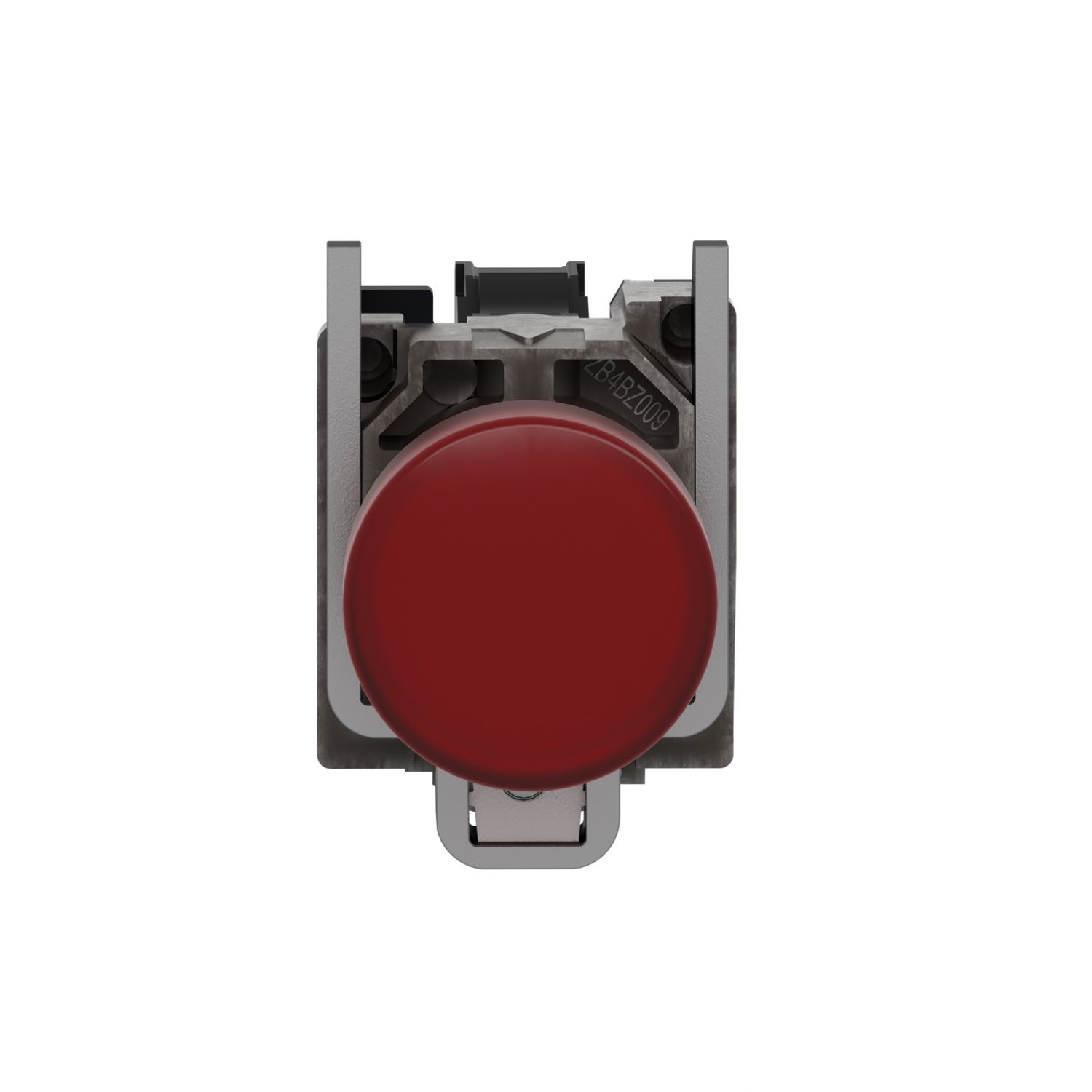

This Harmony XB4 plain lens modular red pilot light is supplied with 230V to 240V AC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Sale per indivisible quantity | 1 |
| Fixing collar material | zamak |
| Cap/operator or lens colour | red |
| Light source | universal LED |
| Device short name | XB4 |
| Light source colour | red |
| Head type | standard |
| Range of product | Harmony XB4 |
| Bulb base | integral LED |
| Bezel material | chromium plated metal |
| Shape of signaling unit head | round |
| Product or component type | pilot light |
| Mounting diameter | 22 mm |
| Operator additional information | with plain lens |
| [Us] rated supply voltage | 230...240 V AC 50/60 Hz |
| Complementary | |
| Compatibility code | XB4 |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Device presentation | complete product |
| Customizable | 1, no |
| Height | 47 mm |
| [Us] rated supply voltage | 230...240 V |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Current consumption | 14 mA |
| Net weight | 0.08 kg |
| Supply voltage limits | 195-264 V AC |
| Depth | 54 mm |
| Width | 30 mm |
| Signalling type | steady |
| Service life | 100000 h at rated voltage and 25 °C |
| GCR BRIDGE | XB4BVCUST04 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |

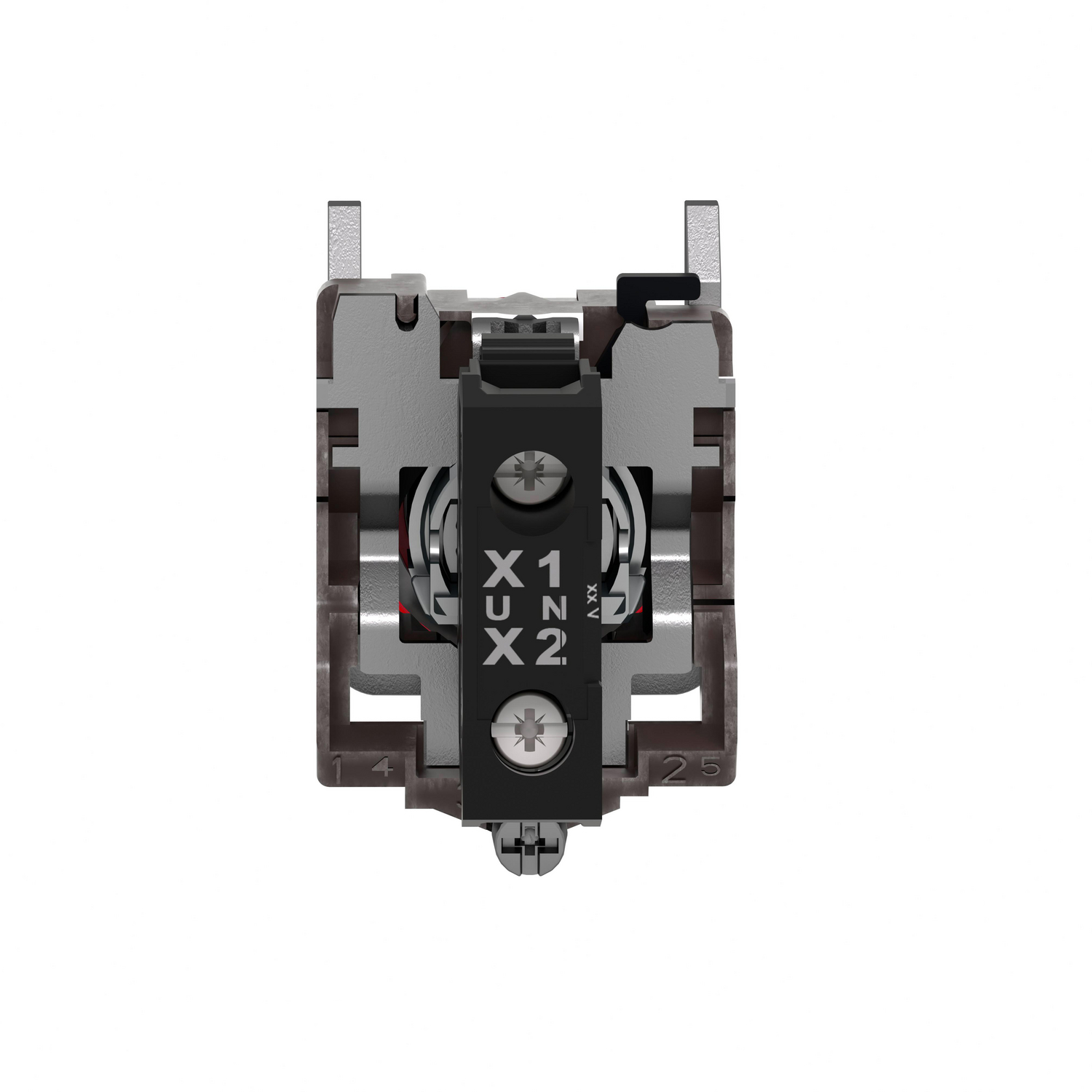

| Terminals description ISO n°1 | (X1-X2)PL |
| Environment | |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40-70 °C |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Product certifications | UL listed, CSA |
| Protective treatment | TH |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Electromagnetic emission | class B conforming to IEC 55011 |
| Electrical shock protection class | class I conforming to IEC 60536 |
| Vibration resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-5, IEC 60947-5-1, UL 508, CSA C22.2 No 14, JIS C8201-5-1 |
