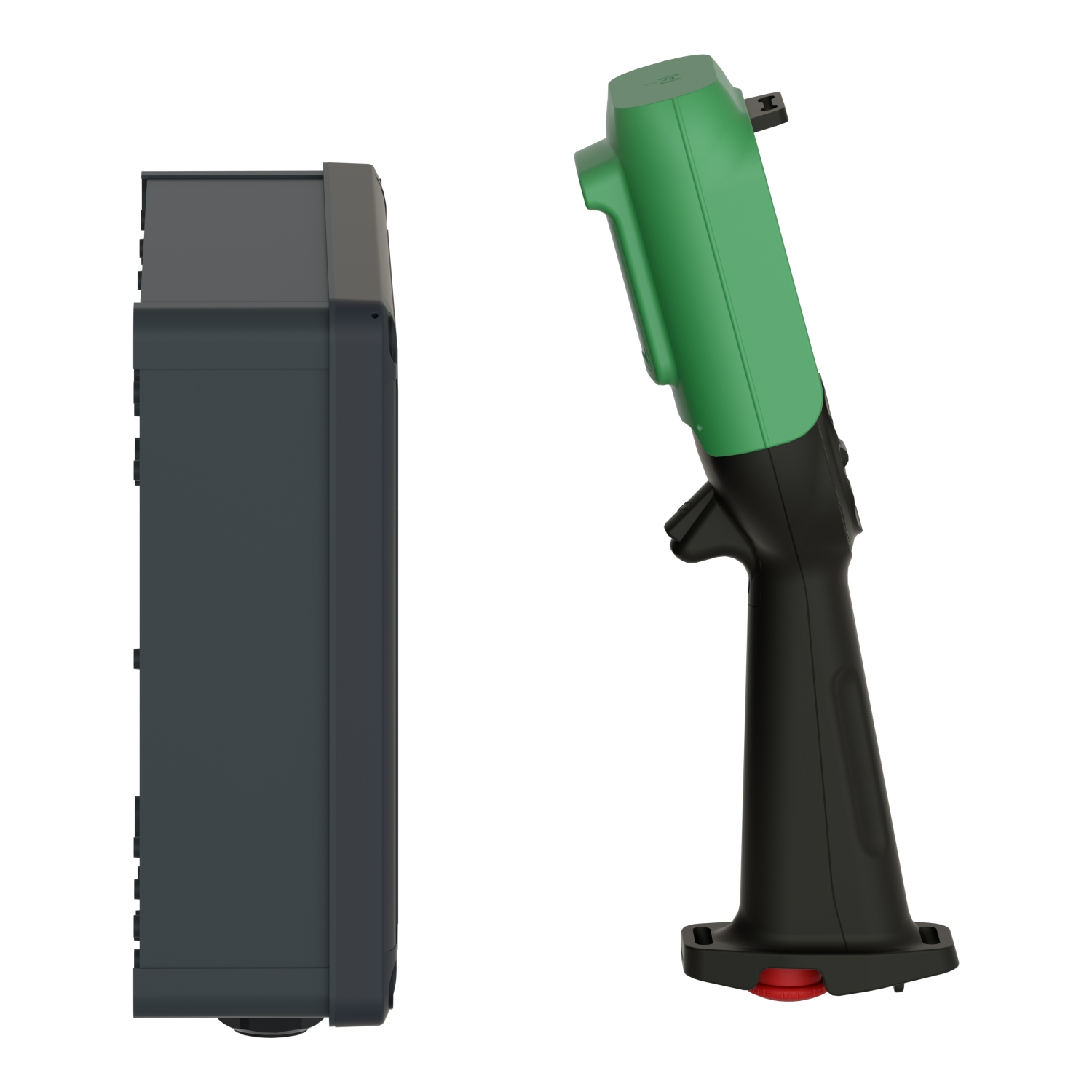

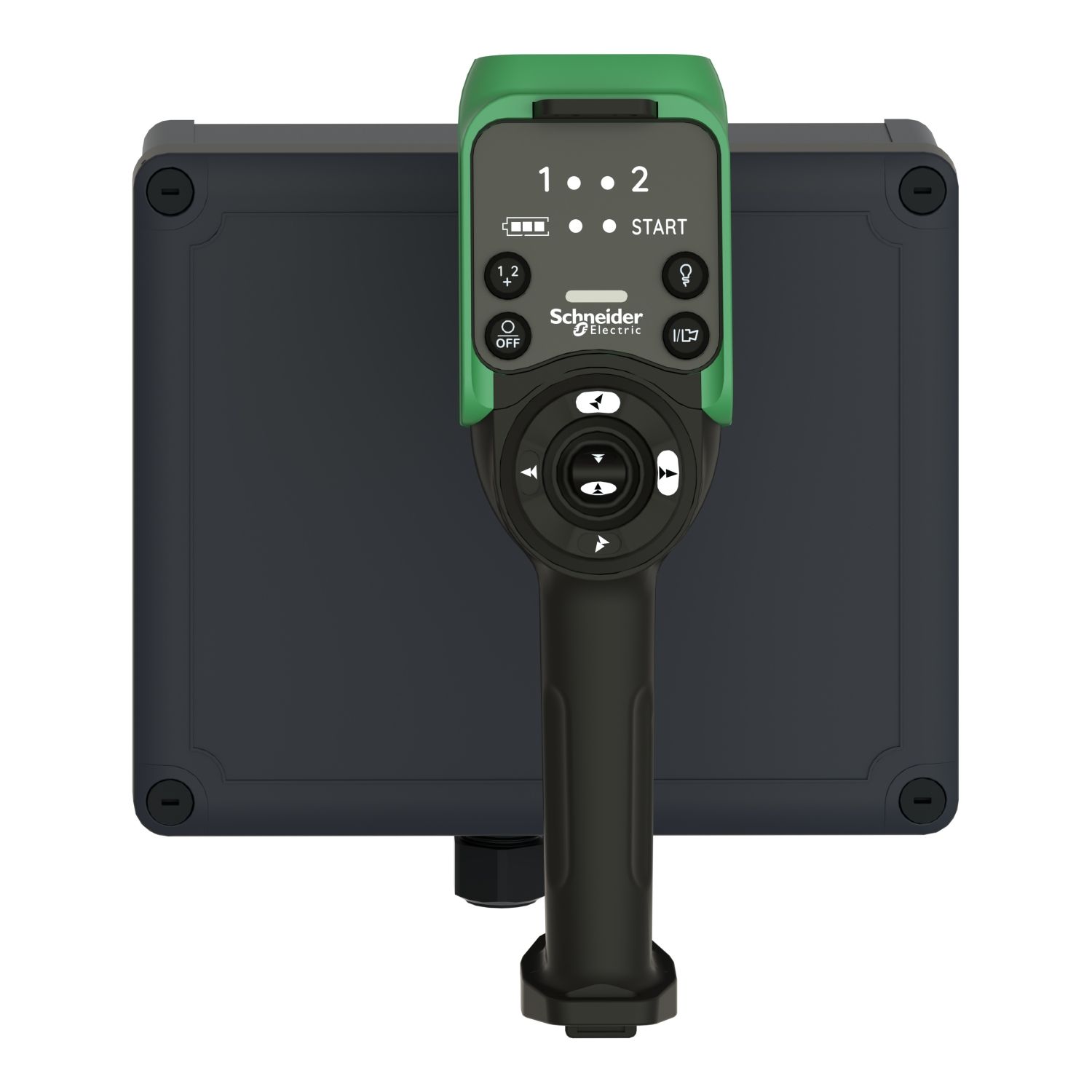

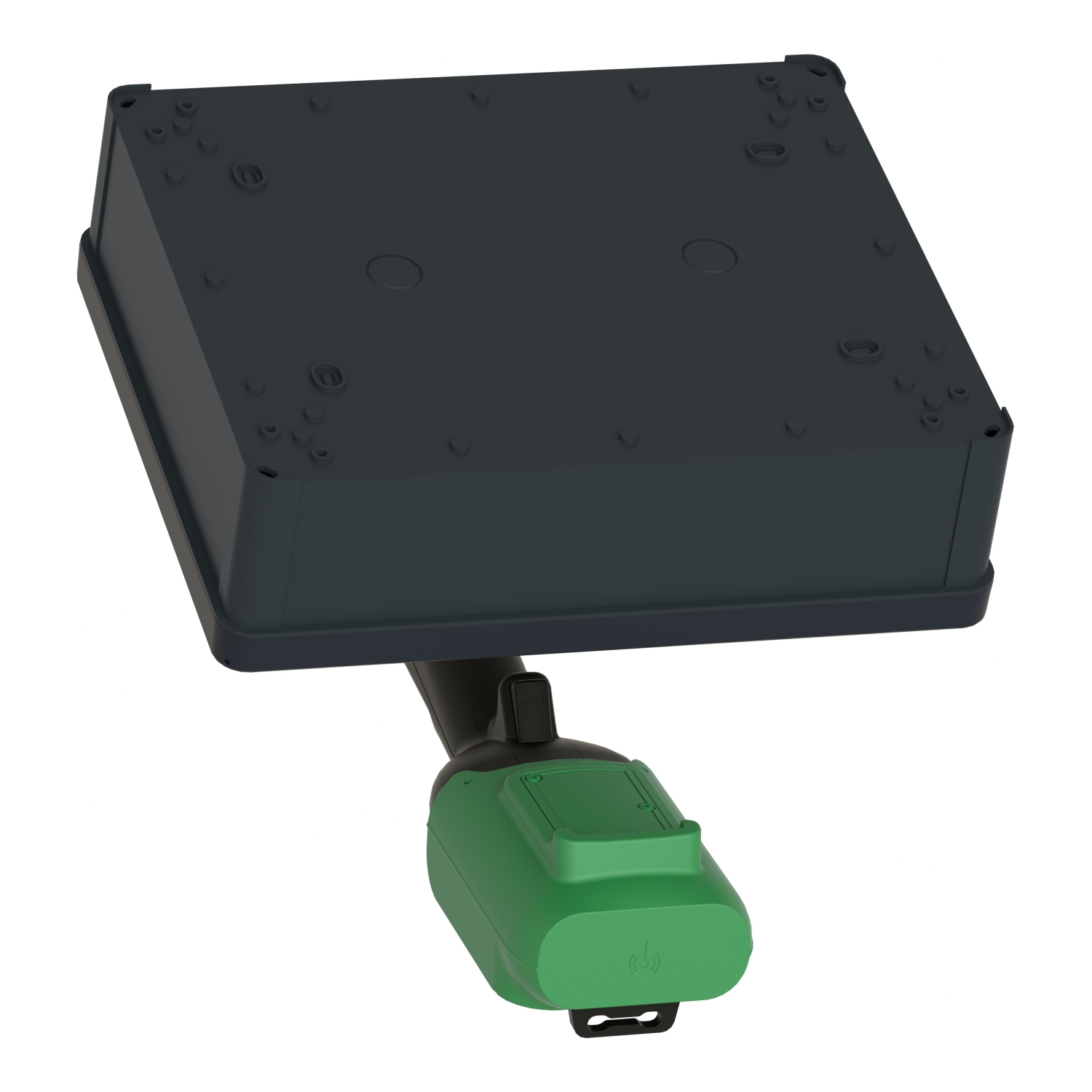

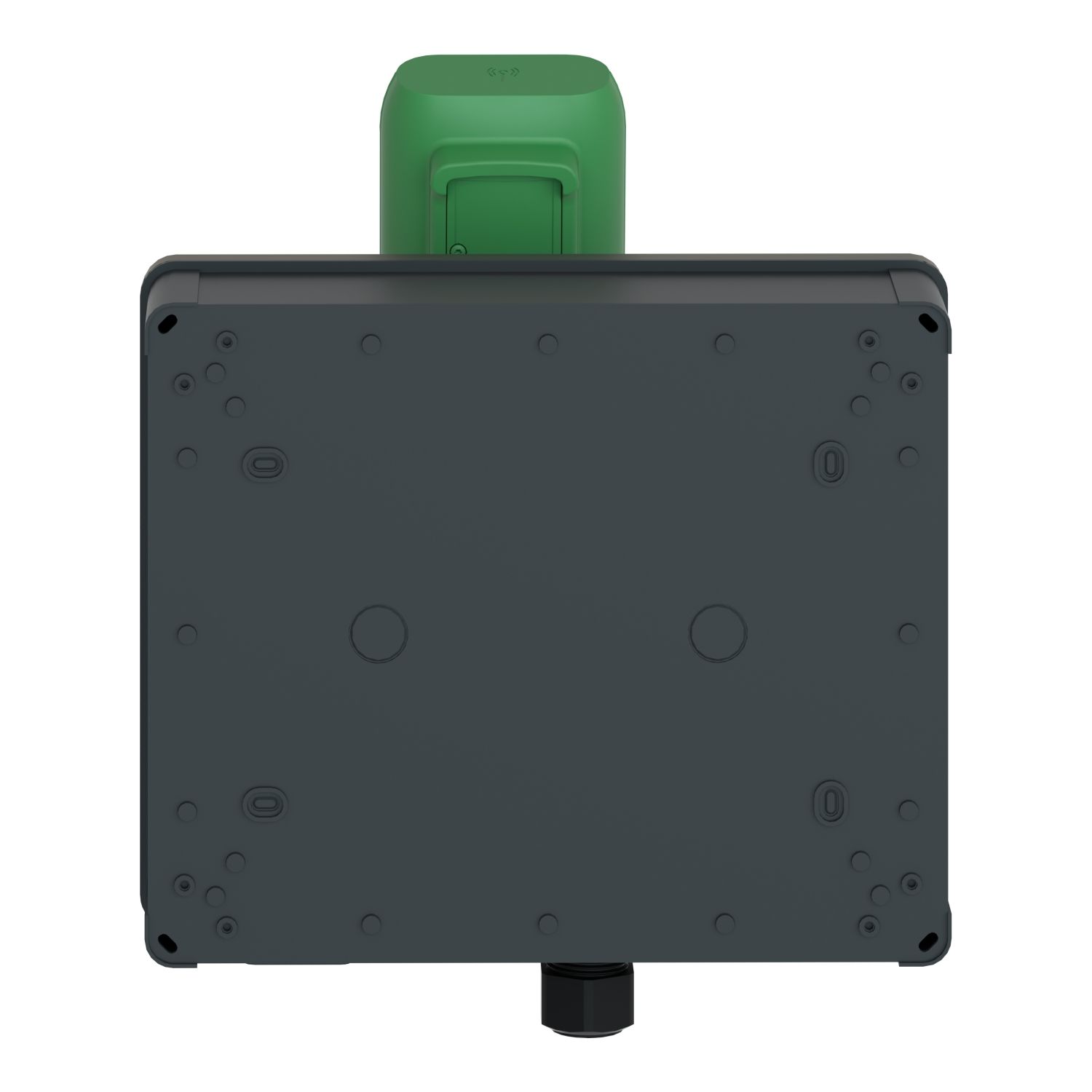

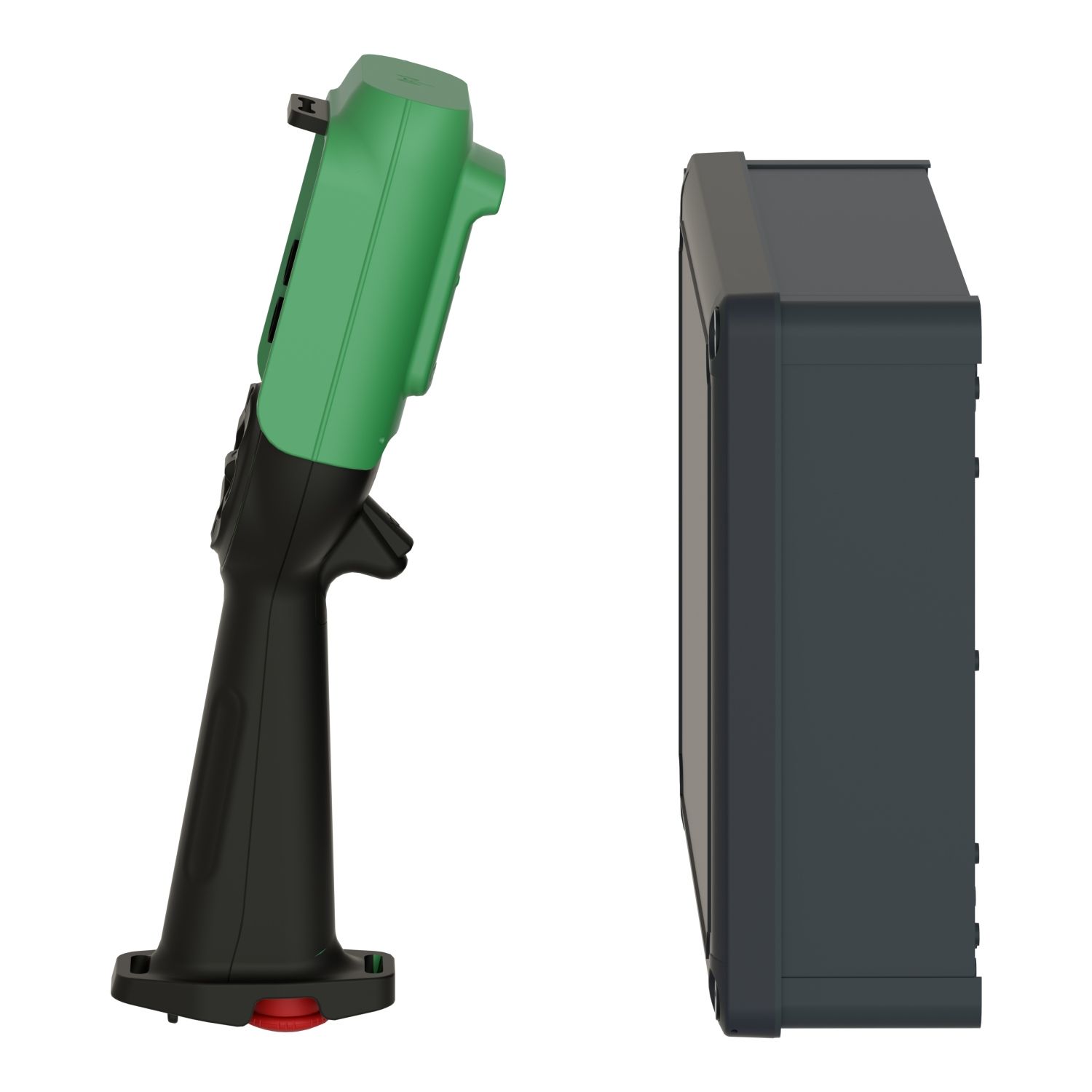

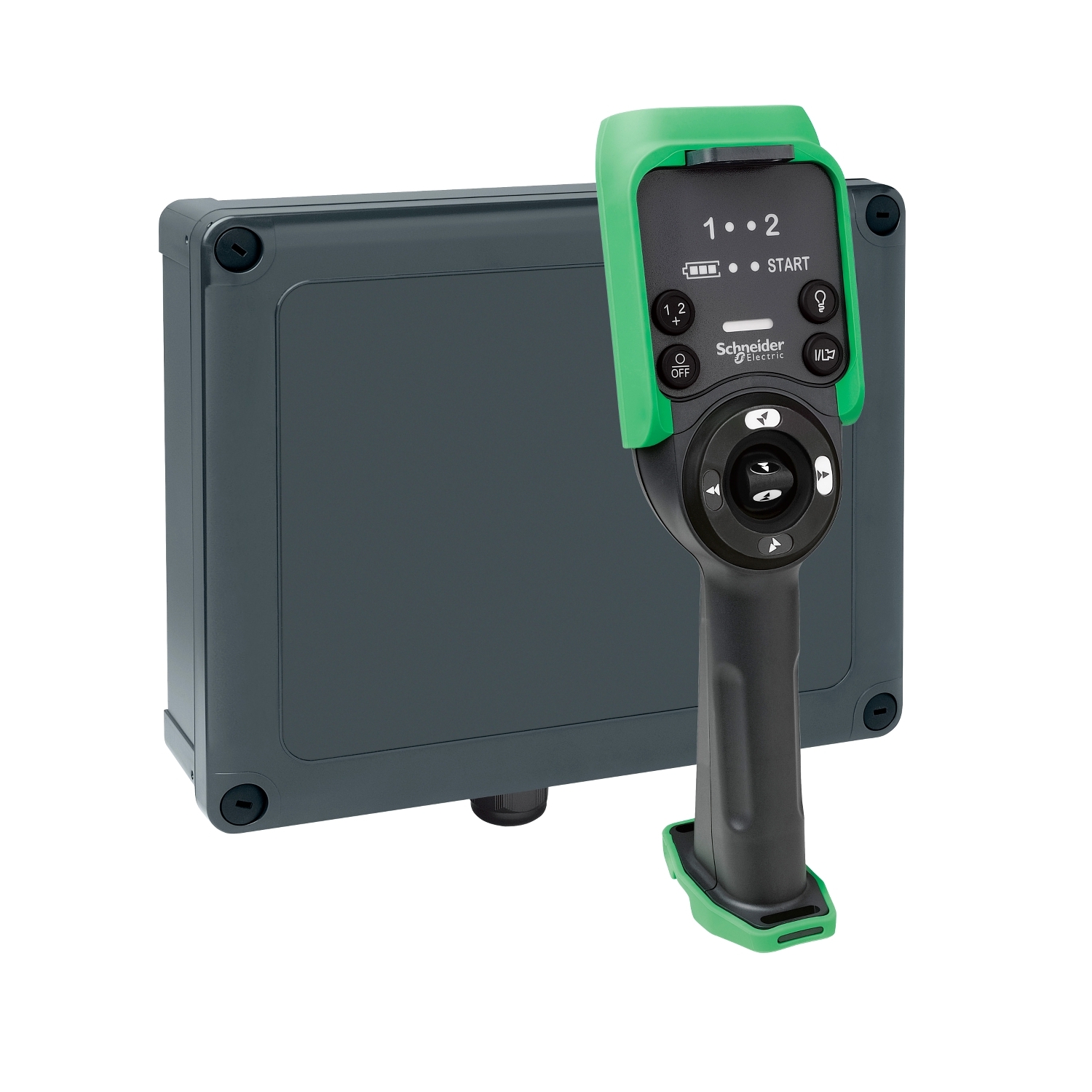

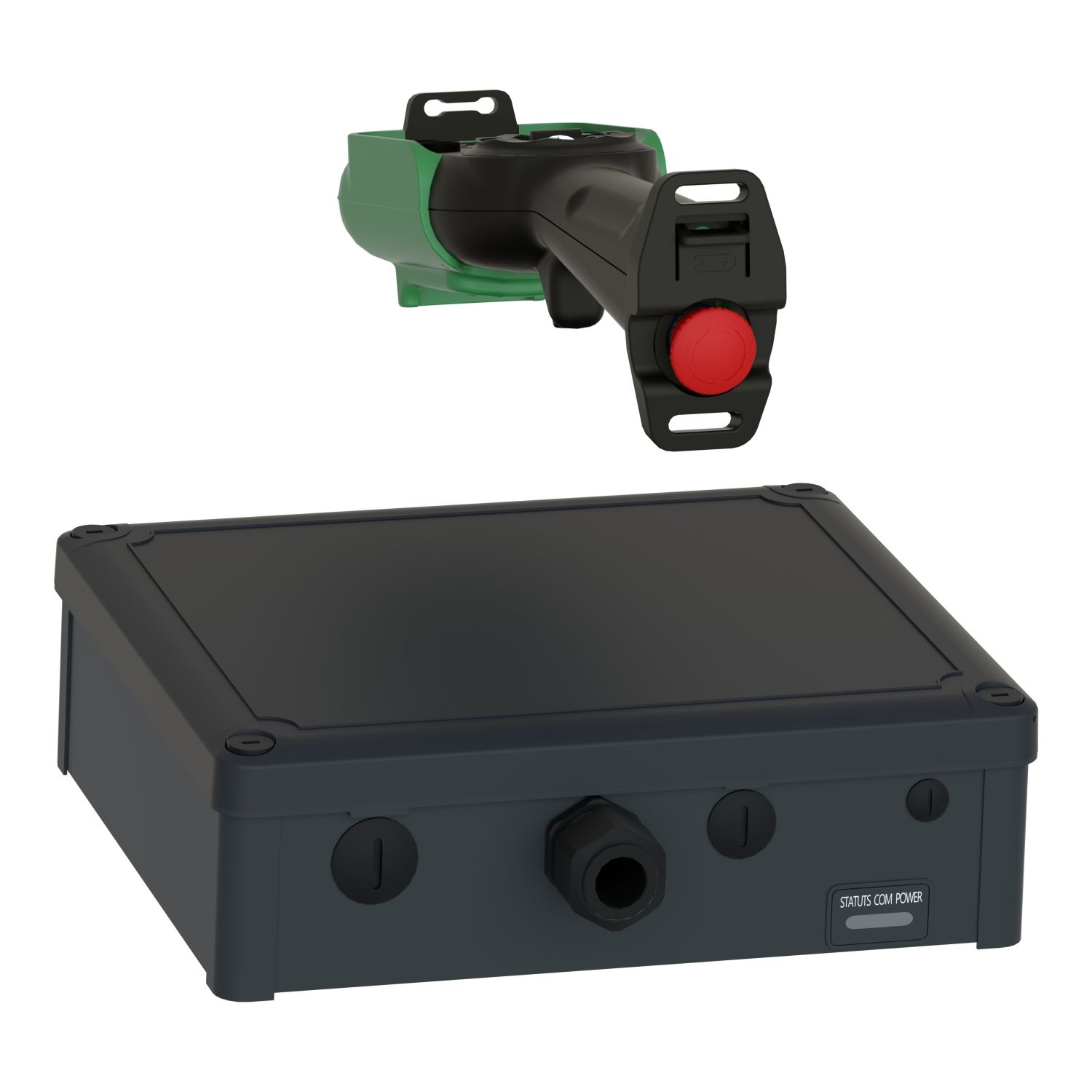

This wireless remote control system is part of the range wireless remote control system Harmony eXLhoist. It is a combination of remote control device (or transmitter ZART8L) and base station (or receiver ZARB12W) which transmits commands and information from the operator to the machine and vice versa by wireless transmission. The XARS system offers movement in 3 directions (for example hoist, bridge, and trolley) at 2 speeds (low and high) for each movement. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation. Its degree of protection is IP 65 for the base station and IP 65 and NEMA 4 for the wireless control device. It weighs 2.1kg. It is designed for material handling and hoisting applications. The base station and the wireless control device are UL/CSA, CE, EAC certified.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XARS |
| Number of channels | 50 |
| Control station type | wireless |
| Range of product | Harmony eXLhoist |
| Control station application | limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061 |
| Product specific application | hoisting applications, material handling |
| Product or component type | control station |
| Complementary | |
| Operating distance | 100 m in free air |
| Communication network type | wireless: bluetooth low energy |
| Transmission frequency | 2.4 GHz |
| Kit composition | base station, remote control |
| Cable entry | cable gland |
| Environment | |
| Relative humidity | 0-95 % at -20-45 °C storage |
| Radio agreement | RSS, SRRC, ICASA, FCC, ARIB, ANATEL |
| Electromagnetic compatibility | resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 |
| Product certifications | EAC, KC, JIS, C-Tick, CSA, UL, CE |
| Standards | ARIB STD-T81 radio, RSS 210 issue 8 radio, RSS GEN issue 3 radio, FCC part 15 radio, ETSI EN 300 328 radio, ETSI EN 300 440-2 radio, ETSI EN 301 489-17 radio, ETSI EN 301 489-3 radio, ETSI EN 301 489-1 radio, IEC 60204-32 hoisting applications, ISO 13850 safety, IEC 61508 safety, IEC 62061 safety, ISO 13849-1 safety, IEC 60204-1 safety |
Only registered users can write reviews
Related products

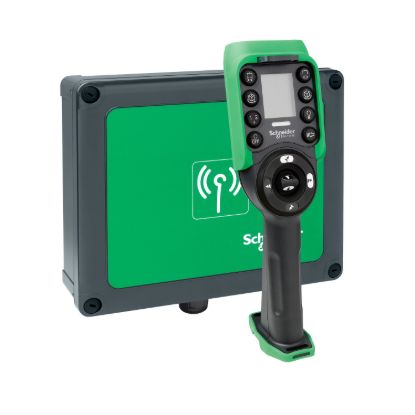

Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
XARS12D18W
Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
$3,995.20 inc GST
$2,430.68 inc GST

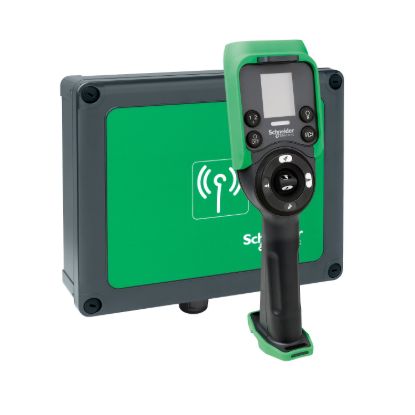

Control station, Harmony eXLhoist, standard, remote ZART8D with base ZARB18W
