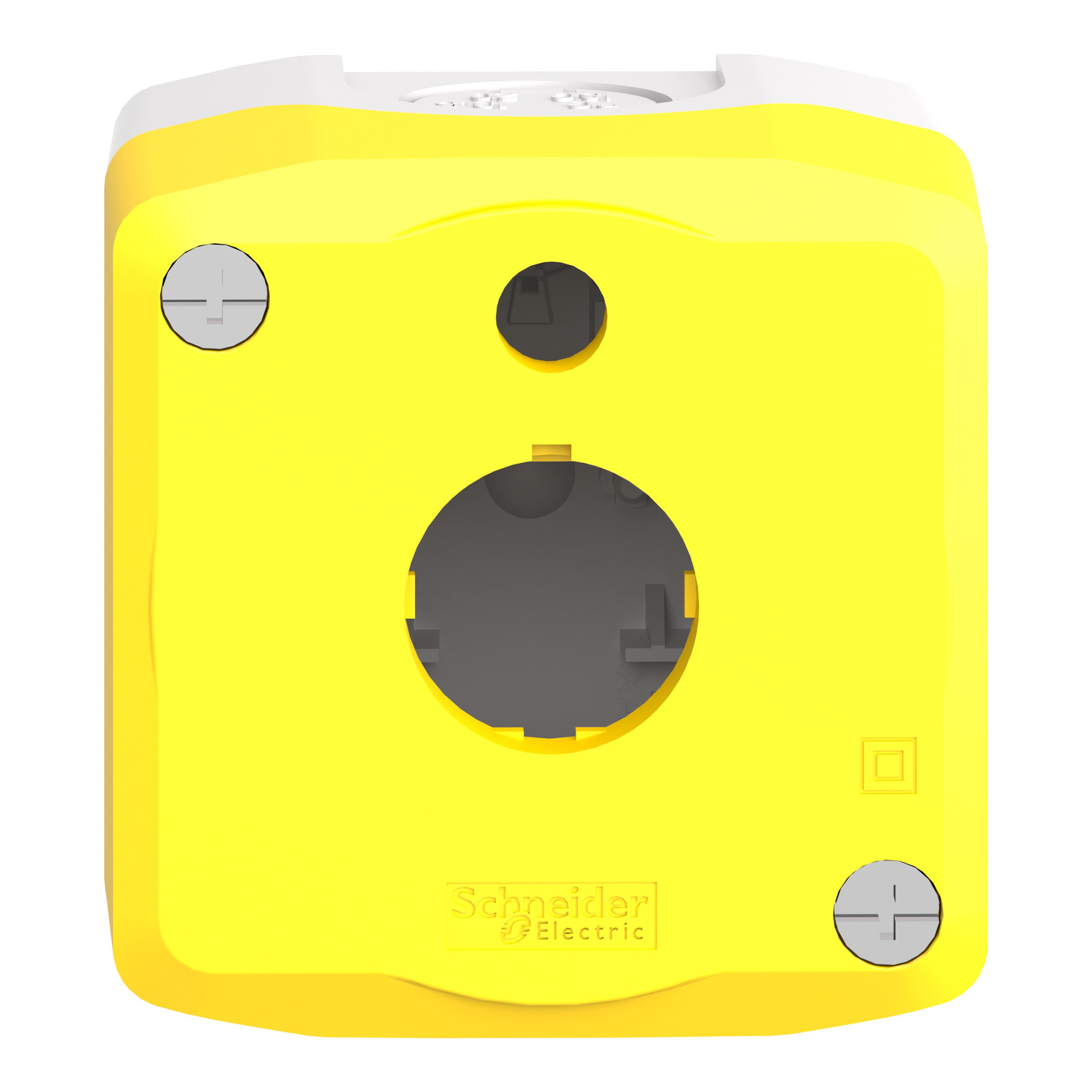

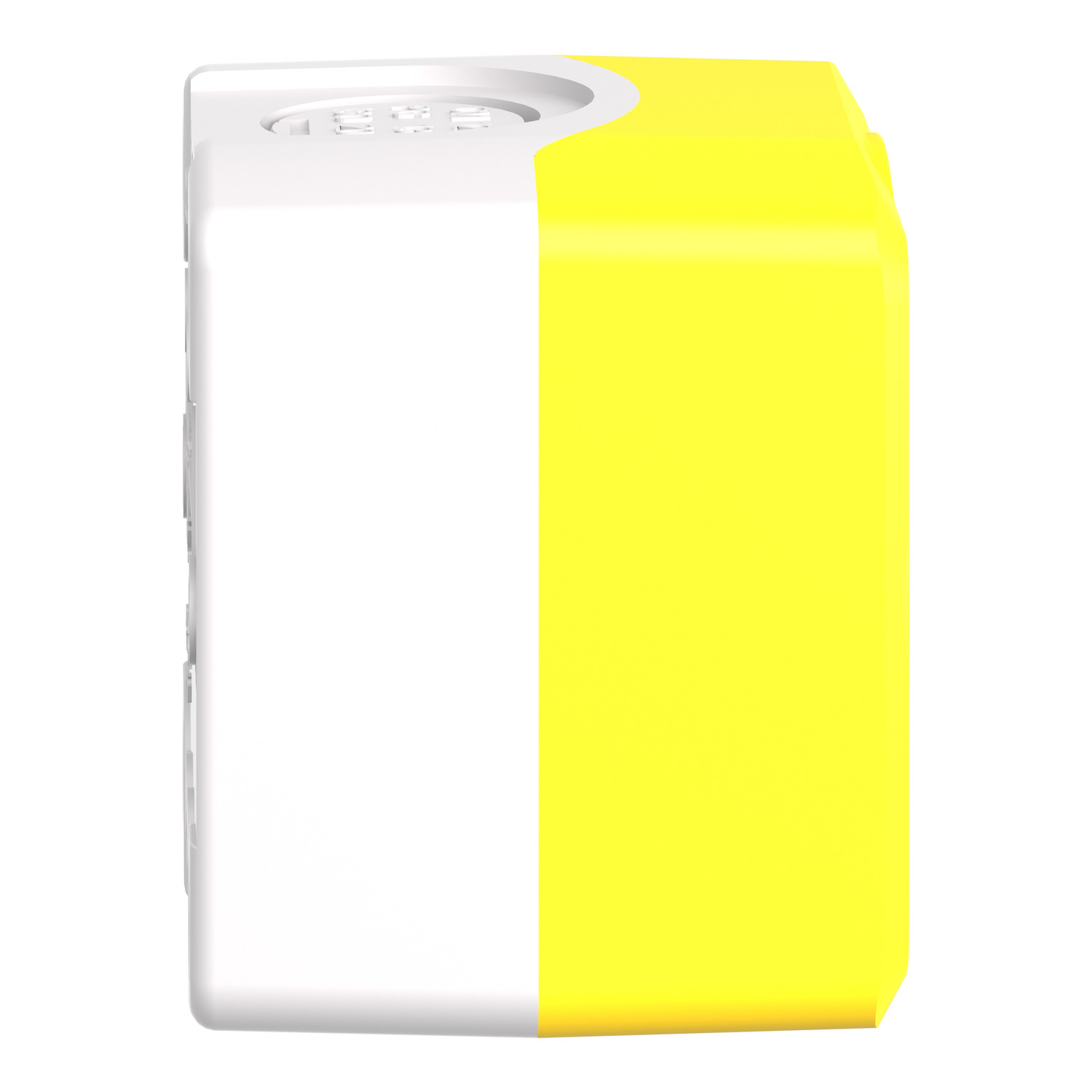

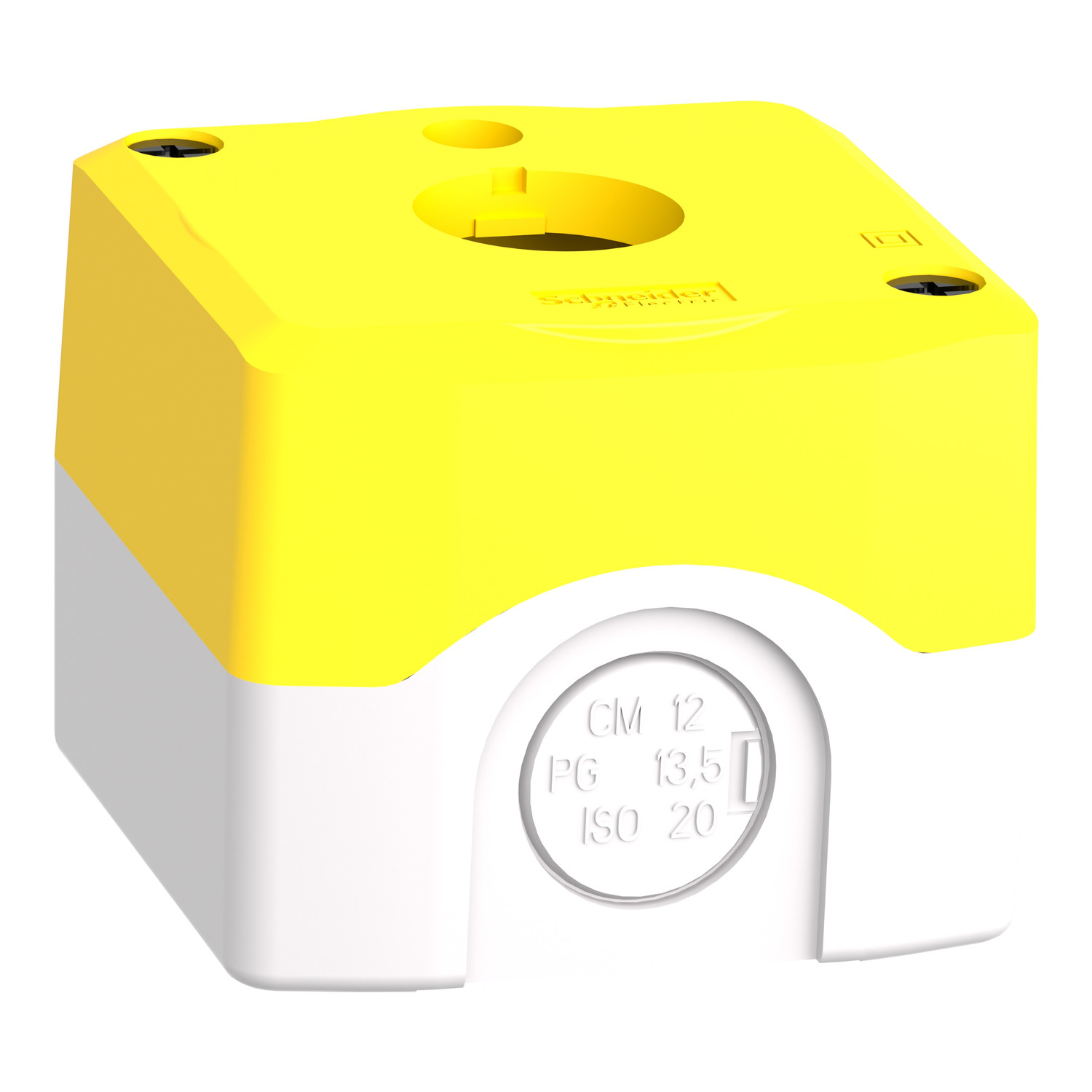

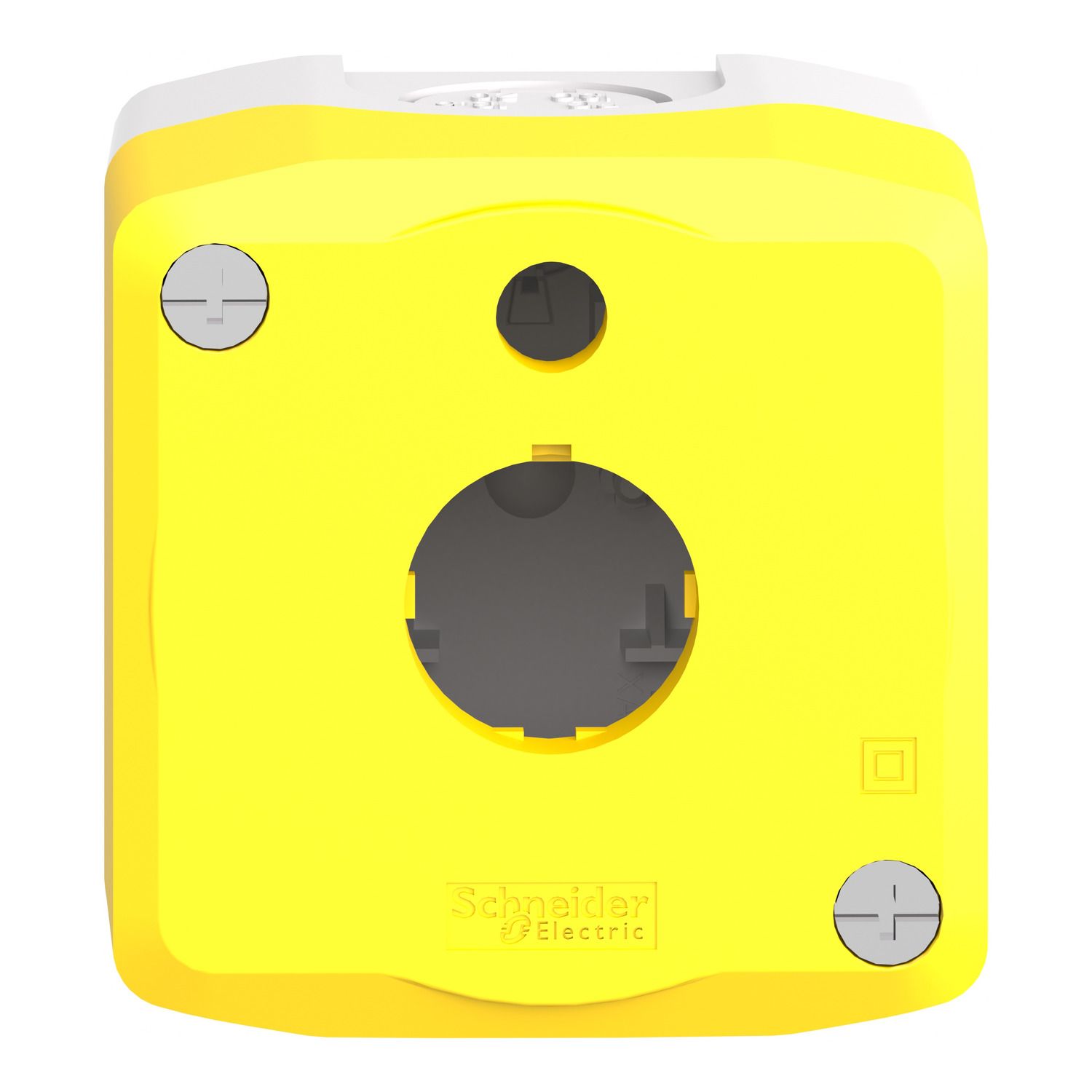

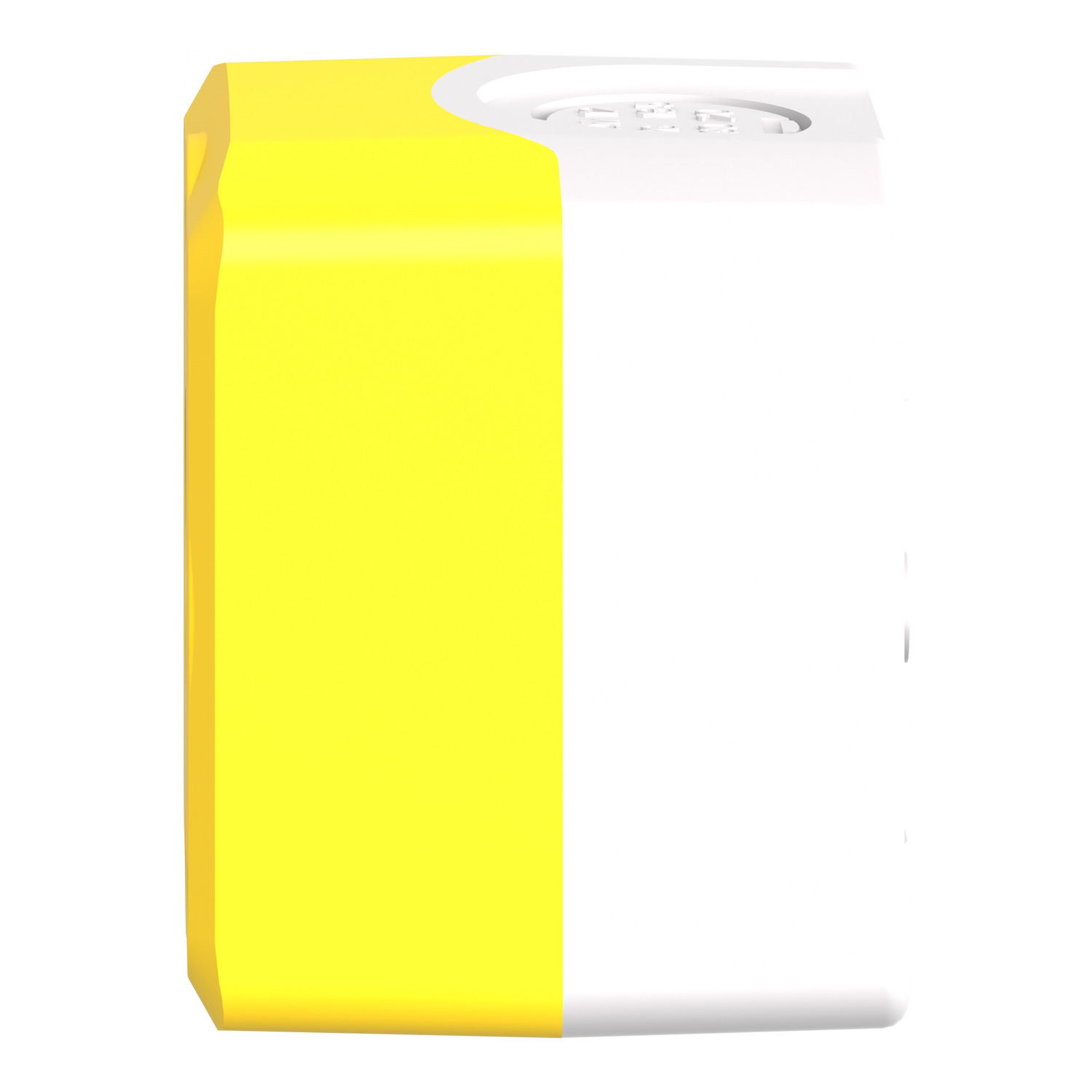

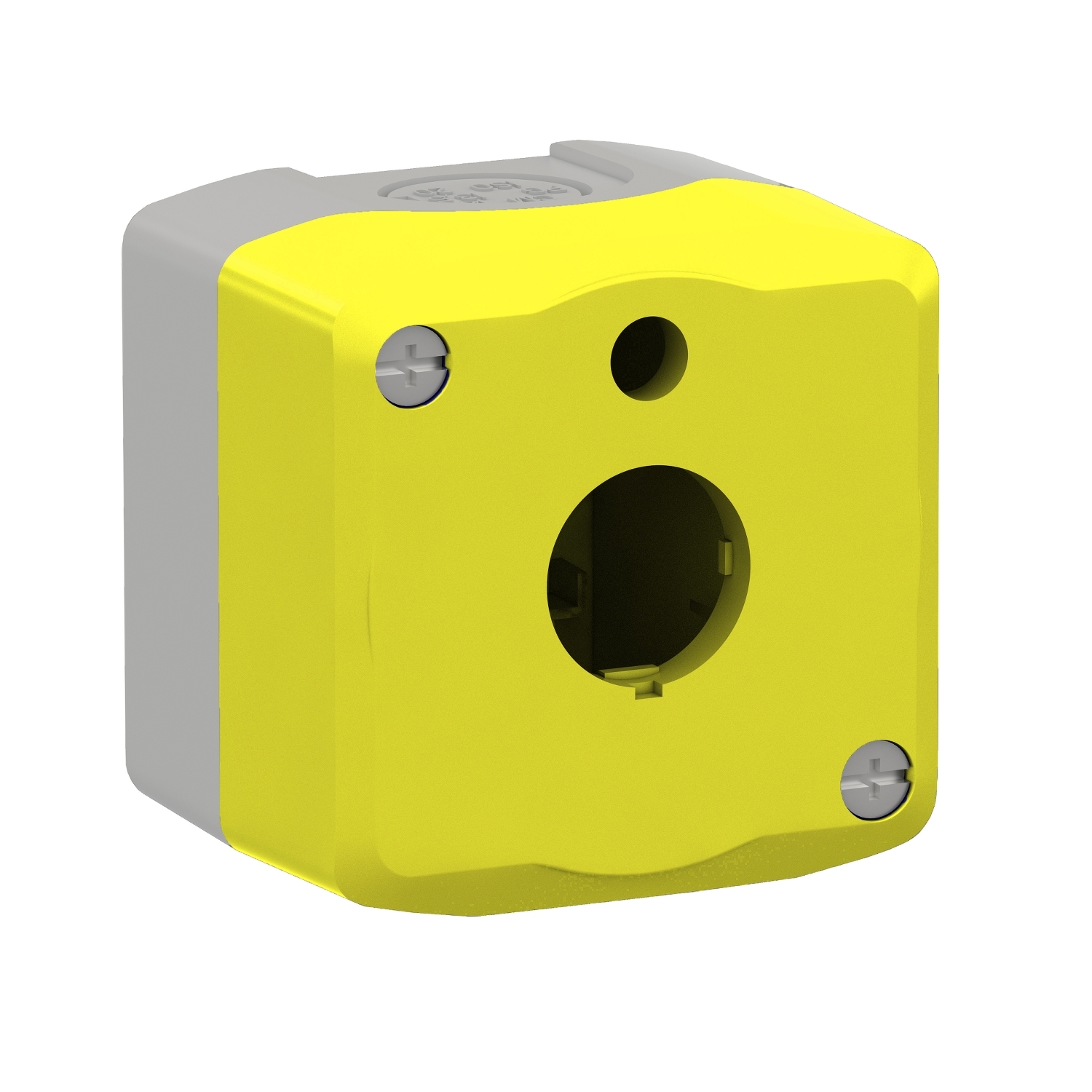

This 1 cut-out yellow empty pendant control station is ideal for general purposes use as it enables machine builder to add any required control units for custom factory-assembled stations. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is impact, dust, water and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XALK |
| Sale per indivisible quantity | 1 |
| Number of cut-out | 1 cut-out |
| Colour of cover | yellow (RAL 1021) |
| IP degree of protection | Type 4X conforming to UL 50E, Type 4 conforming to UL 50E, Type 12 conforming to UL 50E, Type 13 conforming to UL 50E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529 |
| Colour of base of enclosure | light grey (RAL 7035) |
| Range of product | Harmony XALK |
| Control station application | emergency switching off function, emergency stop function |
| Material | polycarbonate |
| Product or component type | empty control station |

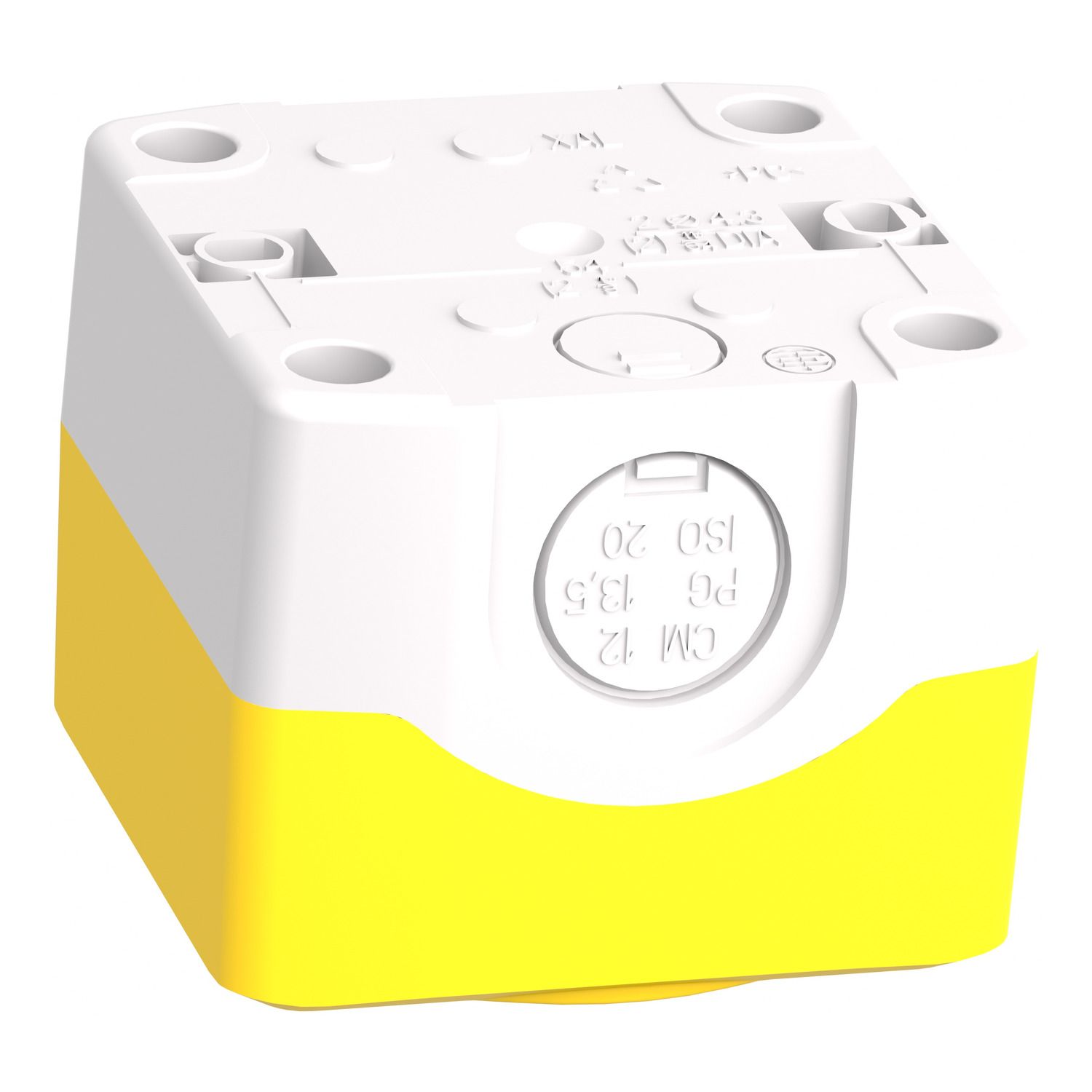

| Cable entry | 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm, 1 knock-out for cable entry, clamping capacity: 14-14 mm |
| Product destination | for XB5 Ø 22 mm control and signalling units |
| Complementary | |
| Group of product | standard yellow |
| Compatibility code | XALK |
| Assembly style | for customer assembly |
| CAD overall height | 68 mm |
| Customizable | 0, no |
| Number of vertical rows | 1 |
| Main group | 1 cut-out |
| CAD overall depth | 53 mm |
| Electrical composition code | MF1, MR1, SF1, SR1 |
| CAD overall width | 68 mm |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Net weight | 0.116 kg |
| Number of horizontal rows | 1 |

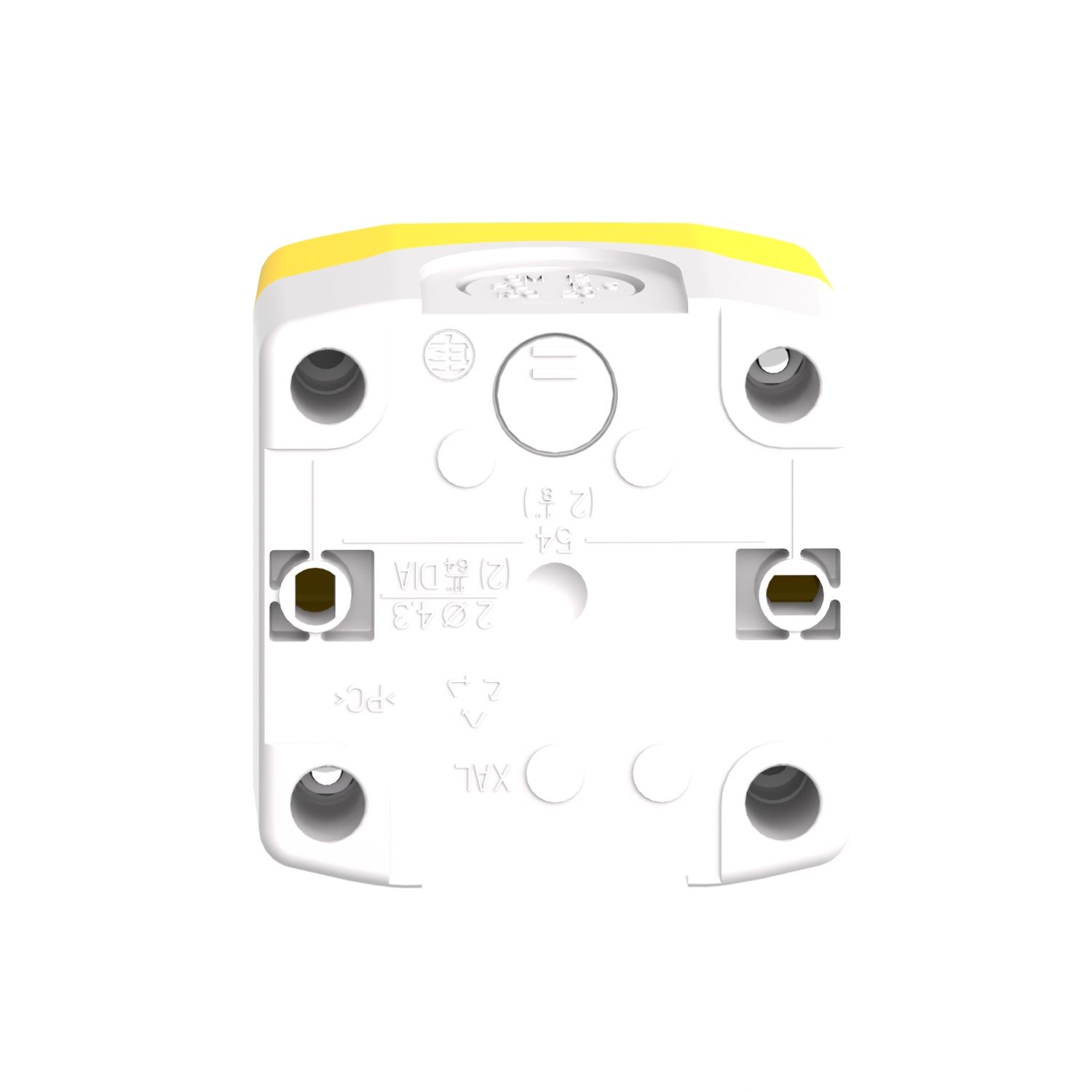

| Mounting of block | rear mounting, front mounting |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Overvoltage category | class II conforming to IEC 60536 |
| Standards | JIS C8201-1, IEC 60947-5-1, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-5 |
