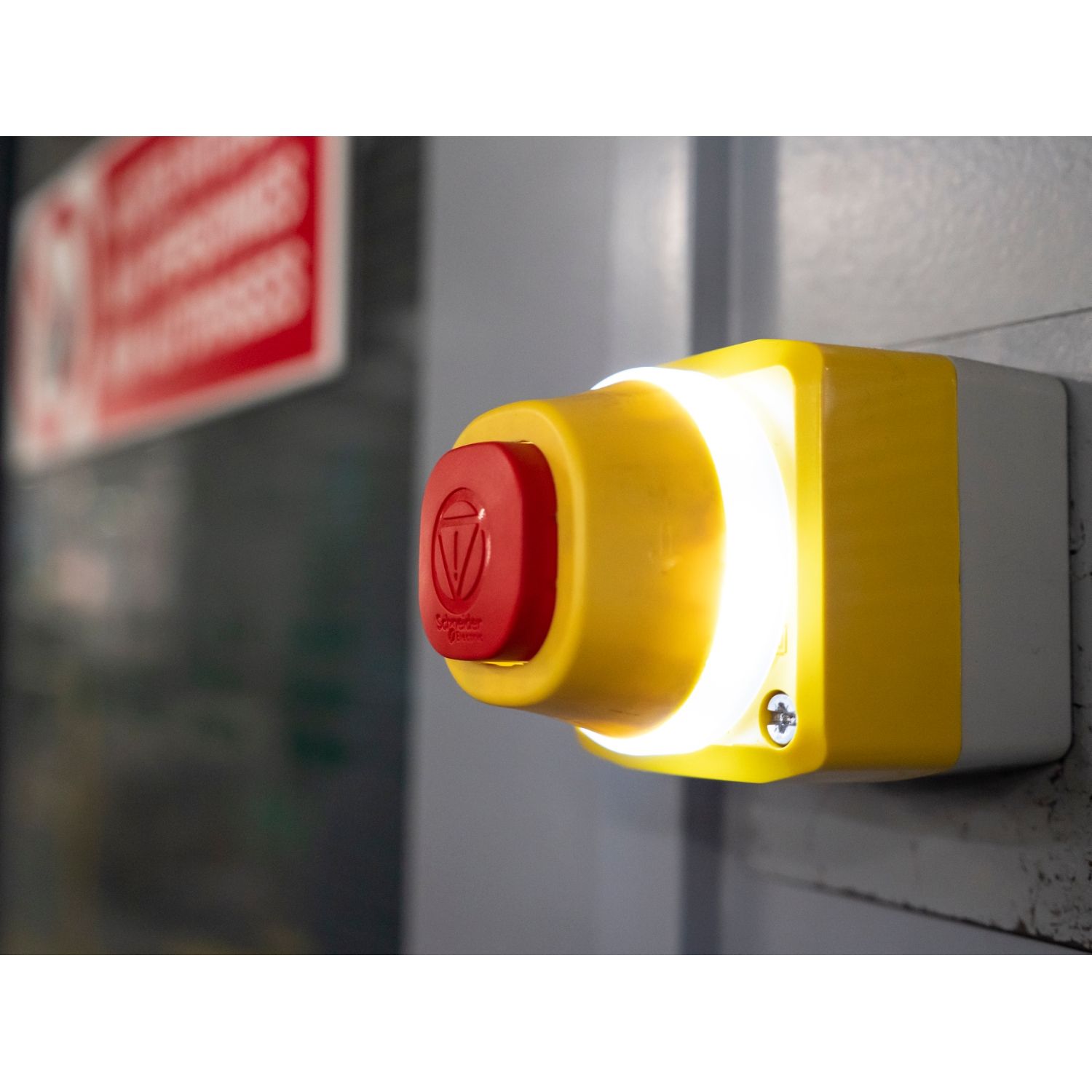

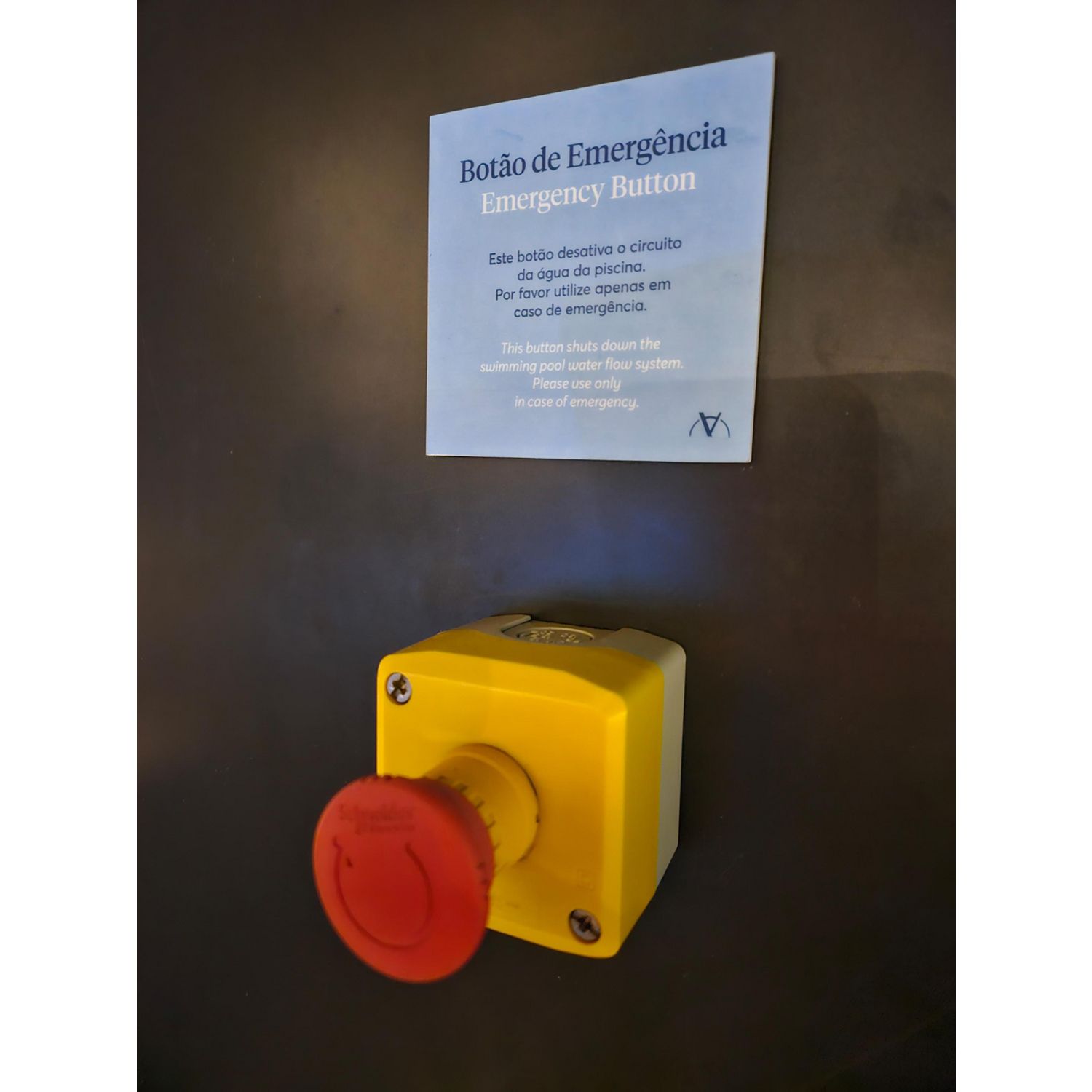

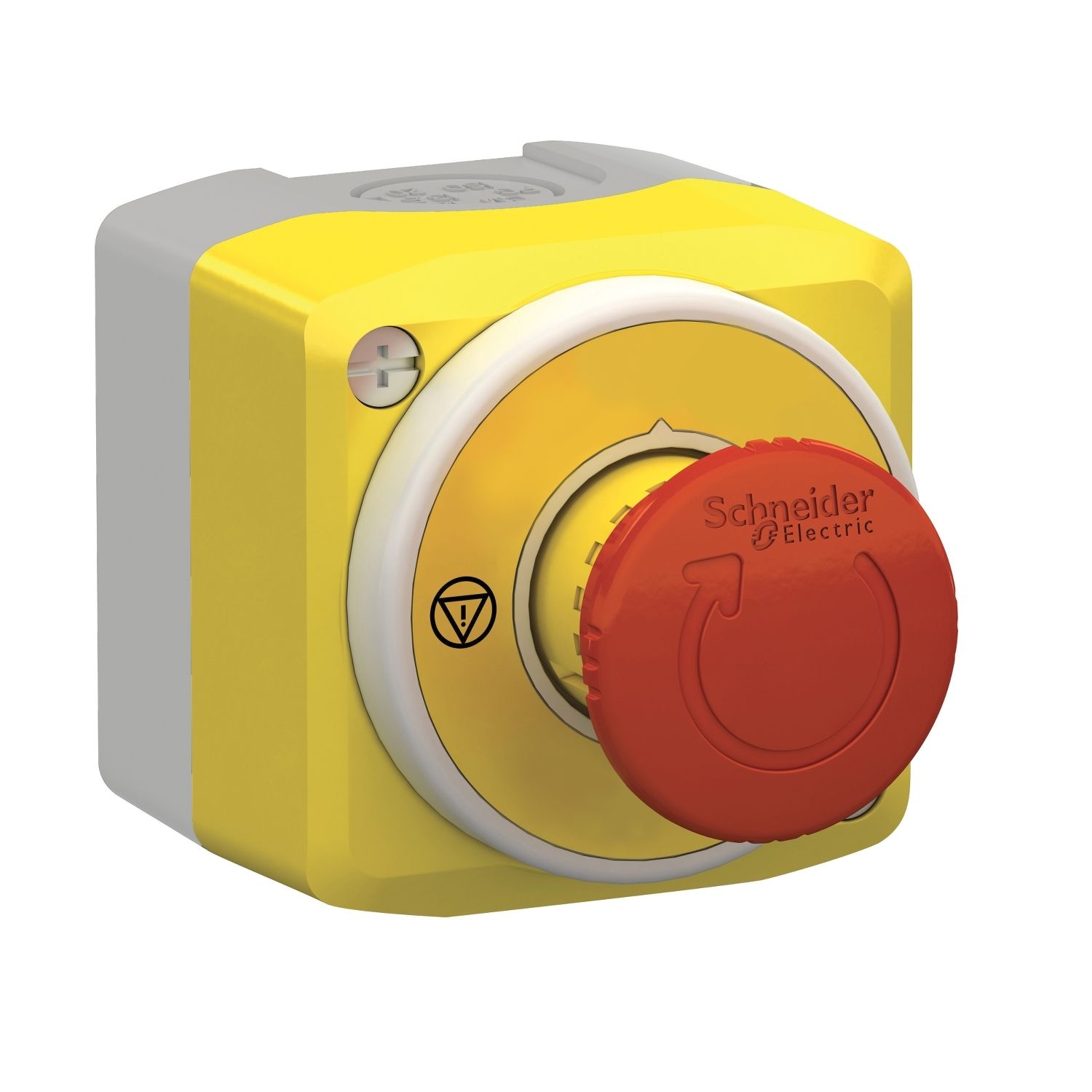

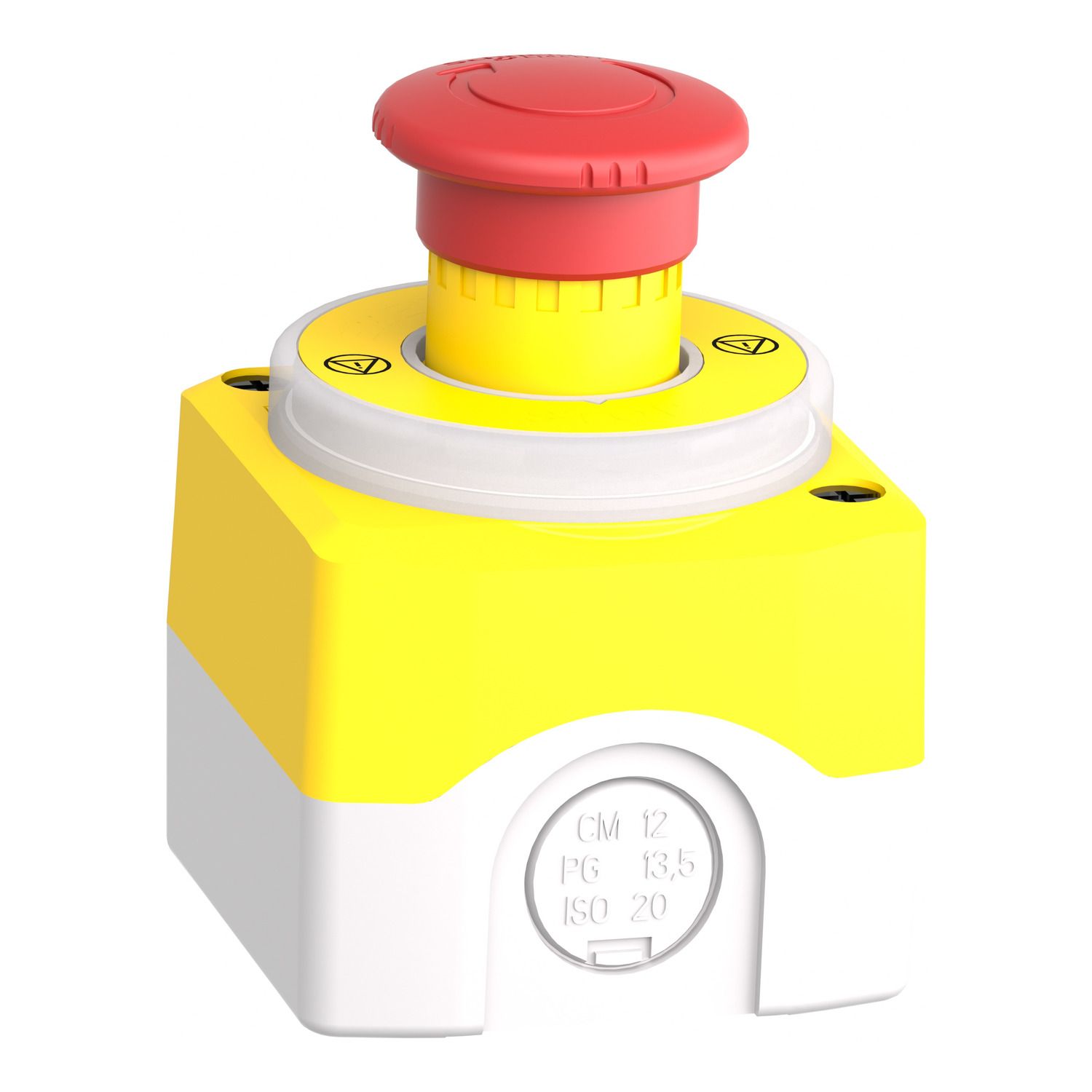

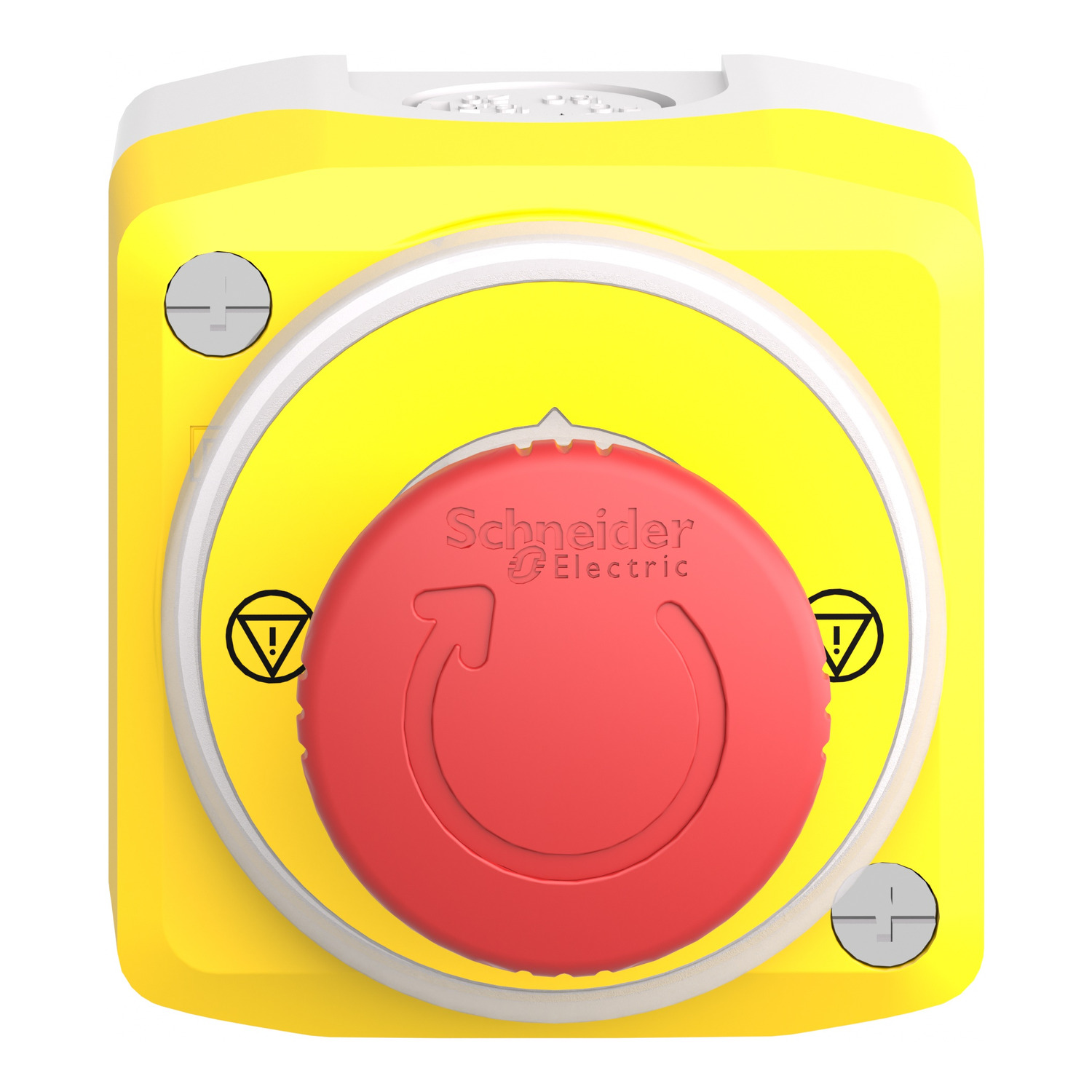

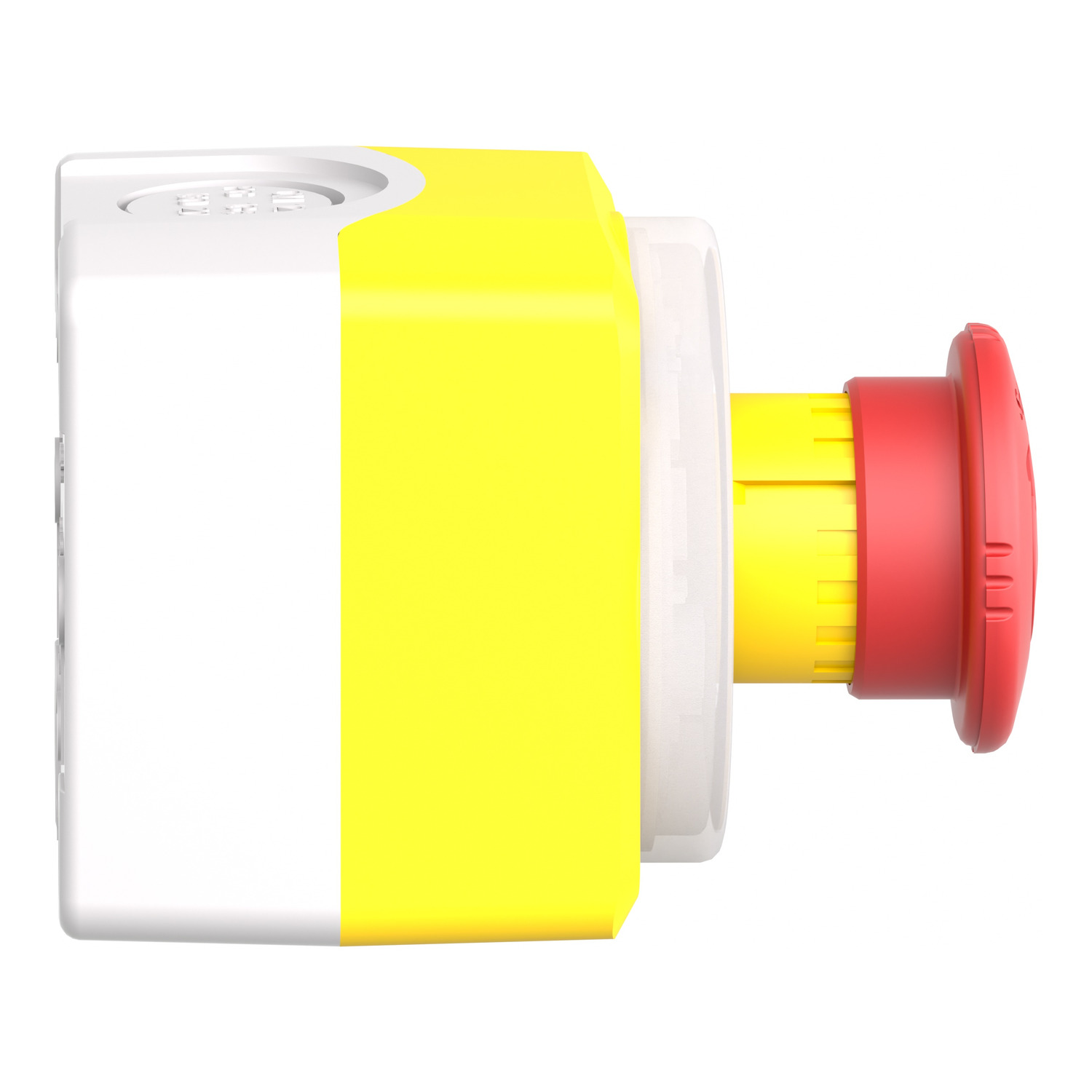

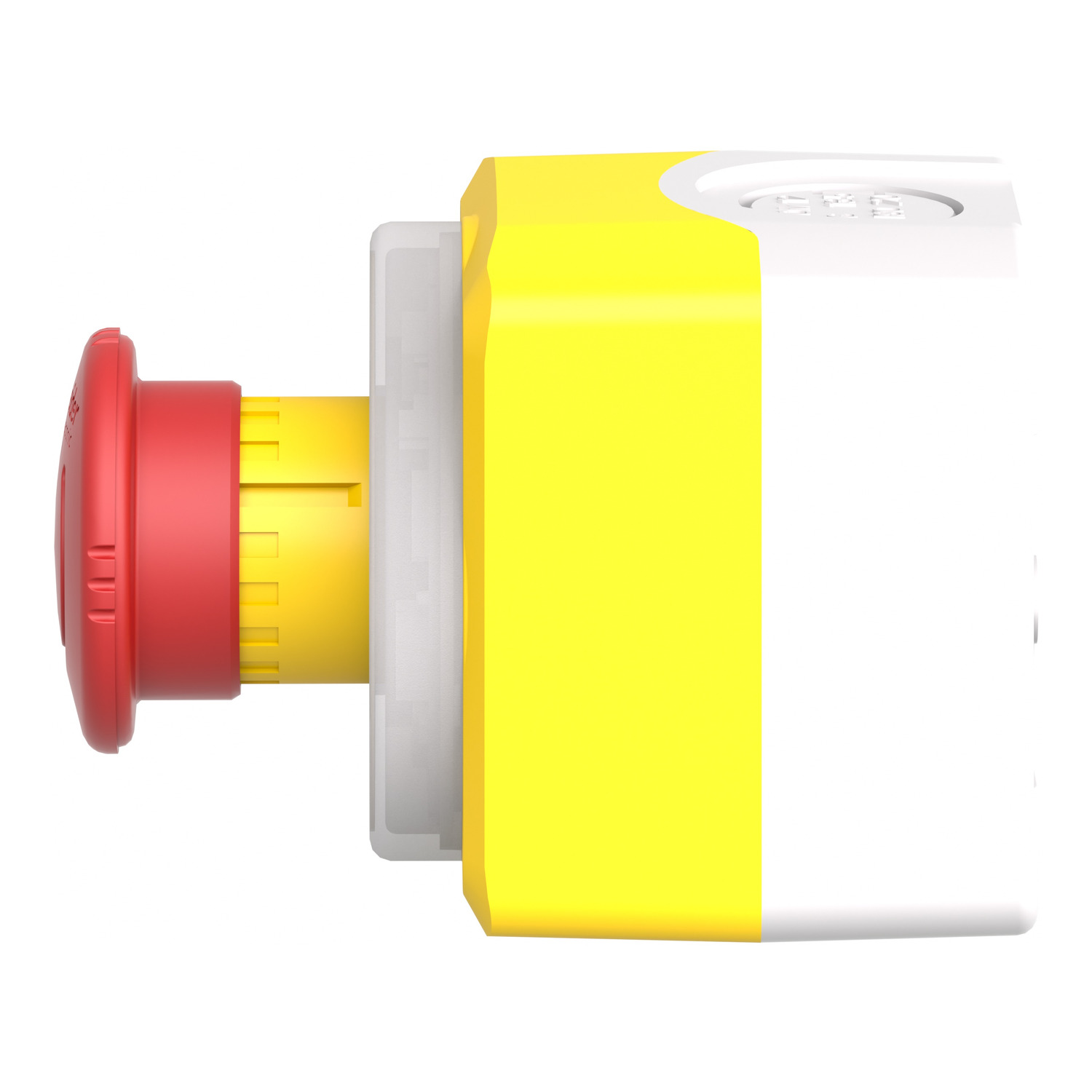

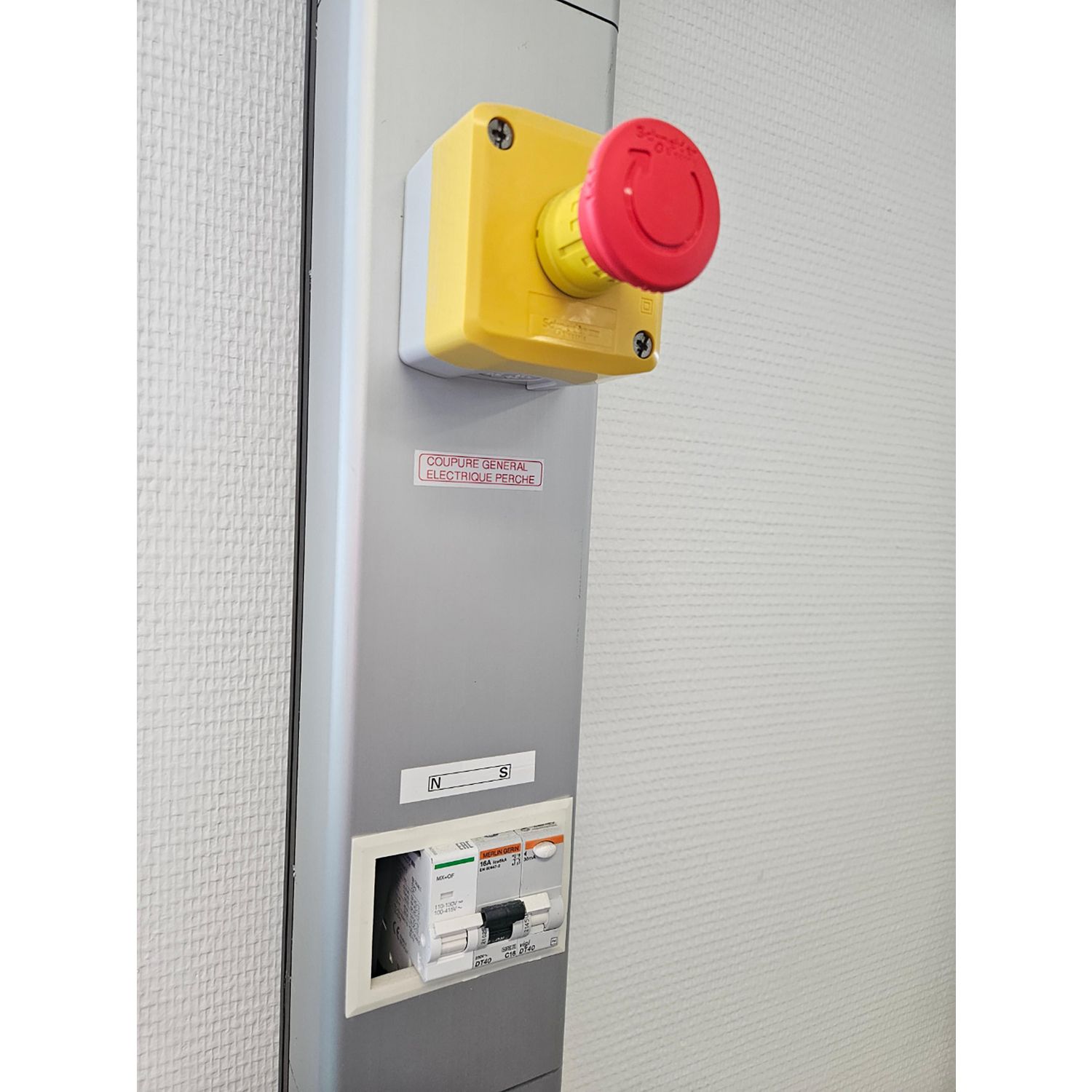

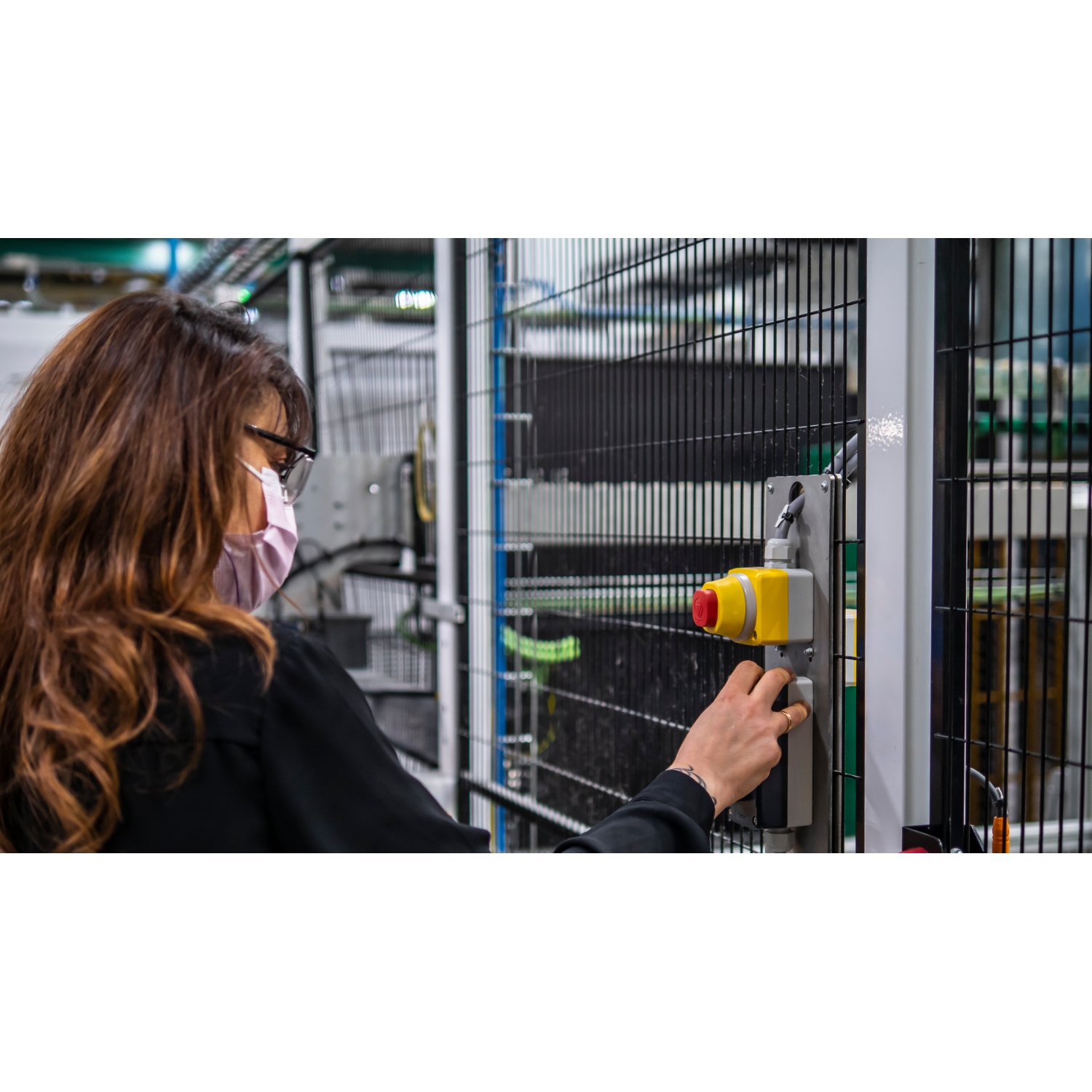

This control station with mushroom head push-button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XALK |
| Contact operation | slow-break |
| Colour of cover | yellow (RAL 1021) |
| Operators description | red unmarked 1 NO + 1 NC |
| Control station composition | 1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC |
| Colour of base of enclosure | light grey (RAL 7035) |
| Range of product | Harmony XALK |
| Reset | turn to release |
| Control station application | emergency stop function, emergency switching off function |
| Operator profile | 1 mushroom head push-button |
| Material | polycarbonate |
| Product or component type | complete control station |
| Product destination | for XB5 Ø 22 mm control and signalling units |
| Complementary | |
| Shape of screw head | slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Electrical reliability | λ < 10exp(-8) at 17 V, 5 mA conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V, 1 mA conforming to IEC 60947-5-4 |
| Compatibility code | XALK |
| Resistance to electrostatic discharge | 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 4 kV on contact (on metal parts) conforming to IEC 61000-4-2 |
| Mechanical durability | 300000 cycles |
| [Ie] rated operational current | 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical insulation class | class II conforming to IEC 61140 |
| Contacts material | silver alloy (Ag/Ni) |
| Operating travel | 4.3 mm (total travel), 1.5 mm (NC changing electrical state) |
| Operating force | 44 N |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.180 kg |

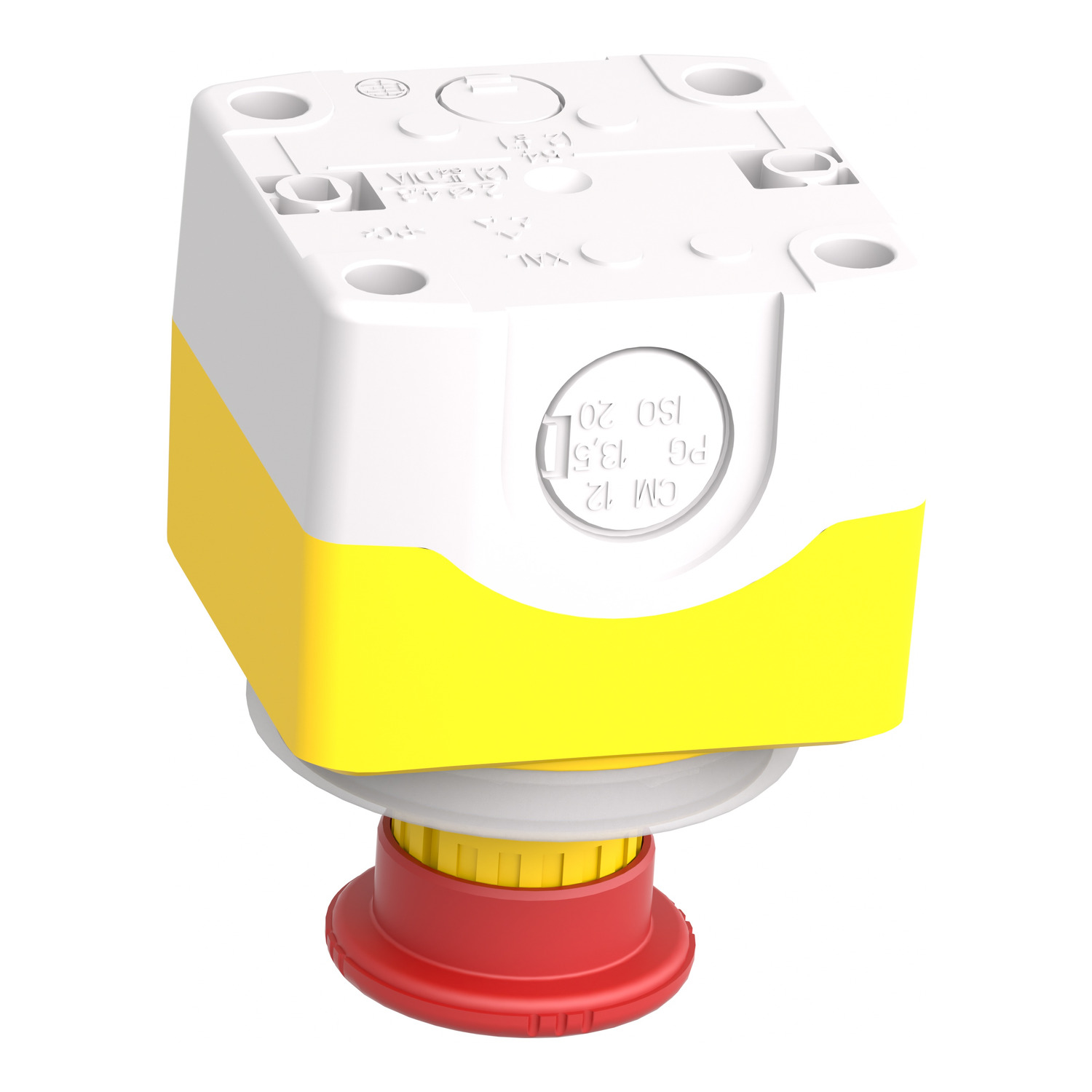

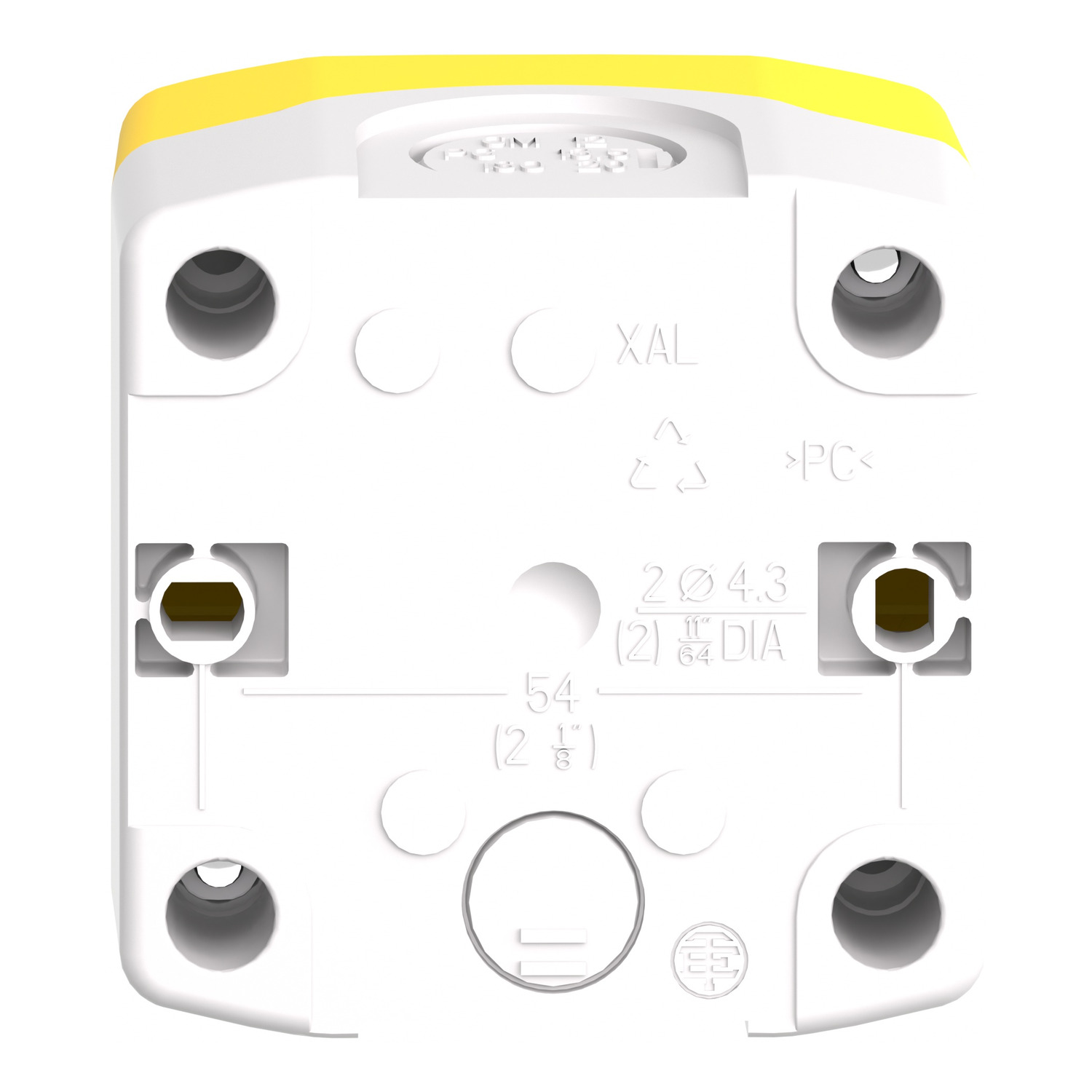

| Cable entry | 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm, 1 knock-out for cable entry 0-14 mm |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | Type 4X conforming to UL 50E, Type 4 conforming to UL 50E, Type 12 conforming to UL 50E, Type 13 conforming to UL 50E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529 |
| Ambient air temperature for operation | -40-55 °C |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Vibration resistance | 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C 4520, IEC 60947-1, UL 508, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14 |
| Product certifications | CSA, UL listed |
