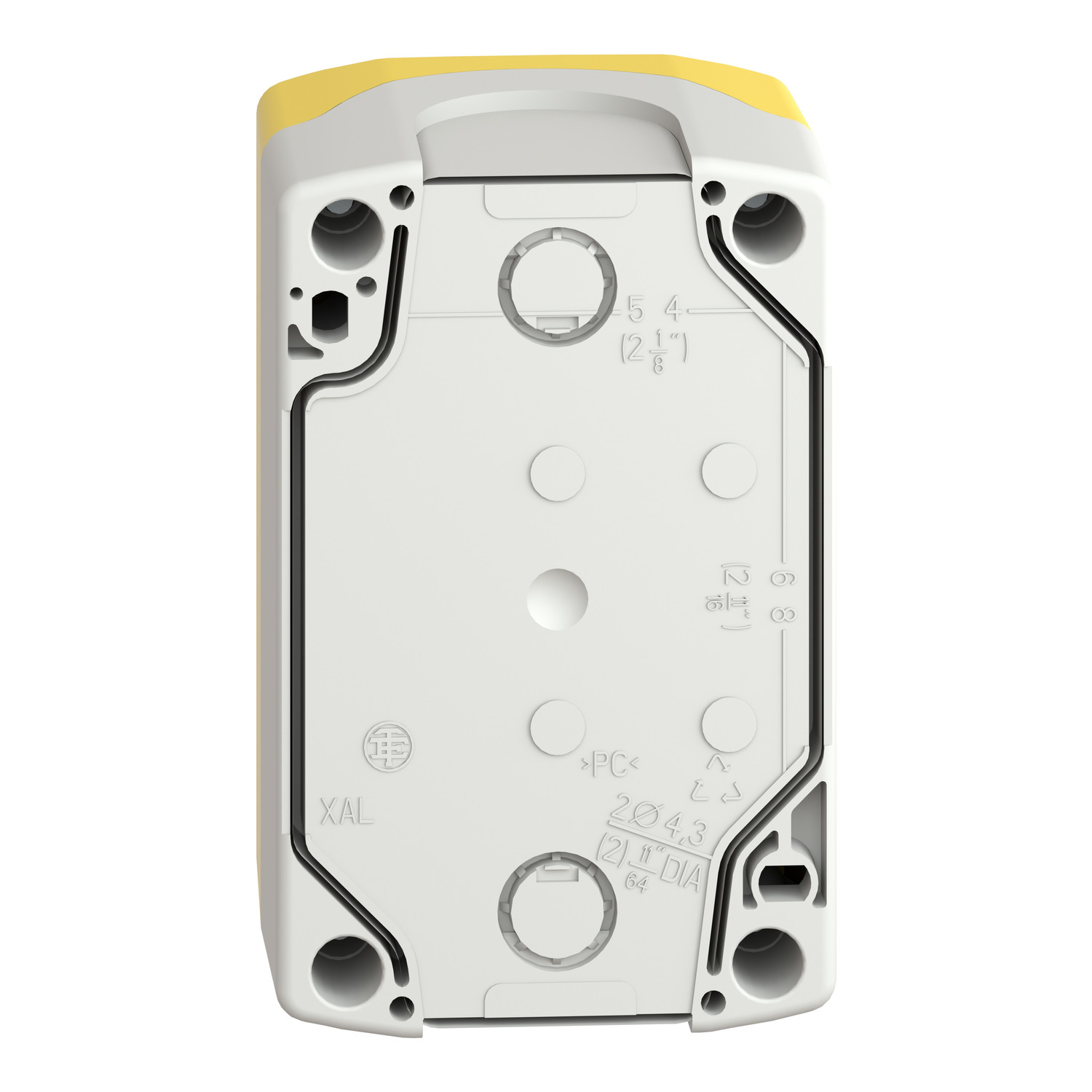

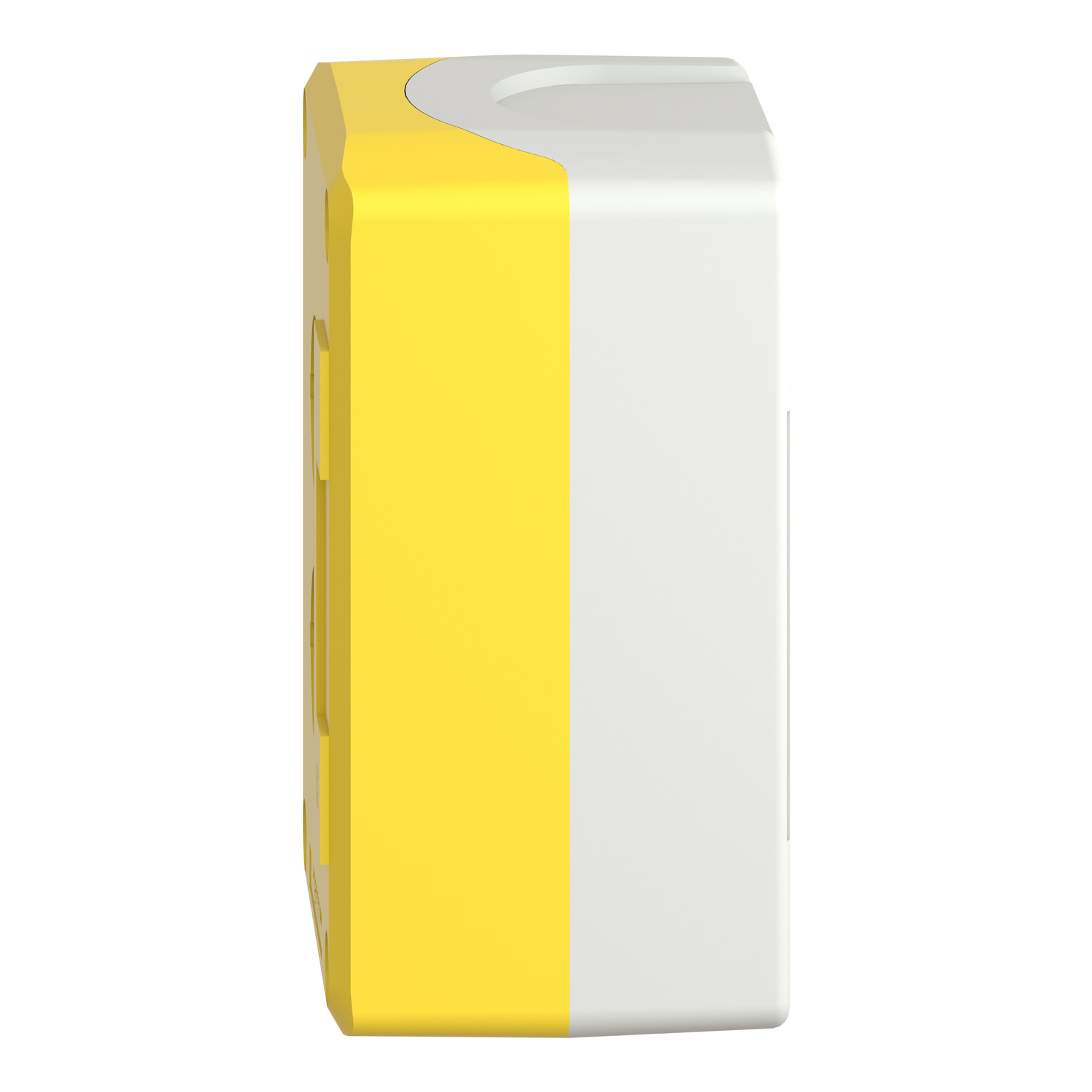

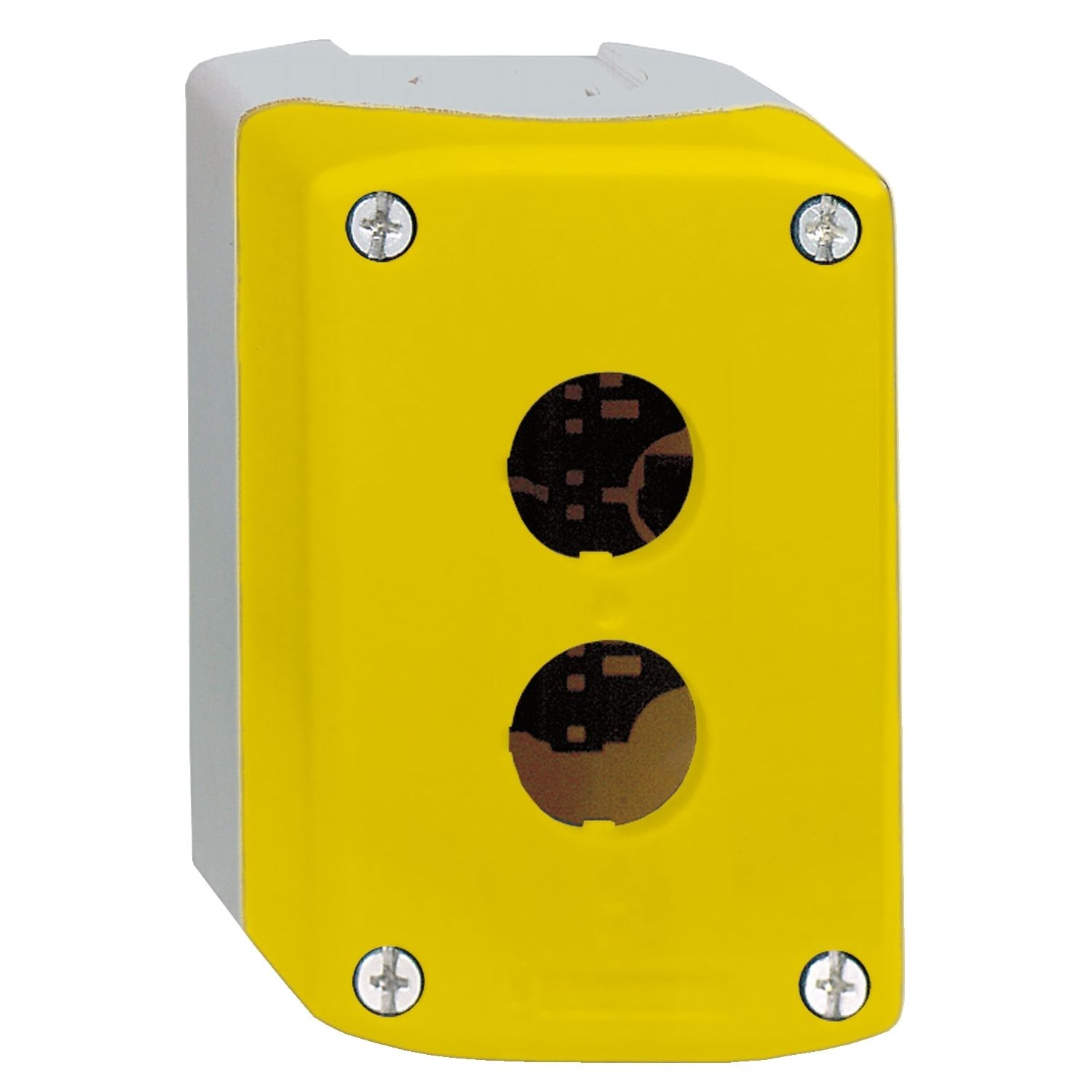

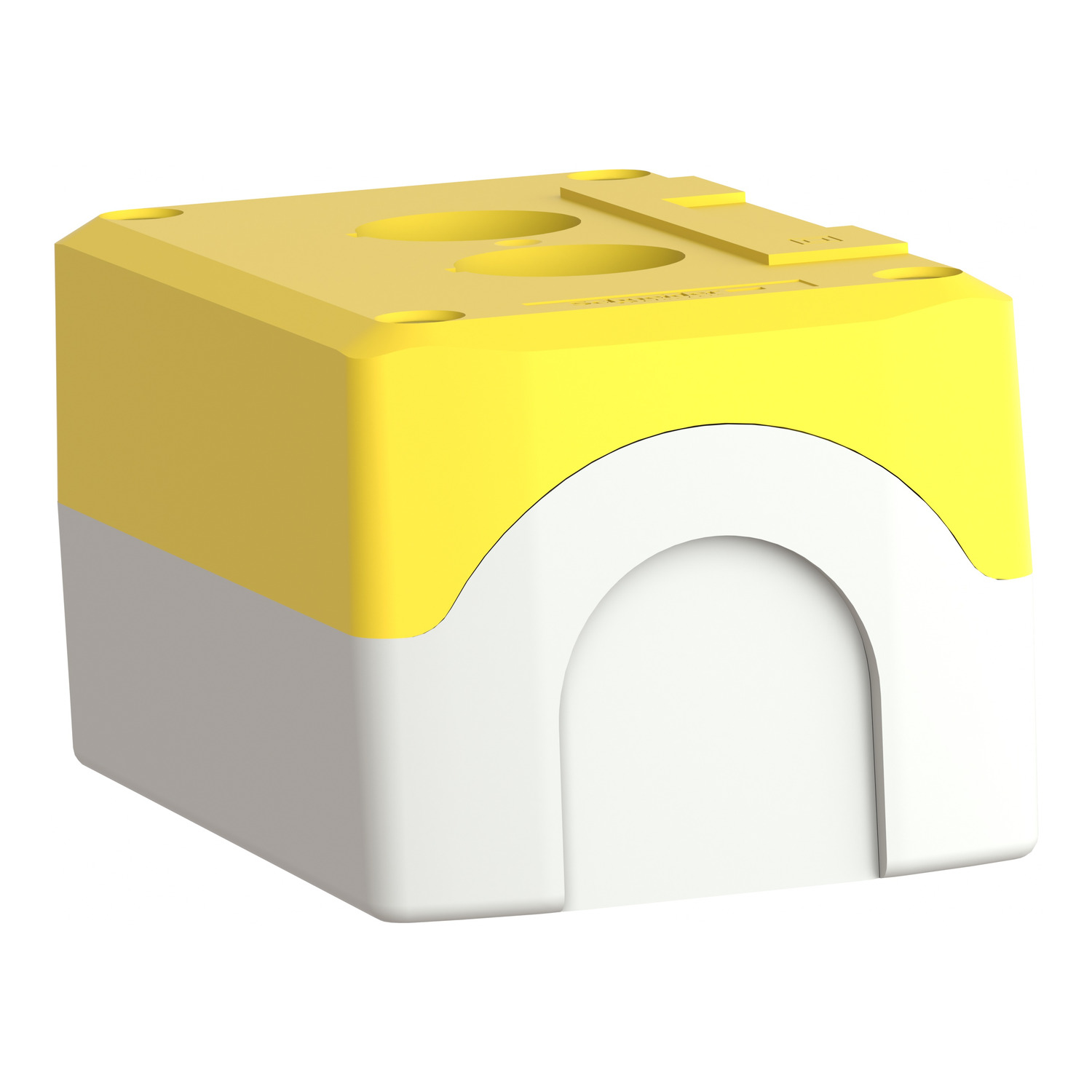

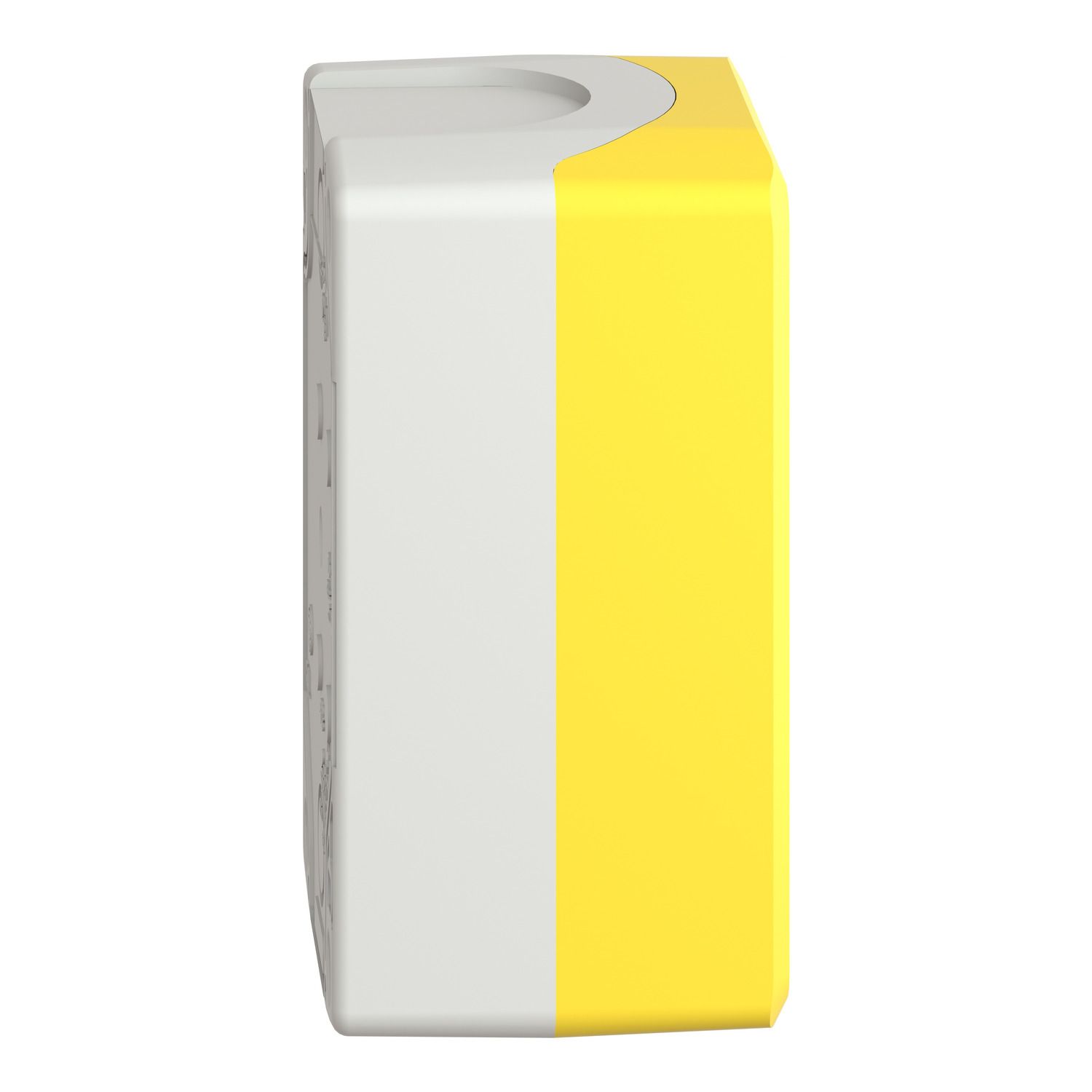

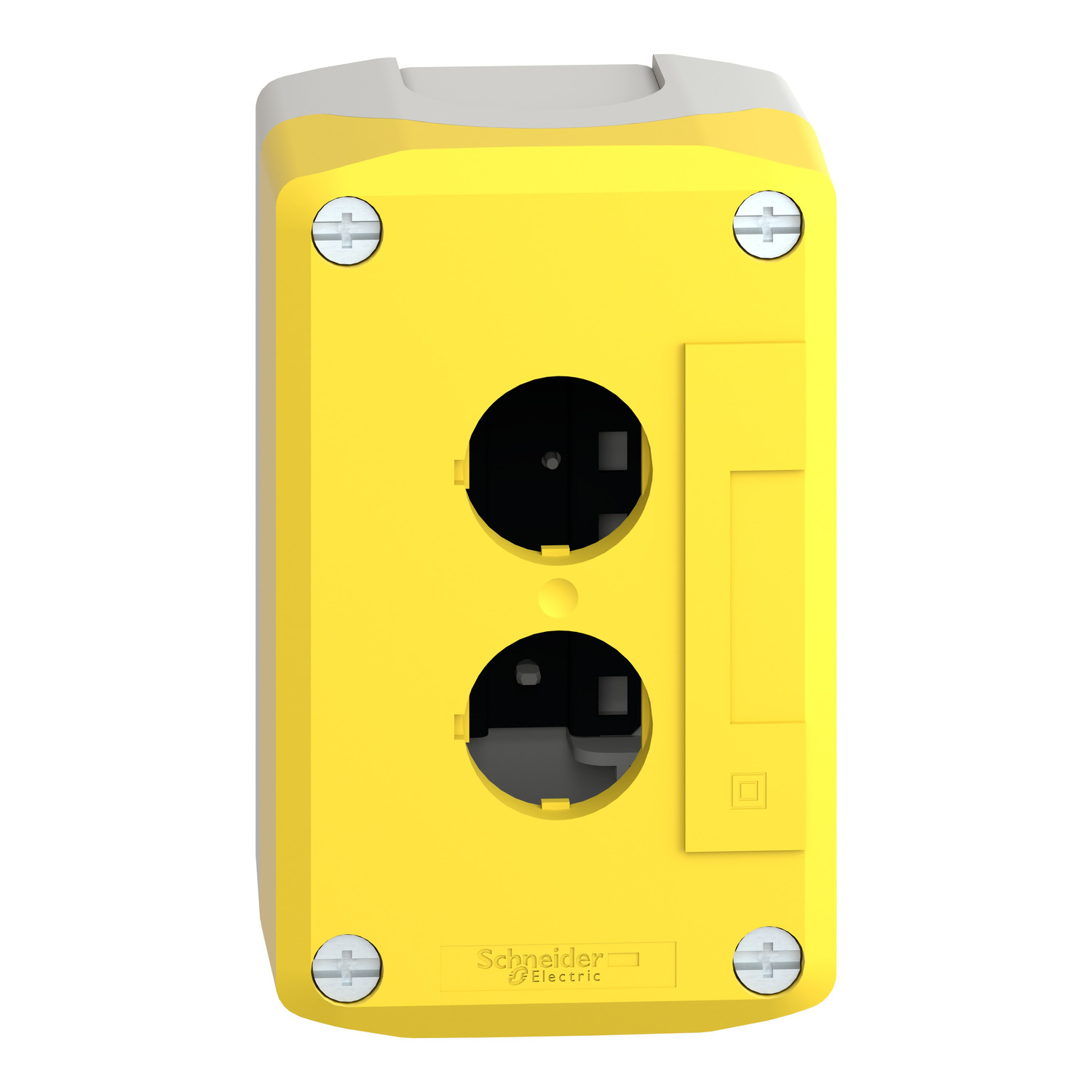

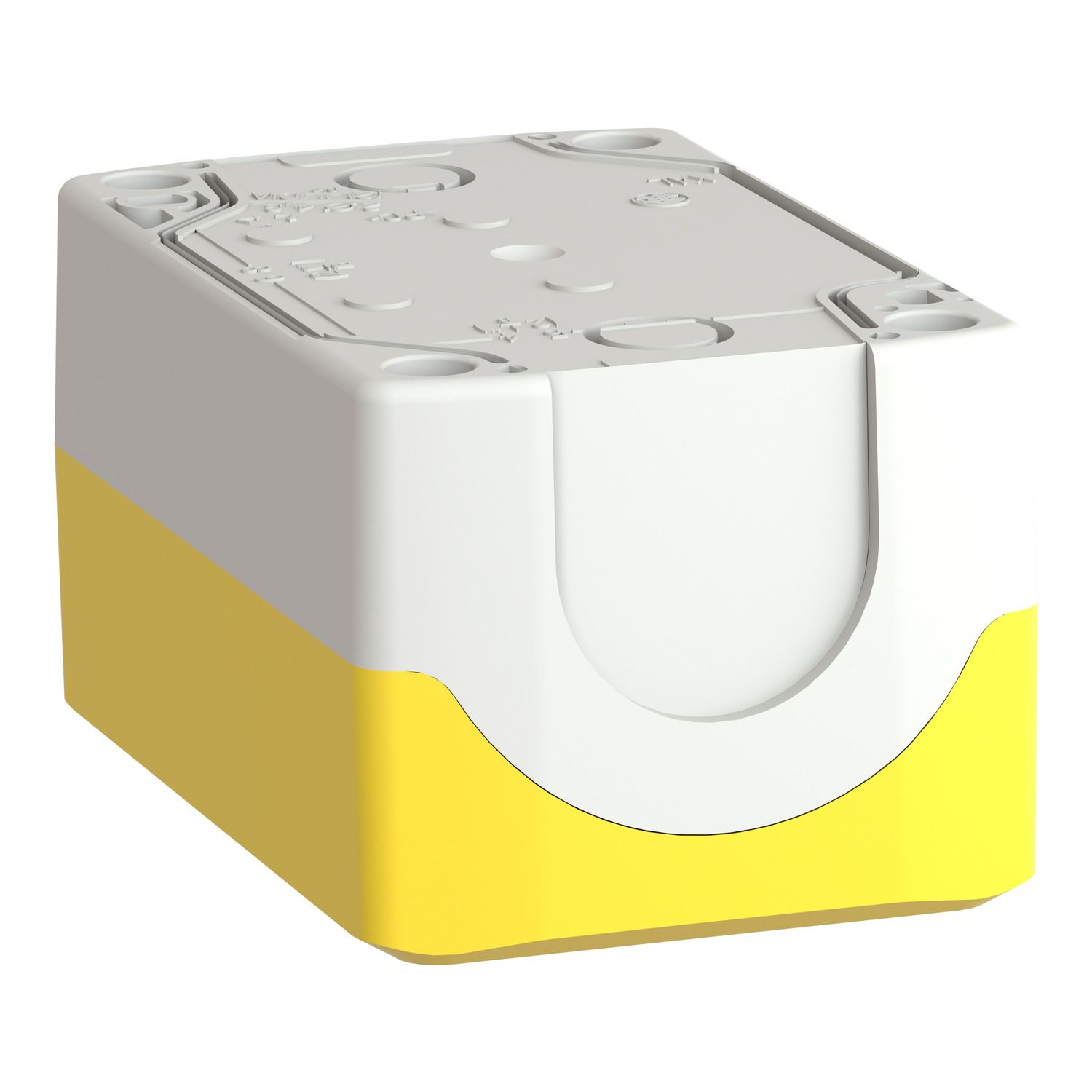

Empty control station, Harmony XALD XALK, plastic, yellow, 1 cut-out, unmarked, UL/CSA certified
Manufacturer: Schneider Electric
SKU: XALK02
GTIN: 3389110127317
Old price: $74.69 inc GST
$45.44 inc GST
Supported cards
Supported cards
This Harmony XALK empty control station has 2 cut-out for 2 push buttons / 2 functions for emergency switching off and emergency stop functions. This 2 cut-out yellow empty control station for emergency stop enables machine builders to add any emergency switching off control and emergency stop control units on the enclosure to enable for safety function as required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XALK
Number of cut-out 2 cut-outs
Colour of cover yellow (RAL 1021)
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Colour of base of enclosure light grey (RAL 7035)
Range of product Harmony XALK
Control station application emergency stop function, emergency switching off function
Material polycarbonate
Product or component type empty control station
Cable entry 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm, 2 knock-outs for cable entry, clamping capacity: 14-14 mm
Product destination for XB5 Ø 22 mm control and signalling units
Complementary
Group of product standard yellow
Compatibility code XALK
Assembly style for customer assembly
Customizable 0, no
Number of vertical rows 2
Main group 2 cut-outs
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.193 kg
Number of horizontal rows 1
Mounting of block rear mounting, front mounting
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 62262
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Standards JIS C8201-1, IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-1, UL 508, IEC 60947-5-5
