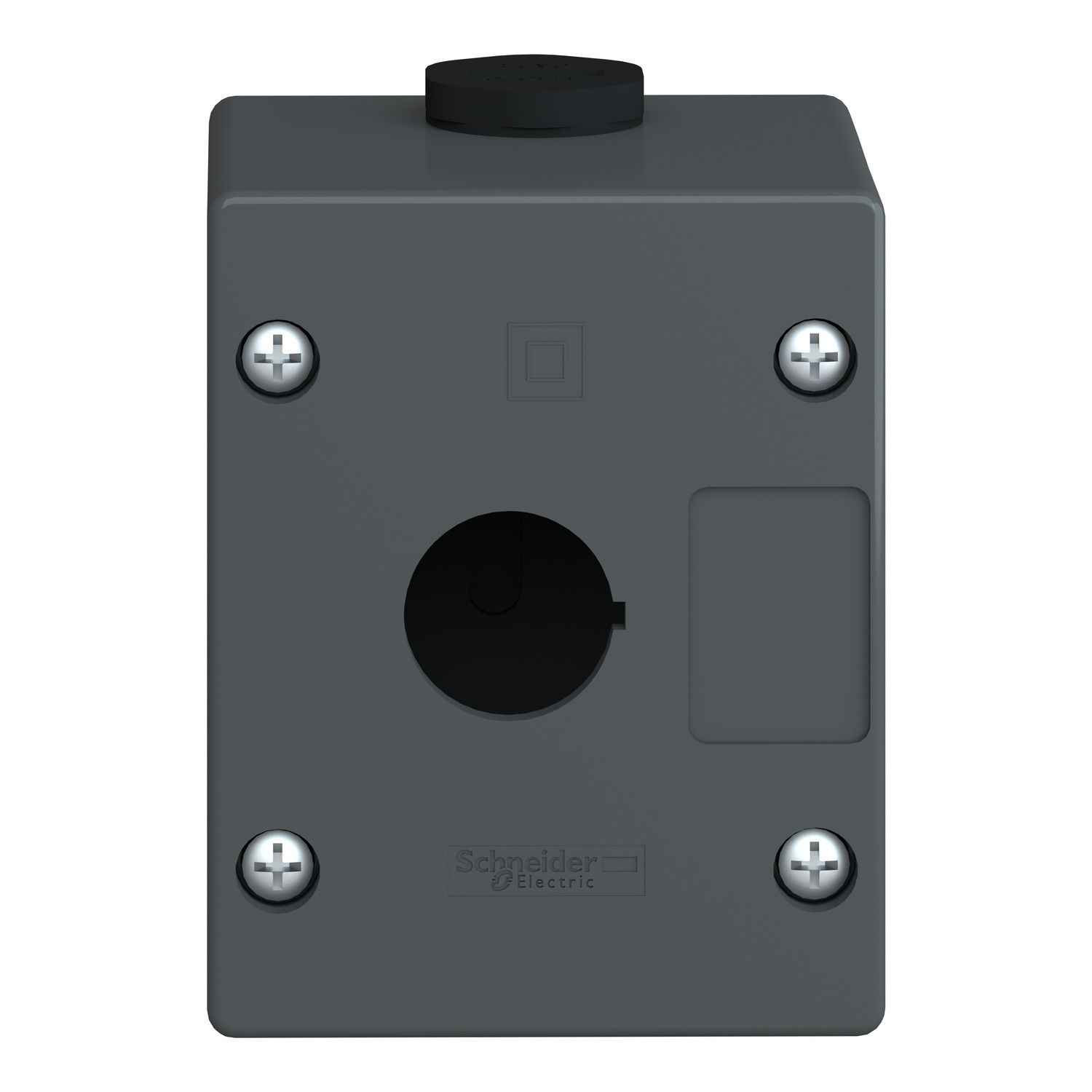

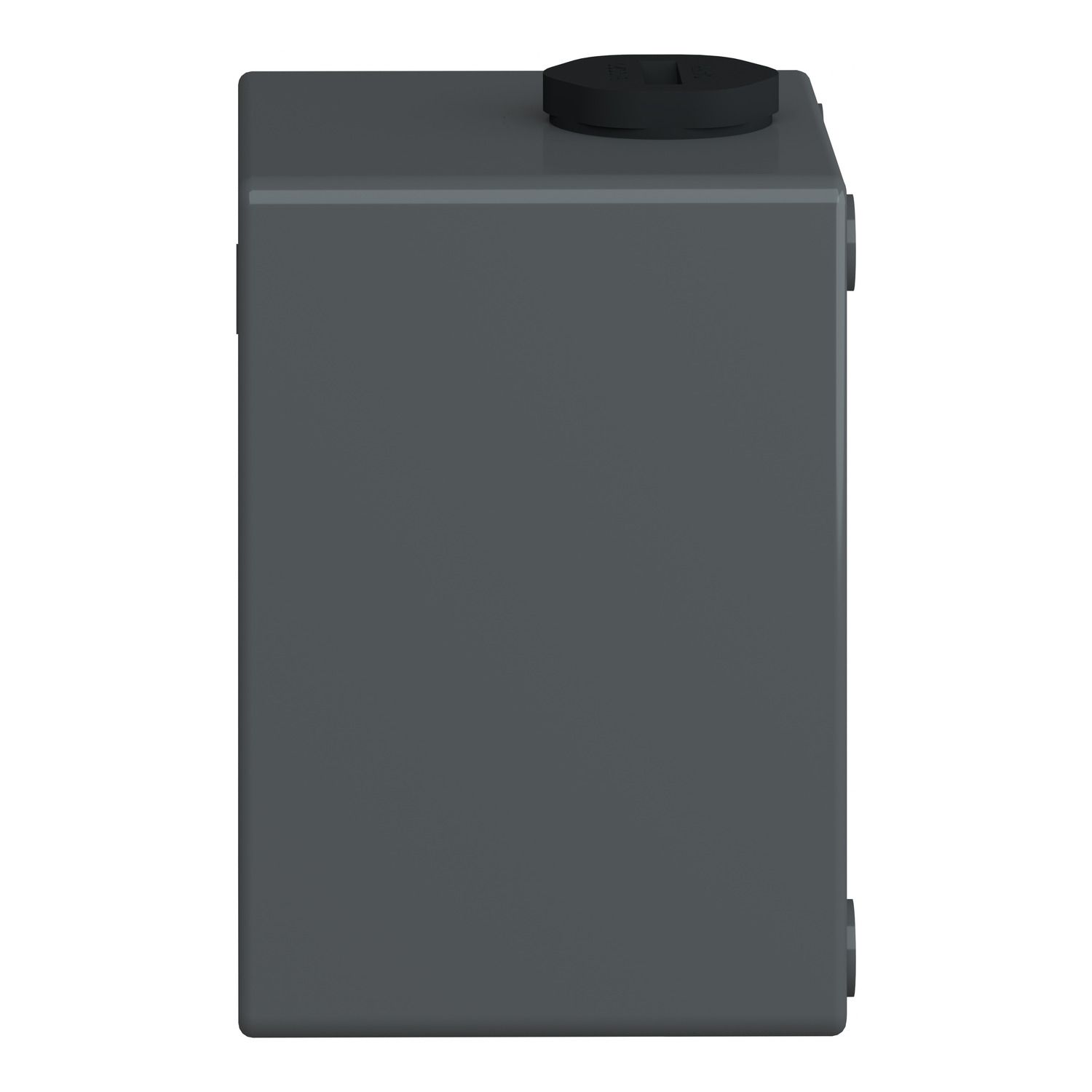

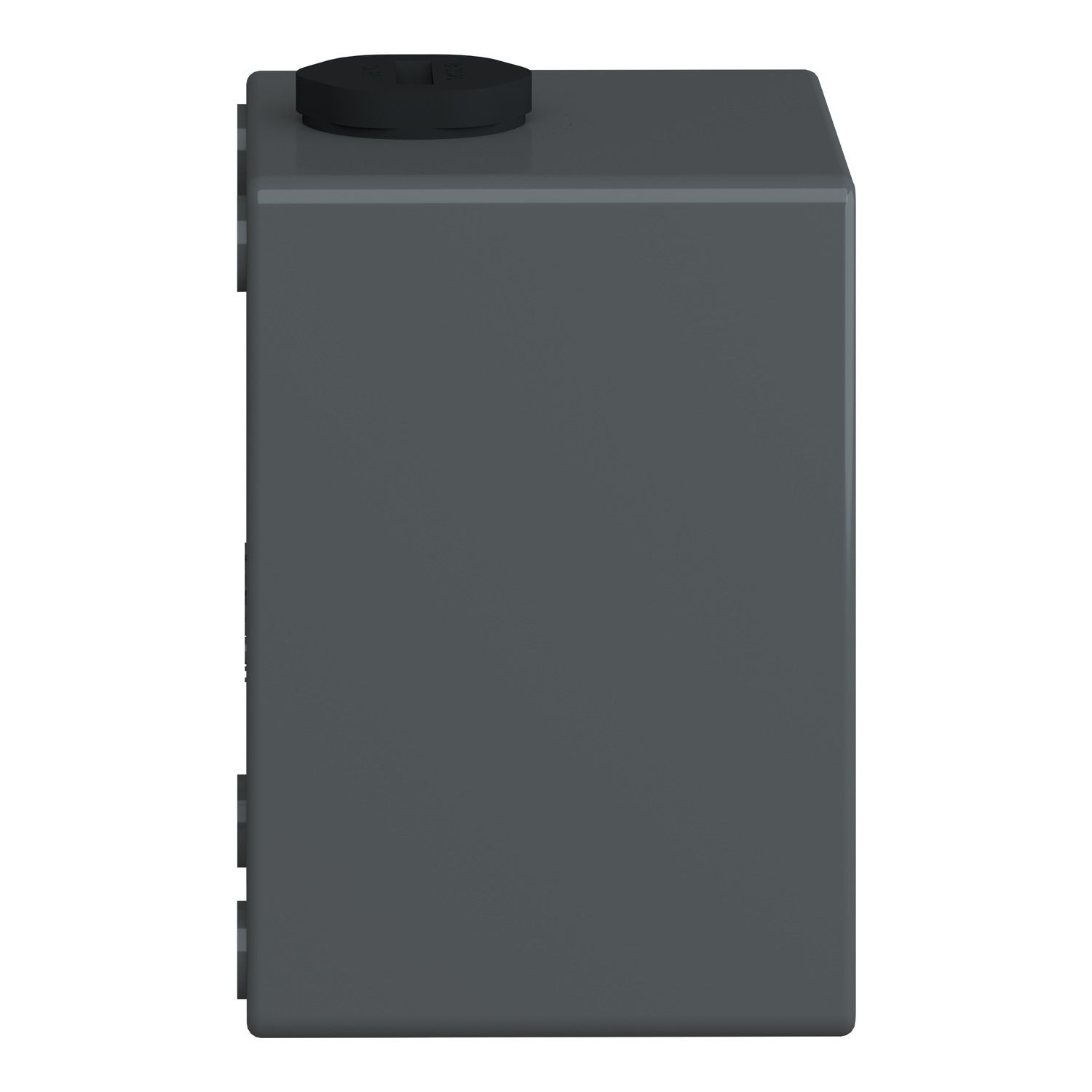

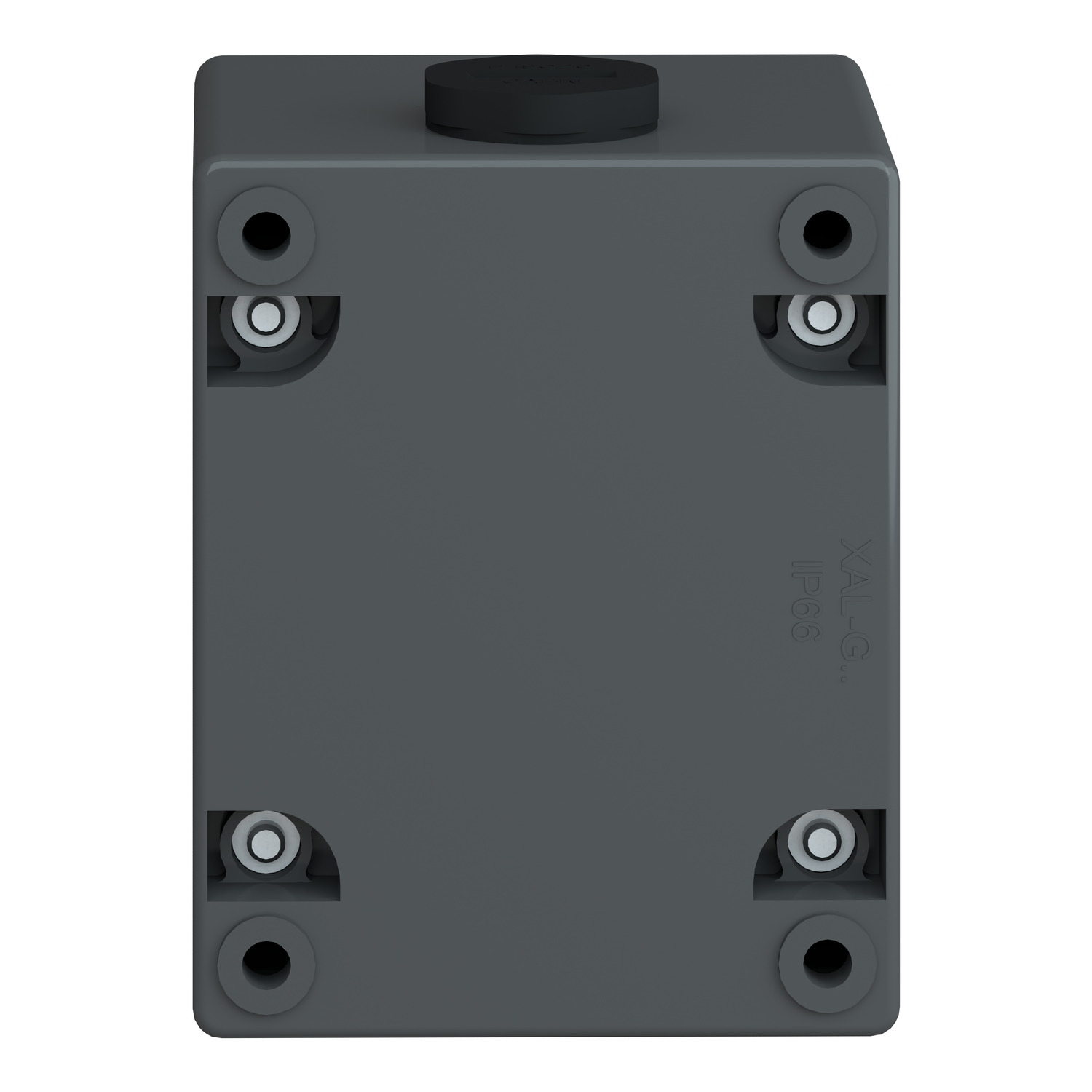

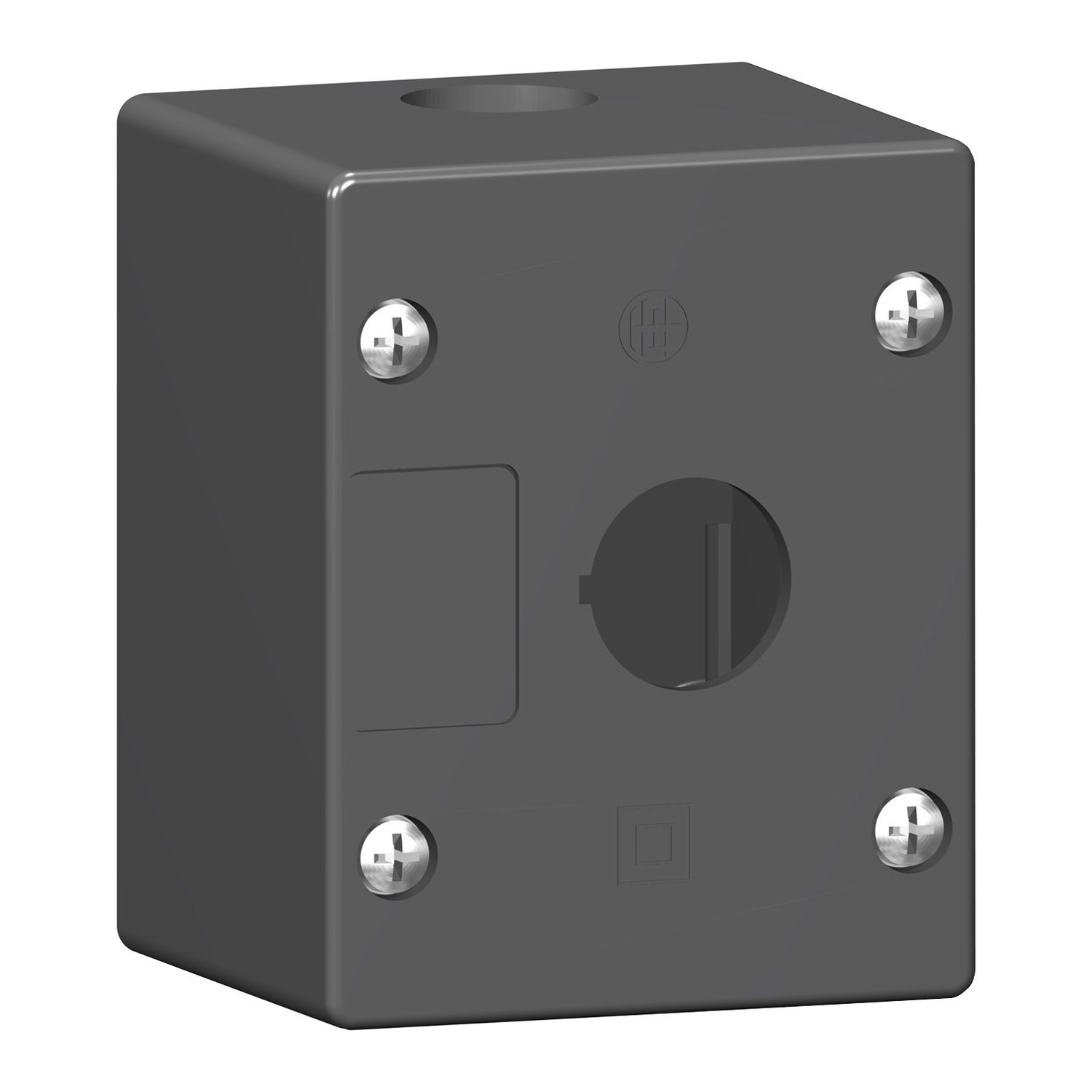

This Harmony XALG, is an empty control station for severe environments. It has 1 cut-out diameter 22mm for 1 function. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, IP67, IP69, IP69K, making it ideal for operation in harsh environments. Extremely robust, this control station ensures esistance to high pressure cleaning and resistance to chemical products. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides mineral a reinforced polyamide enclosure with a black (RAL 9005) base of enclosure and a black (RAL 9005) cover. This control station is ideally suited for severe environment applications. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XALG |
| Environmental characteristic | severe ambiance |
| Colour of cover | black (RAL 9005) |
| IP degree of protection | IP69K, IP69, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529 |
| Colour of base of enclosure | black (RAL 9005) |
| Range of product | Harmony XALG |
| Material | mineral reinforced polyamide |
| Product or component type | empty control station |

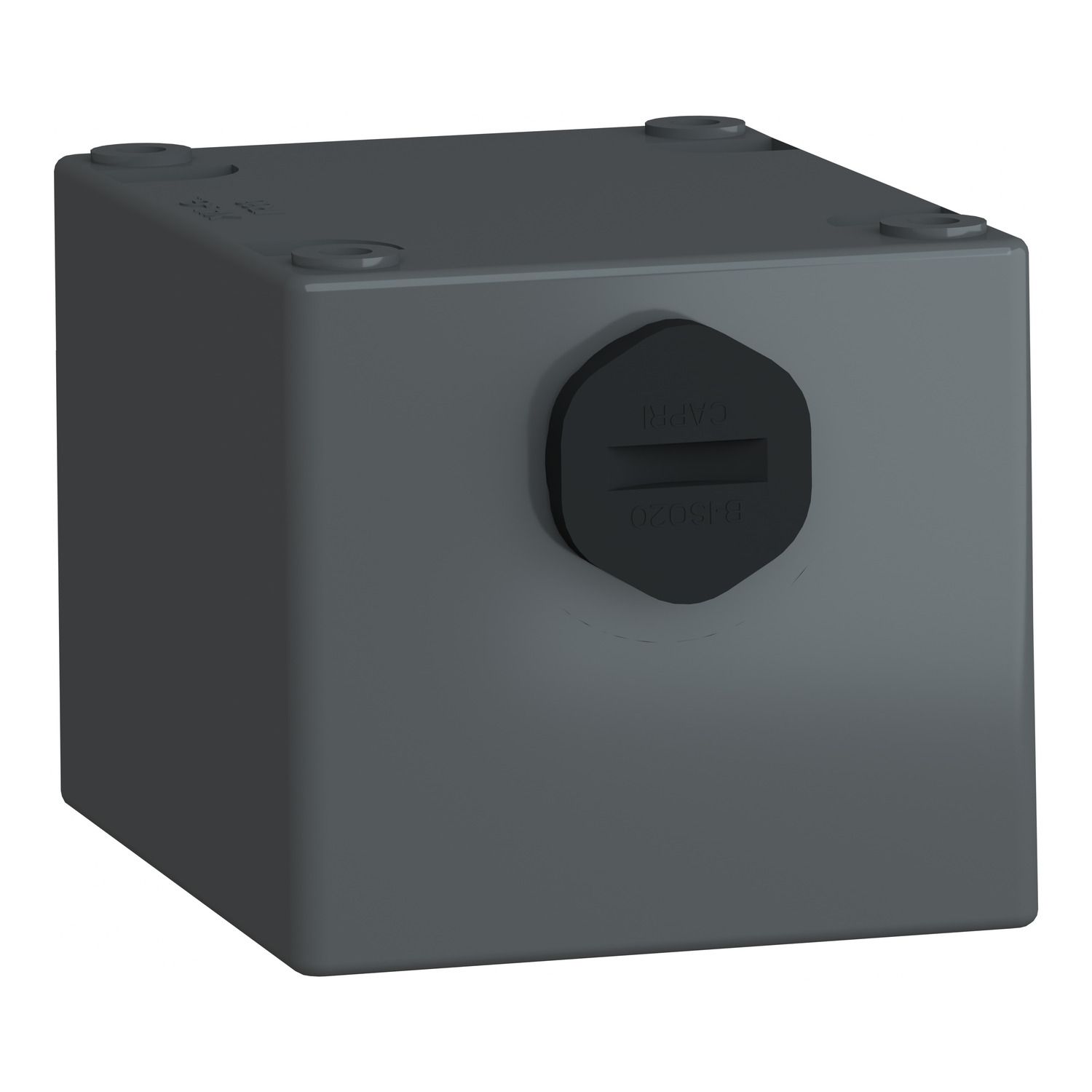

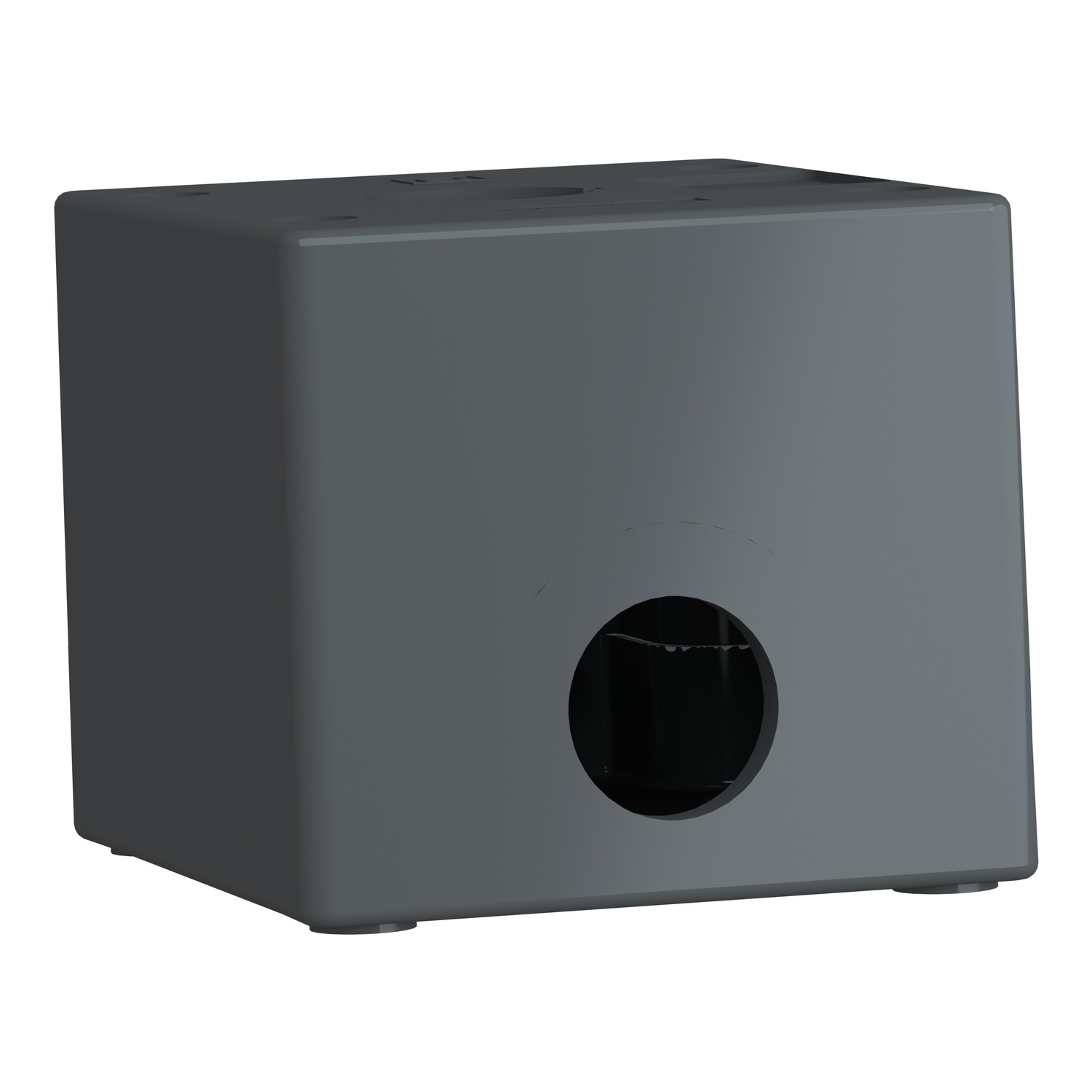

| Cable entry | 2 knock-outs for ISO M20 cable entry |
| Product destination | for XB5 Ø 22 mm control and signalling units |
| Complementary | |
| Compatibility code | XALG |
| Assembly style | for customer assembly |
| Number of cut-out | 1 cut-out |
| CAD overall height | 72 mm |
| CAD overall depth | 65 mm |
| CAD overall width | 90 mm |
| Resistance to high pressure washer | 10 mPa at 80 °C, distance : 0.2 m |
| Net weight | 0.226 kg |
| Environment | |
| Protective treatment | TH, TC |
| Resistance to chemical agents | good resistance to cutting compounds, good resistance to citric acid (10 %), good resistance to butter, good resistance to benzene, good resistance to ammonia, not resistant to lactic acid at 90 °C, not resistant to formic acid (10 %) at 50 °C, not resistant to nitric acid (2 %), not resistant to hydrogen peroxide (30 %), limited resistance to boric acid, limited resistance to acetic acid (10 %), good resistant to uric acid (20 %), good resistant to detergent at 60 °C, good resistant to acetone, good resistance to petroleum, good resistance to oils (vegetable, mineral), good resistance to motor oils and greases, good resistance to milk, good resistance to fatty alcohols, good resistance to fatty acids, good resistance to ethylene, good resistance to ethanol, good resistance to ethane, good resistance to lactic acid at 10 °C |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK05 conforming to EN 50102 |
| Electrical shock protection class | class II conforming to EN/IEC 61140 |
| Standards | EN/IEC 60947-5-1, EN/IEC 60947-1 |
