Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | XACA, ZA2B... head |
| Electrical circuit type | control circuit |
| Type of operator | spring return |
| Mechanical interlocking | without mechanical interlock |
| Contact operation | slow-break |
| Contacts type and composition | 2 NO |

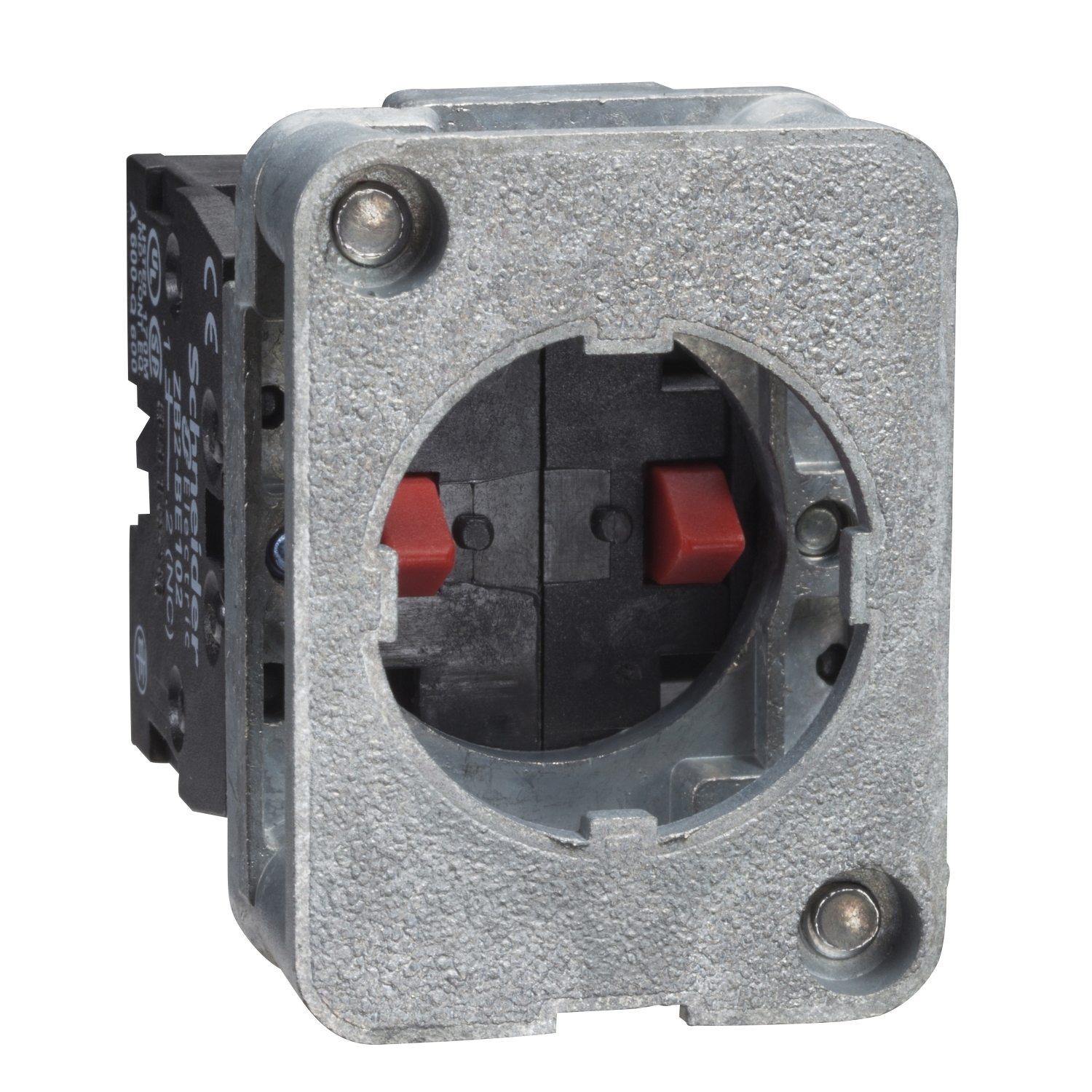

| Component name | XACS |
| Product or component type | contact block |
| Contact block type | single |
| Range of product | Harmony XAC |
| Mounting of block | front mounting |
| Complementary | |
| Rated operational power in W | 60 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 45 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 42 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Contact code designation | Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A |
| Mechanical durability | 1000000 cycles |
| Rated operational power in VA | 525 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load), 455 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load), 385 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load), 140 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load) |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end |
| Vertical fixing centres | 30 mm |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.07 kg |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| [Ithe] conventional enclosed thermal current | 10 A |
| Horizontal fixing centres | 40 mm |
| Maximum resistance across terminals | 25 MOhm |
| Terminals description ISO n°1 | (13-14)NO, (23-24)NO |
| Terminal identifier | (11-12)NC, (13-14)NO |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Standards | EN 60947-5-1, IEC 60947-5-1, CSA C22.2 No 14 |
| Ambient air temperature for operation | -25-70 °C |
