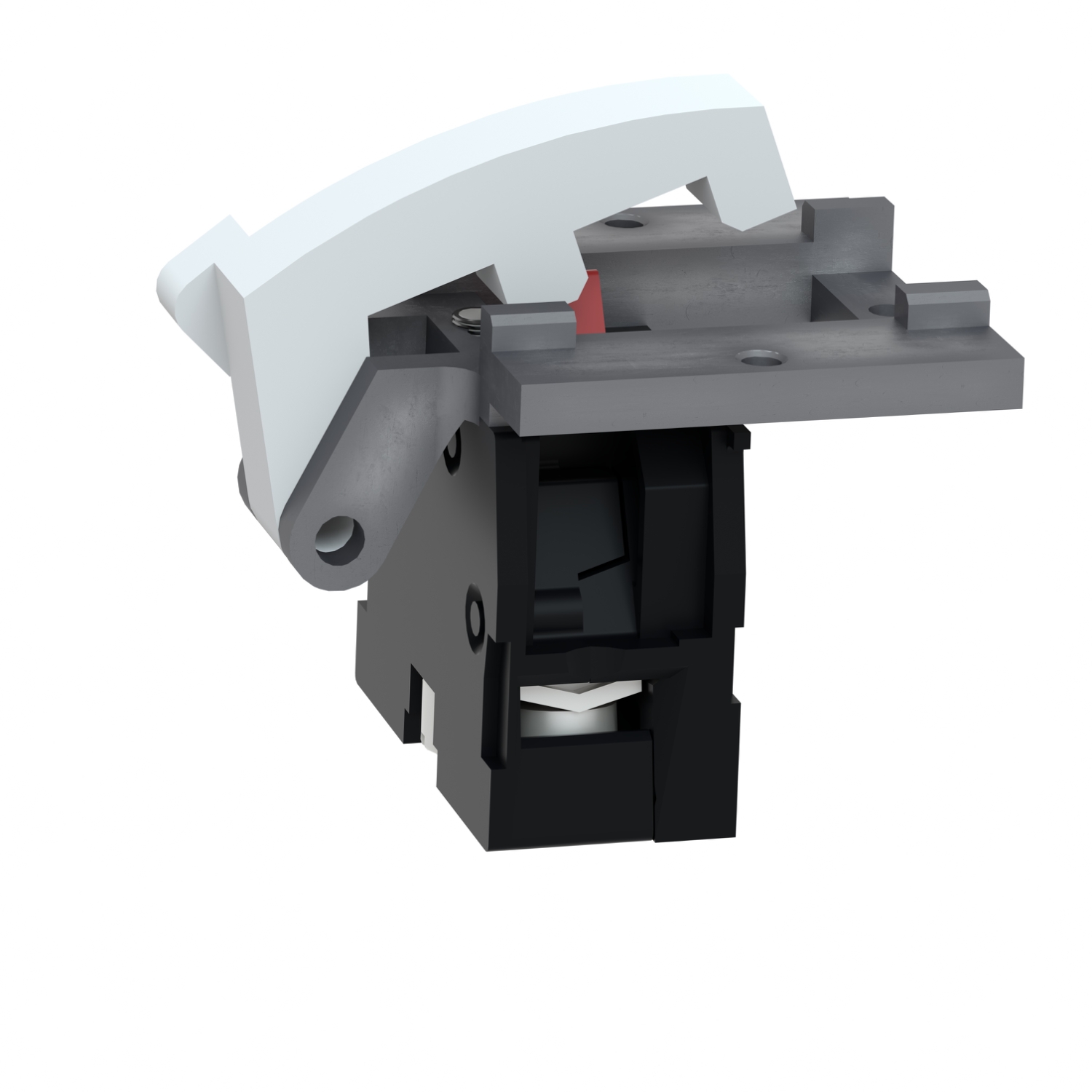

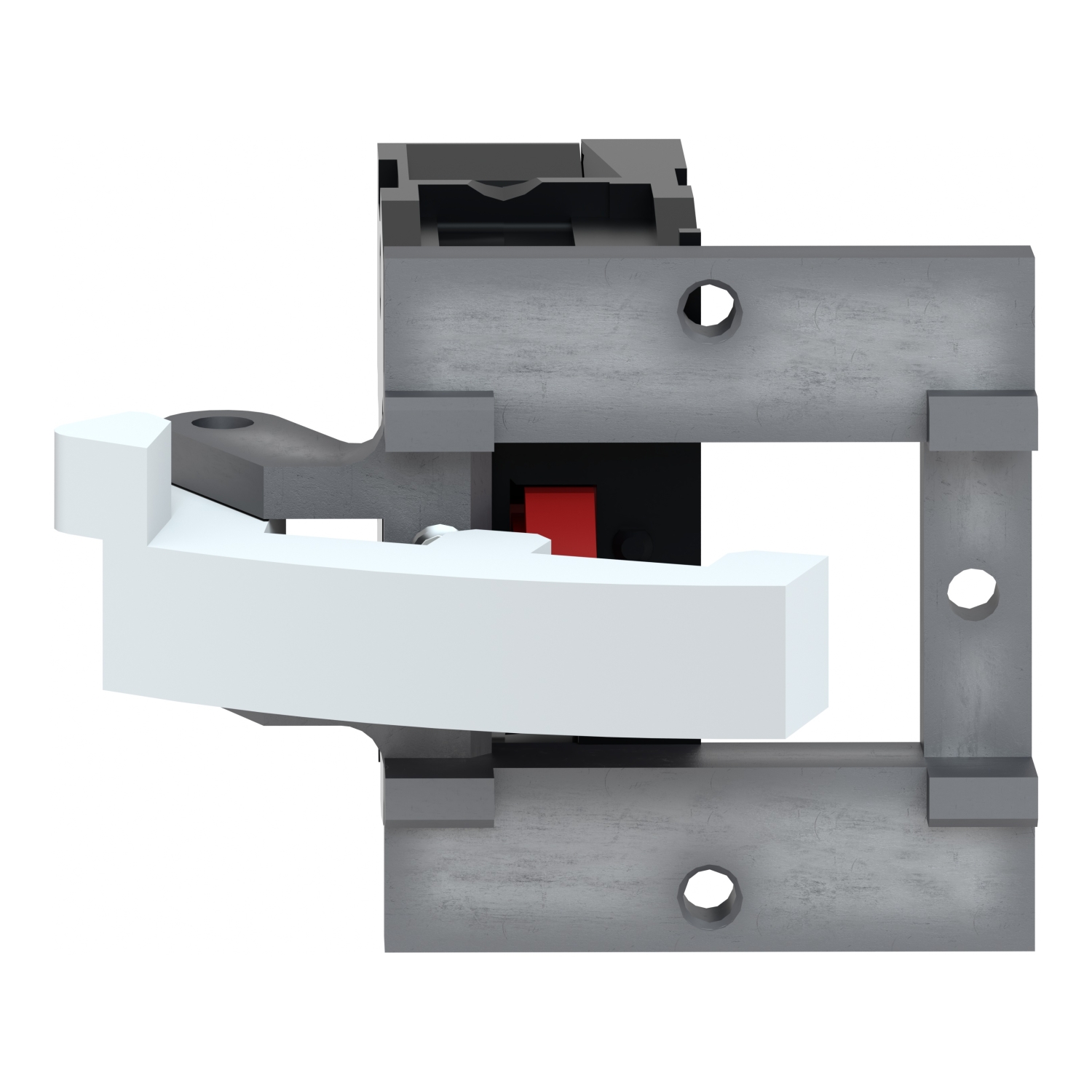

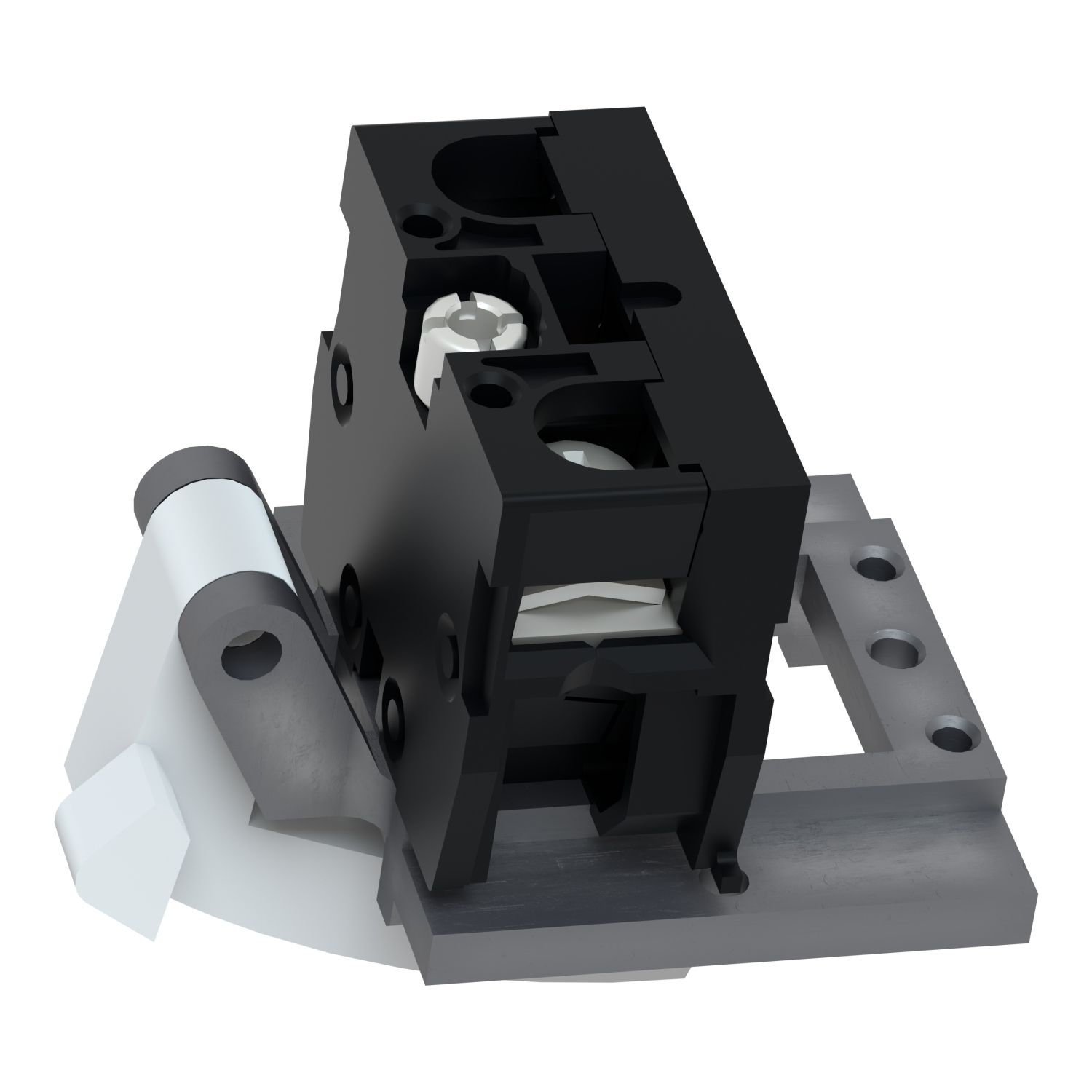

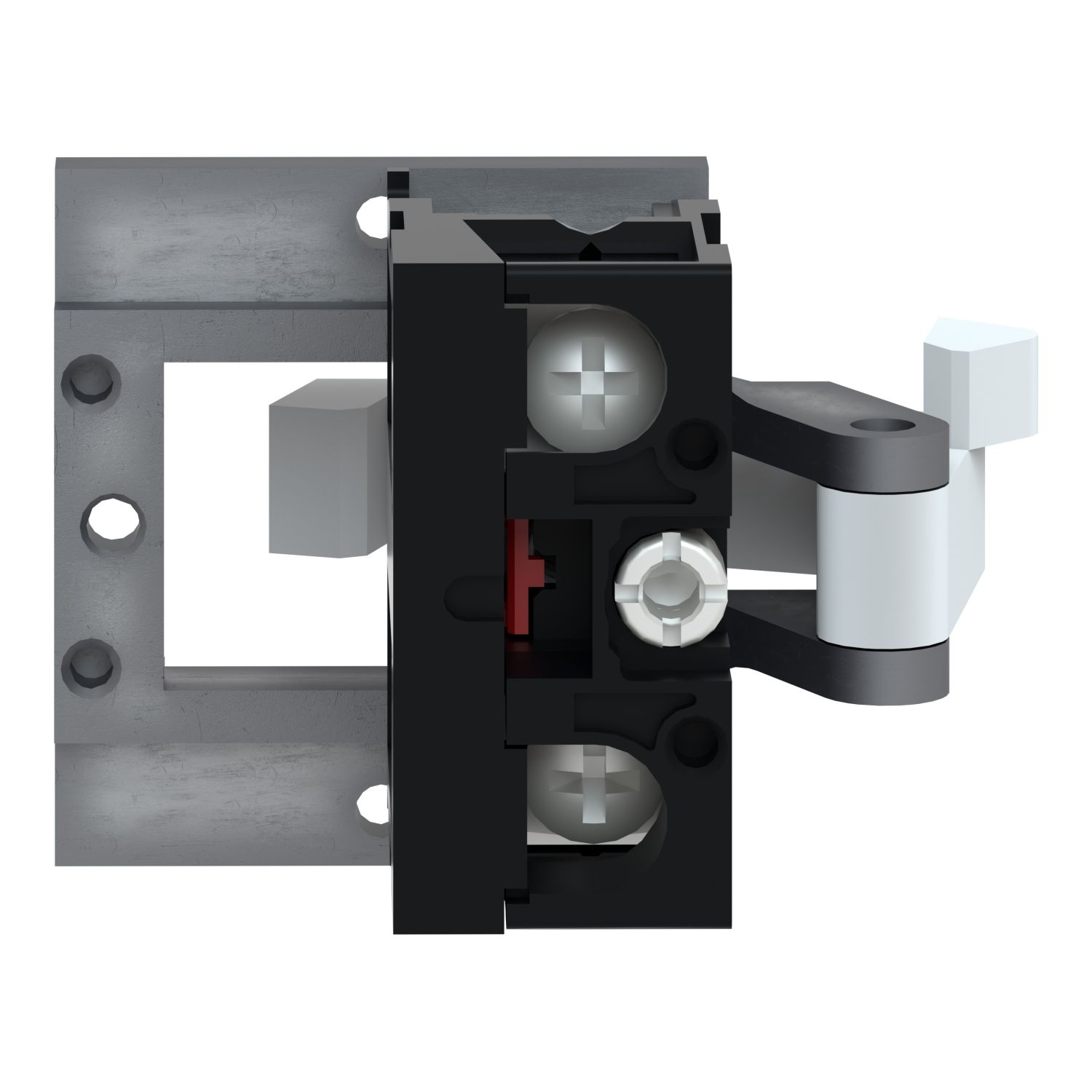

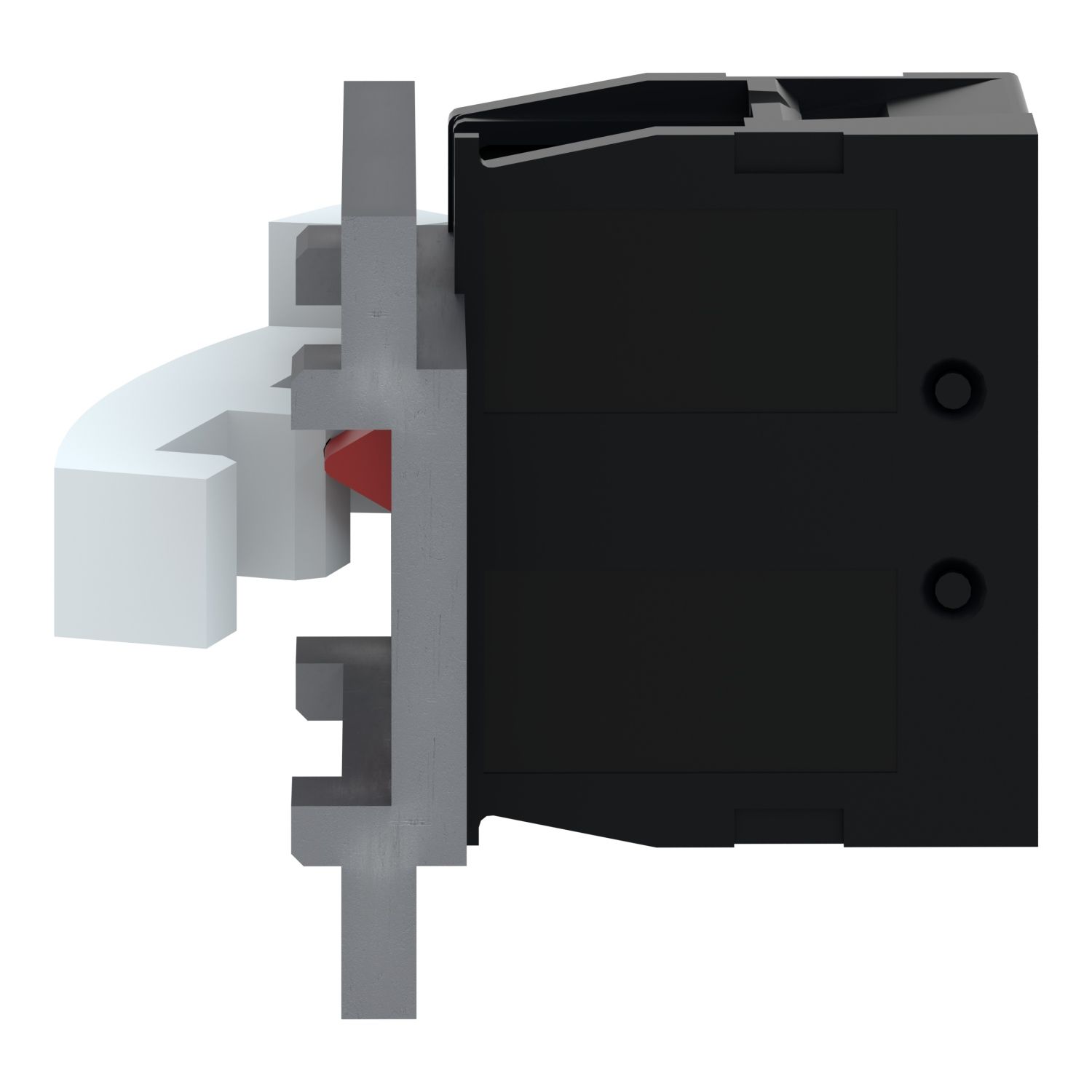

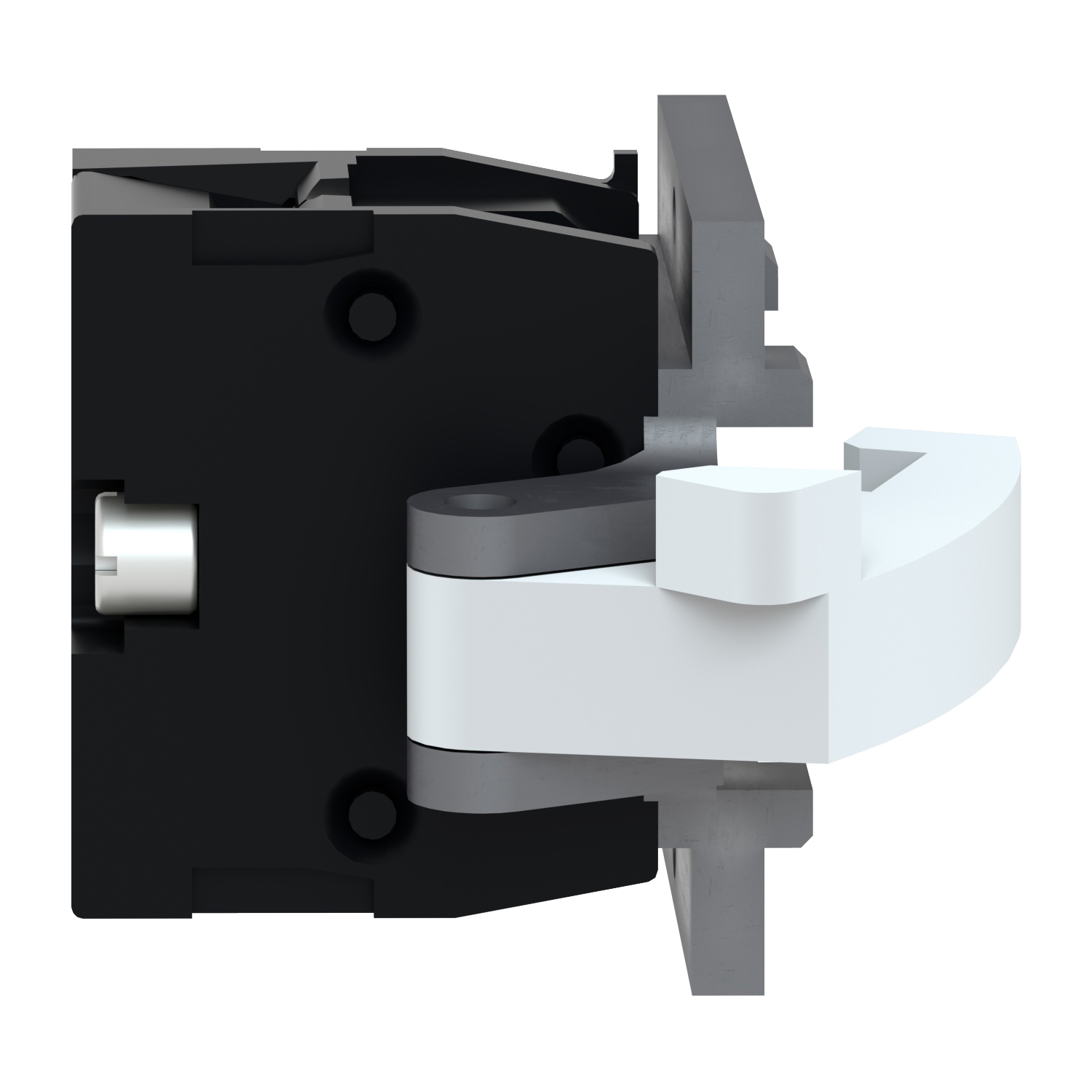

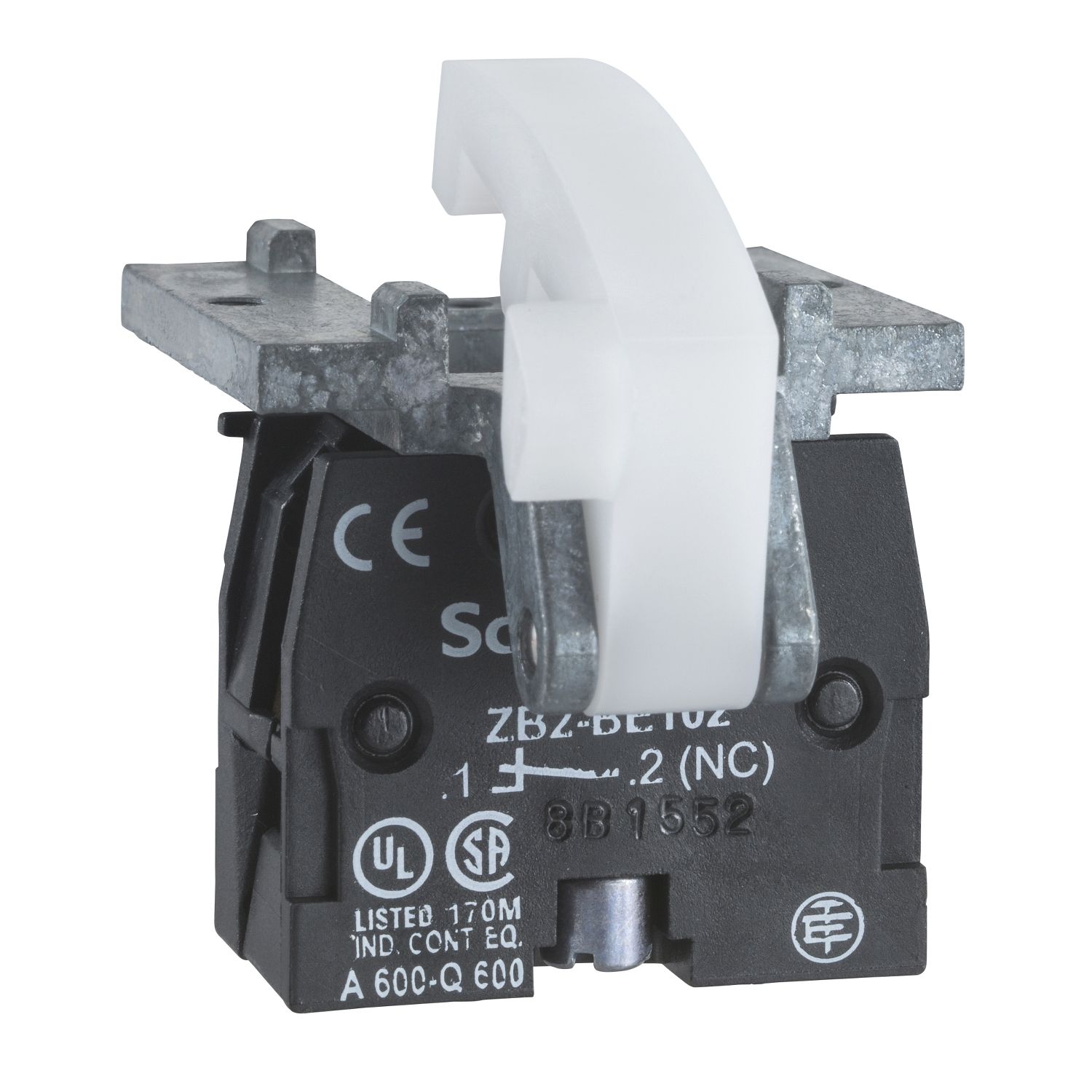

This Harmony XACS104 is a spring return contact block - 2 NC - base mounting. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | XACA |
| Electrical circuit type | control circuit |
| Type of operator | spring return |
| Contact operation | slow-break |
| Contacts type and composition | 2 NC |
| Component name | XACS |
| Product or component type | contact block |
| Contact block type | single |
| Range of product | Harmony XAC |
| Mounting of block | base mounting |
| Complementary | |
| Rated operational power in W | 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Contact code designation | Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A |
| Operating force | 11 N |
| Mechanical durability | 1000000 cycles |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.045 kg |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| [Ithe] conventional enclosed thermal current | 10 A |
| Maximum resistance across terminals | 25 MOhm |
| Terminals description ISO n°1 | (11-12)NC, (21-22)NC |
| Environment | |
| Overvoltage category | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -40-70 °C |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Standards | EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508 |
| Ambient air temperature for operation | -25-70 °C |
