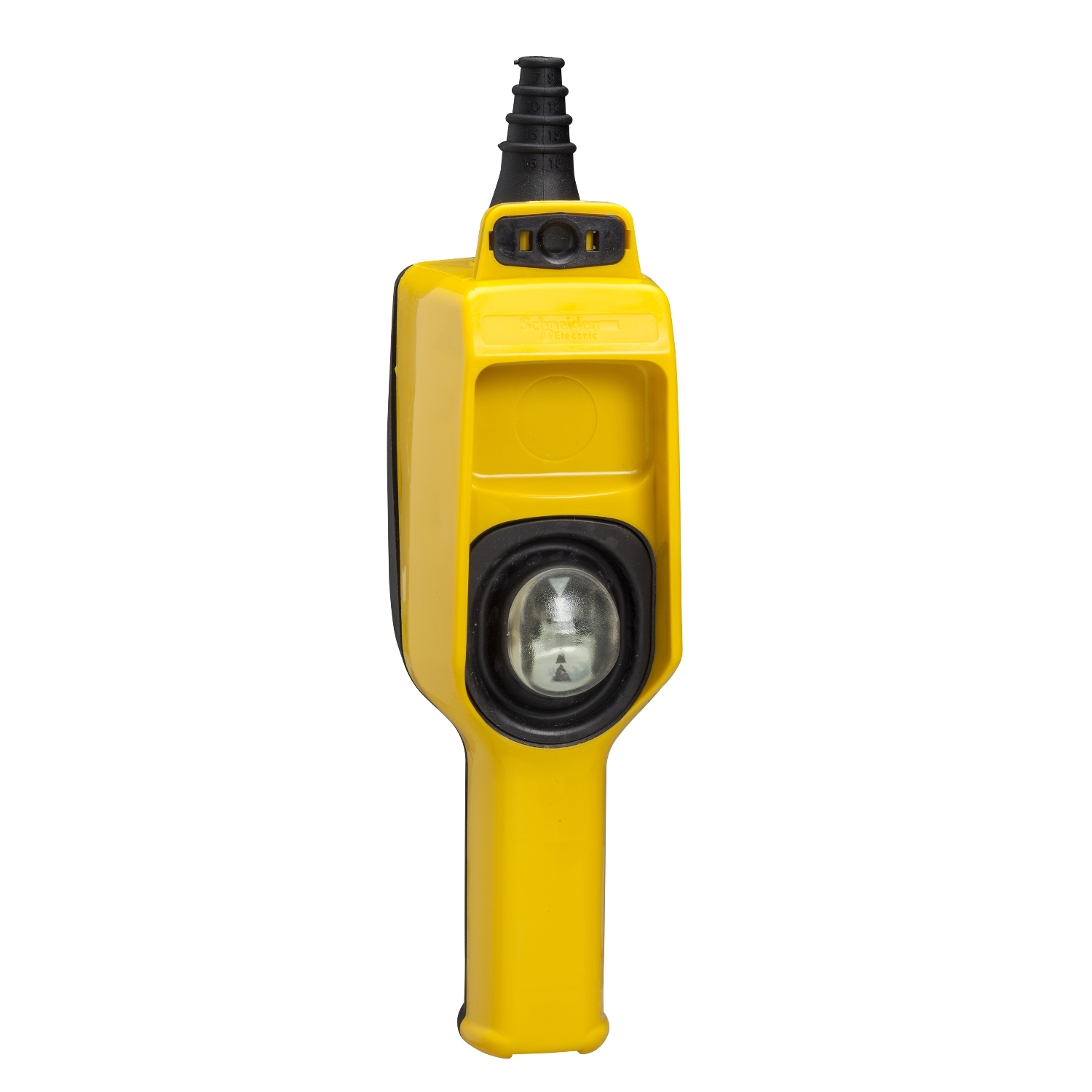

This Harmony XACD21A1231 is a pendant station 1 rocker lever. This yellow control station is double insulated. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XACD |
| Product or component type | pendant control station |
| Range of product | Harmony XAC |
| Complementary | |
| Rated operational power in W | 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Protective treatment | TH |
| Contact code designation | Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A |
| Enclosure material | polypropylene |
| [Ithe] conventional enclosed thermal current | 16 A |
| Electrical circuit type | control circuit |
| Control button type | second direction button 2 NO lower, slow-fast, first direction button 2 NO raise, slow-fast |
| Operating force | 16-16 N |
| Mechanical durability | 3000000 cycles |
| Control station colour | yellow |
| Mechanical interlocking | with mechanical interlocking |
| Contact operation | staggered, snap action |
| Overvoltage category | class II conforming to IEC 61140 |
| Control station composition | 1 2-directional button |
| Ambient air temperature for storage | -40-70 °C |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end |
| Motor starter type | reversing |
| Control type | intuitive |
| Control station type | double insulated |
| IP degree of protection | IP65 conforming to IEC 60529 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Product compatibility | XEDS1231 for reversing operation |
| Net weight | 0.365 kg |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Enclosure type | complete ready for use |
| Shock resistance | 70 gn conforming to IEC 60068-2-27 |
| Cable entry | rubber sleeve with stepped entry 7-18 mm |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Maximum resistance across terminals | 25 MOhm |
| Standards | EN/IEC 60204-32, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14 |
| Terminals description ISO n°1 | (13-14)NO, (33-34)NO, (23-24)NO_CL, (43-44)NO_CL |
| Ambient air temperature for operation | -25-70 °C |
| Terminal identifier | (13-14)NO, (11-12)NC |
| IK degree of protection | IK08 conforming to EN 50102 |
| Control station application | control of 2-speed hoist motor |
