Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | XESD1191, XESD1281, XESD1291, XESD1181 |
| Operating travel | 16 mm |
| Sale per indivisible quantity | 10 |
| Component name | XACB |
| Cap/operator or lens colour | red |
| Marking | unmarked |

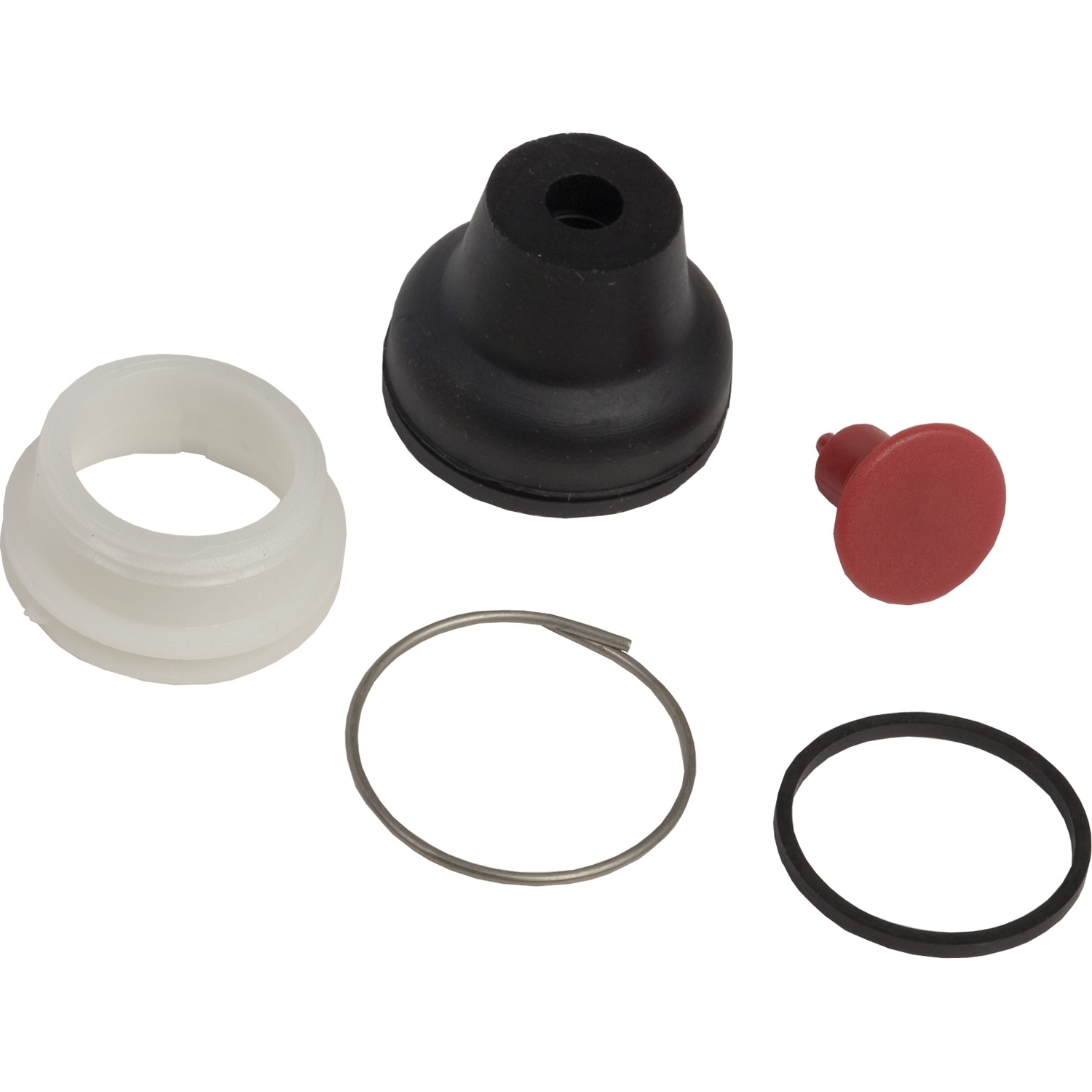

| Product or component type | head for push-button |
| Range of product | Harmony XAC |
| Operator additional information | booted |
| Complementary | |
| Net weight | 0.005 kg |
| Environment | |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Standards | CSA C22.2 No 14, EN 60947-5-1, IEC 60947-5-1 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK08 conforming to EN 50102 |
