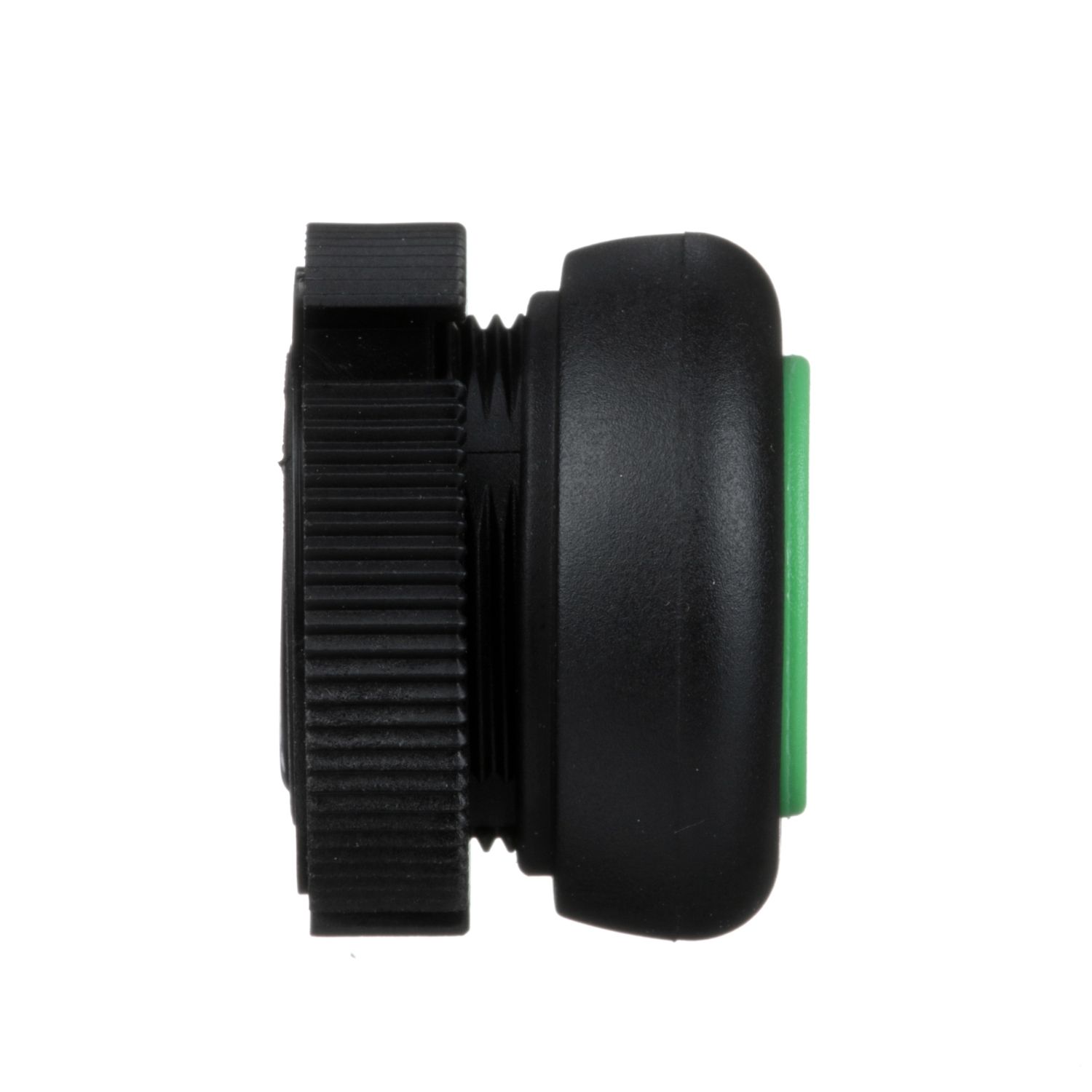

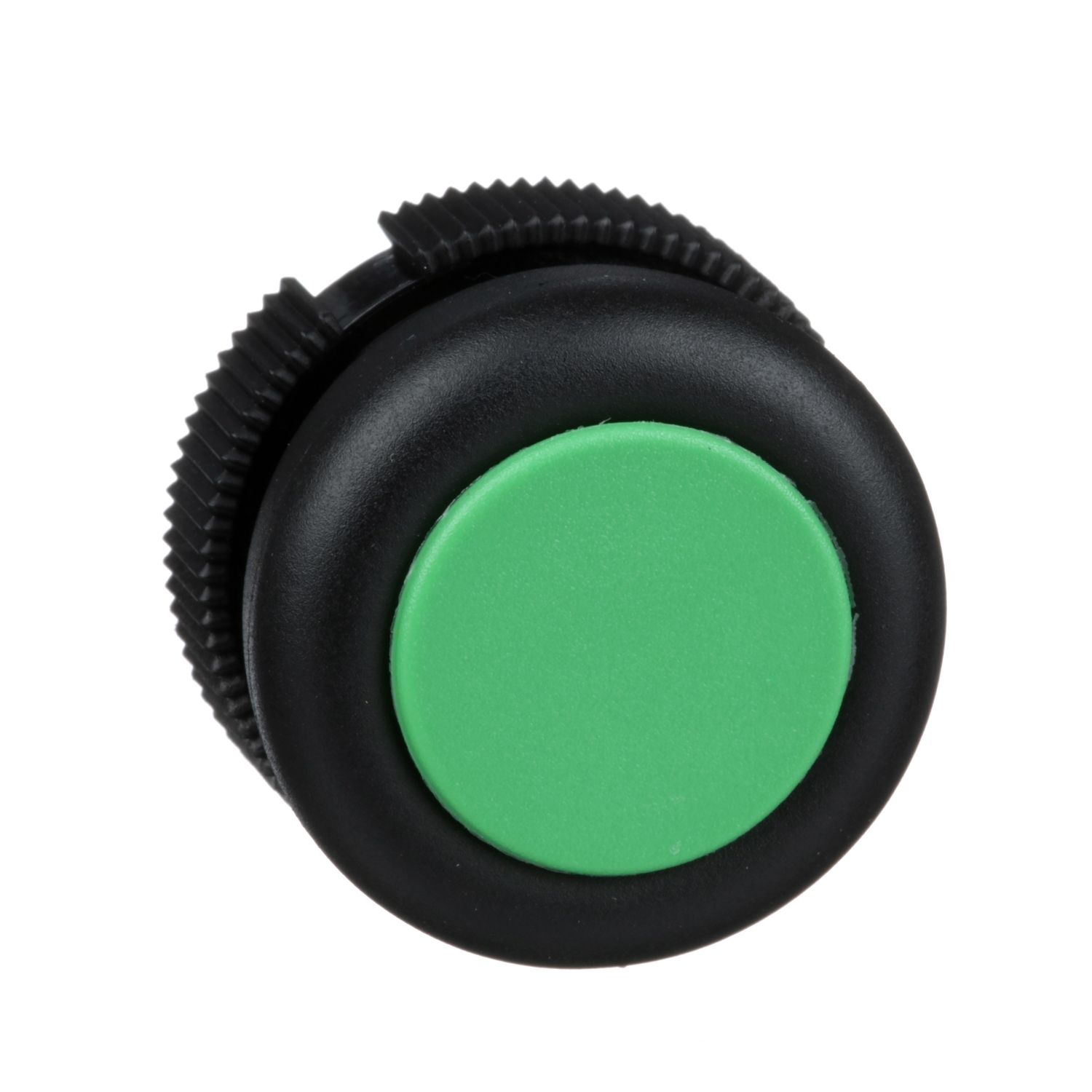

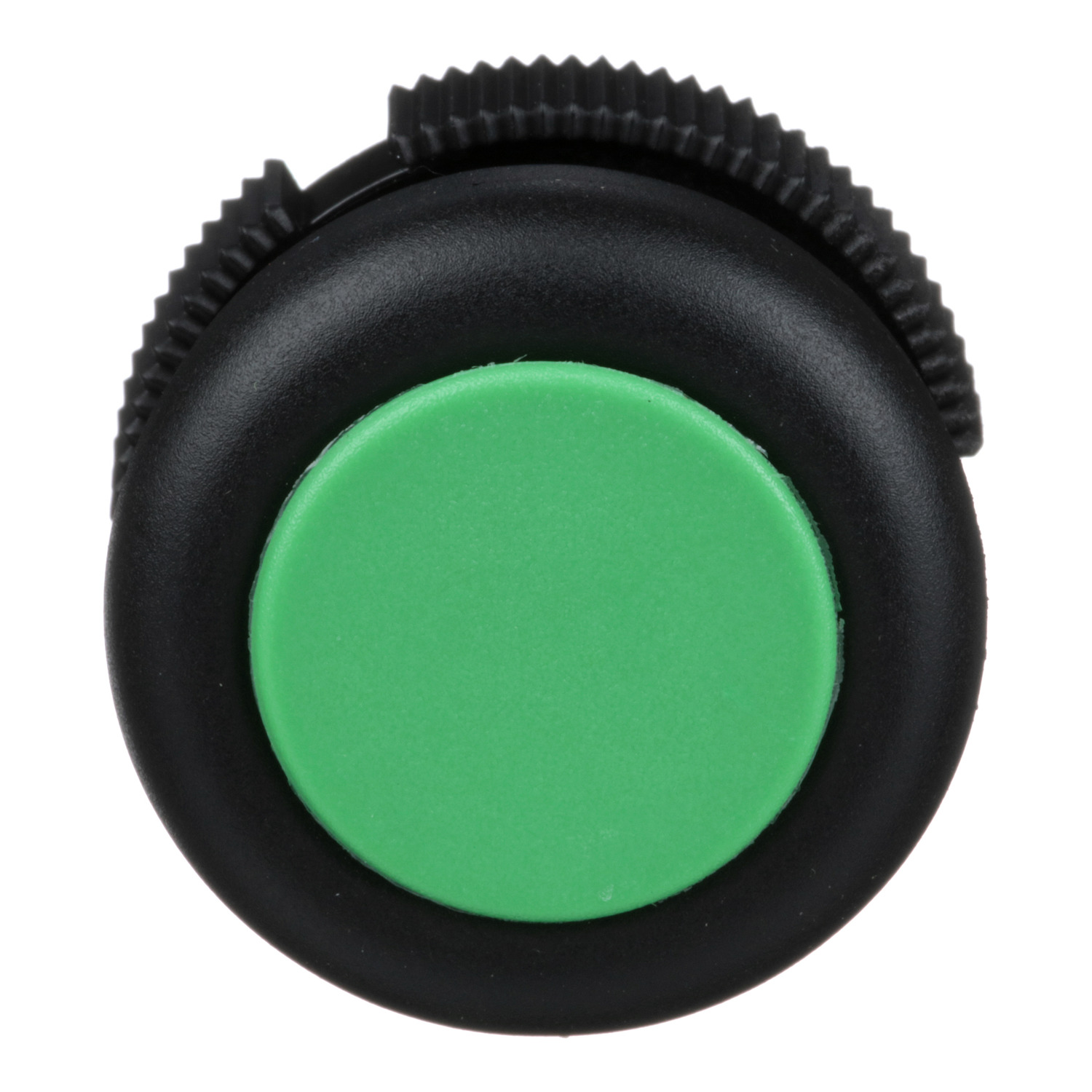

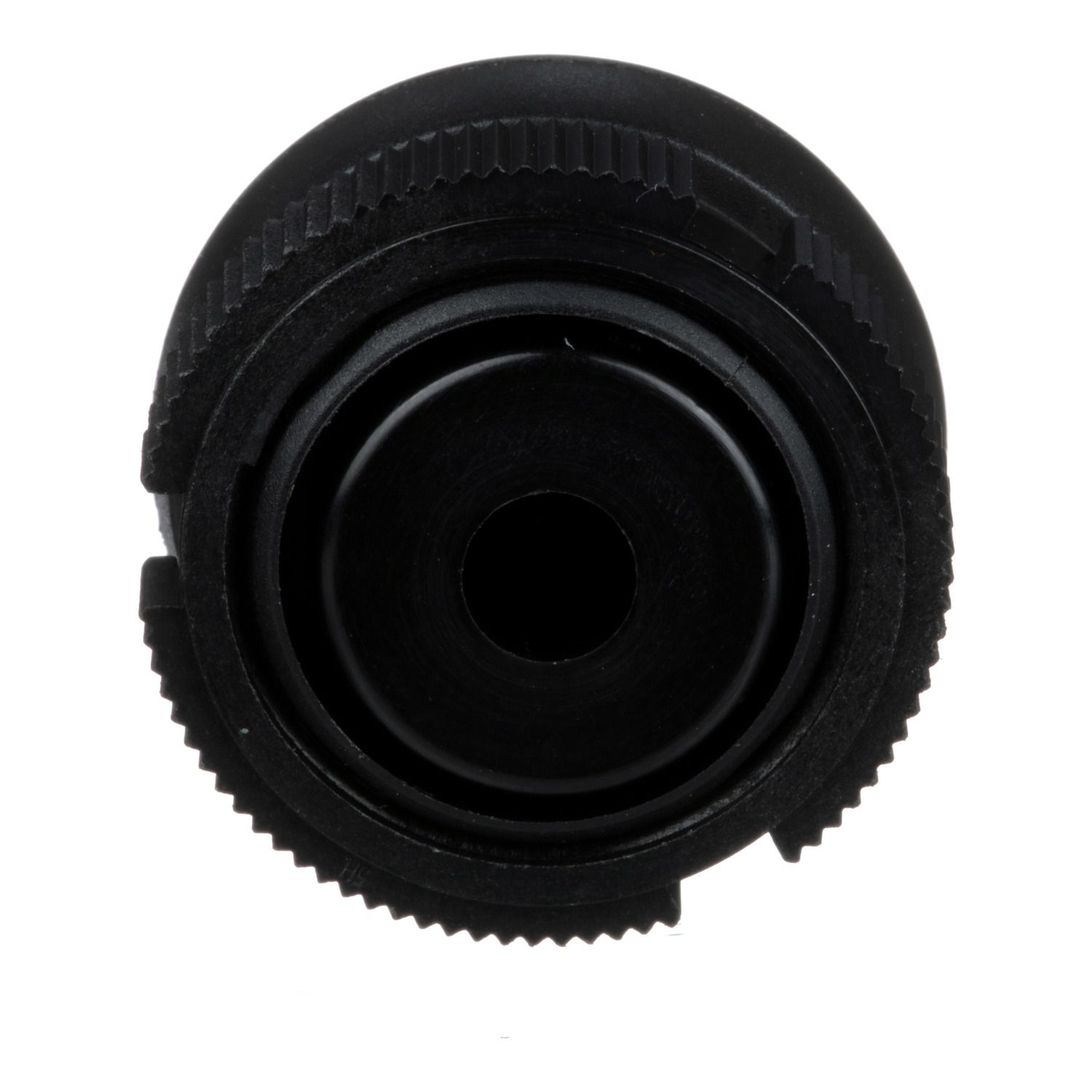

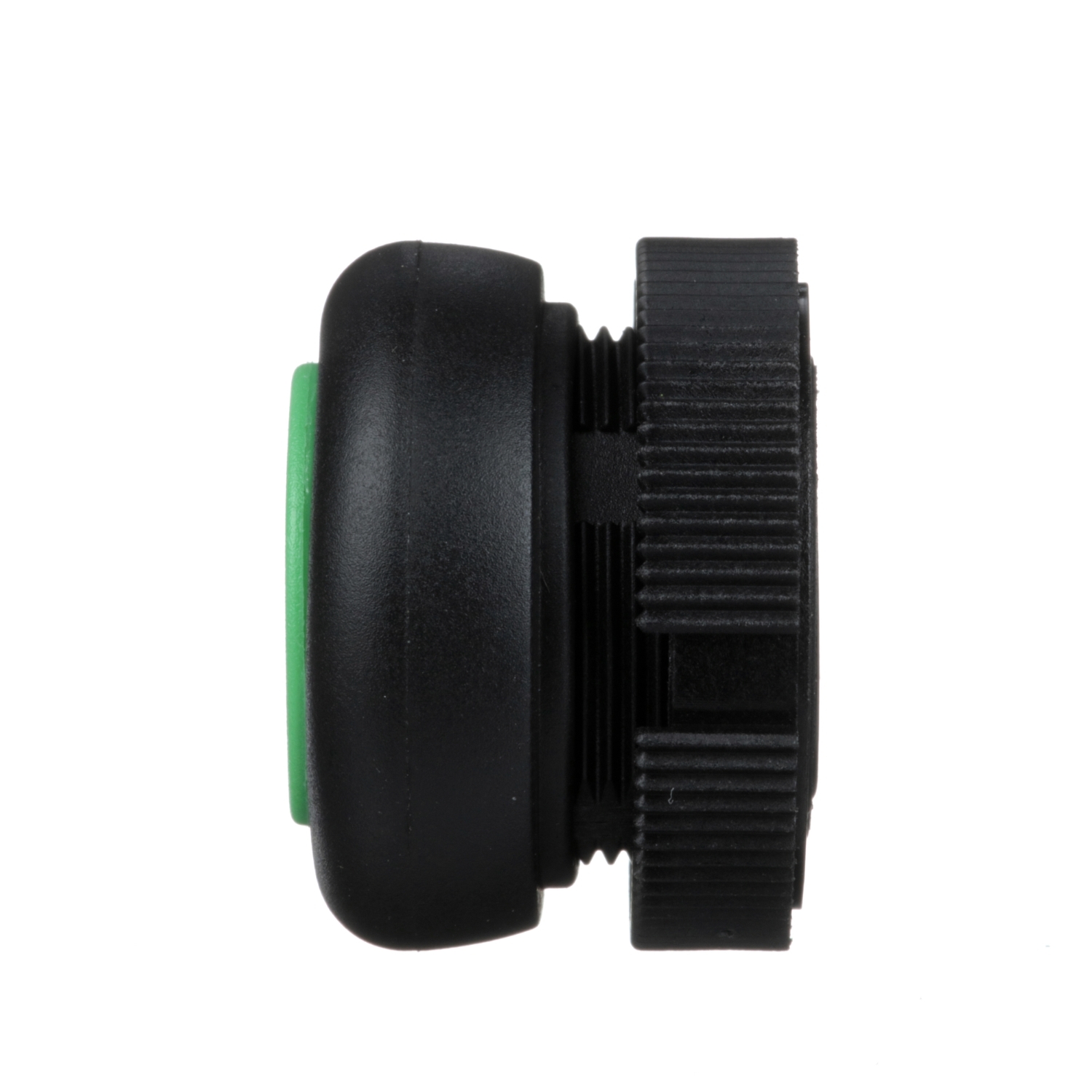

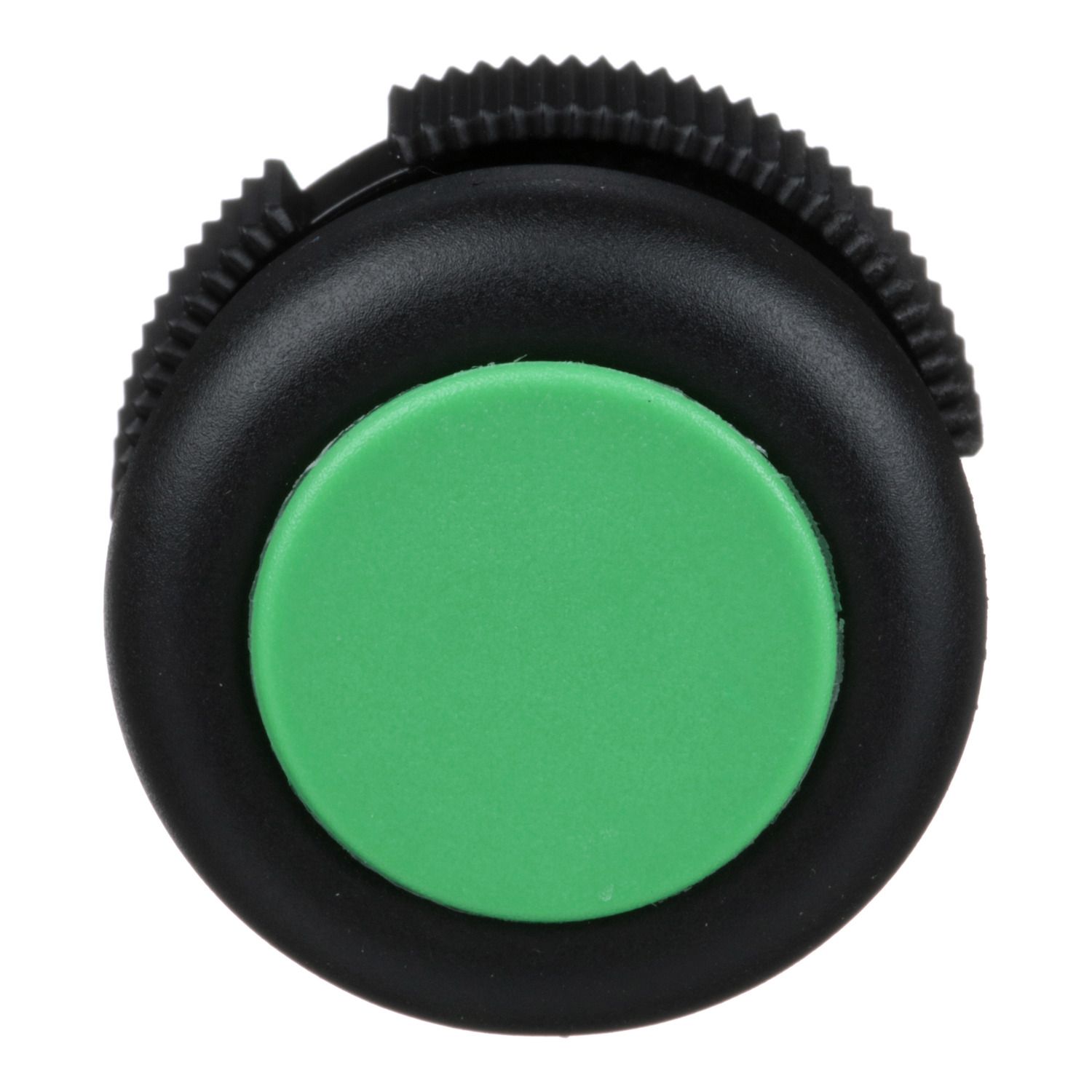

This green booted operating head is a separate component for double insulated, XACA pendant control station. It is designed for front mounting. It is sold in lot of 10.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Harmony XAC |
| Component name | XACA |
| Product or component type | head for push-button |
| Complementary | |
| Product compatibility | XACA.. |
| Ambient air temperature for storage | -40-70 °C |
| Sale per indivisible quantity | 10 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Cap/operator or lens colour | green |
| Marking | unmarked |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Overvoltage category | class II conforming to IEC 61140 |
| Mounting location | front of enclosure |
| Net weight | 0.01 kg |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Standards | IEC 60204-32, UL 508, CSA C22.2 No 14, IEC 60947-5-1 |
| Operator additional information | booted |
