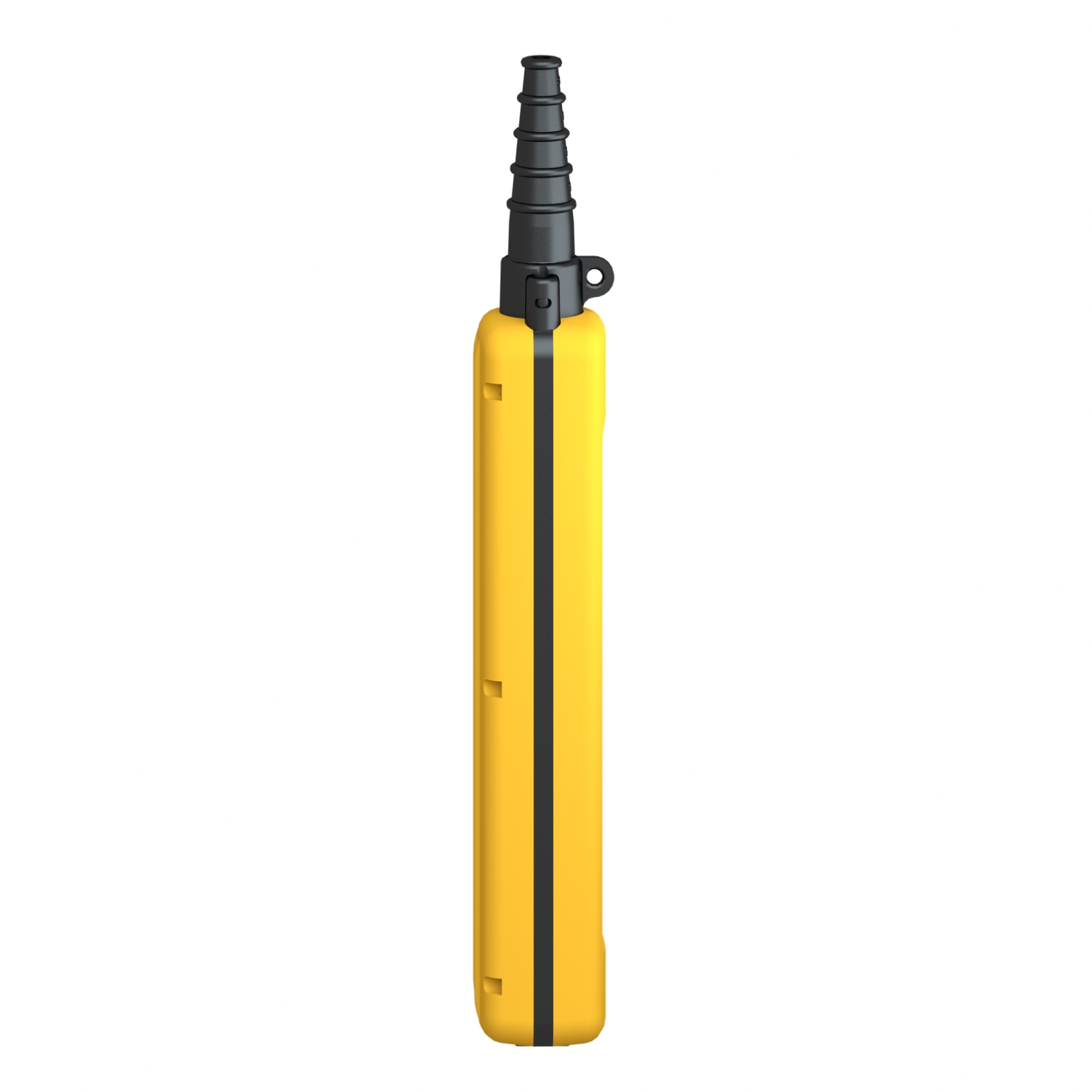

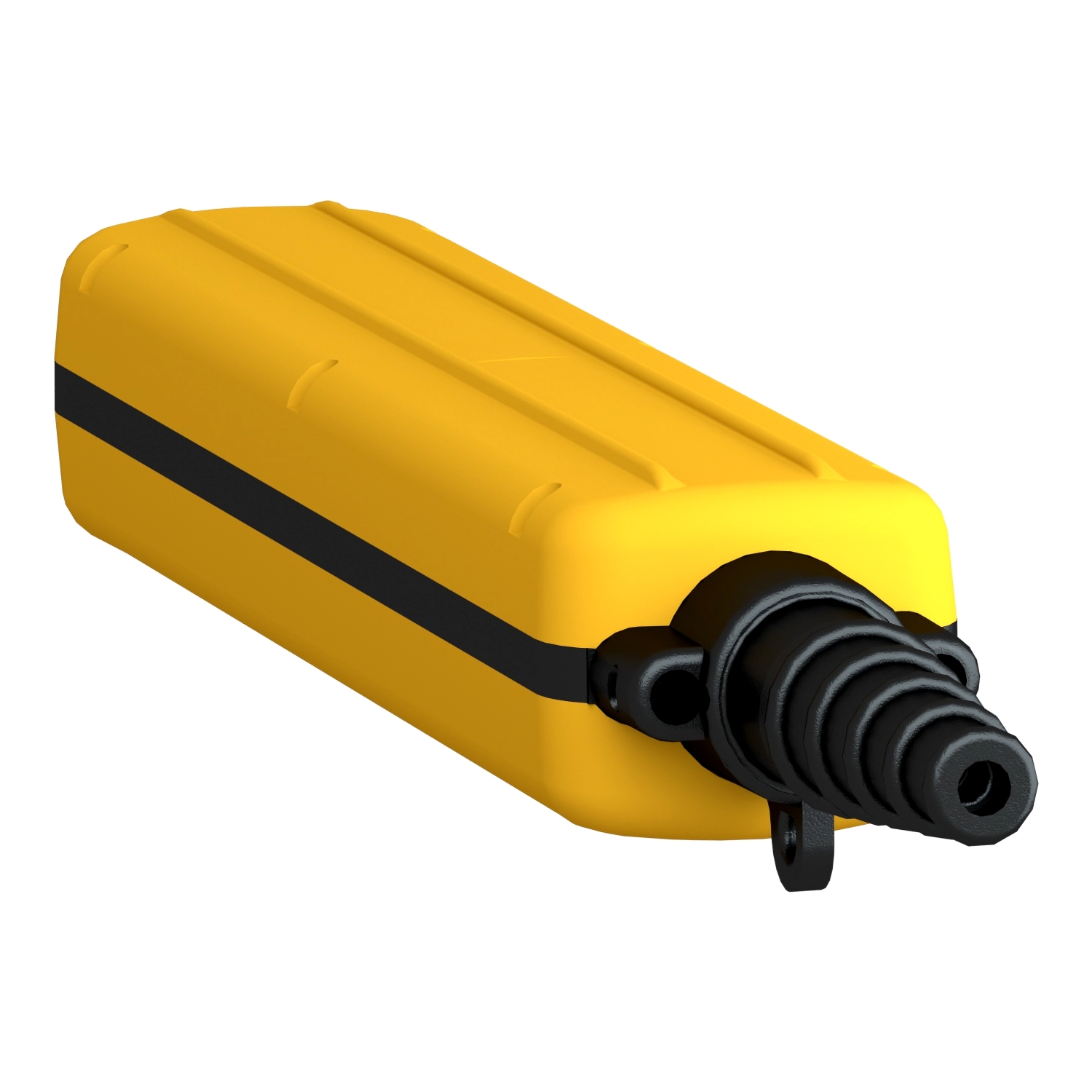

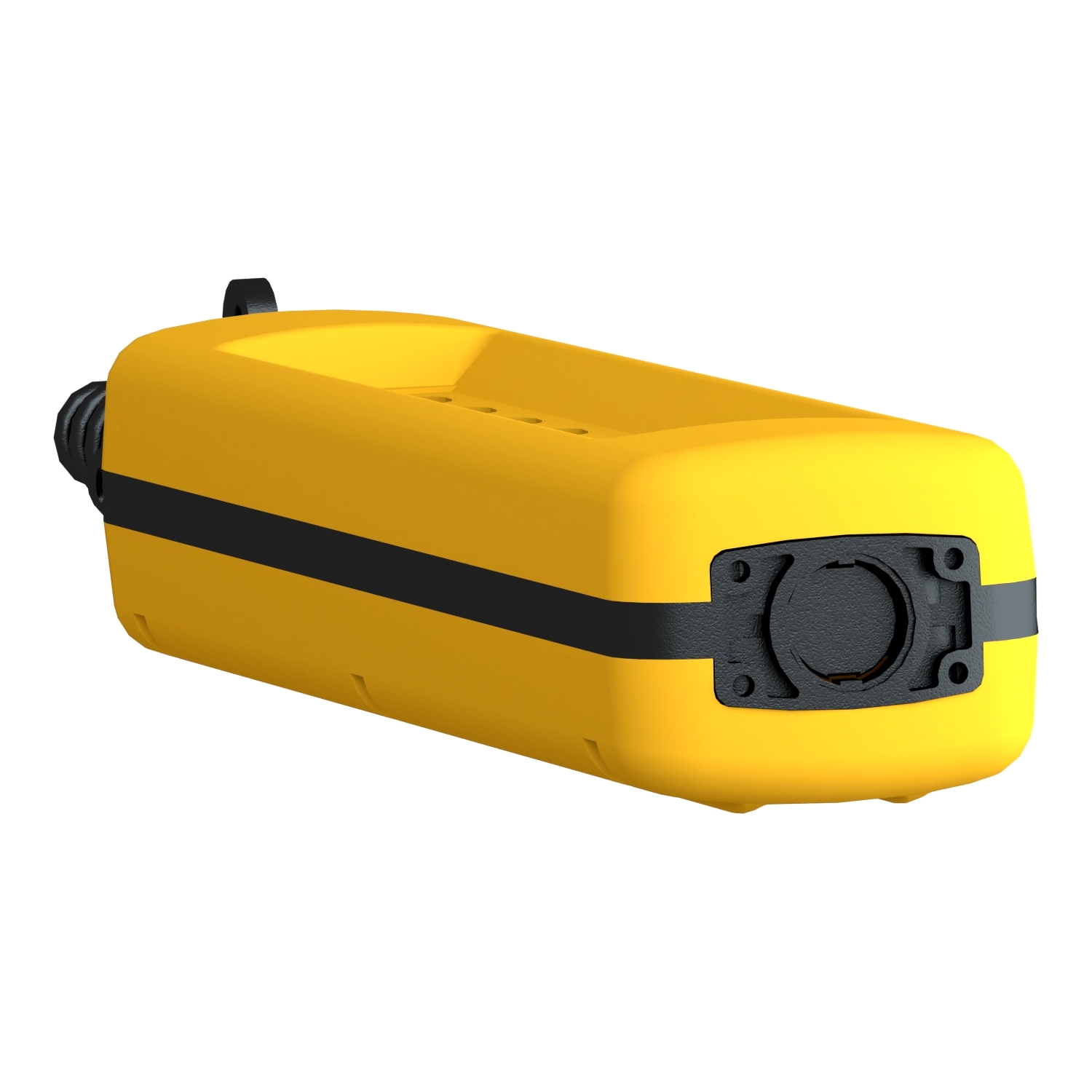

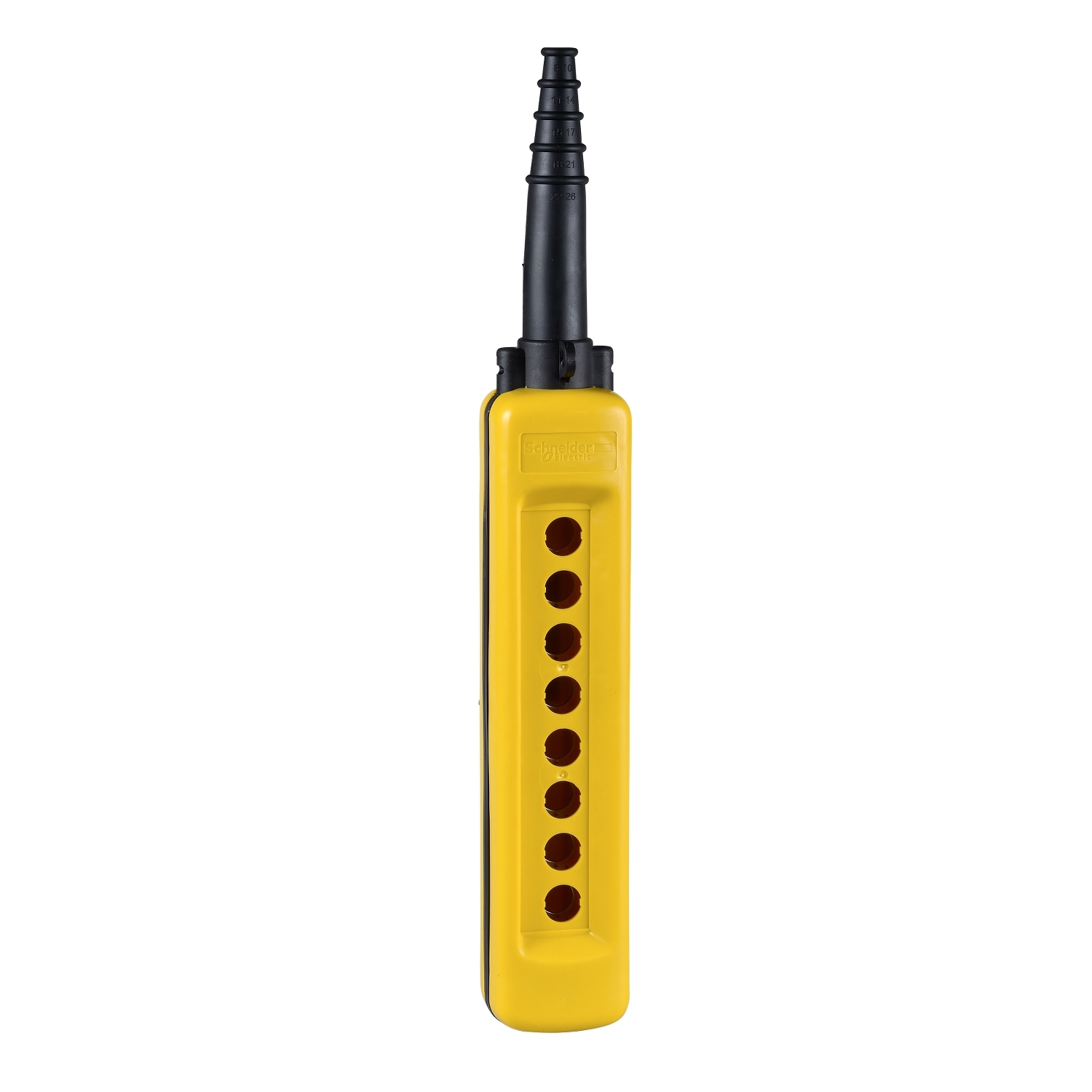

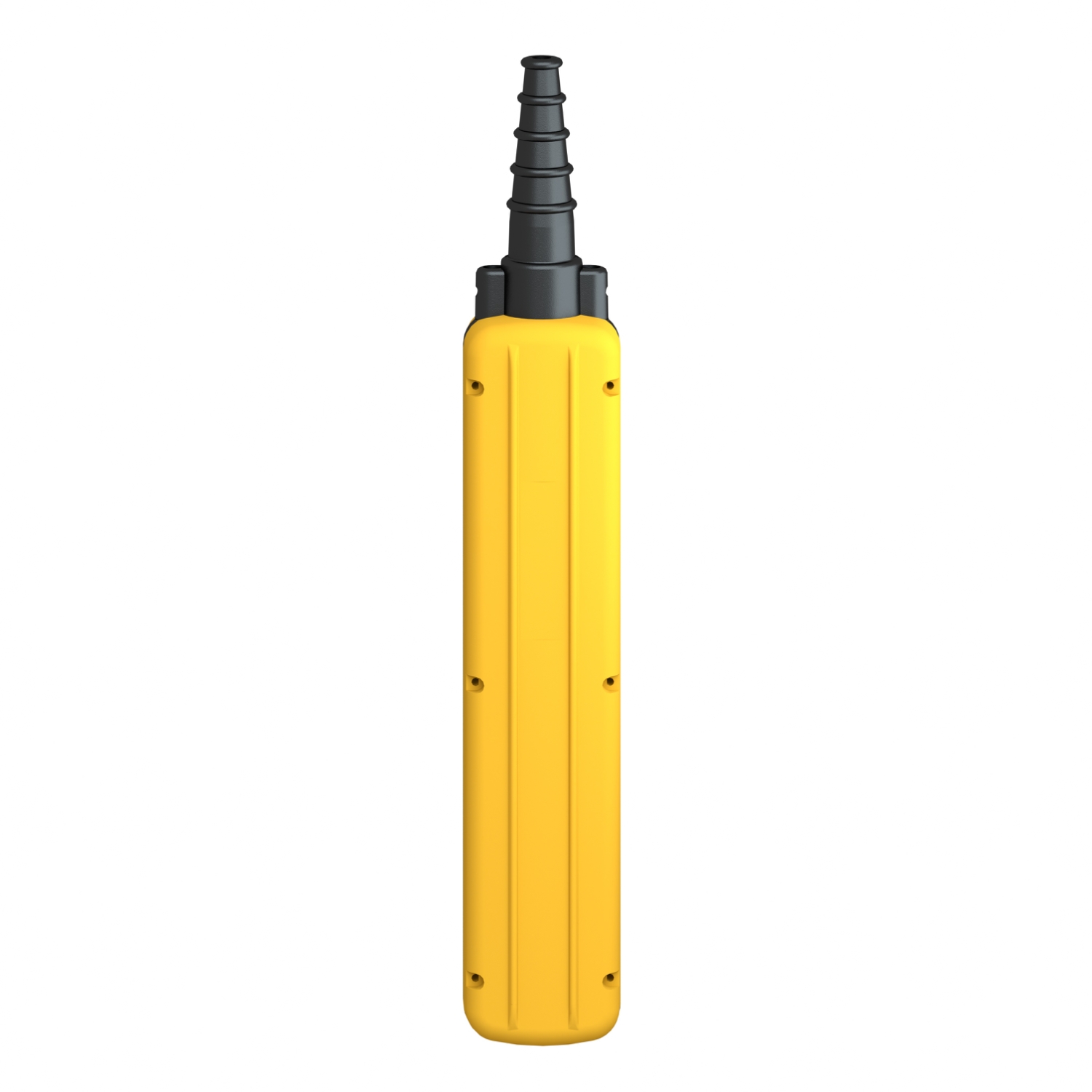

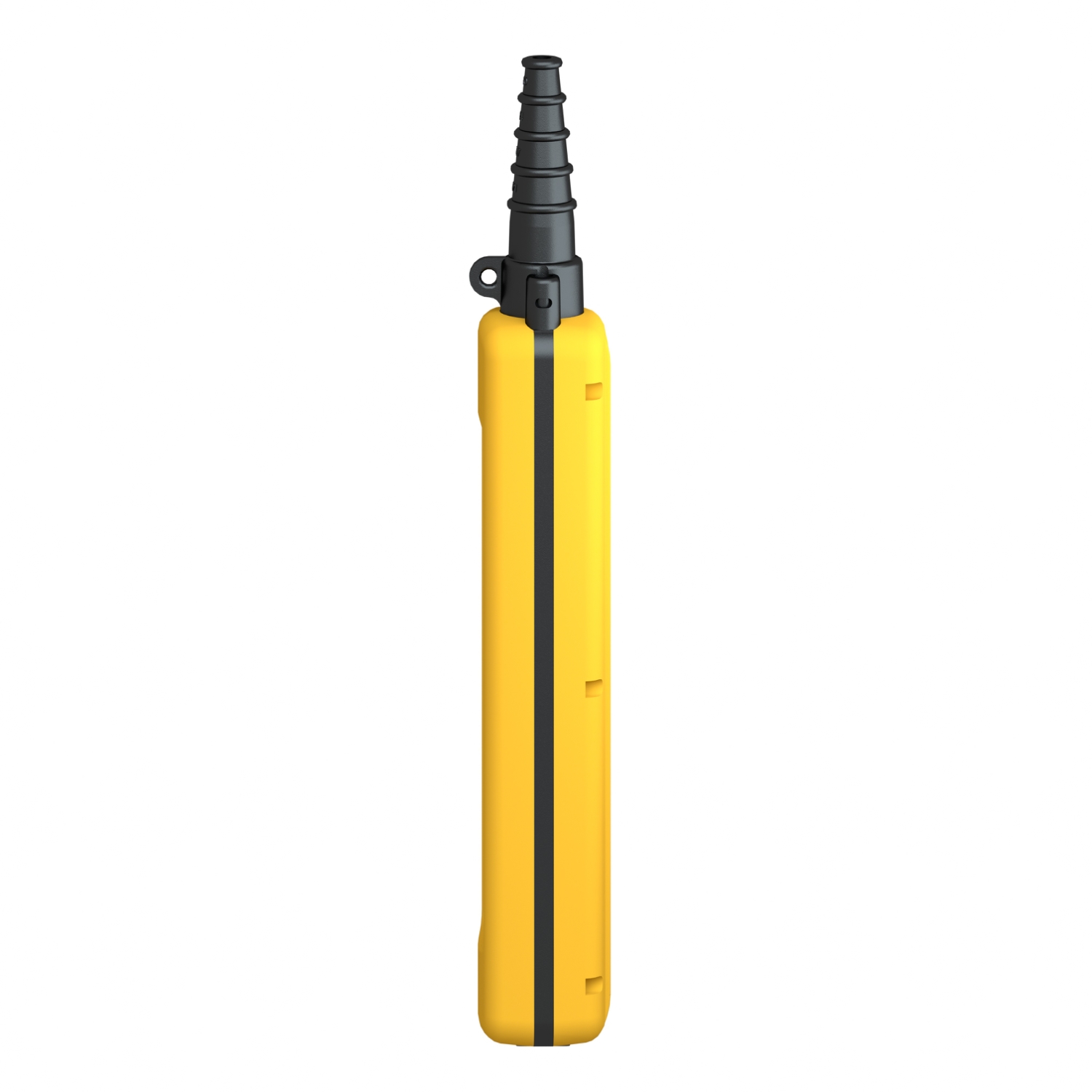

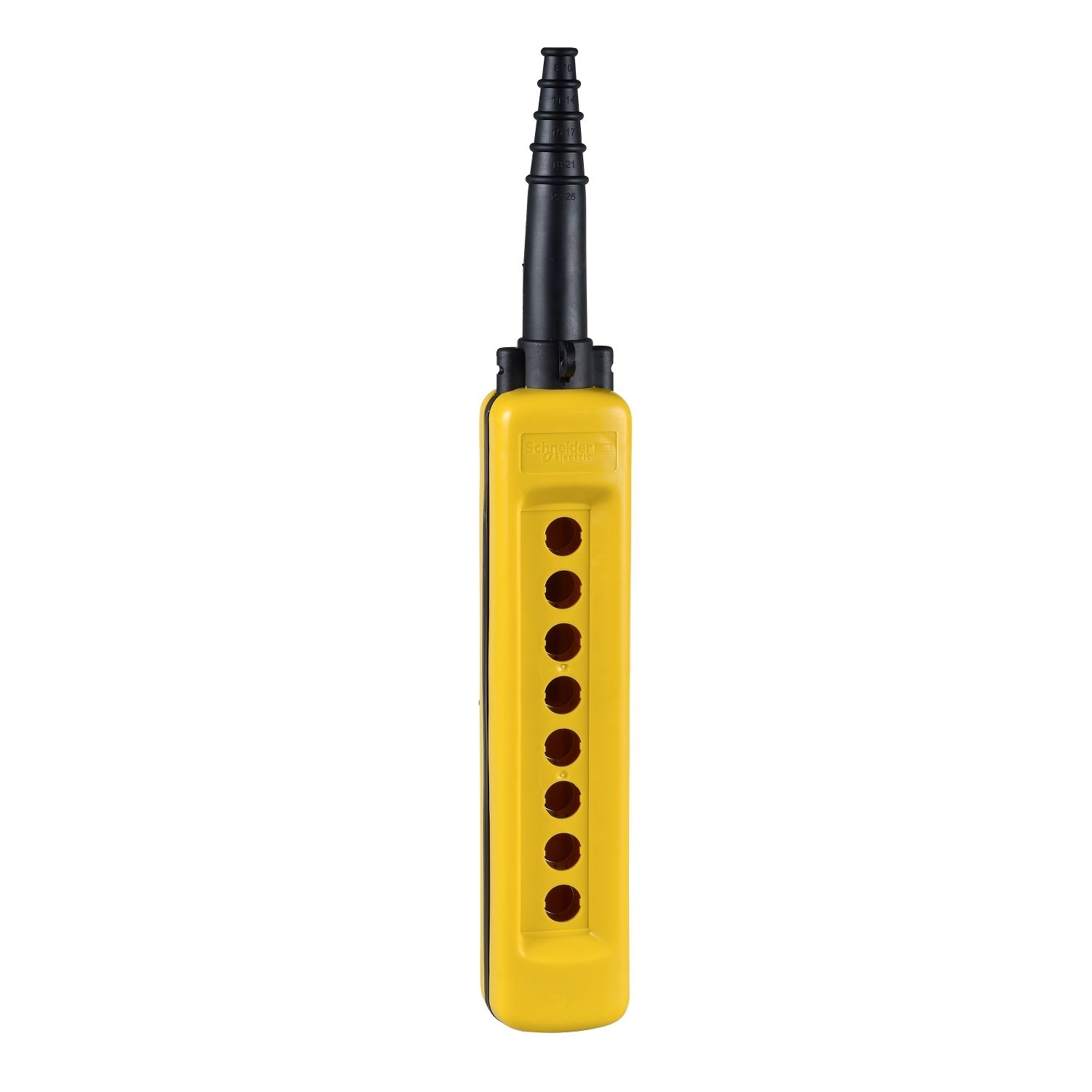

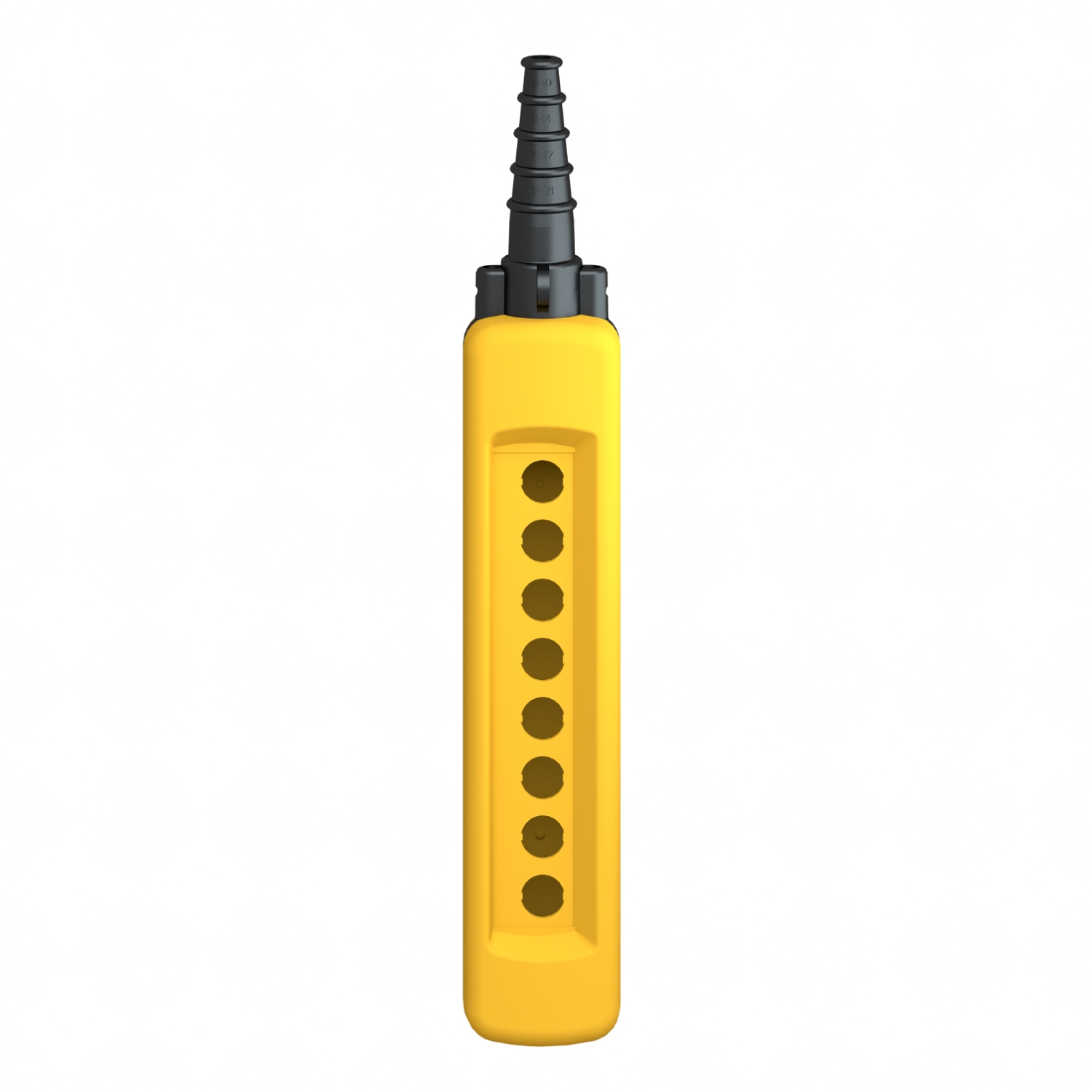

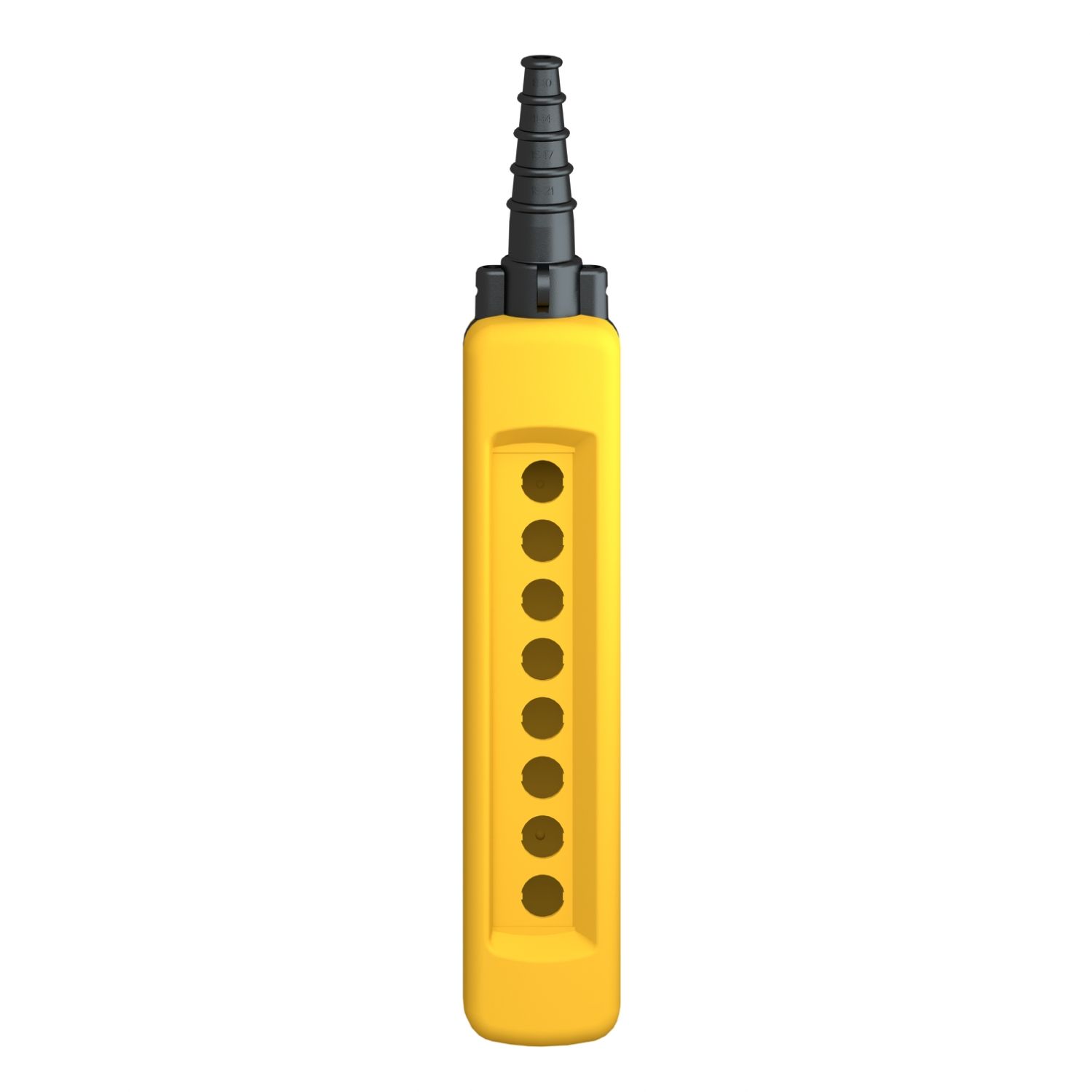

Empty pendant control station, Harmony XAC, plastic, yellow, 8 cut outs
Manufacturer: Schneider Electric
SKU: XACA08
GTIN: 3389110645071
Old price: $351.89 inc GST
$214.09 inc GST
Supported cards
Supported cards

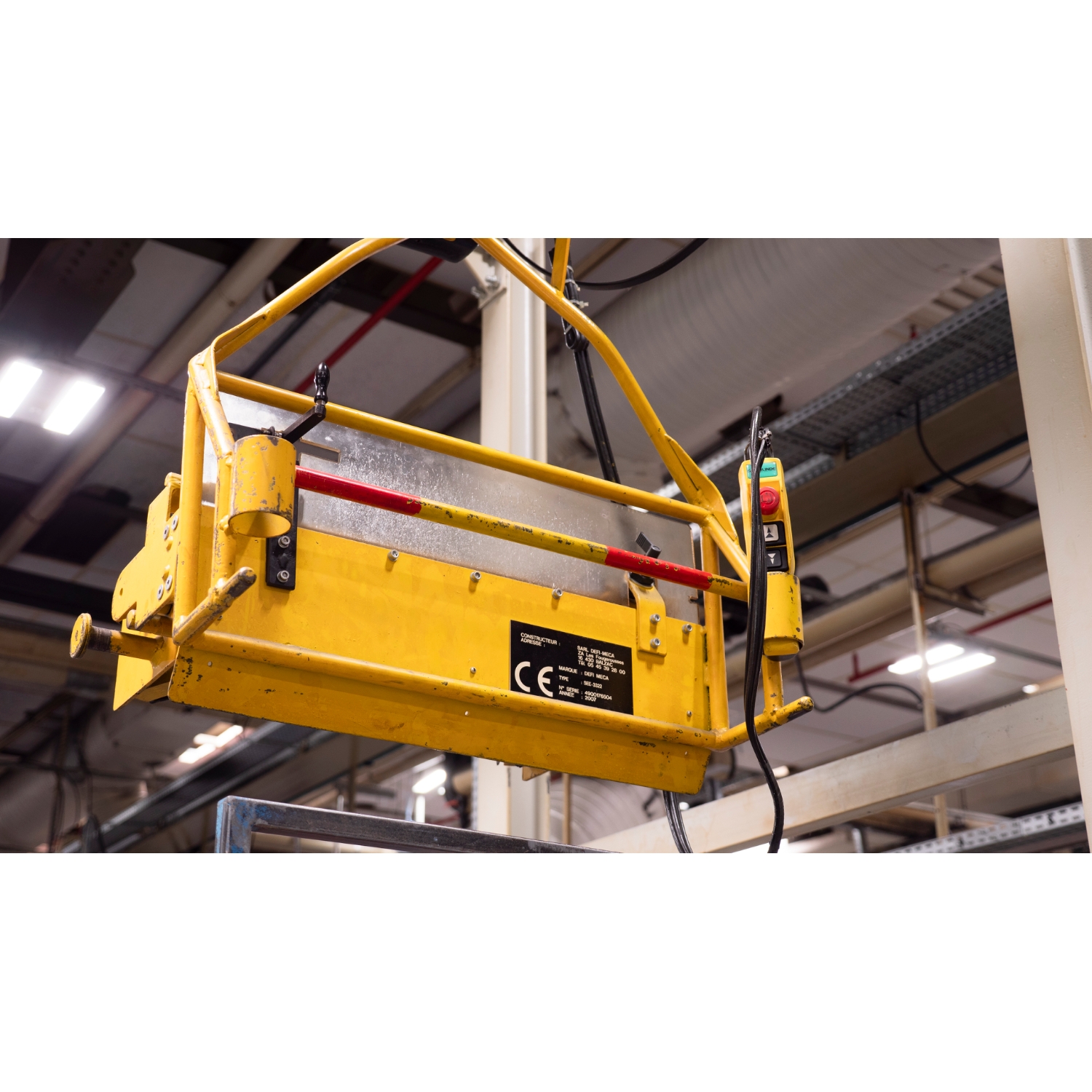

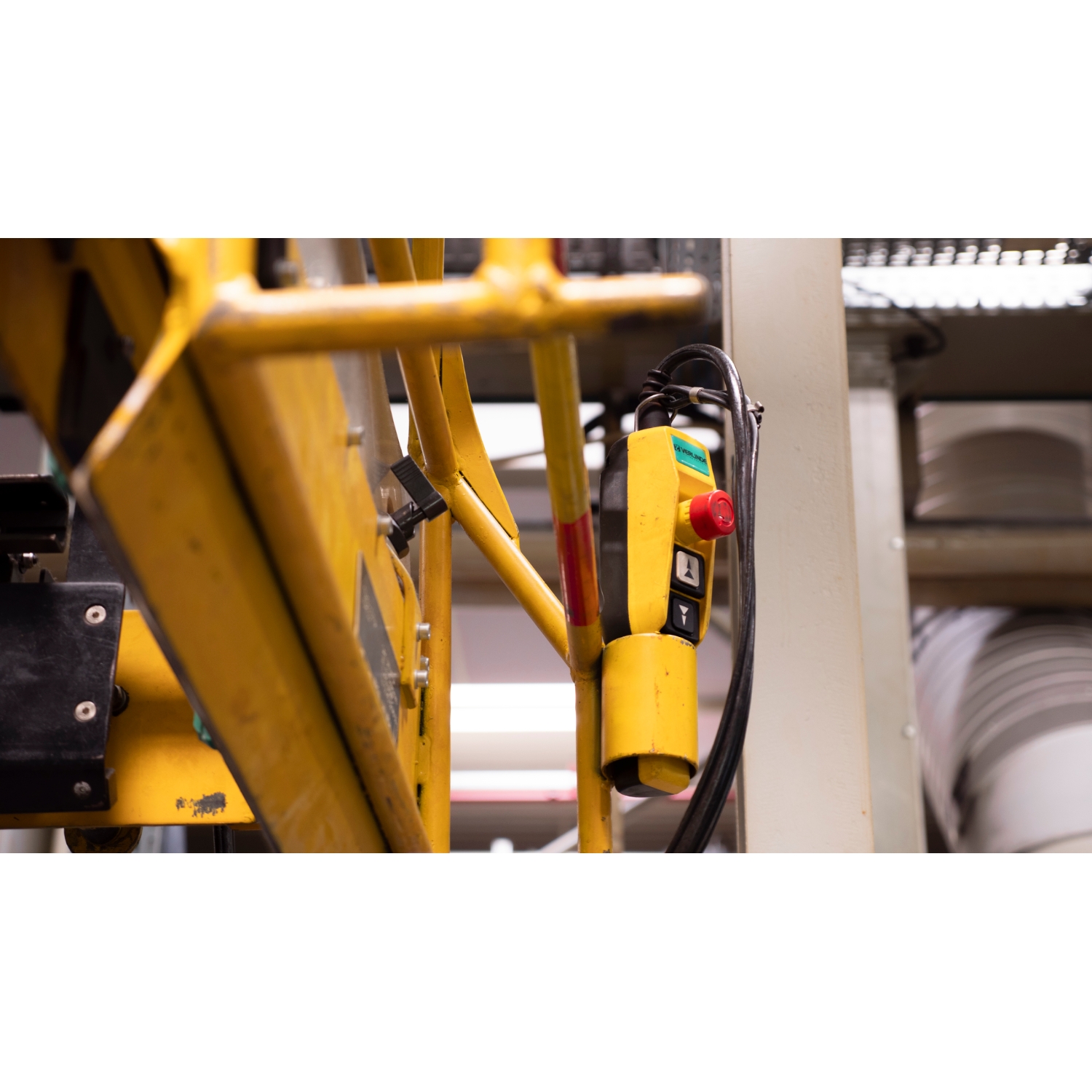

This Harmony XAC, empty pendant control station has 8 cut-out for 8 push buttons / 8 functions for controlling of operation in machines. This 8 cut-out yellow empty pendant control station is ideal for general purposes use as it enables machine builder to add any required control units for custom factory-assembled stations. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It can be retrofitted with all 22mm push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XACA
Range of product Harmony XAC
Product or component type pendant control station
Complementary
Protective treatment TH
Electrical circuit type control circuit
Mechanical durability 1000000 cycles
Control station colour yellow
Ambient air temperature for storage -40-70 °C
Number of cut-out 8 cut-outs
Control station type double insulated
Vertical operator cut-out centre 30 mm
IP degree of protection IP65 conforming to IEC 60529
Enclosure type empty enclosure
Shock resistance 100 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -25-70 °C
Guard rail without
IK degree of protection IK08 conforming to EN 50102
Enclosure material polypropylene
Overvoltage category class II conforming to IEC 61140
Net weight 0.77 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Cable entry rubber sleeve with stepped entry 8-26 mm
Standards EN/IEC 60204-32, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14
Product certifications CCC, GOST
