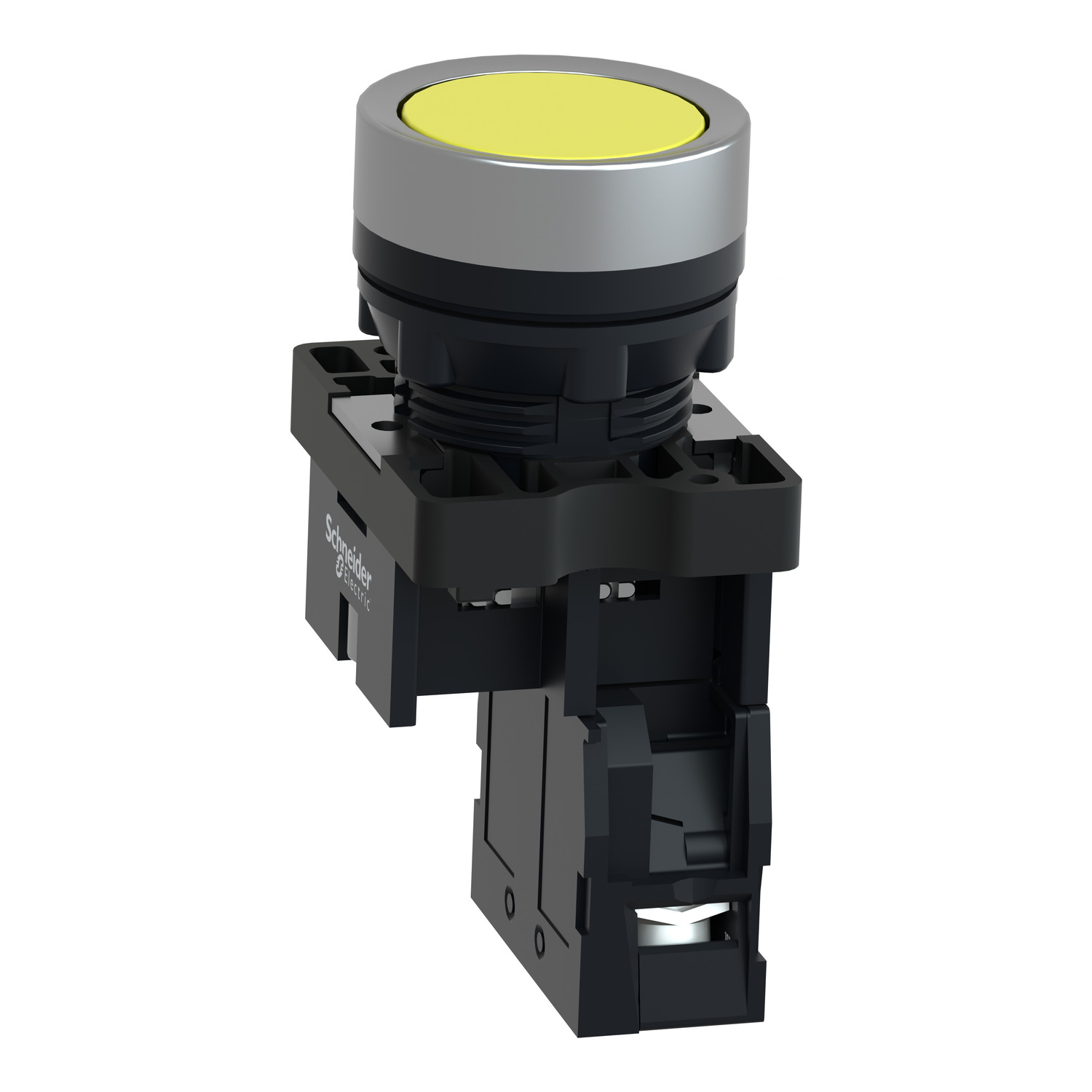

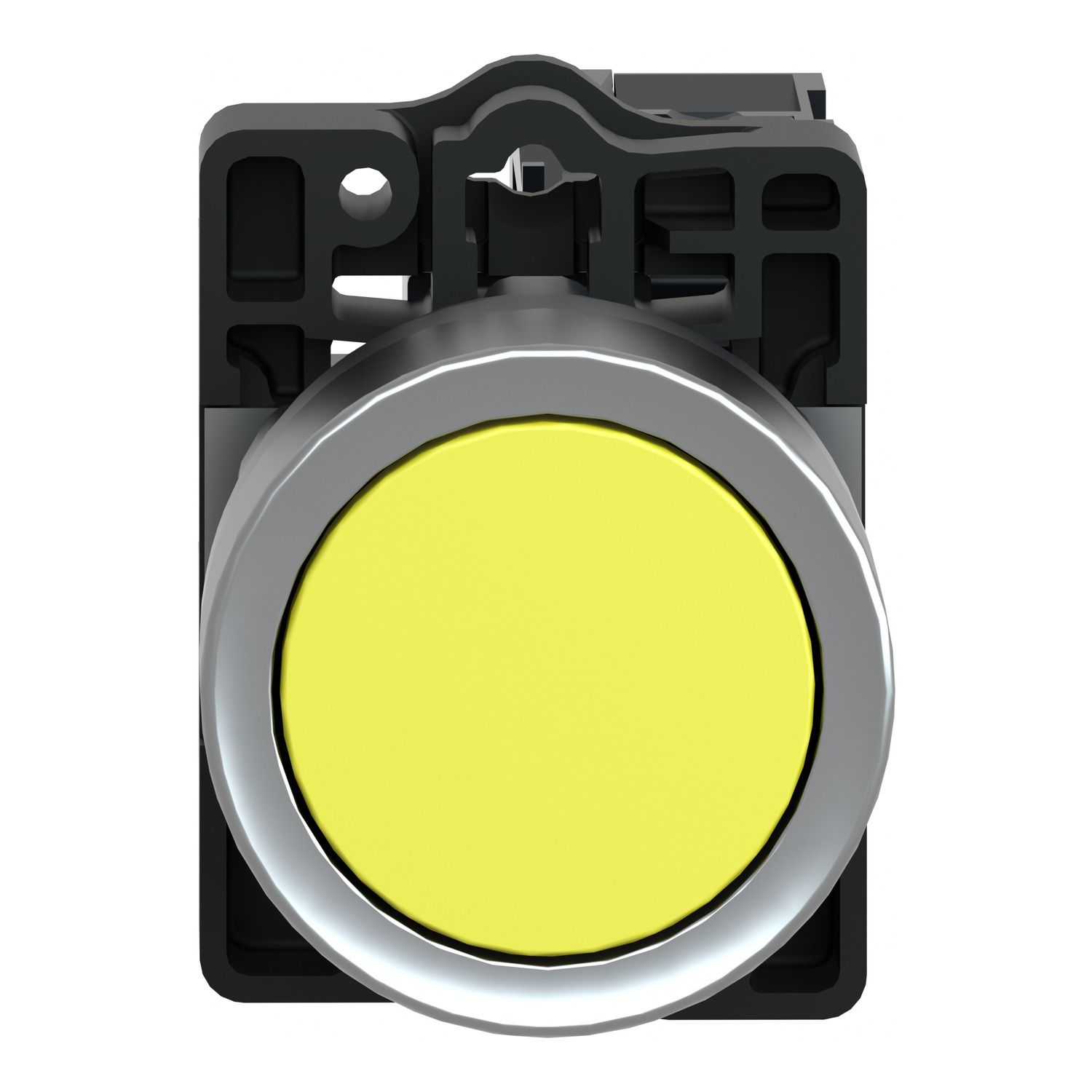

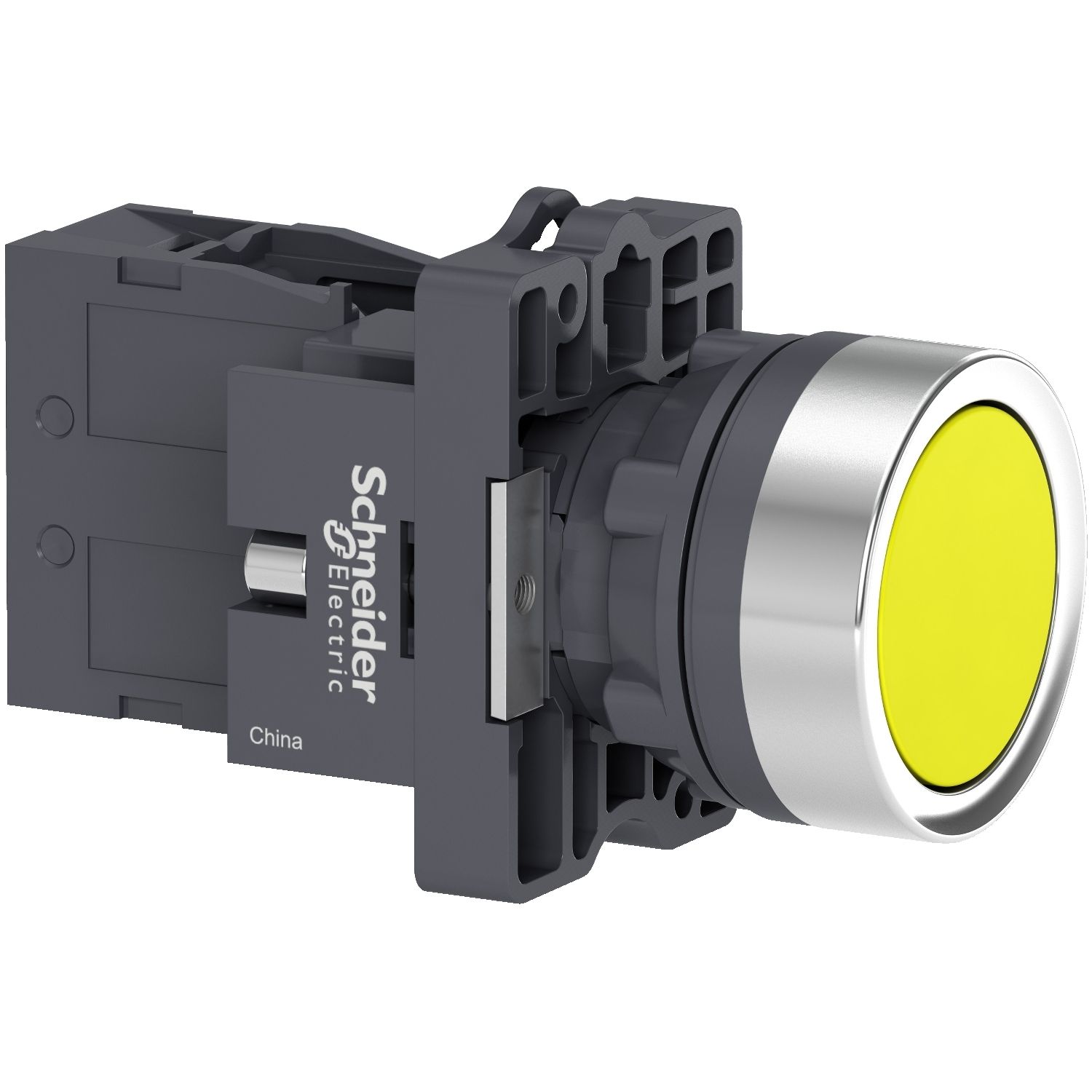

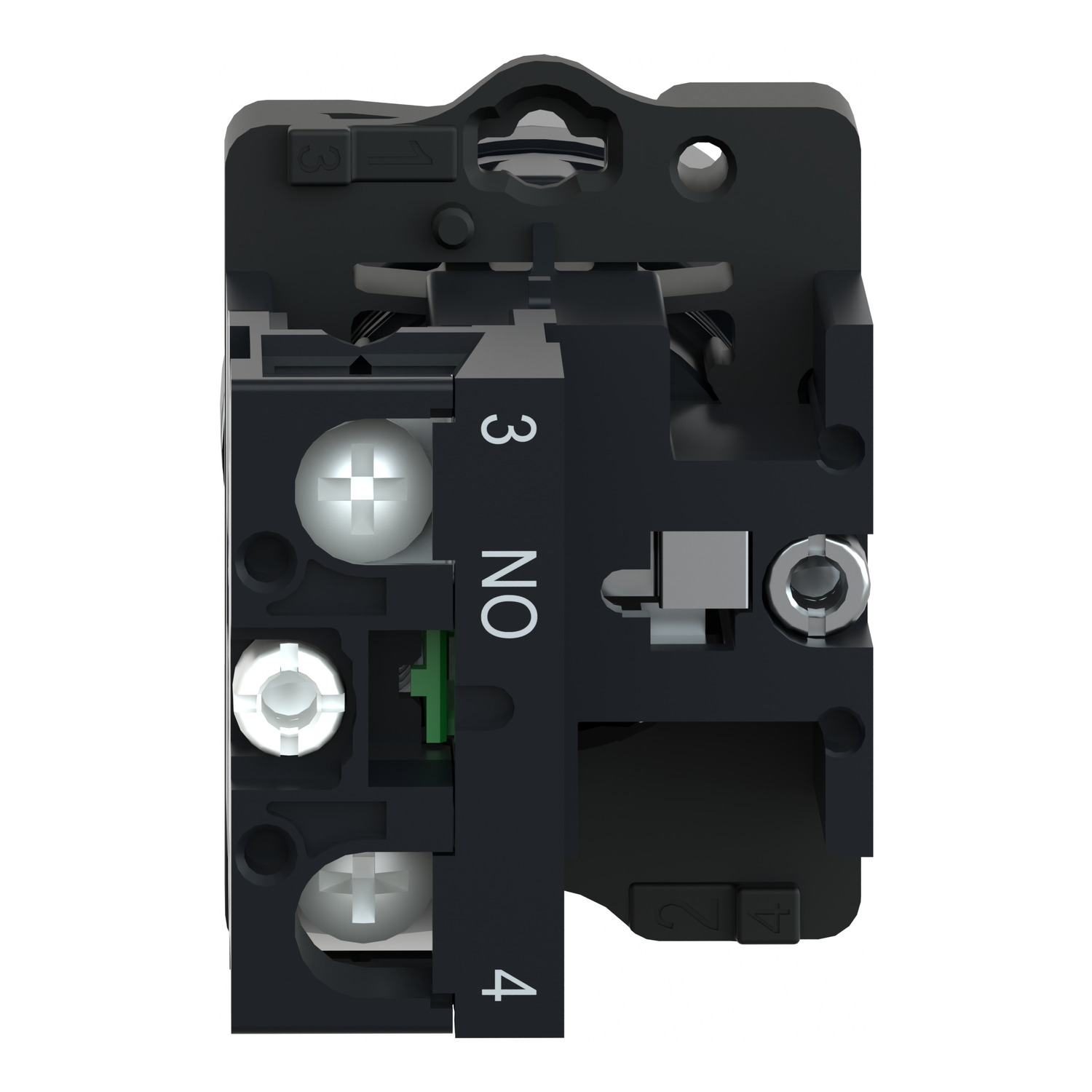

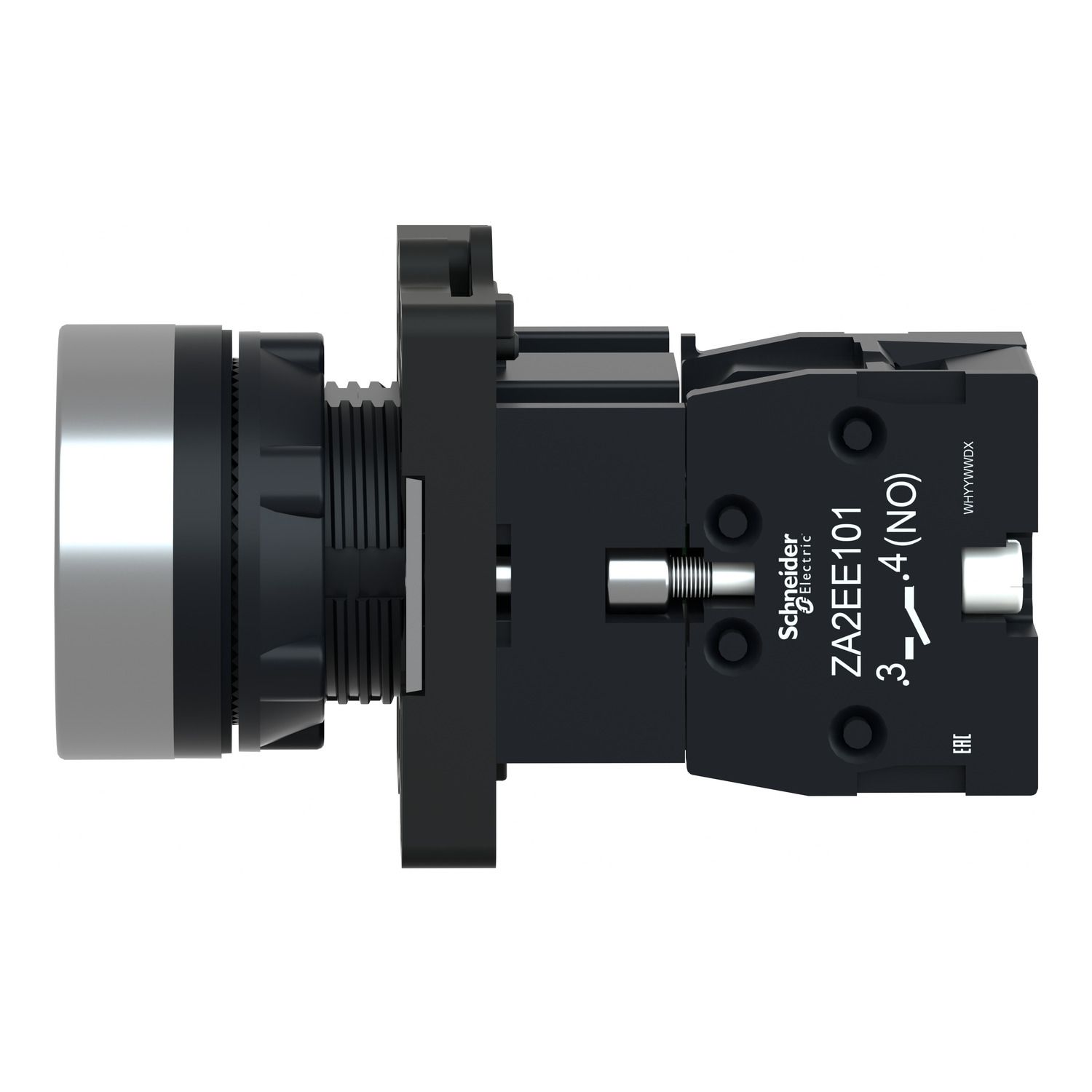

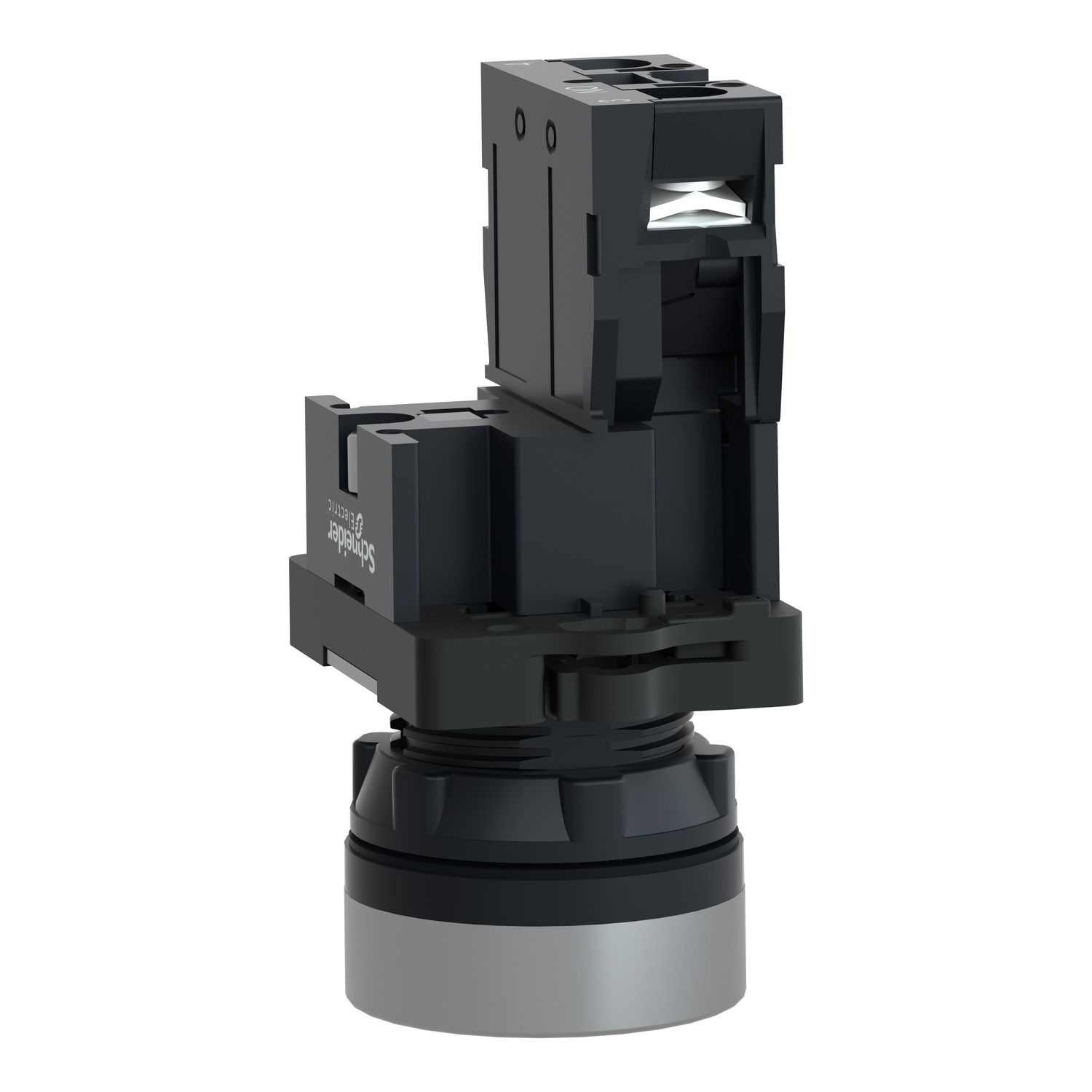

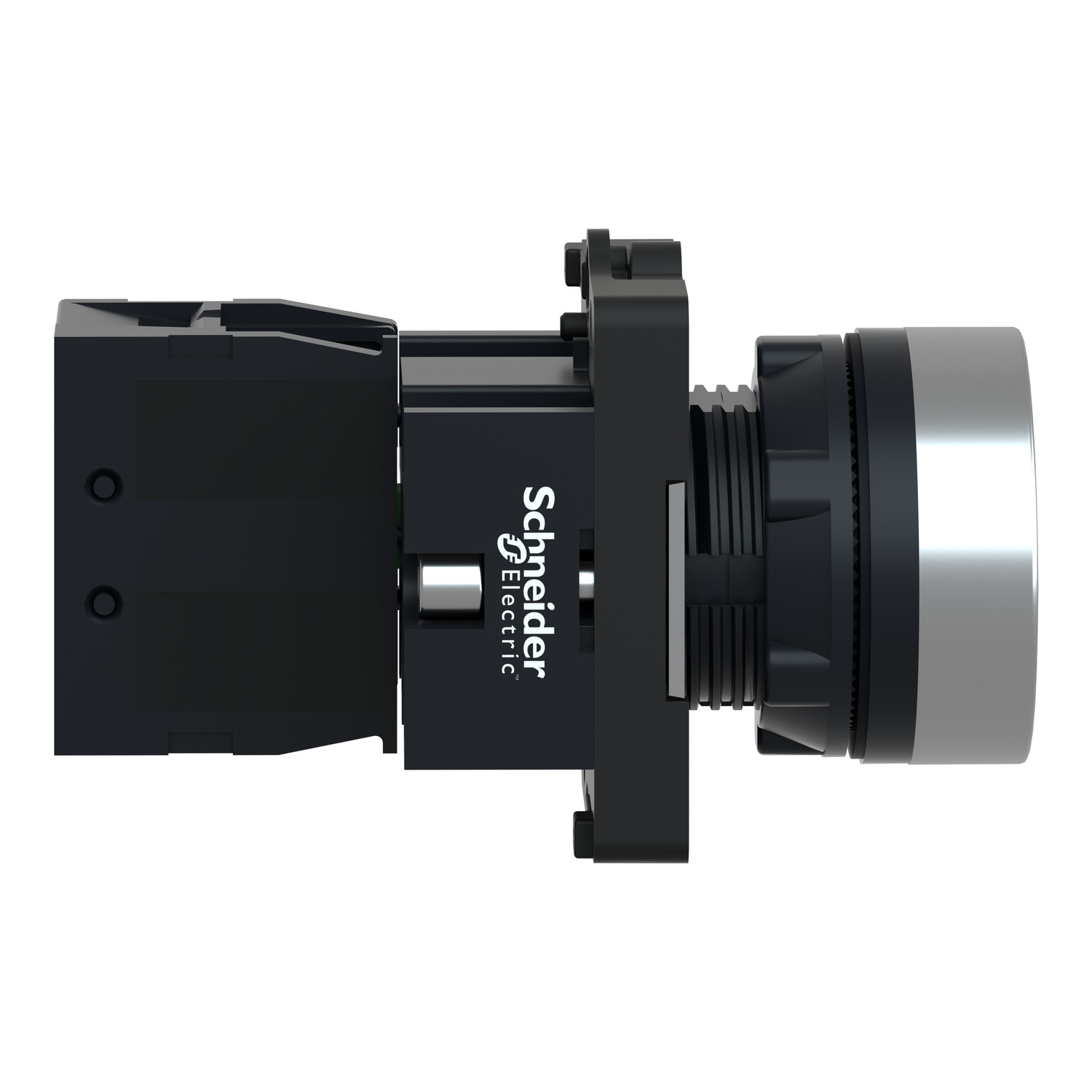

This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular flush yellow pushbutton. This pushbutton operates with a spring return / impulse mechanism. This flush pushbutton provides an ergonomic interface for controlling machines. It has 1 NO contact with slow-break operation. This is a plastic pushbutton with a metallic-look ring design bezel. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XA2 |
| Bezel material | plastic |
| Fixing collar material | plastic |
| Product or component type | complete push-button |
| Range of product | Easy Harmony XA2 |
| Complementary | |
| Protective treatment | TC |
| Tightening torque | 0.8-0.8 N.m |
| Depth | 67.7 mm |
| Width | 30 mm |
| Electrical reliability | λ < 10exp(-8) at 24 V |
| Operating position | any position |
| Type of operator | push-push |
| Compatibility code | XA2E |
| Mechanical durability | 1000000 cycles |
| Operator profile | yellow flush |
| Contact operation | slow-break |
| [Ie] rated operational current | 0.27 A at 250 V, DC-13, Q600, 3 A at 240 V, AC-15, A600 |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| Sale per indivisible quantity | 1 |
| Contacts type and composition | 1 NO |
| Connections - terminals | Faston terminals, connection size: 6.3 mm, screw clamp terminal, >= 1 x 0.5 mm², screw clamp terminal, <= 1 x 2.5 mm², screw clamp terminal, <= 2 x 1.5 mm² |
| Electrical durability | 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 , 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.04 kg |
| Cap/operator or lens colour | yellow |
| Shape of signaling unit head | round |
| [Ith] conventional free air thermal current | 10 A |
| Mounting diameter | 22.5 mm |
| Fixing mode | fixing nut: 2-2.4 N.m |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1-5 mm |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| Height | 42 mm |
| Environment | |
| Overvoltage category | class I conforming to IEC 536 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Vibration resistance | 10 gn (f= 40-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | GB 14048.1, GB 14048.5, IEC 60947-1, IEC 60947-5-1 |
| Ambient air temperature for operation | -25-55 °C |
| IK degree of protection | IK03 conforming to IEC 60529 |
| Product certifications | CE, CCC |
